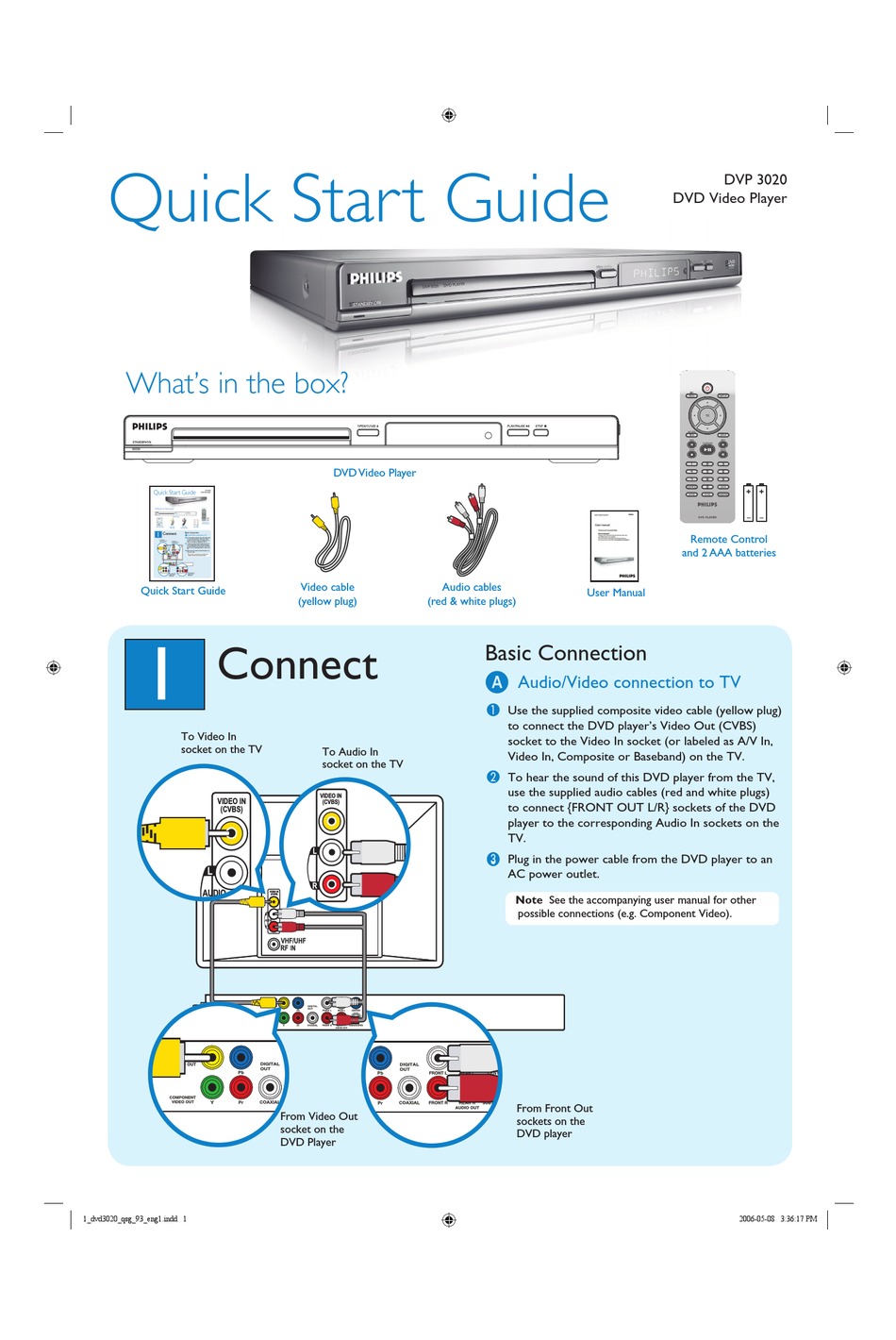

Quick Start Guide
What's in the box?
Quick Start Guide
1
Connect
To Video In
socket on the TV
VIDEO IN
(CVBS)
1_dvd3020_qsg_93_eng1.indd 1
1_dvd3020_qsg_93_eng1.indd 1
DVD Video Player
Video cable
(yellow plug)
(red & white plugs)
To Audio In
socket on the TV
VIDEO IN
(CVBS)
VIDEO IN
(CVBS)
From Video Out
socket on the
DVD Player
Audio cables
User Manual
Basic Connection
A
Audio/Video connection to TV
A
Use the supplied composite video cable (yellow plug)
to connect the DVD player's Video Out (CVBS)
socket to the Video In socket (or labeled as A/V In,
Video In, Composite or Baseband) on the TV.
B
To hear the sound of this DVD player from the TV,
use the supplied audio cables (red and white plugs)
to connect {FRONT OUT L/R} sockets of the DVD
player to the corresponding Audio In sockets on the
TV.
C
Plug in the power cable from the DVD player to an
AC power outlet.
Note See the accompanying user manual for other
possible connections (e.g. Component Video).
From Front Out
sockets on the
DVD player
DVP 3020
DVD Video Player
DVP3020
Remote Control
and 2 AAA batteries
