Summary of Contents for Philips DVP3800/05

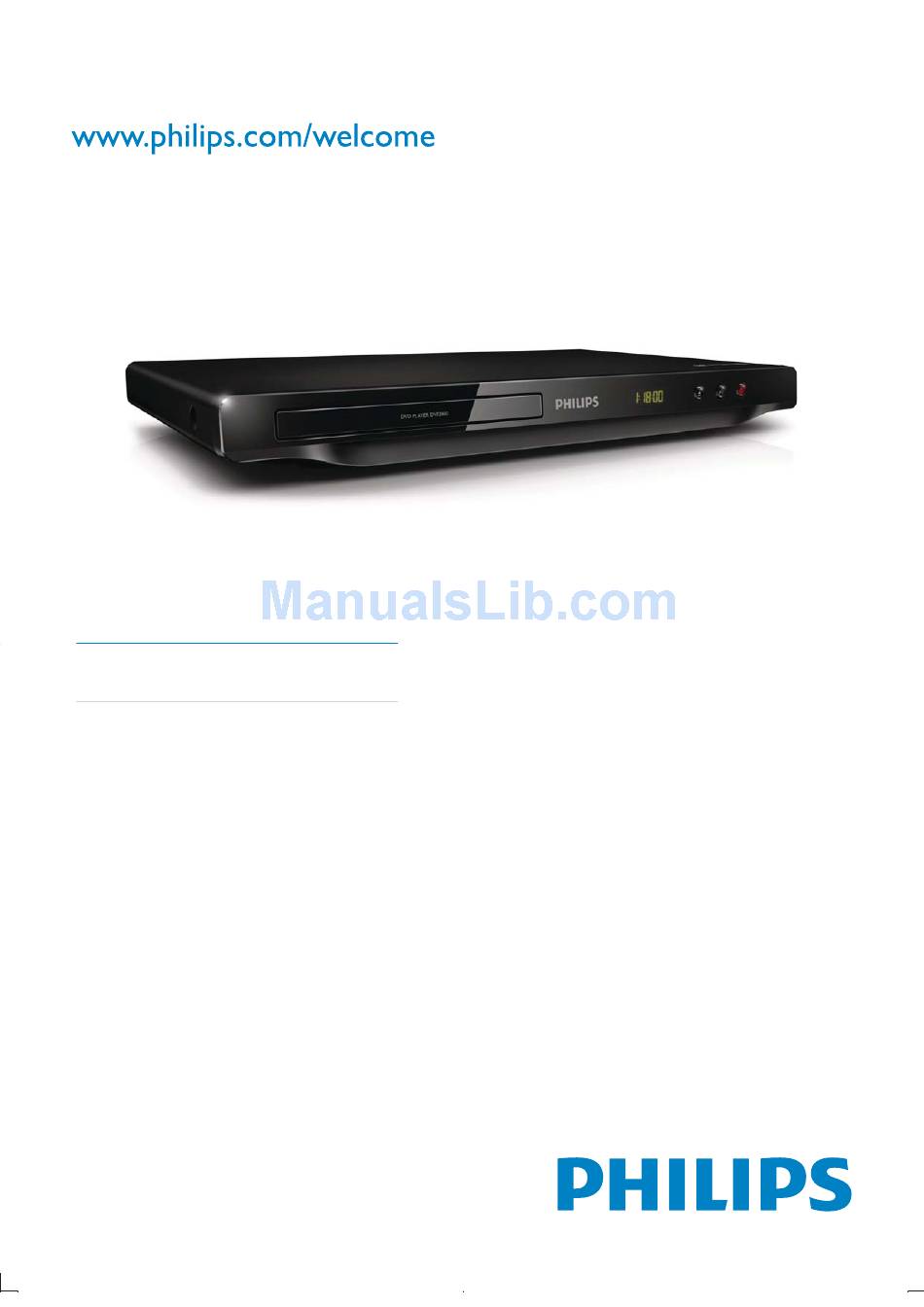

- Page 1 Register your product and get support at DVP3800 User manual...
- Page 2 Please refer to the safety information before using the product. For users in the U.K.: Please follow the instructions below. Important notes for users in the U.K. Mains fuse This information applies only to products with a UK mains plug. This product is fitted with an approved non-molded plug.
-
Page 3: Connect And Play
Register your product and get support at www.philips.com/welcome User manual VIDEO OUT VIDEO OUT TV OUT COAXIAL AUDIO OUT DIO OUT DIO OUT DVP 3800... - Page 4 TV OUT TV OUT VIDEO OUT + AUDIO OUT R VID D EO OU U T R VIDEO OUT SCART VIDEO...
- Page 5 SOURCE...
- Page 6 Disc Setup...
-
Page 7: Table Of Contents
Contents Connect and play ...3 Safety ...8 Control and play ... 9 Photo and music slideshow ... 11 Options ... 12 Setup General setup ...14 Video setup ...15 Audio setup ...15 Preference ...16 Software update ... 18 Troubleshooting ... 19 Specifications ... -
Page 8: Safety
Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the product checked before use. •... -
Page 9: Control And Play
Control and play Note • When “ X” appears, it means that this operation is unavailable for the current media or at the current time. Media Function Stop the play Pause or resume the play Skip to the previous/next title, chapter, track, or file Select an audio language or audio channel... - Page 10 Control and play Media Function Skip to a title or chapter Skip to a track Search backward/forward fast Search forward slowly Search backward slowly Zoom in or out Rotate a photo Switch between Fun Mode (pictures in color) and Simple Mode (pictures in black and white) Note...
-
Page 11: Photo And Music Slideshow
Photo and music slideshow Picture 000001 000002 000001 Press to select , and then press OK. » All supported folders and files are listed. Press to select a music file, and then press OK to start playing. • If the music file is saved in a folder or sub-folder, access its directory first. Press to select a picture file, and then press OK to start the slideshow. -
Page 12: Options
Options During play, press OPTIONS to access the following items. Media Setting item [Info] [PBC] [Aspect ratio] [Volume] [Angle] [Colour] [Photo preview] Function Display the play information. Enable or disable PBC. Select a display ratio of picture on TV. Adjust the volume level. Select an available camera angle. -
Page 13: Setup
Setup • Press to select a menu item or setting option. • Press OK to access the lower-level menu or confirm the selected setting option. • Press BACK to return to the upper-level menu. Note • When a menu item is grayed out, it means that its setting cannot be changed at the current state. Disc Setup Unlock... -
Page 14: General Setup
Setup General setup Disc Lock General OSD Language Sleep Timer Video Auto Standby DivX(R) VOD Code Audio Preference [Disc Lock] - Restrict the play of a disc (maximum 20 discs can be locked). • [Lock] - Lock the current disc. To play or unlock this disc, you must enter the password. •... -
Page 15: Video Setup
Video setup TV System General Aspect Ratio Picture Setting Video Audio Preference [TV System] - Select a TV system that matches your TV. By default, this setting matches common TVs in your country. [Aspect ratio] - Select a display ratio that matches your TV screen. [Picture Setting] - Select a predefined setting for picture color, or customize the setting. -
Page 16: Preference
Setup Note • [LPCM Output] setting is changeable only when [Digital Output] is set as [PCM Only]. • The higher the sampling rate, the better the sound quality. [Volume] - Set the default volume level. [Sound Mode] - Select a preset sound effect. [Night Mode] - Equalize loud sound and soft sound. -
Page 17: Change The Password
Note • To play a DVD disc that has a rating level higher than your setting, enter the password first. (Refer to “Setup” > “General setup” > “Play a locked disc” for details) • The rating levels are country-dependent. To allow all discs to be played, select •... -
Page 18: Software Update
Software update Note • Power supply must not be interrupted during software update. Check the current software version of this player, and then go to the Philips website for information about software update. Check the current software version Press . -
Page 19: Troubleshooting
If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here: Model No. -
Page 20: Specifications
Specifications Note • Specifications are subject to change without notice DVD region code Countries Europe Playable media • Disc • DVD, DVD-Video, VCD, SVCD, Audio CD • DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer), CD-R/-RW (Maximum number of files: 648) • File •... - Page 21 Power • Power supply rating: 240 V~; 50 Hz • Power consumption: < 8 W • Power consumption in standby mode: < 0.3 W Accessories supplied • Remote control and one battery • User Manual Laser specification • Type: Semiconductor laser InGaAIP (DVD), AIGaAs (CD) •...
-
Page 22: Notice
2011 © Koninklijke Philips Electronics N.V. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. -
Page 23: Care For Your Product
• Never remove the player cover. Always contact Philips Customer Support for service or repairs. • Any operation expressly prohibited in this manual, or any adjustments and assembly procedures... -
Page 24: Trademark Notice
Notice Trademark notice ® ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a subsidiary of Rovi ® Corporation. This is an official DivX Certified device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ®... -
Page 25: Language Code
Language code Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian... - Page 26 © 2011 Koninklijke Philips Electronics N.V. All rights reserved. DVP3800_05_UM_V2.0...
