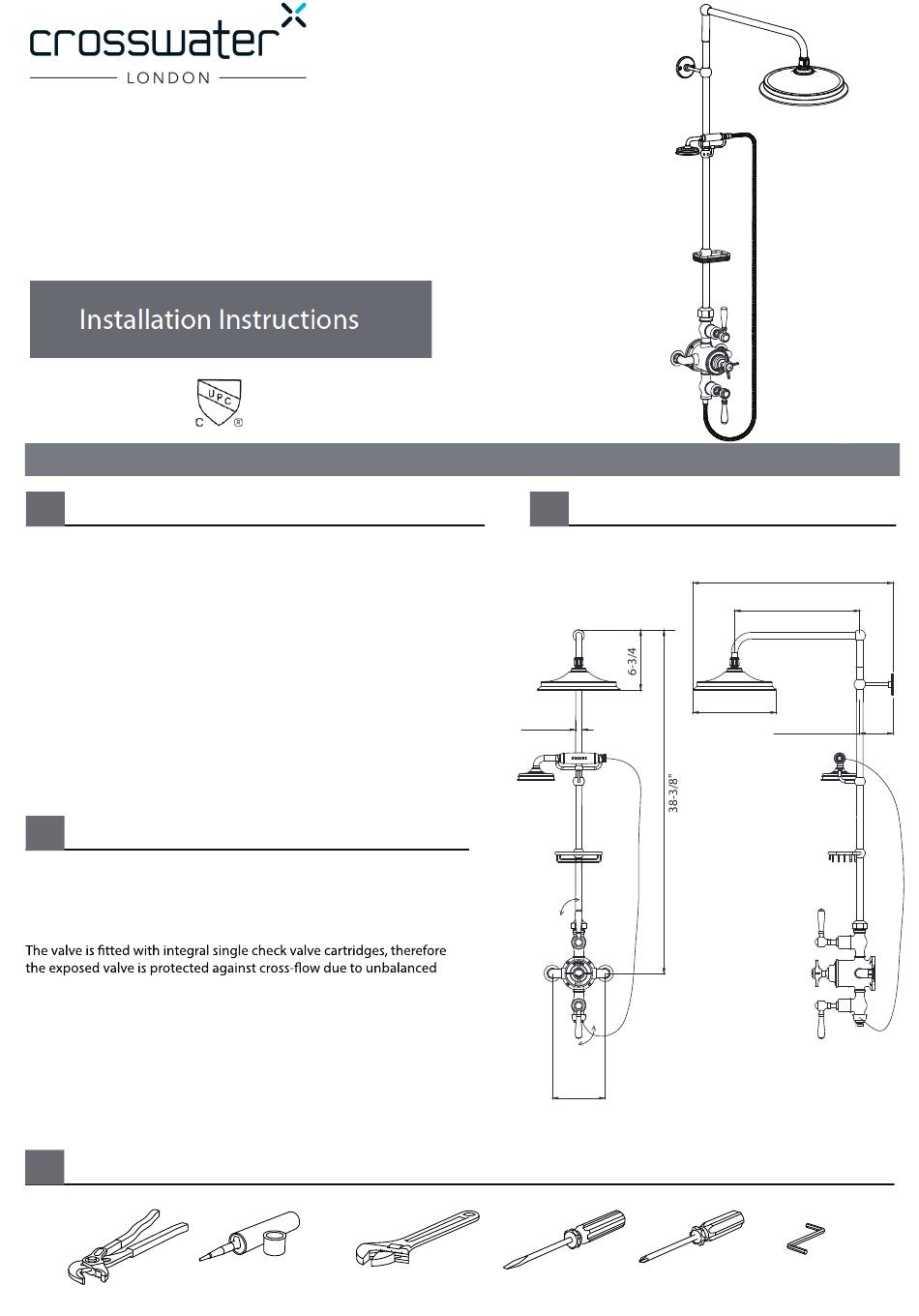

Crosswater Arcade US-H401-ARC Installation Instructions Manual

Arcade Exposed Thermostatic Shower Set
US-H401-ARC

Introduction

This exposed valve is suitable for use with all water systems up to a maximum
operating pressure of 72 psi and static pressure of 144 psi, beyond which
pressure-reducing valves must be installed.
The outlet is controlled by a flow control cartridge, commonly used for a main
shower head.
IMPORTANT: Please read these instructions carefully before beginning
Installation and retain for future reference. These instructions have been
prepared for guidance. Please exercise due care at all times. We do not
accept responsibility for any problems that may occur through incorrect

installation.

Before beginning installation, check to ensure that no damage has occurred
during transport. Note: Damage claims cannot be made during or after
installation

Installation notes

The installation must comply with all plumbing codes including local
codes. This valve is a mixing device and therefore requires the water
supplies to be reasonably balanced, otherwise a pressure-reducing
valve is recommended.
line pressures.
Installing shut-off valves on incoming supply lines is recommended
for ease of maintenance.
IMPORTANT: Turn off the main water supply before connecting
to any existing pipework.
WARNING! Please check for any hidden pipes and cables, electric
or otherwise, before drilling holes in a wall or floor.

Tools required

Channel
locks
Plumbers' putty Adjustable
or caulking wrench

Roughing-in dimensions

Ø 3/4"
OFF
ON
ON
OFF
5-7/8"
Flat head Cross head
screwdriver screwdriver
22-3/8"
14"
Ø 9-1/4"
1-1/8" - 3-3/4 "
Hexagonal
key
