Convenience of watching
...............................................................................
- Watching DVD discs
....................................................................................
- Watching TV via HDD
.................................................................................
- Flextime
...........................................................................................................
- Instant replay/skip
..........................................................................................
- Pause live TV
..................................................................................................
- Easy navigation
...............................................................................................
- The Disc Manager
..........................................................................................
- Time Shift Buffer
............................................................................................
- Simultaneous recording and playback
- Media Browser
...............................................................................................
Convenience of programming
Convenience of recording
..............................................................................
Convenience of editing
...................................................................................
Convenience of archiving
...............................................................................
Important
...........................................................................................................
- Important instructions for the HDD
Trademark and license information
Important information for customers in Great Britain
How to read our user manual
Content of the box
..........................................................................................
- Operating instructions, Quick Start Guide and Guarantee booklet
- DVD-Recorder/Harddisk
.............................................................................
- Remote control and batteries
- Aerial cable
.....................................................................................................
- Scart cable (Euro-AV cable)
........................................................................
- Mains cable
......................................................................................................
- G-LINK transmitter
......................................................................................
The remote control
.........................................................................................
- Remote control buttons
..............................................................................
Front of the device
..........................................................................................
Back of the device
............................................................................................
- Type plate
........................................................................................................
Preparing the remote control for operation
- Using your DVD-Recorder remote control with your TV
Connecting to the TV (standard configuration)
- Connecting the aerial
..................................................................................
- Connecting the scart cable
........................................................................
- Connection with the aerial cable only
Connecting to the TV (alternative configurations)
- Connection via composite video (CVBS) cable
- Connection via a S-Video (Y/C) cable
- Connection via a component video (Y Pb Pr/YUV) cable (no
progressive scan)
............................................................................................
Connecting additional devices to the second scart socket
- Connecting an external receiver
Connecting G-LINK transmitter
Connecting additional devices via aerial cable only
Connecting a video recorder, DVD player.
Connecting a camcorder to the front sockets
- Digital (DV) input socket
...........................................................................
.......................................................
.......................................................................
........................................................
.............................................................
...........................
.......................................................................
....................................................................
...........................................
...............
......................................
....................................................
.................................
....................................
....................................................
...................
..............................................................
.................................................................
................................
.............................................
........................................
- S-video input socket
- Video (CVBS) input socket
1
Connecting audio devices
1
- Connecting to the analog audio sockets
1
- Connecting audio devices to the digital audio sockets
1
Connecting to the mains
1
1
1
1
Initial installation
.............................................................................................
1
1
2
2
2
Setting up the GUIDE Plus+
2
- 'Setup'
.............................................................................................................
2
- Finalise set-up
...............................................................................................
Installing the 'External receiver 1'
- Finalise set up of the external receiver
3
3
4
Allocating a decoder
......................................................................................
4
Sorting TV channels with 'Follow TV'
5
Manual TV channel search
5
Sorting and deleting TV channels manually
..
5
Automatic TV channel search (Autoinstall)
5
Setting the time and date
5
Setting the language
.......................................................................................
5
5
5
5
Using the GUIDE Plus+
- General information
The 'Grid' screen
............................................................................................
The 'Search' screen
........................................................................................
6
The 'Schedule' screen
6
The 'Info' screen
.............................................................................................
8
The 'Editor' screen
.........................................................................................
9
The 'Setup' screen
..........................................................................................
9
Disc's you can use
..........................................................................................
10
- Regional code
...............................................................................................
10
- Cleaning the discs
........................................................................................
11
- General notes on playback
11
- Switch over to the actual TV channel during playback
11
Inserting a disc
................................................................................................
11
Playing a DVD video disc
12
- Regional code
...............................................................................................
12
Playing a DVD+RW/ +R disc
12
Playing an audio CD
.......................................................................................
Playing an MP3 CD
.........................................................................................
12
Playing a (Super) Video CD
14
General
.............................................................................................................
14
Searching on disc [DVD, (S)VCD, CD]
15
Still picture [DVD, (S)VCD, CD]
15
Slow motion [DVD, (S)VCD, CD]
16
Search by time [DVD, (S)VCD]
16
Repeat/Shuffle play [DVD, (S)VCD]
16
...................................................................................
.......................................................................
.............................................................................
................................................
..............................................................................
®
System
........................................................
...............................................................
..................................................
........................................................
............................................................................
..............................................
.............................................
..............................................................................
®
System
...............................................................
....................................................................................
....................................................................................
........................................................................
..............................................................................
.......................................................................
.........................................................................
....................................................
...............................................................
.............................................................
..................................................................
...........................................................
16
16
17
17
.......................
17
18
18
21
21
22
23
25
26
27
28
29
30
31
32
33
33
34
35
36
36
37
37
38
38
38
38
.......................
39
39
39
39
40
40
41
41
42
42
42
42
43
43

Advertisement

Table of Contents
loading

Related Manuals for Philips HDRW720/05

Summary of Contents for Philips HDRW720/05

  • Page 1 Convenience of watching - Watching DVD discs - Watching TV via HDD - Flextime - Instant replay/skip - Pause live TV - Easy navigation - The Disc Manager - Time Shift Buffer - Simultaneous recording and playback - Media Browser Convenience of programming Convenience of recording Convenience of editing...
  • Page 2 - Repeating a passage (A-B) Scan feature [DVD] Camera angle [DVD] Zoom feature [DVD, (S)VCD] Select the audio language [DVD, (S)VCD] Subtitles [DVD] General information Adding a disc to the Disc Manager Removing discs from the Disc Manager Searching for a title in the Disc Manager Searching discs General - The Media Browser...
  • Page 3 General Picture settings Sound settings Language settings Additional settings Disk feature menu Child lock [HDD, DVD, (S)VCD] - Activating/deactivating child lock - Authorising a disc - Locking unlocked discs Parental level control [DVD] - Activating/deactivating parental level control - Changing the country Changing the PIN code Symbols in the menu bar - Menu bar 1...

  • Page 6: Flextime

    This gives you a complete overview of your entire video collection at the touch of a button and an easy access to every recording. Welcome to the growing family of owners of PHILIPS equipment. Thank you for buying a HDRW 720/05. The following pages explain the main features to help you understand how the HDRW 720/05 works.
  • Page 7 The Media Browser provides an overview of all the recordings on the HDD. You can display a list of all recordings according to certain criteria (e.g. recording date, protected,...). You can select recordings in Thanks to the built-in 80GB HDD it is possible to store up to 130 hours of recordings directly in the machine.
  • Page 8 Typ: Semiconductor lasers InGaAlP (DVD), AlGaAs(CD) Wavelength: 660nm (DVD), 780nm (CD) Output power (outside the lens): 20mW (DVD+RW write), 0.8mW (DVD read), 0.3mW (CD read). Beam divergence: 82 degrees (DVD), 54 degrees (CD) AThe device does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
  • Page 9 Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
  • Page 10 The following symbols will facilitate the use of these operating instructions. 1 This number identifies step(s) for carrying out an operation. The circle identifies another possible operating step that is not absolutely necessary. The arrow identifies the reaction of the device. PLAY G (button in combination with a number in a circle) represents a button with reference to the picture of the remote...
  • Page 11 REC/OTR n Record the current TV show on the HDD, mark recordings in the Time Shift Buffer to be stored on HDD. Hold button down to start the recording from now. (Mark the recording from the beginning of the actual position in the Time Shift Buffer).

  • Page 12: The Disc Manager

    SYSTEM MENU Call up/Cancel the system menu. Depending on the operating mode from which you press this button: •) DVD system menu: Press DISC MENU •) HDD system menu: Press TUNER DISC MENU Display the DVD menu or the index screen overview. INFO Display additional information on the screen.
  • Page 13 STANDBY-ON m Switch device off / on. Red light around the disc tray indicates recording on a DVD+RW, DVD+R. OPEN/CLOSE J Open/close the disc tray. GUIDE Call up/Cancel the GUIDE Plus+ ® system When the GUIDE Plus+ ® system is active, this button lights up white.
  • Page 14 4MAINS Connection to the mains supply (230V/50Hz) ANTENNA IN Connection to the aerial. TV OUT Connection of the aerial cable to the TV. EXT2 AUX-I/O Scart connector to connect an additional device (satellite receiver, set-top box, video recorder, camcorder, ...). Input for RGB, S-video signals, input/output for CVBS (video/audio) signals EXT1 TO TV-I/O Scart connector to connect a TV.
  • Page 15 The multicode remote control controls also the main functions of your TV. To do this, you must first enter a code number that corresponds to the brand of your TV. The setting from the factory is for Philips TV-sets (code 000).
  • Page 16 To receive TV programmes you have to connect the DVD-recorder to the aerial or the cable network. 1 Switch off your TV. 2 Remove the aerial cable plug from your TV, and insert it into the ANTENNA IN socket at the back of the DVD recorder. 3 Insert one end of the supplied aerial cable socket at the back of the DVD recorder and the other end into the aerial input socket at the back of the TV.
  • Page 17 This cable, usually with yellow Cinch connectors, transmits a Composite Video signal (FBAS, CVBS). The colour signal and the brightness signal are transmitted on the same cable. In certain circumstances, this can lead to slight problems with the picture, such as 'Moiré' patterns.
  • Page 18 3 Select the ' ' symbol using B or A 4 Select the line ' ' using A confirm with C 5 Select your setting with B or A output (YUV signal) is switched on, S-video (Y/C) and composite video (FBAS/CVBS) signals can not be simultaneously transmitted. The 'RGB' signal is switched off.
  • Page 19 You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the EXT2 AUX-I/O When playback is started on this additional device the DVD recorder automatically connects the EXT2 AUX-I/O EXT1 TO TV-I/O scart socket. You will then see the picture from the additional device on your TV, even if the DVD recorder is switched off.
  • Page 20 The external receiver (satellite receiver, set-top box, cable TV box) is controlled via the DVD recorder with the G-LINK cable This means you can record TV shows that are received only through the external receiver. Connecting the G-LINK cable enables the GUIDE Plus+ show the correct listing.
  • Page 21 You can also connect a video recorder or a DVD player to the EXT2 AUX-I/O input socket. The DVD recorder must be connected EXT1 TO TV-I/O socket. If there is a video recorder in between the picture quality may be poor because of the copy protection system built into the DVD recorder.
  • Page 22 Two analog audio sockets AUDIO OUT L/R left/right) are located at the back of the DVD recorder. These can be used to connect the following: (audio signal output At the back of the DVD recorder there are two digital audio output sockets OPTICAL OUT for a coaxial cable (Cinch cable).

  • Page 23: Important

    Always ensure the local mains voltage matches the voltage range printed on the type plate at the back or bottom of the DVD-recorder. If not, consult your dealer or Philips customer support. 1 Switch on the TV. 2 Insert the supplied mains cable...
  • Page 24 2 Select the desired language for the settings/functions displayed on your TV screen by pressing B or A 3 Confirm with OK 4 Select the desired audio language for DVD playback using or A 5 Confirm with OK 6 Select the desired language for displaying the subtitles from a pre-recorded DVD by pressing B 7 Confirm with OK 8 Select the desired screen format using B...
  • Page 25 B If the aerial (or cable TV, satellite receiver, etc.) is connected to the DVD recorder, press OK 'Autoinstall' starts. ' appears on the display. Wait until all available TV channels have been found. This can take several minutes. When 'Autoinstall' is complete, ' appears on the TV screen along with the number of TV channels found.
  • Page 26 If the GUIDE Plus+ ® system has not been installed yet, the ' screen appears when you press the GUIDE/TV can start the installation. 1 Switch on the TV. If required, select the programme number for the DVD recorder. 2 Press the GUIDE/TV button on the remote control.
  • Page 27 Depending on the country you select, you can also enter letters using B or A 3 Confirm the local post code with OK 4 Press OK to return to the ' External receiver connected: Continue with the section 'Installation of the ' No external receiver connected: Continue with 'Finalise set-up'.

  • Page 28: Aerial Cable

    If you have connected an external receiver (satellite receiver, set-top box, cable TV box), you must also install it in the GUIDE Plus+ system. TV programmes (TV channels) that you can only watch via the receiver can also be displayed in the GUIDE Plus+ programmed for recording.
  • Page 29 A Switch the receiver on and select programme number 02 on the receiver or using its remote control. B Read the information on the screen carefully. Confirm with OK The DVD recorder will now attempt to use the G-Link connection on the external receiver to select a different programme number (e.g.12).
  • Page 30 1 Tune your external receiver to the TV channel which transmits the GUIDE Plus+ ® data. If this TV channel is available on the internal tuner of the DVD-recorder, select the TV channel on the DVD-recorder using CHANNEL q , CHANNEL r 2 If you did not find your country in this list, no TV channel will provide the GUIDE Plus+ ®...

  • Page 31: The Remote Control

    Some TV channels send coded TV signals that can only be viewed properly with a purchased or rented decoder. You can connect such a decoder (descrambler) to your DVD recorder. The following function automatically activates the connected decoder for the TV channel you want to watch.
  • Page 32 This function changes the order of the TV channels stored in your DVD recorder to match the order on the TV. This only works if the DVD recorder ( EXT1 TO TV-I/O and the TV •) Switch on the TV, and if necessary, select the programme number for the DVD recorder.
  • Page 33 In some cases, not all of the available TV channels may have been found and stored during initial installation. In this case, you will need to search for and store the missing or coded TV channels manually. •) Switch on the TV, and if necessary, select the programme number for the DVD recorder.
  • Page 34 With this function you can rearrange the TV channels already stored or to delete TV channels you don't want or those with poor reception. •) The TV is switched on, and if necessary, the programme number for the DVD recorder has been selected. •) the DVD recorder is switched on.
  • Page 35 If the channel assignments of your cable or satellite TV provider change or if you are reinstalling the DVD recorder, e.g. after moving house, you can start this procedure again. This will replace the stored TV channels with the new ones. •) Switch on the TV, and if necessary, select the programme number for the DVD recorder.
  • Page 36 If the display shows an incorrect time or ' be set manually. 1 Press the BROWSER HDD button and then the SYSTEM MENU button on the remote control. The 'SYSTEM MENU' appears. 2 Select ' ' using B 3 Press C to select ' 4 Select the line ' ' using B...
  • Page 37 For the basic setting of DVD playback, you can select the language for the subtitles and the audio language. Please note that with some DVDs the audio language and/or subtitle language can be changed only via the DVD menu. For bilingual shows, you can also select the sound channel of the TV station via the internal tuner ( TUNER playback.
  • Page 38 For the GUIDE Plus+ ® system to operate correctly, it is necessary for the DVD recorder to collect the necessary data. The DVD recorder may take up to 24 hours to do this. •) All the TV channels must already have been installed. •) The TV channel that transmits the GUIDE Plus+ must be installed.
  • Page 39 to view the main menu. Press A Press GUIDE/TV the menu line. You can select one of the following functions with or C . Press at the desired function the B confirmation. Standard GUIDE Plus+ ® system screen (programme guide) TV shows sorted by category (movies, sport, etc.) Scheduled (pre-programmed) recordings Additional special functions in the GUIDE Plus+...
  • Page 40 If you press the button N or O forward or back a day. This menu lets you access show listings organised by category. This is an even easier way of searching the show you want to watch. Make your selection from a general category (Movies, Sport, Children's, Series, etc.) and a detailed category (Adventure, Comedy, Drama, etc.) -Movies -Sport,...
  • Page 41 This menu displays the shows that are set to record. You can clear recordings or make changes using the coloured function buttons. Moreover, you can manually program recordings. This screen can be divided in subcategories. These depend on the information provided by the GUIDE Plus+ categories available, no data has been provided yet.
  • Page 42 Here you can allocate the programme numbers to the corresponding TV channels and switch them on/off for the programme listings (' screen). Moreover, you can define the use of the TV channels on the external receiver. 1 Press B 2 Select the TV channel you want to change using B Use the D and C buttons to switch between tiles.
  • Page 43 DVD+RW (Digital Versatile Disc + rewriteable) DVD+R (Digital Versatile Disc + recordable) This disc can also be not finalised. DVD Video (Digital Versatile Disc) DVD-R(DVD-Recordable) These discs can only be played back if the recording was made in video mode and the recording was finalised. DVD-RW (DVD-Rewritable) These discs can only be played back if the recording was made in video mode and the recording was finalised.
  • Page 44 As soon as you turn on the DVD recorder, the currently selected TV channel on the DVD-Recorder is recorded in a temporary storage (Time Shift Buffer). Recordings in the Time Shift Buffer will be automatically deleted e.g. after 3 hours if the period of the Time Shift Buffer is set to 3 hours (factory setting).
  • Page 45 1 If the disc is write-protected or a finalised DVD+R disc, playback starts automatically. 2 If playback does not start automatically, use the B button to select the title you want to play on the index screen. You can also use the DVD recorder to play audio CDs If the TV is on, the audio CD screen appears automatically.

  • Page 46: Remote Control Buttons

    MP3 (MPEG1 Audio Layer-3) files are highly compressed music files. Using this technology the data volume can be compressed by a factor of 10. This means it is possible to record 10 hours of music in CD quality on a single CD-ROM. File system: ISO9660 Directory structure: maximum of 8 levels Formats: *.mp3...
  • Page 47 DVD's are divided in titles and chapters. During playback, press O to go to the next title. If there are several chapters within a title, the next chapter. Press N to return to the start of the current title/chapter. You can search the disc for a recording at 4x, 8x or 32x playback speed.
  • Page 48 Using this feature you can select where playback should start (select elapsed time). 1 During playback press SYSTEM MENU control. The menu bar will appear at the top of the screen. 2 Select the ' ' symbol using C or D Playback is stopped and a box appears on the screen showing the elapsed time.
  • Page 49 If a DVD contains scenes that have been shot from different camera angles you can select these camera angles for playback. 1 During playback, press PAUSE 9 You will see a still picture. 2 Press SYSTEM MENU and select the ' The Zoom feature allows you to enlarge the video image and pan through the enlarged image.
  • Page 50 Many pre-recorded DVD discs have more than one subtitle language. The language initially selected for playback will be the one you selected when you first set up the DVD recorder. However you can change the subtitle language of the inserted disc at any time. You can change the subtitle language either using the menu of the inserted disc ( DISC MENU button) or the menu bar ( SYSTEM...
  • Page 51 You can only add DVD+RW or DVD+R discs to the Disc Manager since other discs do not hold any information on the titles or lengths of the recordings. These discs have to be at least once recorded in the DVD-Recorder. A table of content have to be available. DVD+R discs can also be finalised.
  • Page 52 2 Press the DISC MANAGER button on the remote control. 3 Select ' ' using A with C 4 Confirm with OK The disc number will be added to the Disc Manager. The disc number is then displayed and the disc tray opens automatically.
  • Page 53 This function can be used to quickly and easily find and play back a recording saved in the Disc Manager. 1 Press DISC MANAGER on the remote control. 2 Select ' ' using B or A A list of the titles of all recordings stored in the Disc Manager (DM) will appear on the TV screen.
  • Page 54 Each recording stored on the HDD is displayed in the media browser with a corresponding index picture. To change the title settings, read the chapter 'Edit title HDD'. Please observe that Titles in the Time Shift Buffer marked for storage on the HDD (with REC/OTR n button), can only be locked or deleted.
  • Page 55 Your may choose only titles that meet certain criteria for the overview. This order will remain until you exit the media browser. 1 Press BROWSER HDD on the remote control. The Media Browser appears. 2 Press D The 'Order Menu' appears. 3 Select one of the following options using B confirm with OK Alphabetic order...
  • Page 56 As a result of the high data transfer speed of the HDD, it is possible to play back recordings from the Time Shift Buffer while the recording is still in process. Therefore, you can jump back to the currently selected TV programme using JUMP BACK and watch a scene again.
  • Page 57 REC/OTR n - To start a recording that will be stored on the HDD. : If no data were available from the GUIDE Plus+ ® system, the recording will stop automatically after 30 minutes (OTR function). To make longer recordings, you have to press REC/OTR n this also on an information on the screen.
  • Page 58 As soon as you turn on the DVD recorder, the currently selected TV channel on the DVD-Recorder is recorded in a temporary storage (Time Shift Buffer). Recordings in the Time Shift Buffer will be automatically deleted e.g. after 3 hours if the period of the Time Shift Buffer is set to 3 hours (factory setting).
  • Page 59 To erase the Time Shift buffer choose from the following: Erase the Time Shift Buffer manually (' 'function( SYSTEM MENU 'menu)) Turn off the DVD recorder with STANDBY m The GUIDE Plus+ ® system provides the DVD recorder with data on the start and end time of TV shows.
  • Page 60 Recordings will be automatically ended if data from the GUIDE Plus+ is available or if you entered the end while starting a recording (30-minute steps). 1 If necessary, switch the TV to the programme number (input socket) of the DVD recorder. 2 Press STOP h A message appears on the screen, asking whether you really want to end the recording.
  • Page 61 3 The following options are available: - Press REC/OTR n to select the entire title. The colour changes to red. - Search for the desired end using D - Hold down the red button Red marked recording changes to its original colour from the current position to the end of the title.
  • Page 62 PAUSE 9 The recording will be paused. If you press the button again, the recording will resume. A chapter marker is inserted. STOP h The recording will be interrupted. You can start a new recording by pressing REC/OTR n A copy protection system built into your DVD-Recorder prevents copying from pre-recorded DVDs or other copy protected material.
  • Page 63 Use this function to start recording a show you just watch on the TV. If you start a recording while the TV channel currently selected on the TV will be compared with the TV channels stored in the DVD recorder via the scart cable. If the TV channel is found, recording will start.
  • Page 64 With this function the recording on the DVD-Recorder can be controlled via the scart socket. You can use this function if you have a satellite receiver that can control other devices via a scart cable and has a programming function (timer).
  • Page 65 DVD player, it must be finalised in the DVD recorder. This Philips DVD recorder can play back pre-recorded DVDs and CDs. DVDs recorded using this DVD recorder can be played back on current and future DVD players. DVD+R discs must be finalised to play...
  • Page 66 2.4x 4,8x 7,2x 9,6x 14,4x 19,2x Your machine allows high-speed copying from the HDD to an optical disc (DVD+RW, DVD+R). You can choose a title or titles from the HDD that you want to transfer to a DVD+RW, DVD+R. The copying process is done at a higher speed than the recording.
  • Page 67 If recordings were stored (archived) on a DVD+R you have to finalise it to make play back in a DVD-Player possible. 1 Press DISC MENU and then STOP h title. 2 Press A to go to the 'disc info screen'. To prevent an accidental erasing of important recordings, you can protect the entire disc.
  • Page 68 Use 'Programming a recording (TIMER)' to automatically start and stop a recording at a later date. The DVD recorder will switch to the right programme number and begin recording at the correct time. On this DVD recorder you can pre-programme up to 12 recordings within a period of one month.
  • Page 69 The GUIDE Plus+ ® System has made it even easier to programme recordings. All you have to do is select the show you want to record from a channel listing. •) Switch on the TV, and if necessary, select the programme number for the DVD recorder.
  • Page 70 Thanks to this programming system, you no longer need to tediously enter the date, programme number, start and finish times. All the information needed by the DVD recorder for programming is contained in the PlusCode programming number. This 9-digit PlusCode number is found in most TV listing magazines.
  • Page 71 •) Switch on the TV, and if necessary, select the programme number for the DVD recorder. •) Switch on the DVD recorder. 1 Press TIMER s on the remote control. The ' ' screen appears. 2 Press the green button The current date will be displayed.
  • Page 72 •) Switch on the TV, and if necessary, select the programme number for the DVD recorder. •) Switch on the DVD recorder. 1 Press TIMER s on the remote control while the DVD recorder is switched on. The ' ' screen will appear. 2 Use B or A to select the programmed recording you...
  • Page 73 Each recording stored on the HDD is displayed in the media browser with an index picture. You can remove titles/recordings from the HDD to use the capacity from the HDD for new recordings. Title editing includes: - change the name of a recording (title) - delete a recording - archive a recording - lock (child lock) a recording...
  • Page 74 Use this function to adapt the title (recording) to your personal preferences. 1 Press BROWSER HDD on the remote control. The Media Browser appears. 2 Select the title whose settings you want to change with B Press EDIT 3 Select one of the displayed functions with B confirm with C to proceed with the changes.
  • Page 75 From the GUIDE Plus+ ® data the title (name) of a TV show will be taken automatically (e.g. 'ROCKY'). Otherwise, only the programme number (programme name) and the time will be stored as the name of the recording. The name of the recording can only be changed after the recording has finished.
  • Page 76 You can divide a title in several parts (titles) as large as you like. Each of these parts (titles) is designated by a separate index picture. You can also use this function to separate and delete an undesired end of the recording (commercial). You cannot undo this division! 1 Press BROWSER HDD on the remote control.
  • Page 77 To find special scenes in one title faster, you can insert chapter markers. These markers can also be deleted. 1 Press BROWSER HDD on the remote control. The 'Media Browser' appears on the screen. 2 Select the title you want to modify using B By default, all chapters are visible.
  • Page 78 1 Press BROWSER HDD on the remote control. The 'Media Browser' appears on the screen. 2 Select the title you want to edit using B 3 Press EDIT on the remote control. The title edit menu appears on the screen. 4 Select ' ' with B and confirm with C...
  • Page 79 When a recording is made to disc, the following additional information is also stored at the beginning of the recording: •) Name of the recording If a name has not been assigned to the TV channel, only the programme number and time are stored as the name •) Length of the recording •) Record type (Quality) •) Date of the recording...
  • Page 80 During recording, you can set or delete chapter markers within a title. The maximum number of chapters within a title is 99, on a disc 255. (spreaded over the whole disc). If one of these limits is reached the following message will appear on the screen: ' need to delete some markers before you can insert new ones or make recordings.
  • Page 81 PAUSE 9 7 Press T/C twice to change the chapter number 'C'. 8 Select the previous chapter with B the next chapter (end of the chapter is also the beginning of the next chapter). Within a title you can delete either all markers or individual markers. 1 While the relevant chapter is playing, press EDIT remote control.
  • Page 82 Normally the picture from the beginning of a recording is used as the index picture. You can however choose any picture from the recording as the index picture. 1 During playback, search for location of the new index picture. Press the PAUSE 9 button.
  • Page 83 1 If required, press the STOP h button to interrupt playback. 2 Using A or B select the title whose name you want to edit and confirm with C The menu for editing names appears. 3 Select ' ' using A or B 4 Using C or D...
  • Page 84 You can erase specific recordings from a disc. Please note: If there is an ' ' between titles, this space can not be used from this DVD-Recorder. Each recording from the HDD to a DVD+RW, DVD+R (archiving) will be added at the end of existing recordings 1 Press the STOP h button or during playback press DISC MENU...
  • Page 85 This screen appears the first title and contains general information about the current disc. You can: •) change the name of the disc •) activate or deactivate write protection on the disc •) Finish editing (make edits DVD compatible) •) finalise a DVD+R •) delete a DVD+RW To get to this display, proceed as follows: 1 Press DISC MENU...
  • Page 86 If one or more titles have been edited on a DVD+RW, a DVD player may still display the original titles (e.g. hidden scenes are still visible). You can prepare your DVD+RW disc in such a way that a DVD player will be able to play the edited version (hidden scenes are hidden).
  • Page 87 The following structure shows the menus which can be called up using DISC MENU and then SYSTEM MENU ' using D . Then you can select the different menus using B , A . Factory (default) settings are underlined. For Details Select the symbol ' refer to 'User Preferences/Settings I'.
  • Page 88 The following structure shows the menus which can be called up using the TUNER and then the SYSTEM MENU button. For details refer to 'USer Prefernce/Settings II. The following pictures shows the menus which can be called up using GUIDE/TV Press the A and navigate with C , D trough the different screens.
  • Page 89 This section describes how you can adjust the functions of the HDD to your personal preferences. When you press BROWSER HDD and then SYSTEM MENU , a so-called puck ' ' appears on a line. If there are further selection options within a line, an arrow e.g.: ' appear in the respective segments e.g.: ' '.
  • Page 90 In this menu, you can choose functions for the playback of recordings (titles) on the HDD: Selection of the language for the TV show currently selected on the DVD recorder. 'Lang I' or 'Lang II' in the display also indicates whether a TV show is broadcast in two languages.
  • Page 91 (M2...2 hours, M2x...2.5 hours, ...M8...8 hours). If the recording on the hard disk is longer, you must use the function 'Dividing Titles' and store the recording on two DVD+RW, DVD+Rs. High Quality (high recording quality) offers the best picture quality and a recording time of: 1 hour.
  • Page 92 Here you can enter a time (one to five minutes) when a programmed recording (Timer) should start earlier and end later. This could be necessary if the information from the GUIDE Plus+ start and stop time always differ from the actual start and stop time (e.g.
  • Page 93 This section describes how you can make additional personal settings. The symbols have the following meaning: You can select the following functions in this menu: •) Switch on the TV, and if necessary, select the programme number for the DVD recorder. •) Switch on the DVD recorder.
  • Page 94 Since RGB and S-VIDEO signals sometimes use the same connections on a scart cable, the two signals cannot be transmitted simultaneously. With these settings, you can decide whether RGB or S-VIDEO signals are to be transmitted. This setting affects only the scart sockets of the DVD recorder ( EXT1 TO TV-I/O output socket and EXT2 AUX-I/O...
  • Page 95 You can select the following settings in this menu: You can select the following functions in this menu: During play back from a disc, information of the current operating status (counter, playback) will be shown on the TV screen. You can switch off the information about the operating status so that the on-screen display is not recorded when making recordings on additional devices.
  • Page 96 In this menu, you can make changes that relate to the disc: Please read the next chapter 'Access control (child lock)'. If playback of a pre-recorded DVD video disc or video CD is interrupted (using STOP h or OPEN/CLOSE J will resume where it stopped after you reinsert the disc.
  • Page 97 This feature enables titles on the HDD or complete discs to be locked for children. When Child Lock is on, a 4-digit code (PIN) needs to be entered before the title from the HDD or the complete disc can be played. You can also decide whether the inserted disc should always be played or should be played only once, despite the child lock.
  • Page 98 Films on pre-recorded DVD discs may contain scenes not suitable for children. Therefore, some discs may contain 'Parental Control' rating information that applies to the entire disc or to certain scenes on the disc. The appropriate scenes have filter values that reach from 1-8. If such a scene is detected during playback, the filter value set on the DVD recorder is compared to the scene.
  • Page 99 •) Switch on the TV, and if necessary, select the programme number for the DVD recorder. •) Switch on the DVD recorder. 1 Press the DISC MENU and then the SYSTEM MENU button on the remote control. The menubar appears. 2 Select the ' ' icon using D or C...
  • Page 100 Press DISC MENU and then SYSTEM MENU menu bar. If a disc is played back, you can open the menubar with SYSTEM MENU Use D and C to select the relevant function. Use B to confirm the function and go either to another menu or execute the function directly.
  • Page 101 During playback of a disc, the status field shows the current operating mode (status) of the DVD recorder and the type of disc inserted. This display can be switched off. If you call up the Media Browser with the BROWSER button, following symbols can appear in the infobar at the top of the screen: ' This title was marked in the Time Shift Buffer for the storage on...
  • Page 102 These symbols can light up on your DVD recorder display: Multi-function display/text line •) Clock. •) Disc/title playing time •) Title name. •) Display of the programme number of the TV channel/playing time/channel name/function. •) Display of information and alerts. •) Display of the title from the actual recording.
  • Page 103 The maximum number of chapters within a title/or the disc has been reached. The maximum number of chapters is: DVD+RW, DVD+R: within a title 99, on the disc 255 (spreaded over the whole disc). HDD: within a title 500, on the HDD 1000 (spreaded over the whole HDD).

  • Page 104: Type Plate

    PROBLEM/HINTS SOLUTION Please read paragraph 'Initial Installation' in the chapter 'Installing your DVD Recorder'. If you have any problems using this DVD recorder, the reason may be one of the following. You can also call the The telephone numbers can be found on the back of this instruction manual. You can also visit our Have the model number (MODEL NO) and the production number (PROD.NO) of your recorder ready.
  • Page 105 PROBLEM/HINTS SOLUTION BROWSER HDD...
  • Page 106 PROBLEM/HINTS GUIDE/TV SOLUTION Press GUIDE/TV Press A ' with C Select ' Select the TV channel using B Press C to go to the right tile. In case you can receive the selected channel only via an external receiver, press the red button to select the corresponding source.
  • Page 107 PROBLEM/HINTS SOLUTION There is a risk that you can no longer play the disc on other DVD players after this procedure. Therefore, apply this function with particular care. STANDBY m Open the disc tray with OPEN/CLOSE J Hold down the number button 2 on the remote control until the tray closes. The disc is modified.
  • Page 108 PROBLEM/HINTS SOLUTION EXT2 AUX-I/O Insert the DVD+RW you want to prepare. Press DISC MENU to call up the index screen. Select the first title using A or the STOP h Press A Press C and select ' Press OK to start the process. When the process is complete, the index screen appears.
  • Page 109 PROBLEM/HINTS SOLUTION First press DISC MENU then SYSTEM MENU ' using D Select the symbol ' , select ' with C ' using C Confirm the line ' remote control. The PIN code is reset to '0000'. End with SYSTEM MENU )' using B and confirm and press 4 times STOP h...
  • Page 110 Also known as 'scenes', a DVD movie can be broken up into sections much like the chapters of a book, that can be accessed quickly and easily via the DVD menu or remote control. is the highest quality picture transmission option. This is achieved by dividing the video signal into a luminance signal (Y) and two colour difference signals - red minus luminance (V) and blue minus luminance (U).
  • Page 112 Colortyme 004, 006, 114, 130, 134, Action Admiral 093, 134, 209, 262, 306, Condor Aiko 013, 246, 248, 250, 255, 266 Contec Akai 002, 113, 114, 140, 216, 246, 248, 250, 255, 266, 285, 292, Contec Cony 305, 324, 332 Contec/Cony Akura 217, 222, 246, 250, 266...
  • Page 113 306, 308, 311, 313, 324, 325 MGA 004, 005, 006, 015, 047, 114, Minerva 208, 240, 242, 254, 256, 264, 311, 324, 325 Philips 000, 003, 004, 006, 008, 009, Minoka 234, 250 Mission Mitsubishi 004, 005, 006, 015, 047,...
  • Page 114 279, 283, 285, 287, 292, Vortec 309, 313, 324, 330, 332 Voxson Univox Wards Video Concepts VideoSystem Vidikron Vision 209, 250, 256, 306 Watson 250, 266, 288, 289 Watt Radio Wega 001, 004, 005, 006, 015, Weltblick 016, 023, 032, 037, 041, White Westinghouse113, 120, 144, 042, 045, 049, 051, 111, 113, 120, 122, 123, 131,...
  • Page 115 Hard Disc recording: 80 Gb HDD Playback: PAL/NTSC Recording: PAL/NTSC Internal tuner: PAL/SECAM Playback Recording DVD+RW • • DVD+R • • DVD-R/-RW, video mode • DVD-Video • Video CD, Super VCD • Audio CD • MP3 CD • CD-R/RW • Digital compression DVD, SVCD: MPEG2 VCD: MPEG1...
  • Page 116 Sandstuveien 70, Philips Austria GmbH PO Box 1, Manglerud Triesterstrasse 64 N-0612 Oslo 1101 Wien Phone: 2274 8250 Tel: 0810 00 12 03 Sinikalliontie 3, Alexanderstrasse 1 02630 Espo 20099 Hamburg Helsinki Tel: 0180-535 6767 puh. (09) 6158 0250 Kollbygatan 7,...

  • Page 117: Setup

    We would like to inform you that the data from the currently Deutschland Eurosport Österreich Eurosport Schweiz (Deutsch) Eurosport United Kingdom France Canal+ España Tele 5 Nederland Music Factory (TMF) / Eurosport - Eindhoven, Rotterdam, Amsterdam Music Factory (TMF) België (Flemish) Music Factory (TMF) This service will soon be available in Italy and the rest of Belgium.

This manual is also suitable for:

Hdrw 720/05

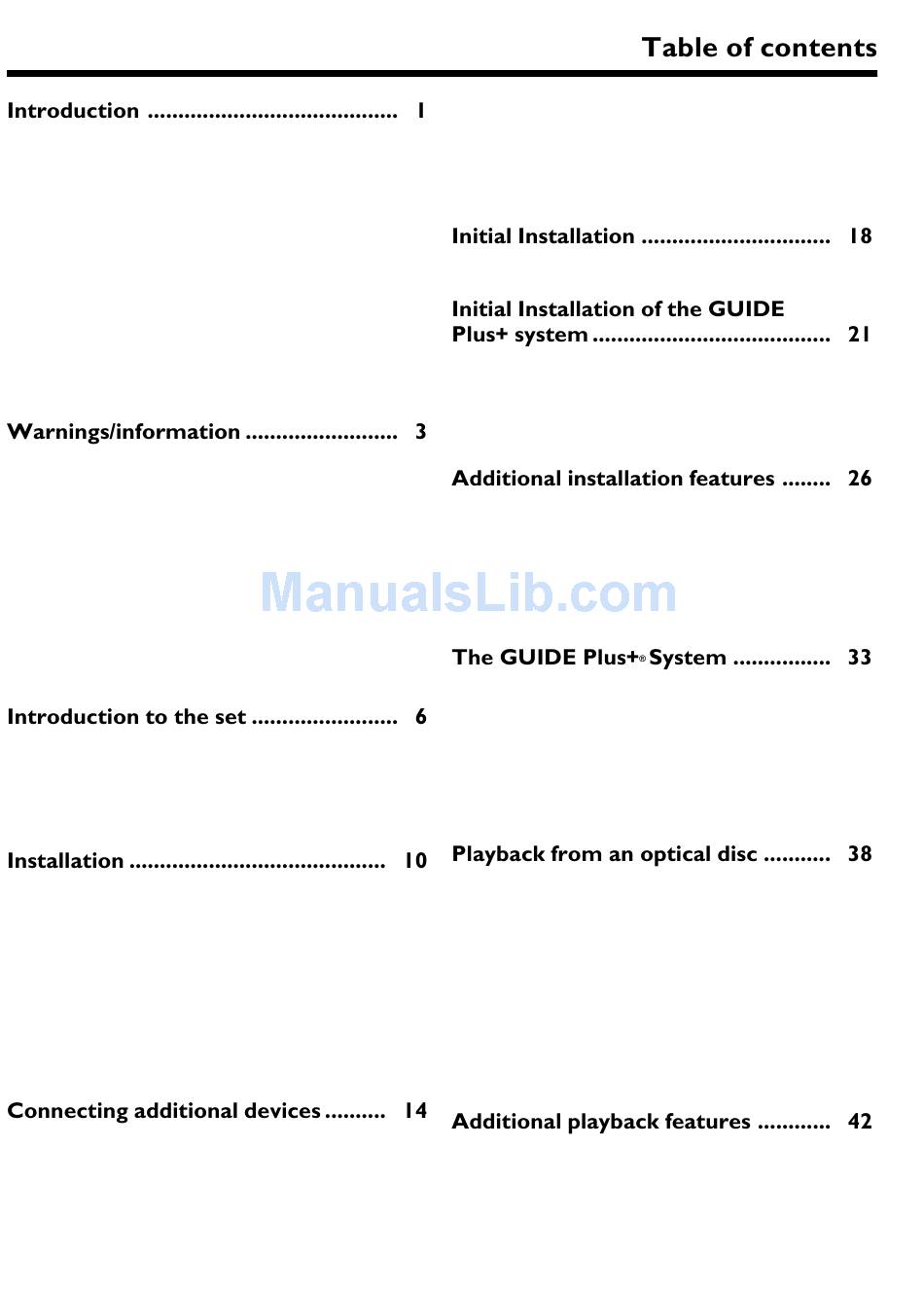

Table of Contents
