Philips LX8000SA Quick Use Manual

Quick Use
Quick Use
Guide
Guide

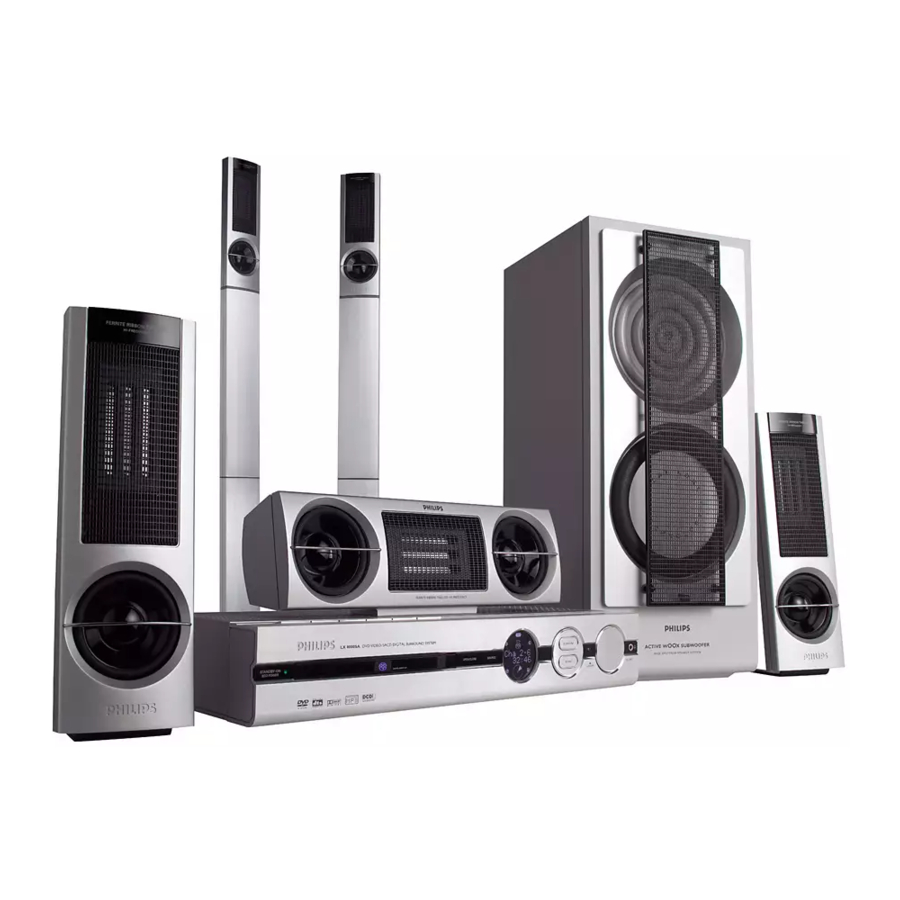

T o connect your LX8000 Home
Cinema Surround Receiver:
1
SPEAKER CONNECTIONS
a. • Connect the Front Right (+,-) speaker wires to
the FR (Red +,-) speaker terminals on the Receiver.
• Connect the Front Left (+,-) speaker wires to the
FL (White +,-) speaker terminals.
• Connect the Center speaker wires to the C (Green
+,-) speaker terminals.
b. • Connect the Surround Right (rear speaker) wires to
the SR (Gray +,- ) speaker terminals.
• Connect the Surround Left (rear speaker) wires to
the SL (Blue +,- ) speaker terminals.
c. • Connect the Subwoofer speaker AUDIO INPUT
jack to the WOOFER LINE OUT jack on the receiv-
er. Use the supplied black cable with RCA connec-
tors on each end.
2
VIDEO CONNECTION
• Connect the yellow VIDEO OUT jack on the
Receiver to the matching VIDEO IN jack on the TV.
OPTIONAL TV Audio Connection
In order to listen to normal TV broadcast channels
through the Home Cinema Surround Receiver (if your
TV has AUDIO OUT jacks) you must make an audio
connection.
IMPORTANT! The Receiver will use all surround
sound speakers only if the TV broadcast is in a surround
sound format (Dolby Digital, DTS, Dolby Pro Logic). If
the broadcast is in stereo only, some of the surround
speakers will not be active.
• Connect the red and white pair of audio cables from
the TV AUDIO IN (Left & Right) jacks on the
Receiver to the AUDIO OUT (Left & Right) jacks on
the TV.
NOTE: When listening to TV programs, the Receiver
must be set to the AUX mode for the sound to be heard.
Use this simple and quick way to watch your favorite
DVD movie and enjoy your Home Cinema experience!
Connecting Speaker Cable
0 .3
1 "
(8 m
m )
P U
S H
IN
PUSH
DOWN
a b c
x5
1a
Front
right
Center
x1
SPEAKER SYSTEMS (8 )
+
FRONT CENTER
Surround
right
1b
RELEASE
75
Front
left
CDR
DIGITAL CENTER AUX TV LINE
+
OUT OUT IN IN OUT
SURROUND
DIGITAL WOOFER
AUDIO S-VIDEO
IN LINE OUT
Subwoofer
Surround
left
Note: You must turn on the
power switch on the front
of Subwoofer when in
operation.
Flip the page to start DVD playback and arrange the surround speakers.
Rear of TV
AV IN
AUDIO
OUT
L S-VIDEO
IN
R
2
AM
VIDEO OUT
FM 75
Pr/Cr
CVBS
FM/AM
ANTENNA
Pb/Cb
P-SCAN
Y
ON OFF
1c
AUDIO
INPUT
75 AVIN
AUDIO
OUT
L
S-VIDEO
R
H H
ELPFUL INTS
Your TV capability determines which
type of video connection you can make
with the DVD Receiver.
75 Ω
If your TV only has a single Antenna In
jack, you will need an accessory RF
ANTENNA IN Modulator to view DVD playback on your
TV. The RF Modulator converts the video from
the Receiver so it can play through the TV's
Antenna connector.
See your electronics retailer or contact Philips for Y
details on RF Modulator availability.
If you use an RF modulator, set the TV to channel
3 or 4. Set the RF modulator's 3/4 switch to the
same channel.
RF coaxial cable to TV
Back of RF Modulator
(example only)
ANT IN TO TV
VIDEO AUDIO IN
IN R L
CH3 CH4
Antenna or Cable TV Signal
Audio/Video cables from DVD Receiver
Pr/Cr Pb/Cb Y If your TV has S-Video or
S-VIDEO
IN
Component (PB PR Y) jacks
you can connect the receiver using one
of these for a higher quality connection. See your
instruction manual for details. Y
