Philips MX6050D/37B Quick Use Manual

Front Speaker
Front Speaker
(left)
(right)
A
Rear Speaker
(right)
Helpful Hints
To obtain a better picture quality effect, you can
choose to connect an extra video connection if
your TV has the same input connector: A or B.
Use this video If your TV has
cable (not supplied) this video input jack(s)
A
COMPONENT VIDEO IN
B
Do not switch the P-SCAN to 'ON' position, unless you have
P-SCAN
connected the DVD system to a Progressive Scan TV using the
OFF ON
Component (Pr/Cr Pb/Cb Y) video jacks.
When listening to TV programs, press TV/AV button on the remote to
set the DVD system to TV/AV mode in order for the sound to be heard.
For connecting to a VCR, see page 15 in the owner's manual for more
details.
MX6050D
B
Center Speaker
FRONT FRONT FRONT REAR REAR SUBWOOFER
RIGHT LEFT CENTER RIGHT LEFT
3
J
If your TV has only
a single Antenna In
jack, you will need an
ANTENNA IN
accessory RF
modulator. The RF modulator
converts the video from the
DVD system so it can play
through the TV's Antenna
connector. Refer to your
owner's manual for proper
S-VIDEO connection (refer to page 13
IN
in the owner's manual.)

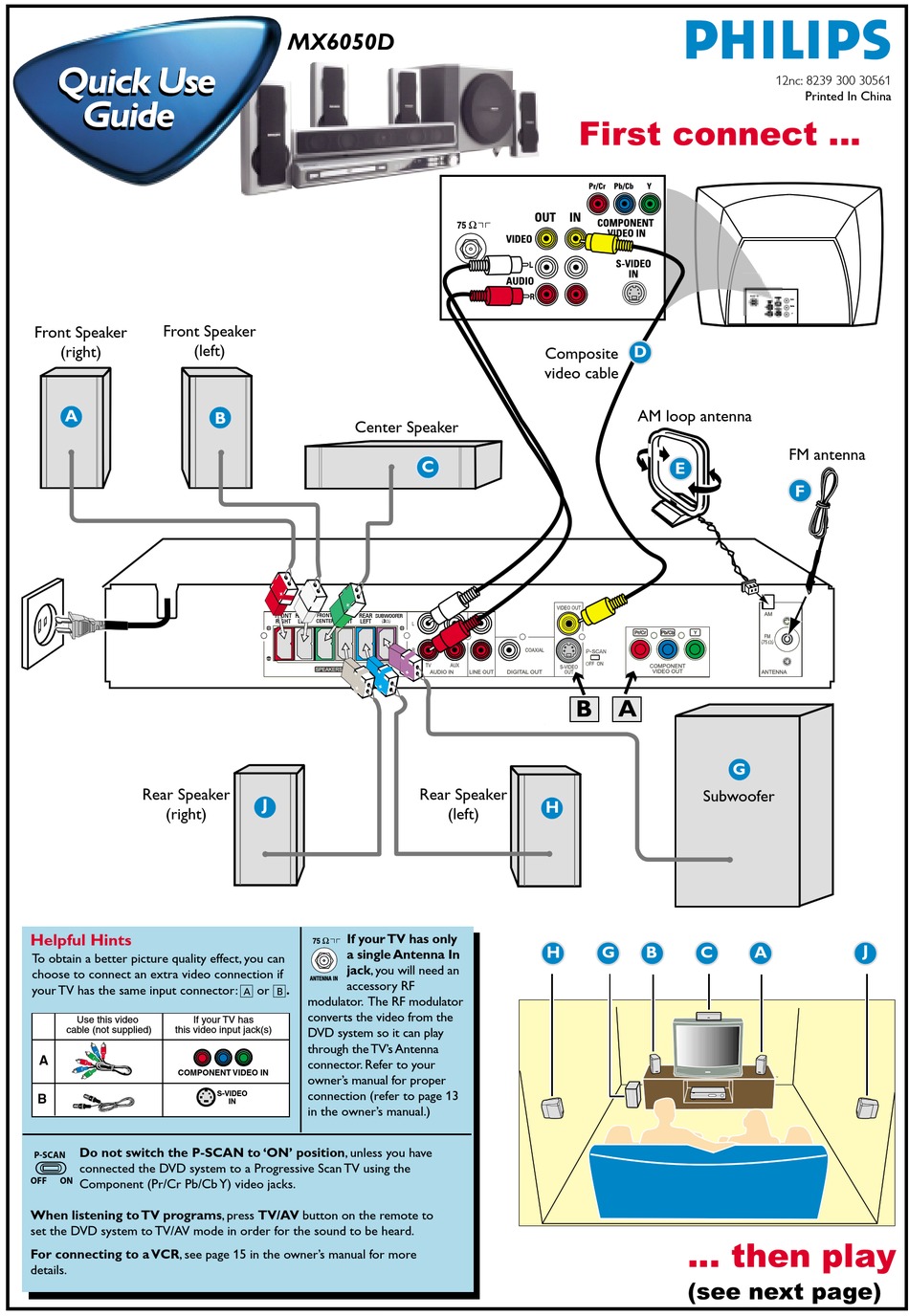

First connect ...
Composite
video cable
C
Rear Speaker
H
(left)
H
D
AM loop antenna
E
G
Subwoofer
G B C A
... then play
(see next page)
