OWNER'S GUIDE & INSTALLATION INSTRUCTIONS

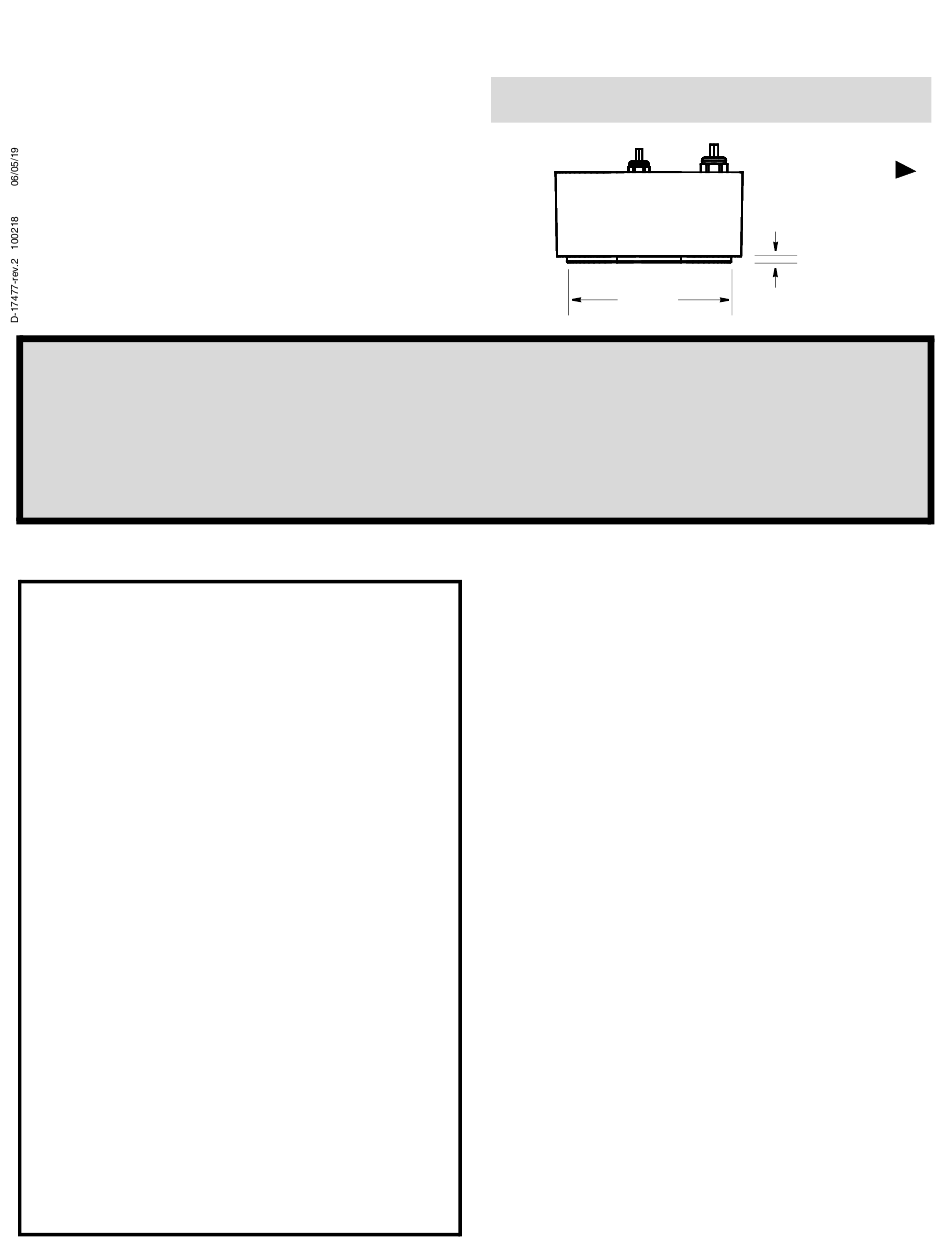

Pocket or Keel Mount:
Multi-beam Sonar & Depth Transducer
Model CM54
WARNING: The transducer must be professionally installed
using accepted practices. The cavity must be strong and
watertight to reduce the risk of property damage, personal
injury, and/or death.
Follow the safety precautions below for optimal
product performance and to reduce the risk of
property damage, personal injury, and/or death.
WARNING: Always wear safety glasses, a dust mask,
and ear protection when installing.
WARNING: Use marine sealant to seal the hull and hold
the transducer firmly in place.The bolts are an aid to
installation only and must not be solely relied upon.
When the boat is underway, especially at high speeds,
water will enter any gaps and push against the
transducer with considerable force.
WARNING: Immediately check for leaks when the boat is
placed in the water. Do not leave the boat unchecked for
more than three hours. Even a small leak may allow
considerable water to accumulate.
CAUTION: The transducer must be flush with the bottom
of the hull for good performance.
CAUTION: Never pull, carry, or hold the transducer by
the cable. This may sever internal connections.
CAUTION: Never strike the transducer.
CAUTION: Never use solvents. Cleaners, fuel, sealants,
paint, and other products may contain solvents that can
damage plastic parts, especially the transducer's face.
IMPORTANT: Please read the instructions completely
before proceeding with the installation. These
instructions supersede any other instructions in your
instrument manual if they differ.
1kW
with Temperature Sensor
Record the information found on the cable tag for future reference.
Part No._________________Date___________Frequency________kHz
164mm
(6.46")
Applications
• Recommended for fiberglass hulls.
• Recommended for high-speed boats.
Tools & Materials
NOTE: Making a fiberglass cavity in the hull and a faceplate
requires additional tools and materials not listed.
Safety glasses
Dust mask
Ear protection
Scissors
Masking tape
Electric drill
Drill bits and hole saws:
Pilot hole 3mm or 1/8"
Cable hole (2) large enough to accommodate the bushing
Bolt hole (3) 8mm or 5/16"
Sandpaper (coarse grit 120)
Tack cloth
Marine sealant (suitable for below waterline)
Purchased nuts, bolts & washers (3)
(stainless steel, 1/4"-20 UNC threads)
Torque wrench
Grommet(s) (some installations)
Cable ties
Water-based anti-fouling paint (mandatory in salt water)
BOW
6mm
(0.24")
