- Page 1 Register your product and get support at www.philips.com/welcome DVD Home Theatre System ZH_CN DVD 家庭影院系统 ZH_TW 家庭劇院系統 MS_MY Sistem Teater Rumah DVD HTS3568DW...
- Page 2 Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Surround are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc.
-
Page 3: Table Of Contents
Contents 1 Important Safety and important notice 2 Your product Features highlight Product overview 3 Connect Place the unit Connect video cables Connect wireless transmitter Connect speaker cables to speakers Connect speaker to speaker stand Connect speakers and subwoofer Connect rear speakers to wireless receiver Connect radio antenna Connect other devices... -
Page 4: Important
1 Important Safety and important notice Warning! Risk of fi re or electric shock! • Ensure that air can circulate freely through the ventilation holes on this unit. Allow at least 5~10 cm clearance around the unit. • Never expose this unit to direct sunlight, naked fl... -
Page 5: Your Product

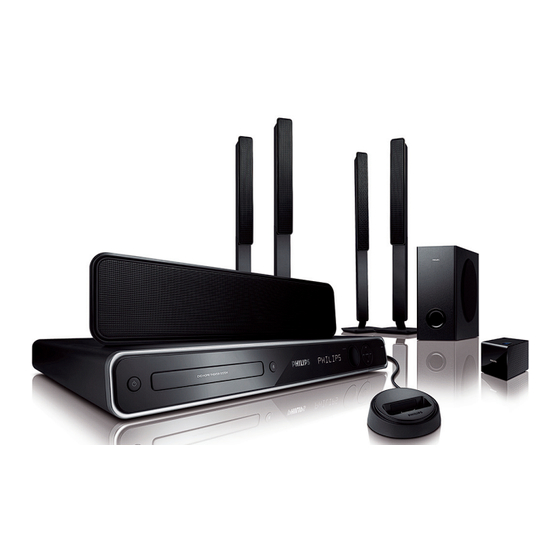

2 Your product Congratulations on your purchase, and welcome to Philips! To fully benefi t from the support that Philips offers, register your product at www.philips.com/welcome. This DVD Home Theatre is designed to complement your home perfectly. Enjoy the DVD Home Theatre with multi-channel surround sound and excellent picture quality. -
Page 6: Product Overview
Product overview Remote control • Turn on this unit or turn off to standby mode. • Press and hold to turn off this unit and all the HDMI CEC compliant TV/ devices (for EasyLink control only). Z (Open/Close) • Open or close the disc compartment. Source buttons •... - Page 7 AUDIO SYNC • Select an audio language/channel. • Press and hold to access audio sync setting. Then press VOL +- to set the audio delay time. ZOOM • Zoom in or out the picture on the TV. • Confi rm an entry or selection. Cursor buttons (v V b B) •...
-
Page 8: Main Unit
Main unit • Turn on this unit or turn off to standby mode. Disc compartment Z (Open/Close) • Open or close the disc compartment. Display panel VOLUME • Adjust the volume level. u (Play/Pause) • Start or pause disc play. •... -
Page 9: Connect
Place the wireless receiver near to the AC outlet and in between the rear speakers. Position the wireless receiver (with Philips logo) directly parallel to the DVD Home Theatre unit. Note •... -
Page 10: Connect Video Cables
Connect video cables This section describes how to connect this DVD Home Theatre unit to your TV so to enable viewing of disc play. Select the best video connection that your TV can support. • Option 1: Connect to HDMI socket (for a HDMI, DVI or HDCP-compliant TV). - Page 11 Connect the component video cables (not supplied) from the Y P sockets on this unit to the component video input sockets on your TV. • If a progressive scan TV is used, you may turn on the progressive scan mode (see chapter ‘Turn on Progressive Scan’...
-
Page 12: Connect Wireless Transmitter
Connect wireless transmitter WIRELESS TRANSMITTER Connect the wireless transmitter to the WIRELESS TRANSMITTER socket on this unit. Tips • To remove the wireless transmitter, press at the sides while pulling out. Connect speaker cables to speakers Connect the speaker cables to the matching colour sockets on the speakers (or speaker stands). -
Page 13: Connect Rear Speakers To Wireless Receiver
Connect rear speakers to wireless receiver REAR Connect the rear left and right speakers to the matching sockets at the bottom of the wireless receiver. Connect the wireless receiver to the power outlet. Connect radio antenna Connect the FM antenna (supplied) to the FM75Ω... - Page 14 Connect audio from cable box/ recorder/game console You can choose to connect to analogue or digital socket depending on the device capabilities. Connect to analogue sockets AUX 2 Connect an audio cable (not supplied) from the AUDIO IN-AUX2 sockets on this unit to the AUDIO OUT sockets on the device.
-
Page 15: Connect To Power Outlet
Connect USB device Connect the USB device to socket on this unit. Note • This DVD Home Theatre unit can only play/view MP3, WMA, DivX (Ultra) or JPEG fi les that are stored on such devices. • To listen to the audio output from this connection, press USB. -
Page 16: Get Started
4 Get started Prepare the remote control Push to open the battery compartment cover. Insert two batteries type R03 or AAA. Match the indications (+-) inside the battery compartment. Close the cover. Note • If you are not going to use the remote control for a long time, remove the batteries. -
Page 17: Find The Correct Viewing Channel
Find the correct viewing channel Press 2 to turn on the DVD Home Theatre unit. Press DISC to switch to disc mode Turn on the TV and switch it to the correct video-in channel. • You may go to the lowest channel on your TV, then press the Channel Down button on your TVs remote control until you see the Video In channel. -
Page 18: Turn On Progressive Scan
Turn on Progressive Scan If you connect this unit to TV with the component video connection (see chapter ‘Connect video cables - Option 2: Connect to component video jack’ for details), you can turn on the progressive scan output if your TV supports progressive scan. -
Page 19: Change Speakers Settings
Change speakers settings Ideally the distance between listening position and all the speakers should be the same. If not, change the speaker settings based on their distance from the listening position in order to obtain the best possible surround sound. Press DISC. -
Page 20: Activate Easylink Control
• To enable one touch play function, a video disc must be placed in the disc compartment before operation. • Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. Map the audio inputs to the connected devices Note •... -
Page 21: Select A Play Source
Select [ OK ] in the menu, then press OK to start scanning of devices. Once complete, audio input mapping menu is displayed. Audio Input Mapping Aux1 Aux2 Recorder Aux3 Other (non-HDMI) Digital Input Select an input to map (e.g. AUX1, AUX2), then press B. -
Page 22: Play
5 Play Play from disc Playable discs DVD Video • Region 3 (Asia Pacifi c, Taiwan, Korea) • Region 4 (Australia, New Zealand) DVD±RW (DVD Rewritable) DVD±R (DVD Recordable) DVD+R DL (DVD+R Double Layer) CD-RW (CD-Rewritable) • MP3/WMA/JPEG/DivX ReWritable CD-R (CD-Recordable) •... -
Page 23: Play Video
Play video Note • For video disc, playback always resumes from the point where it was last stopped. To start playback from the beginning, press í while the message ‘To playback from the beginning, press í key’ is displayed. Control a title Play a title. - Page 24 Access DVD menu Press DISC to access disc main menu. Select a play option, then press OK. • In some menus, press number buttons to input your selection. • To return to the title menu during playback, press MENU. Access VCD menu or preview menu The PBC (Playback Control) for VCD is turned on by default in the factory.
-
Page 25: Sync Audio Output With Video Play
Sync audio output with video play If the video play is slower than the audio output (sound does not match with the pictures), you can delay the audio output to match the video. Press and hold AUDIO SYNC until ‘AUDIO SYNC XXX’ is displayed. •... -
Page 26: Play Music
Play DivX® video DivX video is a digital media format that retains high quality despite a high rate of compression. This unit is DivX® Certifi ed so that you can enjoy DivX video. Insert a disc or USB that contains the DivX videos. -
Page 27: Play Photo
Play MP3/WMA music MP3/WMA is a type of highly compressed audio fi le (fi les with .mp3 or .wma extensions). Insert a disc or USB that contains the MP3/ WMA music. Press DISC or USB. A contents menu is displayed. Select a folder, then press OK. - Page 28 Note • It may require longer time to display the disc content on the TV due to the large number of songs/photos compiled onto one disc. • If the JPEG photo is not recorded with an ‘exif ’ type fi le, the actual thumbnail picture will not be shown on the display.
-
Page 29: Play From Usb Device
Play from USB device This unit can only play/view MP3, WMA, DivX (Ultra) or JPEG fi les that are stored on such devices. Connect a digital camera that comply with the PTP standard, USB fl ash drive, or USB memory card reader to the socket on this unit. -
Page 30: Play From Ipod
4th gen iPod nano 1st gen iPod 5th gen Note • Refer to Philips website for latest updates on supported iPod range. • Later versions of iPod models and iPhones are not supported. Prepare the docking station If your iPod cannot be fi... -
Page 31: Play From Radio
Button Action Go to the previous/ next track. Search backward/ forward. Pause/resume play. Display the menu. Tips • While in iPod mode, the battery of your iPod will be charged. Play from radio Check if the FM antenna has been connected to this DVD Home Theatre unit. -
Page 32: Listen To Radio
Note • This unit can store up to a maximum of 40 radio stations. • If auto installation is not activated or less than 5 radio stations are stored, ‘AUTO INSTALL’ will be displayed again the next time you turn on to radio mode. Listen to radio Press RADIO. -
Page 33: Adjust Sound
6 Adjust sound Control the volume Press VOL +- to increase or decrease the volume level. To mute the volume, press H. • To restore the volume, press H again • or press the volume button. Select surround sound Press SURROUND repeatedly to select a best surround output that available on the disc. -
Page 34: Adjust Microphone Volume Level
Adjust microphone volume level Connect a microphone (not supplied) to MIC socket on this unit. Turn on the microphone output. See chapter ‘Microphone settings’ for details. Press MIC LEVEL. ‘LEVEL XX’ is displayed. Adjust the volume control (or press VOL +-repeatedly) to set the level for microphone volume. -
Page 35: Adjust Settings
7 Adjust settings This section describes the various setting options of this unit. Symbol Options [ General Setup ] [ Audio Setup ] [ Video Setup ] [ Preferences ] General setup Press OPTIONS. [ General Setup ] menu is displayed. Press B. -
Page 36: Audio Setup
[ Sleep ] Switch to standby automatically after the preset time. • [ Off ] – disable sleep mode. • [ 15, 30, 45, 60 mins ] – select the count down time before it switches to standby. [ DivX(R) VOD Code ] Display the DivX®... - Page 37 [ Speakers Volume ] When all the speakers are not placed in an equal distance from the listening position, change the volume level of the speakers so that for those placed closer to the listening position will not sound too loud. To start, press Select a speaker in the menu, then press...
-
Page 38: Video Setup
Video setup Press OPTIONS. [ General Setup ] menu is displayed. [ Video Setup ], then Press V to select press B. Select an option, then press OK. Video Setup TV Type TV Display Progressive Picture Settings HDMI Setup Closed Caption •... - Page 39 [ Picture Setting ] Select a predefi ned set of picture colour settings or customise your personal setting. • [ Standard ] – original colour setting. • [ Bright ] – vibrant colour setting. • [ Soft ] – warm colour setting. •...
-
Page 40: Preferences
You must turn on the HDMI CEC operations on your TV/devices before you can enjoy the EasyLink controls. See your TVs/devices manual for details. • Philips does not guarantee 100% interoperability with all HDMI CEC compliant devices. [ Closed Caption ] Turn on or off display captions. - Page 41 [ Audio ] Select the default audio language for DVDs. [ Subtitle ] Select the default subtitle language for DVDs. [ Disc Menu ] Select the menu language for DVDs. Note • If the language you have set is not available on the disc, the disc uses its own default language.
- Page 42 Display the software version of this unit. Tips • This information is required when you want to fi nd out if a newest software version is available at the Philips website that you may download and install on this unit.
-
Page 43: Additional Information
Philips provides software upgrades to ensure that this unit is compatible with the newest formats. To check the updates, compare the current software version of this unit with the latest software version available at the Philips website. Press OPTIONS, . Preferences Disc Menu Parental... -
Page 44: Specifi Cations
Specifi cations Note • Specifi cation and design are subject to change without notice. Accessories supplied • Quick Start Guide • Composite video cable (yellow) • Remote control and batteries • Subwoofer • 1 centre, 2 front and 2 rear speakers (with stand) •... -
Page 45: Troubleshooting
If you encounter problems when using this unit, check the following points before requesting service. If the problem remains unsolved, register your product and get support at www.philips.com/welcome. • Disconnect this unit from the power outlet for a few minutes, then connect again. - Page 46 Sound No sound. No sound on HDMI connection. No sound from TV programme. Play DivX video fi les cannot be played. The aspect ratio of the screen is not aligned with the TV display setting. DivX subtitle are not displayed correctly. The contents of the USB fl...
-
Page 47: Glossary
10 Glossary Aspect ratio Aspect ratio refers to the length to height ratio of TV screens. The ratio of a standard TV is 4:3, while the ratio of a high-defi nition or wide TV is 16:9. The letter box allows you to enjoy a picture with a wider perspective on a standard 4:3 screen.
