Trust MI-7200L User Manual

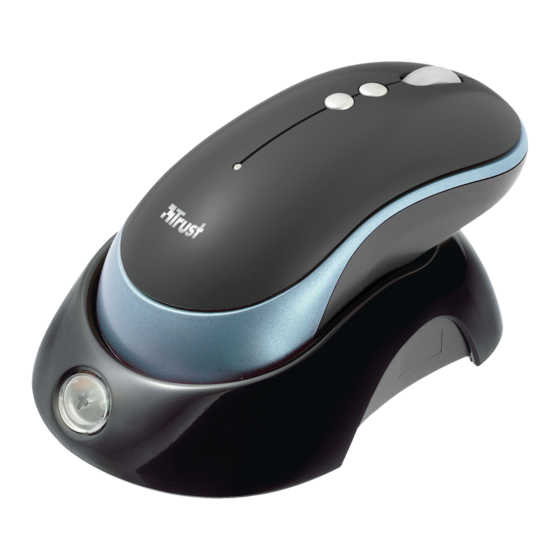

MI-7200L Wireless Laser Mouse

Product information

A: Scroll-wheel and third button
Battery-low LED (lit flashing)
B: Left button
C: Right button
D: Browser forward button
E: Browser backward button

Installation

Insert batteries
Connect power to cradle
1
Charge batteries
PC off
If use
PS/2: connect USB to PS/2 converter to receiver; connect receiver to PC; PC on; go to 5!
Connect USB
2
Windows 98SE: go to 3; Windows ME/2000/XP/2003: go to 4
PC on
3 Press [Enter] key
Follow Hardware Wizard to finish
4
Windows98SE: Need Windows 98SE CD!
5 Press connection button; Status LED flashing
Press connection button
Mouse is ready to use
6
To configure the buttons: install software. Go to 7
Install Trust Easy Configuration Software
7 Computer on; Place CD in CD-ROM
Click "Install software"; Follow on screen instructions to finish
8
Restart system when prompt!

Reminder

Less performance
Metal objects close to or between the device
Material of the surface which may cause sensor
imprecision. Use a mousepad to avoid it
Follow step 5 and 6 to change channel in case of
disturbace
Batteries (almost) empty
Another wireless device is close by
F: Connection button
G: Motion sensor
H: Battery compartment
I: Status LED
Blue flashing:
mouse movement

General usage

Adjust the speed of mouse pointer: (1) Open
Windows Help (Start → Help). (2) Search "adjust the
speed of mouse pointer". (3) Follow instructions.
Keep mouse on cradle no longer than 48 hours
Read the manual on CD for the use of the
configuration program
Do not use old and new batteries at the same time,
because the old batteries may deplete the new ones
"MI7200L" in Startup remembers the settings; do not
remove it
1
J: Charging LED
Red steady: charging
Green steady: fully charged
K: Connection button
L: Power adapter jack
M: USB to PS/2 converter
UK
