Tenda F303 How To Set Up

Universal repeater mode
Hide thumbs Also See for F303:

Advertisement

Quick Links

Download this manual See also: User Manual
How to setup universal repeater mode for F303
Part 1: Login the homepage of the router
Part 2: Setup LAN IP
Part 3: Enable universal repeater mode
Part 4:
Verify bridge connectivity
Part 5: Setup secondary SSID and security key

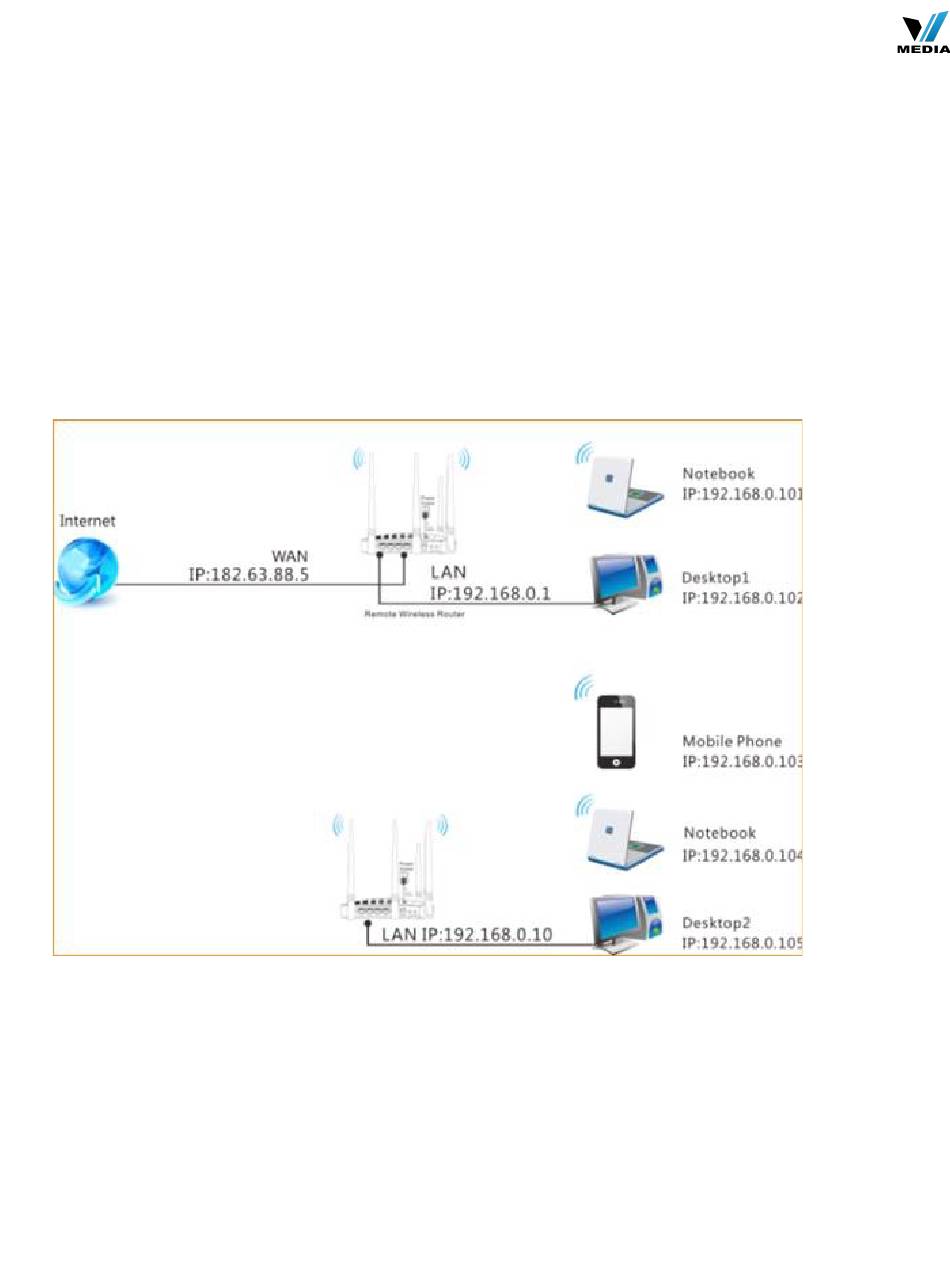

The Topology is as below:
!

Advertisement

loading
Need help?

Need help?

Do you have a question about the F303 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenda F303

Summary of Contents for Tenda F303

  • Page 1 How to setup universal repeater mode for F303 Part 1: Login the homepage of the router Part 2: Setup LAN IP Part 3: Enable universal repeater mode Part 4: Verify bridge connectivity Part 5: Setup secondary SSID and security key...
  • Page 2 Steps are as following: 1. Login to the management page of the router. 2. Input login username and password as to login, then click admin, Advanced.
  • Page 3 1. Click , and then click . Change your router’s LAN IP (The LAN IP address should Network bedifferent. For example, the uplink router has the LAN IP 192.168.0.1, then you can set the secondary router’s LAN IP as 192.168.0.10)
  • Page 4 1. Click and then choose choose Wireless Wireless Extender, Universal Repeater mode. Click Open Scan.
  • Page 5 2.Select your uplink router’s SSID, and input your uplink router’s security key. then click Save save the settings.
  • Page 7 1.Connect your PC to this Tenda wireless router via a wired or wireless
 connection and set it to "Obtain an IP address automatically". If you are not clear, see Appendix 1 Configure PC TCP/IP Settings . 2.Wait until your PC successfully obtains an IP address.
  • Page 8 4. Enter cmd and click OK.
  • Page 9 5. Enter "ping default gateway IP address”. Here in this example, enter "ping
 192.168.0.1" and press Enter. If you see a similar screen (highlighted area), the bridge is established successfully. Note: After finish the universal repeater settings, the factory SSID will become secondary SSID automatically.
  • Page 10 5.1 Click Wireless and Wireless Basic Setting, change secondary SSID, and then click OK to save the settings. 5.2 Setup the security key Click wireless security key, select SSID which you have set as secondary SSID, choose the security , input your , and click to save the setting.
  • Page 11 Notice：If you have other PC need to be get connected, please connect it to the one of the LAN port or the wireless signal of the router. There is no need to configure the router again.
  • Page 12 Function configurations How to setup WISP mode for F303 2015/5/19 Clicks： Product line: wireless question category: function config Part 1: Login the homepage of the router Part 2: Setup connection type and LAN IP Part 3: Enable WISP mode Part 4: Setup secondary SSID and security key...
  • Page 13 1. Login to the management page of the router. 2. Input login username and password as to login, then click admin, Advanced.
  • Page 14 1.Click Advanced, then click Internet connection setup. Choose DHCP, click Save.
  • Page 15 2. Click , and then click . Change your router’s LAN IP (The LAN IP address Advanced LAN Settings should be in different network segment. For example, the uplink router has the LAN IP 192.168.0.1, then you can set the secondary router’s LAN IP as 192.168.10.1.) 1.
  • Page 16 2.Select your uplink router’s SSID, and input your uplink router’s security key. then click Save save the settings.
  • Page 17 3.After reboot, if the connection status shows connected and get the gateway of uplink router, it means that you can have internet. Note: After finish the WISP settings, the primary SSID will become secondary SSID automatically. 4.1 Click Wireless and Wireless Basic Setting, change secondary SSID, and then click OK to save the settings.
  • Page 18 4.2 Setup the security key Click wireless security key, select SSID which you have set as secondary SSID, choose the security , input your , and click to save the setting. mode WPA-PSK security key...
  • Page 19 Notice：If you have other PC need to be get connected, please connect it to the one of the LAN port or the wireless signal of the router. There is no need to configure the router again.
  • Page 20 F303-How to setup the router for Static IP internet connection mode 2013/12/21 Clicks： 2135! How to setup the router for Static IP internet connection mode Model number: F303 There are three internet connection modes for the router. This article will guide you how to setup the router for Static IP mode and the steps as below.
  • Page 21 1 Click on the system bar, then click on Network Connection Icon Open Network and (Here is for win7, other computer please click Sharing Center HERE 2 Click on Change adapter settings 3 Right click , then choose the option. Local Area Connection Properties 4 Double click on...
  • Page 22 5 Choose Obtain an IP address automatically Obtain DNS server address and then click automatically...
  • Page 23 6 Also click on the first window. Local Connection Properties...
  • Page 24 1 Open a browser then type in the address bar, click 192.168.0.1 Enter Note: if you cannot login the home page, please click HERE 2 Fill in admin in fields, click to login. Password...
  • Page 25 2 Set a for the wireless security, click to save the setting, and click Security key Save on the right of the page to login the advanced setting page. Advanced Note: the should be at least characters. Security Key 3 Click then click on the left of the page, then open Advanced...
  • Page 26 Note: type the if your ISP does not provide it. Secondary DNS Server 8.8.8.8 4 After setting, please click on , and click , hit button then Tools Reboot Reboot The Router click for refreshing the device Info 1 Click to login the advanced setting page, then check the if the Advanced...
  • Page 27 WAN IP is correct that means you can access Connection Status Connected internet, please check. F303-How to setup the router for Static IP internet connection mode...
  • Page 28 F303-How to setup the router for PPPOE internet connection mode 2013/12/21 Clicks： 2509! How to setup the router for PPPOE internet connection mode Model number: F303 There are three internet connection modes for the router. This article will guide you how to setup the router for PPPOE mode and the steps are as below.
  • Page 29 1 Click on the system tray, then click Network Connection Icon Open Network and Sharing . (Here is for windows 7, other operating system please click HERE.) Center 2 Click on Change adapter settings 3 Right click , then choose option.
  • Page 30 4 Double click on Internet Protocol Version 4(TCP/IPv4) 5 Choose Obtain an IP address automatically Obtain DNS server address...
  • Page 31 and then click automatically 6 Also click on the first window Local Connection Properties...
  • Page 32 1 Open a browser then type in address bar, click 192.168.0.1 Enter Note: if you cannot login the home page, please click HERE. 2 Fill in admin in the field, click to login. Password...
  • Page 33 3 Choose the option, then type the in the correct PPPOE ISP Username ISP Password bars, then set a as you want, click to save the settings, then click 2.4G Security to login the advanced setting page. Advanced...
  • Page 34 Note: the should be at least characters. Security Key 4 Click on , then click on , and then press the button to Tools Reboot Reboot The Router reboot the router for refreshing the device info.
  • Page 35 Type the User Name and Password as admin then Click on to login the advances Advanced setting page, and then check on the if the shows Status Connection Status Connected that means you can access internet, please check.
  • Page 36 F303-How to setup the router for Dynamic IP internet connection mode 2013/12/21 Clicks： 2121! How to setup the router for Dynamic IP internet connection mode Model number: F303 There are three internet connection modes for the router. This article will guide you how to setup the router for Dynamic IP mode and the steps are as below.
  • Page 37 1 Click on the system tray, then click Network Connection Icon Open Network and . (Here is for windows 7, other operating systems please click HERE.) Sharing Center 2 Click on Change adapter settings 3 Right click , then choose option.
  • Page 38 4 Double click Internet Protocol Version 4(TCP/IPv4) 5 Choose Obtain an IP address automatically Obtain DNS server address and then click automatically...
  • Page 39 6 Also click on the first window Local Connection Properties...
  • Page 40 1 Open a browser then type in the address bar, click 192.168.0.1 Enter Note: if you cannot login the home page, please click HERE. 2 Fill admin in the field, click to Login. Password...
  • Page 41 3 Choose the option, then set a for the wireless security, then Dynamic IP Security Key click to save the settings, then click Advanced Note: the should be at least characters. Security Key...
  • Page 42 4 Click , click , and then press the button then click Tools Reboot Reboot The Router refreshing the device info. Type the User Name and Password as admin to login the setting page then click Advanced and then check status if the shows that means you can Connection Status...
  • Page 44 How to setup the router for Dynamic IP internet connection mode Model number: F303 There are three internet connection modes for the router. This article will guide you how to setup the router for Dynamic IP mode and the steps are as below.
  • Page 45 1 Click on the system tray, then click Network Connection Icon Open Network and . (Here is for windows 7, other operating systems please click HERE.) Sharing Center 2 Click on Change adapter settings 3 Right click , then choose option.
  • Page 46 5 Choose Obtain an IP address automatically Obtain DNS server address and then click automatically...
  • Page 47 6 Also click on the first window Local Connection Properties...
  • Page 48 1 Open a browser then type in the address bar, click 192.168.0.1 Enter Note: if you cannot login the home page, please click HERE. 2 Fill admin in the field, click to Login. Password...
  • Page 49 3 Choose the option, then set a for the wireless security, then Dynamic IP Security Key click to save the settings, then click Advanced Note: the should be at least characters. Security Key 4 Click , click , and then press the button then click Tools Reboot...
  • Page 50 Type the User Name and Password as admin to login the setting page then click Advanced and then check status if the shows that means you can Connection Status connected access internet, please check.
  • Page 51 How to setup the router for Static IP internet connection mode Model number: FH303 There are three internet connection modes for the router. This article will guide you how to setup the router for Static IP mode and the steps as below. Note: If you have no idea about what is the internet connection type and the accounts please call your ISP for help.
  • Page 52 2 Click on Change adapter settings 3 Right click , then choose the option. Local Area Connection Properties 4 Double click on Internet Protocol Version 4(TCP/IPv4)
  • Page 53 5 Choose Obtain an IP address automatically Obtain DNS server address and then click automatically...
  • Page 54 6 Also click on the first window. Local Connection Properties...
  • Page 55 1 Open a browser then type in the address bar, click 192.168.0.1 Enter Note: if you cannot login the home page, please click HERE 2 Fill in admin in fields, click to login. Password...
  • Page 56 2 Set a for the wireless security, click to save the setting, and click Security key Save on the right of the page to login the advanced setting page. Advanced Note: the should be at least characters. Security Key 3 Click then click on the left of the page, then open Advanced...
  • Page 57 Note: type the if your ISP does not provide it. Secondary DNS Server 8.8.8.8 4 After setting, please click on , and click , hit button then Tools Reboot Reboot The Router click for refreshing the device info...
  • Page 58 1 Click to login the advanced setting page, then check the if the Advanced Status shows and WAN IP is correct that means you can access Connection Status Connected internet, please check.
  • Page 59 How to change the Wi-Fi name (SSID) and wireless password Model number: F303 If you want to manifest personality and protect your wireless network, you can follow this article to set a special Wi-Fi name and wireless password. Part 1:...
  • Page 60 2 Click on the home page to login the advanced setting page. Advanced 3 Click , then click , making sure Wireless Wireless Basic Security Enable Wireless were checked. Also you can change the as you want, then SSID Broadcast Primary SSID click to save the settings.
  • Page 61 Note: I: the are recommended, since there are a little Channel 1, Channel 6 Channel 11 interference. 4 Click , then click and choose the , set a Wireless Security Security mode WPA-PSK as you want. At last, let the other options as default and hit to save the Security Key settings.
  • Page 62 Note: should be at least characters. Security Key Click , and then choose the option on the left of the page, then hit Tools Reboot Reboot to refresh the device info. The Router...
  • Page 63 Congratulations! You can enjoy your wireless network with new Wi-Fi name and new password. Canada Toll free: 1-888-998-8966
