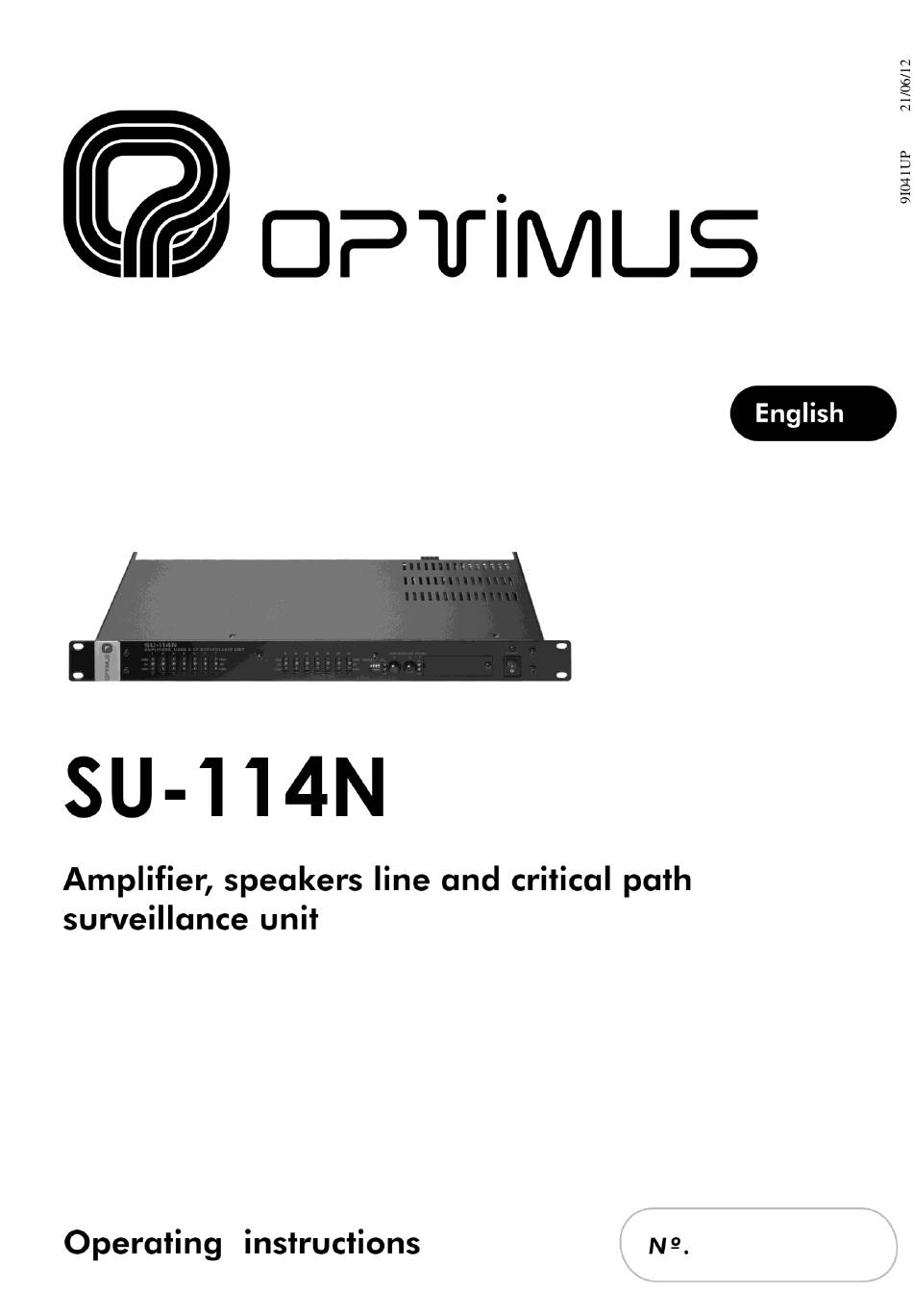

Optimus SU-114N Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Optimus Manuals
  4. Security System
  5. SU-114N
  6. Operating instructions manual
Optimus SU-114N Operating Instructions Manual

Optimus SU-114N Operating Instructions Manual

Amplifier, speakers line and critical path survellience unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SU-114N and is the answer not in the manual?

Questions and answers

Related Manuals for Optimus SU-114N

Summary of Contents for Optimus SU-114N

  • Page 3: Table Of Contents

    1. INTRODUCTION ........................5 2. FRONT VIEW .......................... 6 3. REAR VIEW ..........................7 4. CONFIGURATION OF THE SU-114N FAIL RELAYS ..............8 5. CONFIGURATION OF THE TIMING SELECT DIPSWITCH ............9 6. CONFIGURATION OF THE UNIT IP ADDRESS ................ 10 7.

  • Page 5: Introduction

    Surveillance of unit operation by means of the Surveillance of the power unit status: The PA Manager (SMP-250V2) software or through SU-114N detects the 24 V DC received from the the Web browser. power units through...

  • Page 6: Front View

    (see section 11). ON / OFF switch. (4) Buttons A and B Switched to OFF, the SU-114N remains in Together with Indicators 1 and 2, they are used BYPASS, whereby the PA system continues to for manual adjusting of the unit (see section 11).

  • Page 7: Rear View

    * The open collector (8) Power supply input output contacts of Used to power the SU-114N. Connect a power the unit are as per supply of 24 VDC / 1.5 A to this input. the diagram attached.

  • Page 8: Configuration Of The Su-114N Fail Relays

    (20) Connections for surveillance of the (15) CSMA / POLLING switch amplifier / zone number 14. See section 8.1. The SU-114N uses the CSMA protocol. Move this (21) Connections for surveillance of the Dipswitch to the CSMA position. amplifier / zone number 1. See section 8.1.

  • Page 9: Configuration Of The Timing Select Dipswitch

    There is a configuration for continuous measurement (all switches to OFF). To disable measurement, move the four switches to ON. In this case, the SU-114N will perform measuring operations when it is scheduled to do so (see section 9.3) or when the Measure Activation contact is activated.

  • Page 10: Configuration Of The Unit Ip Address

    6. CONFIGURATION OF THE UNIT IP ADDRESS The dipswitches that enable the IP address of the SU-114N to be manually configured are situated on the lower part of the unit, protected by the cover. This address identifies the unit in the network and therefore each unit must have a different IP address.
  • Page 11 Amplifier, speakers line SU-114N and critical path surveillance unit TABLE II SU-114N version 1.3 R&D Department...

  • Page 12: Configuration Of The Rs-485 Address

    UMX-02/0 matrices, or there are MD-500 or MD-500EM analog microphones, it is necessary to have an RS-485 bus connecting these units. Proceed as follows to configure RS-485 communication: 1. The SU-114N uses the CSMA (Carrier Sense Multiple Access) protocol. Move CSMA/POLL switch...

  • Page 13: Connection Of The Unit

    (4) Ground terminal (5) RJ-45 connector This is used to connect the SU-114N with the surveillance zone amplifier. Connect it to the SURVEILLANCE input of the amplifier (see Figure 6). Use Category 5 FTP cable for this connection.

  • Page 14: Rs-485 Connection

    RJ-45 connectors with a metal housing are used for the RS-485 connection. If the SU-114N is positioned as the first or last element of the RS-485 bus, the RS-485 OUT switch must be moved to the OFF position. Otherwise, the RS-485 output must be enabled by moving the switch to the ON position (Figure 2, no.

  • Page 15: Master/Slave Connection

    The Master SU-114N informs the slaves when surveillance is to begin. All the SU-114N units will follow the configuration of the TIMING SELECT dipswitch of the MASTER. In this Master/Slave topology the units must be connected through an Ethernet network. The Ethernet connection is used for: Master/Slave synchronisation between SU-114N (Figures 8 and 9).
  • Page 16 FAIL RELAY contact of Critical path surveillance: the SU-114N and the CTRL contact of the COU- Once loudspeaker line surveillance has been 02/ES card switches the zone amplifier for the completed, critical path status is checked.
  • Page 17 The MEASURE function. Activation of the UMX-ECT card contact INDICATION contact of the SU-114N performs must be performed by the MEASURE INDICATION this function, activating the priority of the power contact of the SU-114N.

  • Page 18: Manager Software. Start-Up And Setting Of Surveillance

    SWITCH, or through a crossed network cable. The PC must have the PA Manager software installed (version SCF-01 or SCM-01). Once the SU-114N has been set, if a reset is required, this can be done on the front keypad (see section 11).

  • Page 19: General

    Master remains activated until all the slave (8) Local Manager and (9) Global Manager. SU-114N units have completed measurement. Only on Optimax systems. Defines whether the This configuration is useful in installations with SU-114N is to function as a priority manager of several SU-114N units with...
  • Page 20 RS-485 ADDRESS consideration for measurement again. Dipswitch on the rear panel of the SU-114N. (16) Send alarms trough RS485 connection. (12) CSMA/POLLING. Choose CSMA. If checked, sends alarms from SU-114N to MD- 500EM, MD-500, UMX-02/0 and Server PC trough...
  • Page 21 The recommended order of priority depending on the model is as follows: UP-xETH CC-100ETH DVA-102ETH SU-114N UP-xETH UMX-ETH > > > > > UMX-CC DC-600ETH COU-02/0ETH SU-214/0N (Backup amplifier) (program UMX-ETH FC-600ETH or priority) (Control) SU-114N version 1.3 R&D Department...

  • Page 22: Card Configuration And Setting Process

    Click on the Card Configuration tab. (1) Card check boxes. Tick check boxes corresponding to the cards used by the SU-114N. (2) Config. button Click on this button to select the zone or power unit for surveillance by the card.
  • Page 23 Normally, critical path detection made in all or nothing mode, and so (10) settings of 90% are recommended. Once these have been set, click on Next (10). SU-114N version 1.3 R&D Department...
  • Page 24 If the result is not correct, check the loudspeaker line and once the problem has been resolved, check the line once again. (24) (25) If the result is correct (OK), click on the Start Adjustment button (25). SU-114N version 1.3 R&D Department...
  • Page 25 (29) Select the Options tab (29) and (30) increase the level of the detection signal tone (30) and (31). (31) Click on Next (32) and proceed to set the line surveillance once again. (32) SU-114N version 1.3 R&D Department...

  • Page 26: Scheduling

    Click on the Monitor Frequency tab (3). Select the frequency that you wish to monitor (4). Click on the Start Monitor button (5). N.B.: Only the frequencies at which the SU-114N has been previously set will be correctly monitored. 9.3. SCHEDULING required, scheduling created...

  • Page 27: Sending Configurations To The Unit

    PC connected to the SU-114, either through SWITCH or through a crossed network cable. 1.- Open the File menu and click on Save. 2.- On the installation tree, right click with the mouse on the SU-114N that has just been configured and select the option Send configurations.

  • Page 28: Generation Of The Surveillance Report

    The result is a report of surveillance during the period of time selected, with a graph for each of the cards/zones of the SU-114N. The indications of each graph are as follows: Red: Upper limit above which a value is considered to be a low impedance loudspeaker line or short- circuited line error.

  • Page 29: Surveillance And Reset Of The Unit Using The Front Keypad

    IMPORTANT: Having detected a HIGH FAIL or LOW FAIL error in a zone five consecutive times, the SU-114N stops surveillance on that line. Once the line has been repaired, press A and B at the same time in order to include the line in the surveillance process once again.

  • Page 30: Reset

    Press buttons A and B at the same time for 10 seconds. The unit will perform the reset of all the lines using the audible frequency first, then the no audible frequency and finally the critical path. SU-114N version 1.3 R&D Department...

  • Page 31: Advanced Operations

    If the installation has a server PC, open the installations screen (Options > Installations menu) from the PA Manager software. On the installation tree, right click with the mouse on the SU-114N icon and select the Web Connection option. If the PC is remote with respect to the installation, open the Internet browser and enter the IP of the unit in the address bar (for example: http://192.169.1.100).

  • Page 32: Software And Firmware Versions

    14. SOFTWARE AND FIRMWARE VERSIONS The functions described in this manual can be performed using the following software and firmware versions (and later versions): Coldfire firmware SU-114N Coldfire application SU-114N 2..7.4 DSP Firmware SU-114N Mainframe firmware SU-114N Firmware UMX-02/0 27.03...

  • Page 33: Guarantee

    No guarantee benefits shall be provided other than those cited here. payment has been effected by the client. In the event that the guarantee rights do not apply, OPTIMUS S.A. shall duly inform the client. If, within a In order to claim the guarantee rights, it shall be an essential...
