Bradley SN2013/AST4-F Installation Instructions Manual

Sentry corner washfountain with air valve
Hide thumbs Also See for SN2013/AST4-F:
Table of Contents

Advertisement

Quick Links

Download this manual

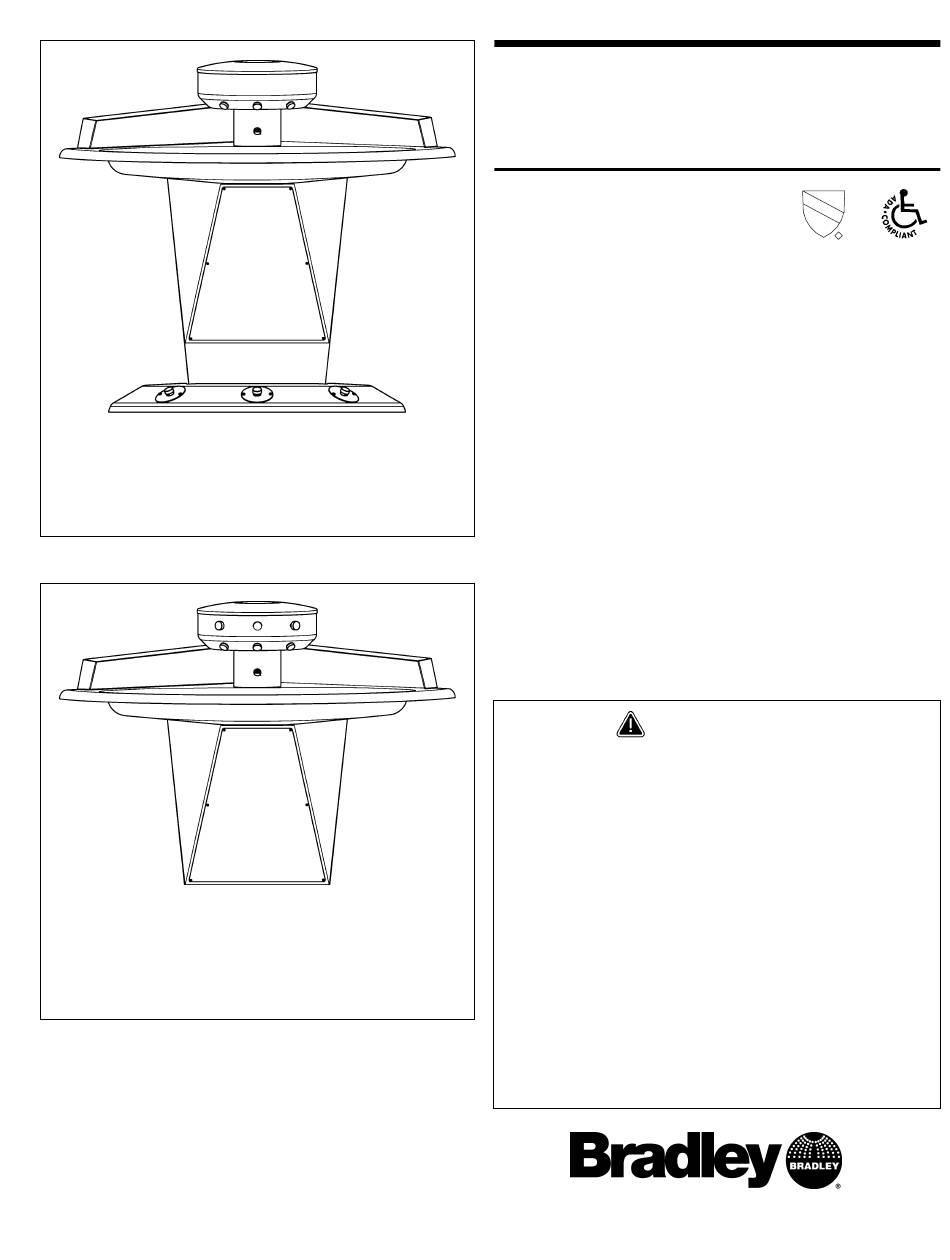

SN2013/AST4-F/STD
Floor-Mounted Sentry with
Foot Control
SN2033/AST4
Wall-Mounted Sentry with
Hand Control
215-784 Rev. K; EN 05-1608
© 2003 Bradley Corporation
Page 1 of 25
11-18-2005
Installation
Instructions
SN2013/AST4
SN2013/AST4-F
SN2033/AST4
Sentry Corner Washfountain
with Air Valve
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . .2
Rough-In Specifications . . . . . . . . . . . . . . . . . . .3-7
Installation Instructions . . . . . . . . . . . . . . . . . .8-12
Optional Vented Trap . . . . . . . . . . . . . . . . . . . . . .13
Optional Shroud and Slip Ring . . . . . . . . . . . . . .14
Optional Towel Dispenser on a Shroud . . . . . . . .15
Optional Towel Dispenser on a 1-1/2" Pipe . . . .16
Control Valve Illustrations . . . . . . . . . . . . . . . . . .17
Cleaning and Maintenance . . . . . . . . . . . . . . . . .18
Air Valve Troubleshooting (AST4 and AST4-F) 19-23
Thermostatic Mixing Valve Troubleshooting .24-25
Cleaning the Strainer . . . . . . . . . . . . . . . . . . .24-25
IMPORTANT
Make sure that water supply is completely
off before installation is begun.
When drilling into tile, masonry, or other
hard materials to install wall and floor
anchors, be sure to wear safety goggles to
prevent eye injuries.
Wall anchors used must have a minimum
pull-out rating of 1,000 lbs.
The Sentry Washfountain requires a water
flowing pressure of at least 20 PSI, but no
greater than 80 PSI.
Product warranties may be found under
"Product Information" on our website at
www.bradleycorp.com
P.O. Box 309, Menomonee Falls, WI 53052-0309
PHONE 1-800-BRADLEY FAX (262) 251-5817
http://www.bradleycorp.com
U P
C
C
R
