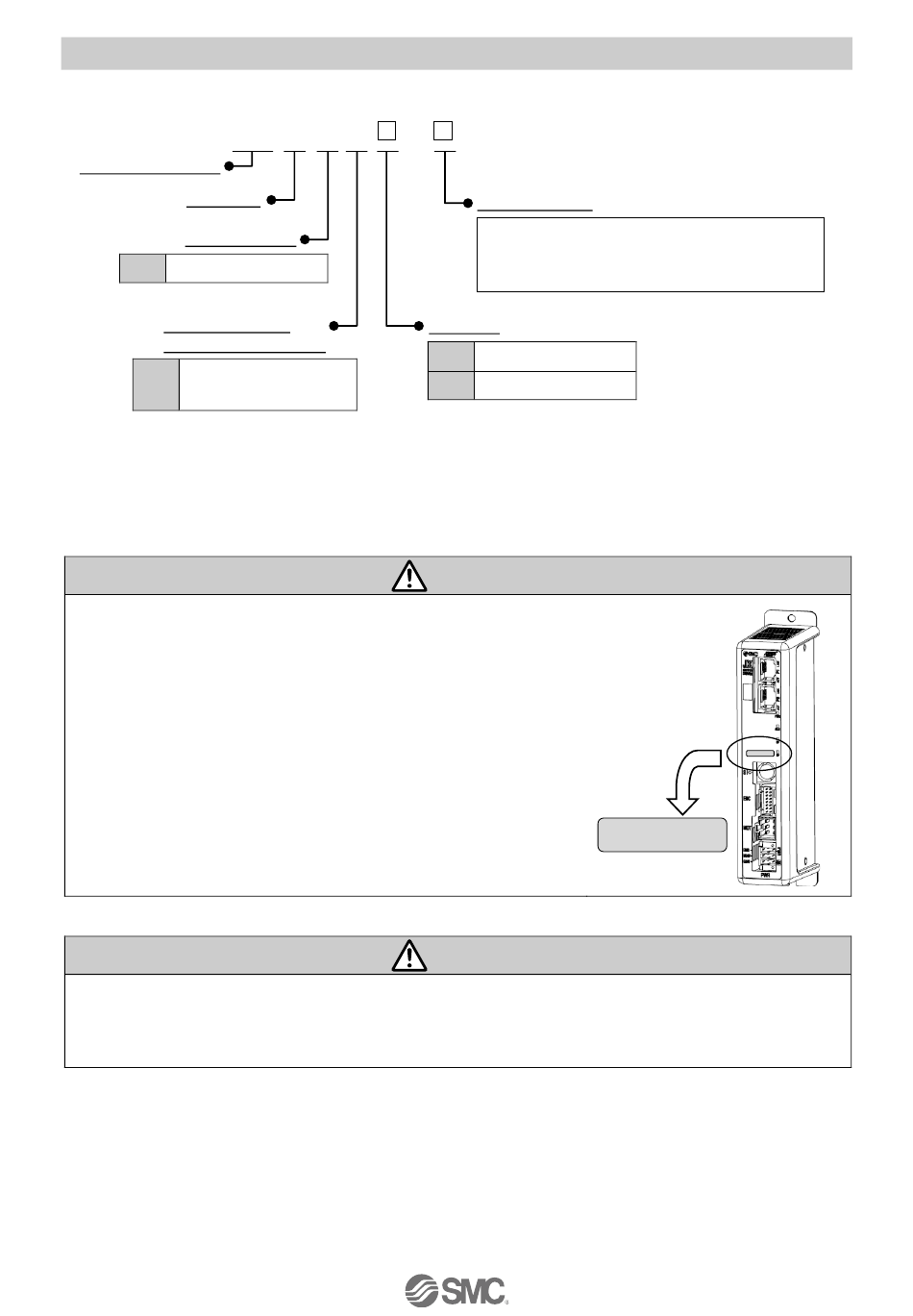

2.2 How to Order

How to order is shown below.
JX C P 1
Electric equipment
Controller
Controller type
P PROFINET
Number of shaft/
Type of power supply
1 axis, Power supply
1
(24VDC)
Single controllers are also shipped after setting the actuator
specification parameters.
Confirm the combination of the controller and the actuator is
correct.
<Check the following before use.>
•Check the actuator label for the actuator model number.
Check that the actuator model matches the label on the
controller.
Refer to the chart of LECPMJ for checking the chart of <Speed - Work load> of actuator.
A high peak current is required to be supplied by the controller when the actuator motor is turned ON.
Please use a power supply with a current capacity of at least 1.5 times the peak power that is required
by the actuator motor
-
Actuator Model
(Enter from the actuator model to "stroke")
E.g.) LEFS16B-100B-S1CP17,
input "LEFS16B-100".
Mounting
7 Direct mounting
8 DIN rail
Caution
Caution
