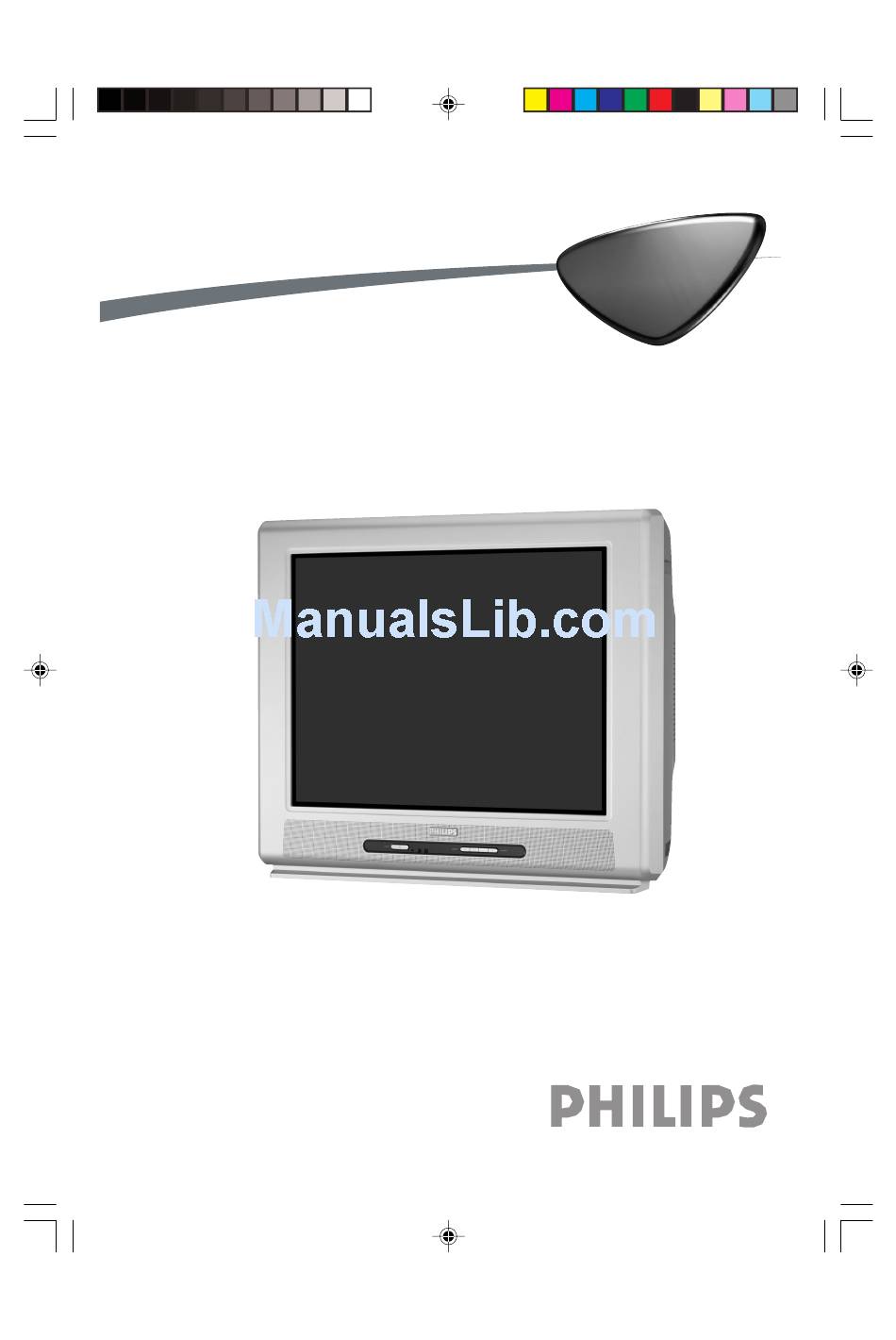

Page 1: Colour Television
Colour television 21PT2324 Operating instruction cover pg 1-2_21PT2324_71 03/25/04, 11:01 AM... -
Page 2: Before You Begin
Instruction manual, antenna cable (optional) and Coaxial cable (optional). Attention: 1. Read your manual first – your Philips TV comes with a well-designed remote control and onscreen display to ensure your TV is easy to operate. 2. The tips provided in this manual will save you time and money as charges for TV installation and adjustments of customer controls are not covered under the warranty. -
Page 3: Table Of Contents
Table of Contents Installation Installing your television set ..........3 The keys on the TV set . -
Page 4: Safety Information
Safety information • Disconnect mains plug when : – the indicator light below the TV screen is flashing continuously. – a bright white line is displayed across the screen. – there is a lightning storm. – the set is left unattended for a prolonged period of time. •... -
Page 5: Installation
Installing your television set Positioning the television set 10 cm 10 cm Place your TV on a solid, stable surface, leaving a space of at least 10 cm around the appliance. Connections • Insert the aerial plug into the x socket at the rear of the set. -
Page 6: Remote Control Keys
Remote control keys Personal Zapping You can surf up to 10 personal channels for each key (p. 9) Sleeptimer Selects a period of time after which the TV will go into standby mode automatically. Add Personal Zapping list Adds and stores channels into Personal Zapping list (p. -
Page 7: Language
Language When there is no signal input to the TV, you may encounter instability of the screen display. In this instance, please use the an AV channel. The Language feature is used to change the display language for menus. Tuner Mode You can select t Auto, Antenna or Cable modes with this menu. -
Page 8: Auto Store
Auto Store This menu is used to store all available channels automatically. & Press the key. é With the cursor, select the Install menu and follow by the Auto Store. Channel edit This feature allows you to skip or edit channels which have bad or weak TV signal or channels you do not watch often. -
Page 9: Operation
Picture settings & Press then . The Picture menu is displayed: é Use the keys to select a setting and the Note: during the picture adjustment, only the selected line remains displayed. Press to display the menu again. “ Press to exit. -
Page 10: Format
Format This feature enhances your viewing pleasure by providing you with a choice of two picture formats:- 4:3 and Expand 4:3. & Press , use the Features and press the The Features menu is displayed. é Use the key to select Format and press the key to select 4:3 or Expand 4:3. -
Page 11: Active Control
Active Control The Active Control monitors and adjusts incoming video signals to help provide the best picture quality.When you choose to turn the Active Control to On or Display On, the Brightness, Contrast, Sharpness, Contrast+ and NR (noise reduction) features are controlled automatically. -
Page 12: Peripherals
Connecting peripheral equipment The television has 2 external sockets situated at the back of the set Video recorder Side connections Operating manual-21PT2324/71 p10_21PT2324_71 & Connect the TV’s yellow and white (AV1 in) jacks to the corresponding Video and Audio jacks on the player. é... -
Page 13: Practical Information
Tips Poor reception The proximity of mountains or high buildings may be responsible for ghost pictures, echoing or shadows. In this case, try skipping channels with bad or weak TV signals: see “Channel Edit” (p. 6) or modify the orientation of the outside aerial. -
Page 14: Glossary
Personal Zapping A Philips trade marked feature which allows any combination of favourite teletext pages or TV channels to be stored in the coloured Favourite Channels/Teletext keys. A total of... -
Page 15: Specification
Specification Product type 21PT2324/71 ICTURE • Picture screen diameter: 525 mm • Visible screen size: 510 mm • Smart Picture Modes • Brightness Control • Colour Control • Contrast Control • Sharpness Control • Colour Temperature Control • Contrast Plus •... - Page 16 3141 055 22931 p11-14_21PT2324_71 03/25/04, 12:02 PM...
