HELIOS
LED Processing Platform
User Guide
Doc. v0.14
HELIOS v19.11.0
Dec 12, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HELIOS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for megapixel HELIOS

Summary of Contents for megapixel HELIOS

  • Page 1 HELIOS LED Processing Platform User Guide Doc. v0.14 HELIOS v19.11.0 Dec 12, 2019...

  • Page 2: Table Of Contents

    Maintenance & Accessories General Maintenance Processor Filter Maintenance Processor Fuse Replacement Technical Specifications Network switch Specifications Table HELIOS Processor Specifications Table Input Capability Matrix Fiber Out / Data to Tiles Troubleshooting Fiber Connectivity HELIOS LED Processing Platform - USER GUIDE...
  • Page 3 H2VR HoldCo, Inc. Other trademarks and trade names may be used in this document to refer to products by other entities. Megapixel VR claims no proprietary interest in trademarks and trade names owned by others.
  • Page 4 Installation Environment The HELIOS Processor is designed to be rack mounted in a central control room for fixed installations or flight cased for rental / temporary applications. The unit has been qualified to operate in a dry environment within a temperature range of 15°C to 40°C (59°F to 104°F).
  • Page 5 Carrying and Handling the Equipment Before you handle the HELIOS LED Processing Platform equipment, disconnect all cables and cords. Do not operate the HELIOS LED Processing Platform equipment in areas with significant amounts of airborne dust or smoke, or near a humidifier.
  • Page 6 Storing the Equipment If you are going to store the HELIOS LED Processing Platform equipment for an extended period of time, keep it in a cool and dry location (ideally, 71° F or 22° C).
  • Page 7 Cleaning the Equipment When cleaning the outside of the HELIOS LED Processing Platform equipment and its components, first shut down the equipment, then unplug all cords and cables. Use canned air such as ‘Turbo Blast’ by ACL Staticide Inc. or a clean, soft, lint-free cloth to wipe the equipment exterior. Avoid getting moisture in any openings. Do not spray liquid on the equipment.

  • Page 8: System Components

    The network switches carry both the video signal and the communication signals to and from from panels. As such, there is information passing in both directions on the HELIOS fiber link that can be up to 10km in length.

  • Page 9: Processor Overview

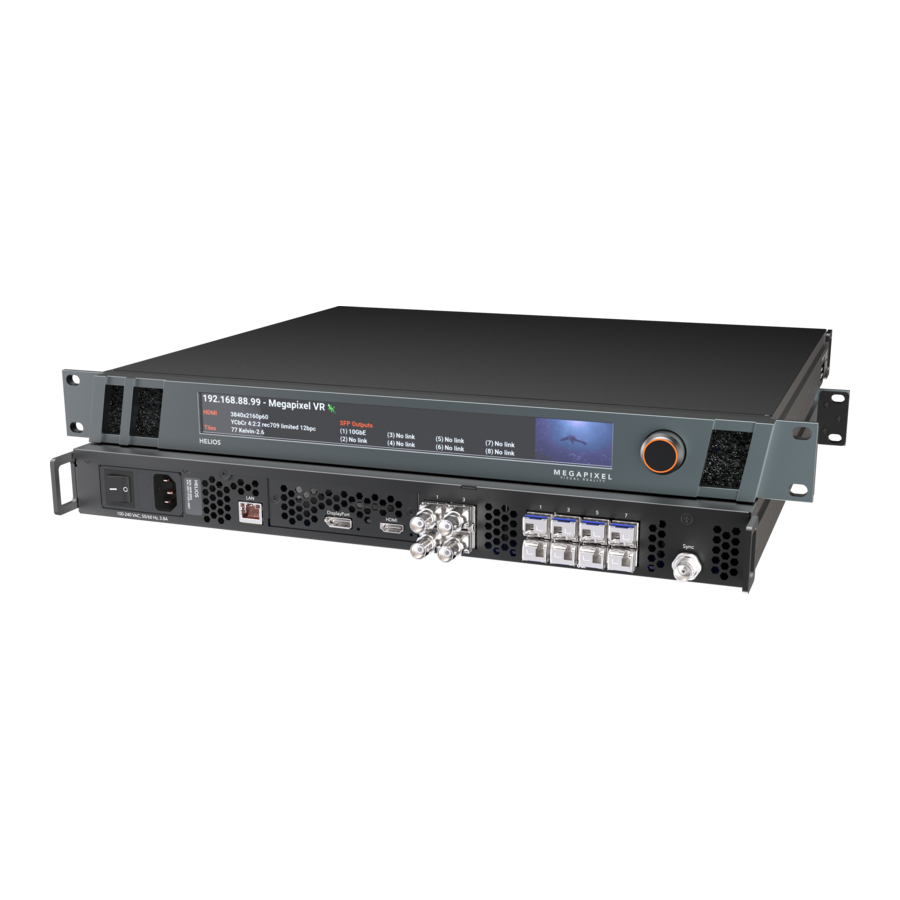

    Processor Overview The HELIOS Processor is a one RU (1.75”) tall rack mount unit that can receive video in resolutions up to 8K and outputs that video as a proprietary stream to compatible video panels (Figure 2). The HELIOS Processor is capable of receiving HDMI, DisplayPort, and SDI signals. The HDMI and DisplayPort inputs are designed to be modular.

  • Page 10: Processor Front Panel

    Video Input Indicators - Next to each video input connector is a small LED that indicates the status of each link. SFP+ Inputs - (4) SFP+ slots provide inputs for SDI over coax. Each input takes a Megapixel 12G SFP+ for up to 12G SDI.

  • Page 11: Network Switch Overview

    Network Switch Overview The network switch converts between fiber and copper for the HELIOS system. The GSM4210P model which is commonly used, receives data on one 10Gb fiber LC SFP+ and has eight 1Gb Copper Ethernet ports as outputs. These network switches are usually located near the display as they provide a signal over copper directly to display panels.

  • Page 12: System Planning

    This is accomplished with media processing equipment prior to the HELIOS Processor. If the total number of pixels will not fit the input raster, the system will need to be subdivided and multiple HELIOS Processors need to be used.

  • Page 13: Connections

    Processor Connections Power - A/C power is supplied to the HELIOS Processor on a C14 style IEC connector. Next to the power input connector is a rocker switch. When power is turned ON, the system will begin to boot. After about 15 seconds the front LCD display will be lit.
  • Page 14 HDMI | DisplayPort | SDI Control Port Figure 6: System diagram. Note: For convenience or compatibility with wireless-only devices such as tablets, a wireless router can be attached to the HELIOS LAN control port. HELIOS LED Processing Platform - USER GUIDE...

  • Page 15: Network Switch

    Web User Interface - All user controllable functions are accessed via the HELIOS web UI. Input - The network switch receives display data via a 10Gb fiber SFP+ from the HELIOS Processor. Display Outputs - The copper Ethernet outputs of the network switch send video and control data to the connected panels.

  • Page 16: Networking

    HELIOS LAN In order to provide access to control the HELIOS system, a LAN port is provided on the rear of the unit. This port provides access to the web UI. Once the client device (tech laptop) is on the same network as the HELIOS, open a web browser and enter the IP address displayed on the front LCD of the HELIOS Processor.

  • Page 17: Ip Addressing

    UI host device must also be set to DHCP in order to join the same network. The HELIOS Processor can be configured to a fixed IP as well. If this is the desired mode, ensure both the IP and the subnet mask for the web UI host have been set to the correct range.

  • Page 18: Configuration

    Processor and the device that is to be used as the web UI host. Having configured these settings correctly is a prerequisite. The web UI will not be accessible if this has not been done. The HELIOS web UI runs remotely on any device capable of supporting Chrome or Safari web browsers.
  • Page 19 At the top right are the three essential system status indicators for input signal, sync signal, and connected panels. A blue dot indicates system health. Yellow is an alert, and red a warning of critical error. Look to the Devices pane to discover more details about connected devices. Figure 12: System status indicators. HELIOS LED Processing Platform - USER GUIDE...
  • Page 20 2. The Test Patterns controls allow for a selection of different types of test patterns that over ride the video input. Figure 14: Test Patterns. NOTE: Systems with multiple display device types limit the maximum luminance to the lowest common denominator so that all displays appear to have the same brightness. HELIOS LED Processing Platform - USER GUIDE...
  • Page 21 The input signal can now be interrupted and the HELIOS Processor will continue to display the still frame grab. When it comes time to resume, display the same image again with the connected playback device and toggle pause off to resume live playback.

  • Page 22: Creating Maps

    Creating Maps The HELIOS Processor uses a map to determine which segments of the incoming raster to consider as an ‘active pixel region’. Areas of the incoming raster that are not associated with display fixtures, are never transmitted to the system. If only two fixtures are mapped, only two fixtures worth of panel data is being transmitted.

  • Page 23: Input Setup

    (i.e., 4,250,000 pixels per 10Gb HELIOS port to 2,120,000 pixels). 720P and 1080P are the best suited input resolutions for 120Hz operation. HELIOS supports 2x2 SDI input, the quadrants map so that the top right input on the HELIOS unit (input #3) is the top right quadrant.

  • Page 24: Devices

    The Devices pane is a dynamic list of all connected system devices. This pane is usually the first place a system technician will check to discover the status of a system. The pane is divided into sections by device. Starting at the top with the HELIOS Processor followed by Network Switches and then Display Devices. Figure 18: Devices pane.
  • Page 25 When this is a blue square with white text (input 1 in the example below) the unit is receiving video through the SFP+. When the HELIOS recognizes the SFP+ but there is no video, the square will be a dark green (input 3 in the example below).
  • Page 26 The main line of the HELIOS output shows the status of the outputs and a percentage of utilization of the entire HELIOS Processor. Expand the output section of the HELIOS Processor to see details about the outputs. As with all port labels, the shape of the port indicator lets the user know the data rate of the port (squares = 10Gb and ellipses = 1Gb).
  • Page 27 = 10Gb and ellipses = 1Gb. The ports of switches are numbered according to a slot/port scheme. The larger switches that the HELIOS Processor works with can have up to 96 ports each.
  • Page 28 The list of devices can be sorted by any of the listed columns. Sort the alerts column to bring all devices with alerts to the top of the list. Figure 24: Devices pane - Display Devices. HELIOS LED Processing Platform - USER GUIDE...

  • Page 29: Processor Settings

    • Networking - Configure the HELIOS Processor to work with a LAN. • sACN (ANSI E1.31) - Use the sACN or E1.31 protocols to control the HELIOS Processor. • Stacking - Enter a group name to join a stacking group. Stacking allows individual processors that operate sections of a large screen to synchronize functions such as blackout, pause, and color adjustments.

  • Page 30: Saved Configurations

    Select New to begin creating one. Figure 26: Blank ‘Saved Configurations’ pane. The system assigns a title based on a time and date stamp. The name can always be customized if desired. Figure 27: Default configuration name. HELIOS LED Processing Platform - USER GUIDE...
  • Page 31 The system will ignore the cropping and dimensions settings that are likely different for each processor. In this way, only the information that is common to all processors are brought across. Figure 28: Configuration toggles. HELIOS LED Processing Platform - USER GUIDE...
  • Page 32 2. Select Download to retrieve the configuration file. 3. Connect to the target processor, navigate back to the Saved Configurations tab and upload the configuration file. Apply Config to activate the file. HELIOS LED Processing Platform - USER GUIDE...

  • Page 33: Update Center

    The HELIOS system components receive Firmware/Software updates via the Update Center. All software or firmware packages must be uploaded to the HELIOS Processor in order for the system to be able to make use of them. Detailed software upgrade steps on the following pages.
  • Page 34 Software upgrade steps: 1. In the HELIOS web UI navigate to: Settings->Update Center and select the Upload button. 2. Browse to the current software ‘.MVRP’ file your computer and upload it. The following progress bar will be shown as the file is being uploaded.
  • Page 35 3. After the package has uploaded, execute installation by selecting the appropriate MVRP package in the drop down list and then click on Start. 4. The upgrade process will continue as shown below. HELIOS LED Processing Platform - USER GUIDE...
  • Page 36 5. During the upgrade, a Connection to server lost message is shown as HELIOS is performing the upgrade and restarting. 6. Once the upgrade is complete, the current software and firmware versions are displayed below. HELIOS LED Processing Platform - USER GUIDE...

  • Page 37: Preview

    Preview This pane allows the user to see the incoming signal or test pattern that is being sent to the connected panels. Figure 30: Preview pane. HELIOS LED Processing Platform - USER GUIDE HELIOS LED Processing Platform - USER GUIDE...

  • Page 38: Seam Correction

    Displays occasionally have minor intensity variations at the points that the tiles physically butt up against each other. This is usually caused by inconsistent physical gaps between tiles. The HELIOS Processor allows for some correction of these regions by allowing the user to target the seam between tiles and adjust the intensity of just those pixels. Select the seam(s) in question and adjust the intensity with the sliders on the right side.

  • Page 39: Rgb Gains Adjustment

    RGB Gains Adjustment The HELIOS Processor has the ability to adjust the RGB gains of individual tiles. When available in the firmware of the tile, per LDM gain adjustment may also available. Select tiles and use the sliders to make the needed adjustments. The user interface will tint the tile region to show the color bias that has been assigned to the tile.

  • Page 40: Maintenance & Accessories

    Processor Filter Maintenance The front filter on the air intake ducts of the HELIOS Processor should be periodically cleaned. Gently pry the foam filter out and clean or replace the filters. Figure 34: Remove air intake fan filters for service.

  • Page 41: Processor Fuse Replacement

    Processor Fuse Replacement The HELIOS Processor has two 3A fuses at the power inlet. To replace these, use a small flat head screwdriver or some other similar tool to gently pry the fuse tray out. Slide the tray out to the limit. Examine and replace fuses as necessary. If blown fuses are a persistent issue, return the unit to Megapixel VR for repair.

  • Page 42: Technical Specifications

    1 x 1Gb Ethernet (OOB management port) Maximum pixels per port 425,000 pixels (12-bit, 60Hz) = 918Mb/s per port Maximum pixels per 10 port network switch 4,250,000 pixels (12-bit) = 9.18Gb/s per network switch HELIOS LED Processing Platform - USER GUIDE...

  • Page 43: Helios Processor Specifications Table

    *See table on following page for exact formats and resolutions. HDR (High Dynamic Range) using both PQ and HLG is supported on all interfaces. ** (tested to work with: Evertz MSC5601, AJA GEN-10, BlackMagic Design CONVMSYNC) HELIOS LED Processing Platform - USER GUIDE...

  • Page 44: Input Capability Matrix

    DP Only DP Only YCbCr 10-bit 4:4:4 DP Only DP Only DP or 4 x SDI DP or 4 x SDI YCbCr 10-bit 4:2:2 NOTE: HDMI signals cannot exceed 4K, regardless of bandwidth. HELIOS LED Processing Platform - USER GUIDE...

  • Page 45: Fiber Out / Data To Tiles

    3 x 10Gb 5 x 10Gb 5 x 10Gb 444 10-bit The HELIOS Processor is running a Linux build based on Debian GNU/Linux v8. The following network ports & services are used by the system: Network Ports Notes 22 (SSH)

  • Page 46: Troubleshooting

    SFP+ group on the rear. If there is activity on these indicators, the fiber is connected. Figure 35: Connectivity indicators 2. Check the HELIOS UI for the reported signal loss. The TX_SFP value must be better than -9dbm. Also check for any network related error messages on the Health pane.
  • Page 47 1. Setup the network switch near to the HELIOS and use a known good, short fiber cable. 2. Remove a purple SFP+ from a network switch and move it to a HELIOS SFP+ output slot. Use a known good short patch cable to link the purple SFP+ with a blue SFP+ to prove that both receiver and sender SFP+ units are good.
