Summary of Contents for Munters Rotem Platinum Pro

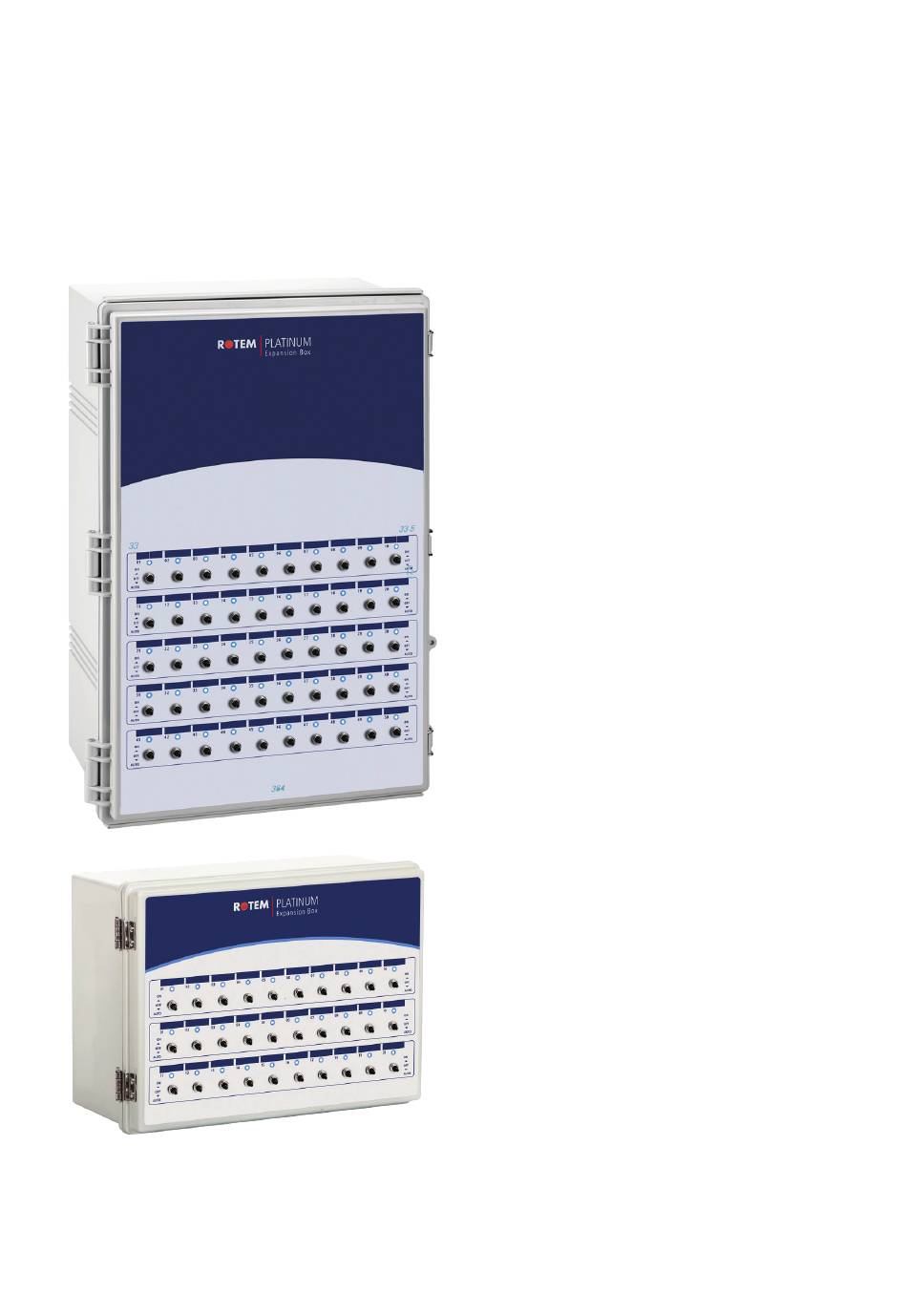

- Page 1 Relay Expansion Box for Platinum Pro and Platinum Touch (P/N: 900-07-XXXXX) (P/N: 900-14-XXXXX) © Munters AB, 2013 P/N: 110538 Ag/MIS/IGB-229310/15 Rev. 1.5...
- Page 2 2. To ensure proper termination, place a: A terminator on the EXP jumpers on the Platinum Pro communication card (if the Platinum • Pro is located at the end of a daisy chain) © Munters AB, 2013 P/N: 110538 Ag/MIS/IGB-229310/15 Rev. 1.5...
- Page 3 Figure 3: Platinum Pro Address Dip Switches 4. Connect the relays as required. Refer to the Platinum Pro/Touch Installation manual for details. 5. Attach the power wiring to the Expansion as shown below. © Munters AB, 2013 P/N: 110538 Ag/MIS/IGB-229310/15 Rev. 1.5...
- Page 4 Figure 4: Expansion 50 Power Wiring Figure 5: Expansion 30 Power Wiring Connect the power supply wires to the appropriate ports (1). • 230 VAC, 50/60 Hz; USA: L1, L2; ROW line, neutral (2) • © Munters AB, 2013 P/N: 110538 Ag/MIS/IGB-229310/15 Rev. 1.5...
