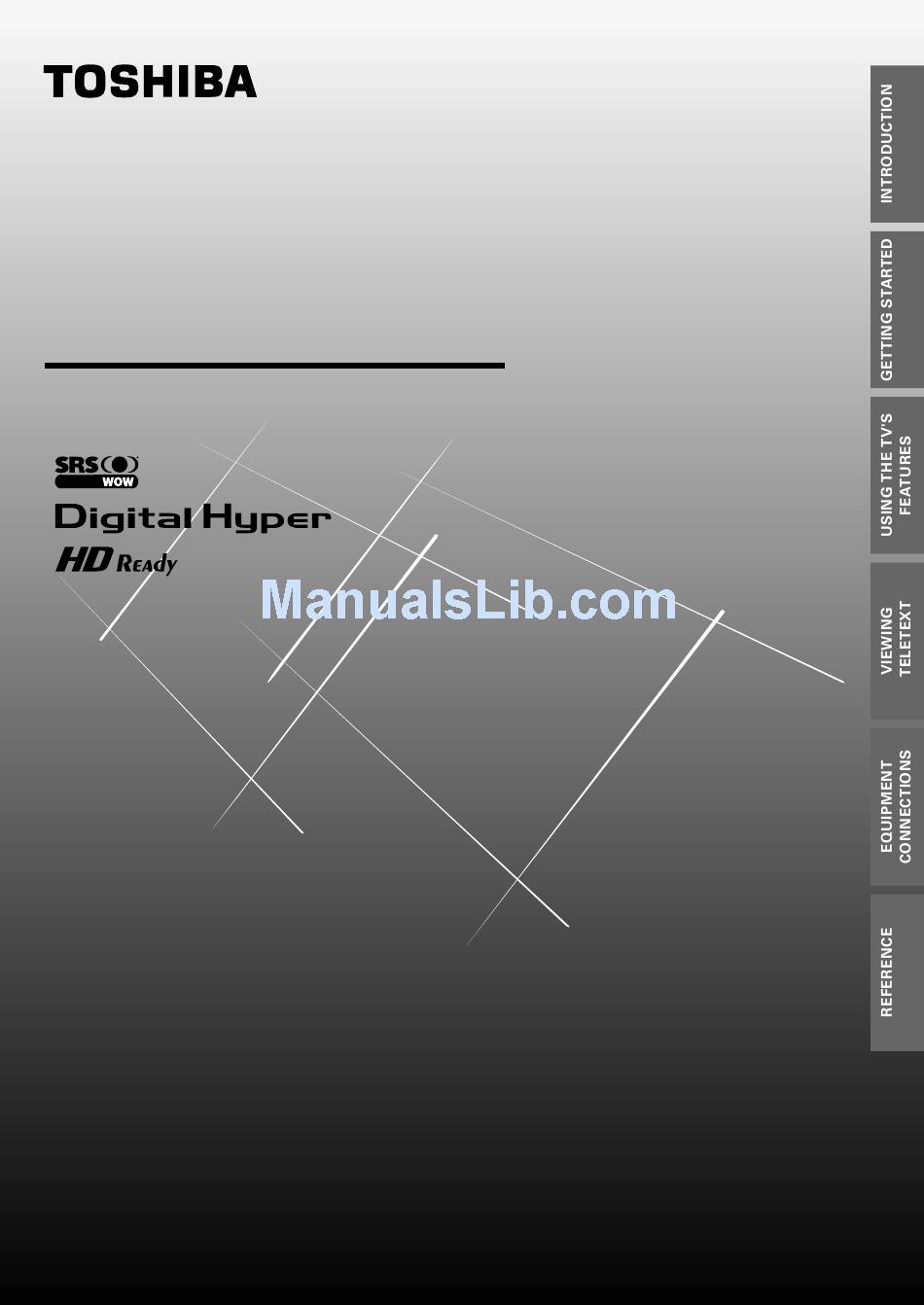

- Page 1 WNER'S Color Television with NICAM digital stereo sound 32JW8UA © 2004 TOSHIBA CORPORATION All Rights Reserved ANUAL...
-
Page 2: Table Of Contents
Dear Customer Welcome to the high quality picture world created by TOSHIBA Color TV Receiver. This manual will help you use the TV's many exciting useful features. Before operating the TV, please read all the safety and operating instructions in this manual thoroughly, and keep the manual for future reference. -
Page 3: Introduction
SRS 3D and SRS TruBass (see page 18) functions bring 3D surround and bass expansion effects to the TV's stereo sound. Digital Noise Reduction Toshiba's advanced Digital Noise Reduction system digitally reduces image noise for improved picture quality. NICAM (BG/I/DK) and German (BG) stereo/bilingual broadcasts receivable TELETEXT/FASTEXT-FAST/LIST modes... -
Page 4: Safety Instructions And Maintenance
INTRODUCTION Safety Instructions and Maintenance For safety If anything abnormal occurs: 1 Unplug the power cord from the outlet. 2 Make sure that the smoke (indicating internal fire) has stopped, then contact a service personnel. Be careful not to damage the power cord. Do not remove the back cover. -
Page 5: Notes On Installation
When away for a long time, unplug the cord. The TV is not completely disconnected from the power supply line, as minute current is consumed even when the f - 7 Power switch is turned off. Notes on installation Place the TV on a horizontal, stable surface. Do not block the ventilation holes. -
Page 6: Notes On Use
INTRODUCTION Safety Instructions and Maintenance Notes on use Do not jolt the TV. Notes on antenna Set up the antenna away from highways, power lines and neon signs. Notes on cleaning Before cleaning unplug the power cord. Clean the cabinet with a soft and dry cloth. If a chemically-treated cleaning cloth is used, please follow its instruction. -
Page 7: Installation
Optimum reception of color requires a good signal and will generally mean that an outdoor antenna must be used. The exact type and positioning of the antenna will depend upon your particular area. Your Toshiba dealer or service personnel can best advise you on which antenna to use in your area. -
Page 8: Location Of Controls
INTRODUCTION Location of Controls • For the use of each control, refer to pages in the brackets. Front Press here to open the door. Behind the door a (3) Video 3 input terminals [28] Back a (1) Video 1 input terminals [28] a (2) Video 2 input terminals [28] a (C1) COMPONENT VIDEO INPUT terminals [28] r On-timer indicator [21]... -
Page 9: Remote Control
Picture size selection [20] Device switch TV: To control TV VCR: To control VCR DVD: To control DVD When in VCR or DVD mode: (For Toshiba VCR/DVD only) to EJECT to REWIND to PLAY to FAST FORWARD to PAUSE to SKIP-REWIND... -
Page 10: Getting Started
GETTING STARTED Menu Function Before watching the TV, please familiarize yourself the method to use the menu function of this TV set. Instructions in this manual are based on using the remote control. Press the MENU button to display menu, then press the Press the button to select an item. -
Page 11: Turning The Tv On/Changing The On-Screen Display Language
GETTING STARTED Turning the TV On/ Changing the On-Screen Display Language To turn the TV on TV's front panel MENU L/MONO S-VIDEO VIDEO AUDIO t c s 7 POWER indicator – CALL MENU MENU EXIT MENU < > PIC SIZE TEXT/TV STILL Press the f - 7 POWER switch until it clicks. -
Page 12: Programming Channel Memory
GETTING STARTED Programming Channel Memory • First, use the Auto tuning feature to preset all the active channels in your area automatically. Then, arrange the preset channels with the Manual tuning feature so that you can tune in only desired channels. -
Page 13: Program Sorting
DO NOT PRESS ANY OTHER BUTTONS WHILE THE SET IS TUNING. This TV is capable of receiving a number of different channels depending upon where you live. Program sorting is an easy way of storing each channel on the program position of your choice. To preset channels (Manual tuning) (continued)/Program sorting Manual tuning Program... -
Page 14: Watching Tv Programs
GETTING STARTED Watching TV Programs To watch TV programs/o CALL CALL Number (0-9, –/--) MENU MENU MENU < > CH 89 PIC SIZE TEXT/TV STILL o (mute)/CALL /F buttons To select TV programs Select the desired program. Using the Number buttons To select a one-digit program position: Press the –/-- button to... -
Page 15: Using The Tv's Features
USING THE TV'S FEATURES Convenient Picture and Sound Controls Selectable picture and Selectable sound To select the picture mode You can select the picture quality instantly among three preset modes and one user-set mode. Press the V button to select the desired picture quality. -
Page 16: Picture Still And To Select Scan Mode
USING THE TV'S FEATURES Convenient Picture and Sound Controls Picture still and To select Scan mode CALL MENU MENU EXIT MENU < > PIC SIZE TEXT/TV STILL NOTICE OF POSSIBLE ADVERSE EFFECTS ON TV PICTURE TUBE Avoid displaying stationary images on your TV screen for extended periods of time. -
Page 17: Digital Noise Reduction (Dnr)/Super Woofer/Cinema Mode/Blue Screen
Digital Noise Reduction (DNR)/Super Woofer/Cinema mode/Blue Screen To select the Digital Noise Reduction If the receiving signal is weak and the picture is blurry, the picture may be improved when using this function. You can select the picture quality among five modes. Press the MENU button, <... -
Page 18: To Use The Srs Wow Surround Sound And Stable Sound Features
USING THE TV'S FEATURES Convenient Picture and Sound Controls To use the SRS WOW surround sound and Stable sound features CALL MENU MENU MENU < > PIC SIZE TEXT/TV STILL Notes If the broadcast is monaural, the SRS 3D effect does not work. -
Page 19: To Select The Mts (Multi-Channel Tv Sound) Mode And The Stereo/Bilingual Mode
To select the MTS (Multi-channel TV Sound) mode and the stereo/bilingual mode Setting the MTS mode AUTO mode The MTS AUTO mode automatically recognizes stereo/ bilingual programs depending on the broadcast signal. Press the MENU button, < > then press the button to display the Bass SOUND menu. -
Page 20: Viewing The Wide-Screen Picture Format
USING THE TV'S FEATURES Viewing the Wide-Screen Picture Format This TV is capable of showing broadcasts in a number of formats. Depending on the type of broadcast being transmitted, you may select between Super live, Cinema, Subtitle, 14:9, Wide and 4:3. To select the picture size TV's front panel MENU... -
Page 21: Using Other Features
USING THE TV'S FEATURES Using Other Features Picture tilt correction/To adjust the picture position/Off timer/On timer To correct picture tilt When you install the TV or change the direction of the TV, the picture may tilt of the picture by the geomagnetism. If so, the following adjustment should be made so that the better picture. -
Page 22: Input Source Selection
USING THE TV'S FEATURES Using Other Features When connecting video equipment to the TV, refer to page 28-30. Input source selection TV's front panel MENU L/MONO S-VIDEO VIDEO AUDIO CALL MENU MENU MENU < > PIC SIZE TEXT/TV STILL Note To return to the TV mode from the PC mode, press the a button. -
Page 23: Pc Setting Function
USING THE TV'S FEATURES PC setting Function When connecting PC equipment to the TV, refer to page 30. While in the PC input mode, you cannot select the Color, Tint, Scan mode, DNR and Cinema mode in the PICTURE menu. While in the PC input mode, the Manual setting is not displayed. -
Page 24: To Adjust The Clock Phase And Sampling Clock/To Reset
USING THE TV'S FEATURES PC setting Function If the clock phase, which synchronize the PC signal and Color Television display, is not optimized, the picture will blur. This function enables you to adjust Clock phase and display a clear picture. If the Sampling clock does not synchronize with the dot clock frequency of the PC, blurred picture detail will occur, or screen width will change, or drift patterns in vertical lines may be apparent. -
Page 25: Viewing Teletext
VIEWING TELETEXT Teletext-Control Buttons The TV is capable of showing both normal text and the text information selected by FAST mode and LIST mode. The Teletext buttons on the remote control have the same function for both text information types. To view normal text To display a page of text (TEXT/TV) Select a desired TV station with the text service. -
Page 26: Teletext-Fast And List Modes
VIEWING TELETEXT Teletext-FAST and LIST Modes FAST mode FAST mode is a method of viewing Teletext pages by related subjects grouped by the broadcast studio. You can access any given topic shown on the screen simply by pressing the corresponding colored text select button on the remote control. -
Page 27: To Preset And View The Text Pages In The List Mode
LIST mode You can preset up to four of the most frequently used text pages to select these pages easily. In addition to the four pages, you can preset an initial page which will appear first each time you select the text mode. To preset and view the text pages in the LIST mode To select the LIST mode Press the MENU... -
Page 28: Equipment Connections
EQUIPMENT CONNECTIONS External Equipment Connections CAUTION: Do not plug in any power cords until you have finished connecting all equipment. Refer also to the owner’s manual of the equipment to be connected. To connect video/audio equipment (about input terminals) When connecting video equipment to the TV: For good picture quality, use a standard yellow video cable. -
Page 29: To Connect Video/Audio Equipment (About Output Terminals)
To connect video/audio equipment (about output terminals) You can connect a stereo system to the MONITOR and FIXED AUDIO output terminals (phono type) on the TV to enjoy a high-quality sound from the stereo system. The MONITOR output terminals output the video and audio signals being monitored on the TV. -
Page 30: To Connect A Computer
EQUIPMENT CONNECTIONS External Equipment Connections To connect a computer When connecting computer equipment to the TV: • An analog RGB (15pin) computer cable can be connected. Computer Connect a PC cable from the computer to the RGB/PC terminal on the back of the TV. The following signals can be displayed: •... -
Page 31: Reference
REFERENCE A Guide to Simple Problem Solving Before calling service personnel, please check the following chart for a possible cause of the trouble you are experiencing. Symptom Power is not turned on. Be sure the power cord is plugged in. No sound The headphones may be plugged in. -
Page 32: Specifications
Never service or remodel the TV set by yourself. It may expose you to a fire hazard or dangerous voltage. Exemptions Toshiba is not liable for any damage caused by fires, natural disaster (such as thunder, earthquake, etc.), acts by third persons, accidents, owner's intentional misuse, or uses in other improper conditions.
