GL-1010 Network Fax Operator's Guide
Version 1.3.4
Your guide to using the Network Fax option with your

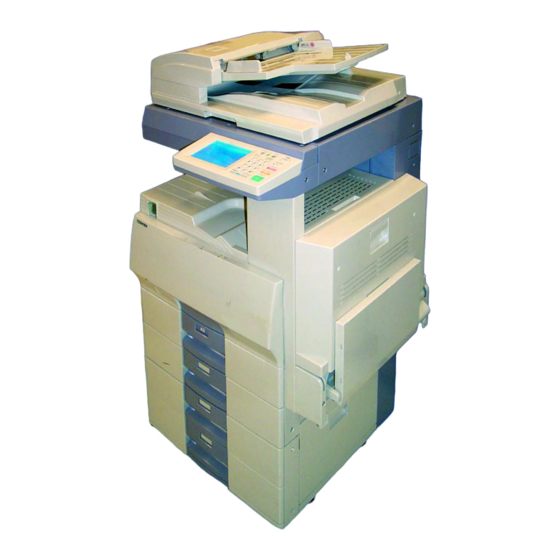

e-STUDIO GL-1010 Electronic Document Processing System
