- Page 1 USER MANUAL Version 1.1 December 2019 Quest VIII Tablet...
- Page 2 Copyright Copyright 2019 All Rights Reserved Manual Version 1.0 The information contained in this document is subject to change without notice. We make no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. We shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 Safety Regulatory Information Caution: Only use approved and UL Listed accessories, battery packs and battery chargers. Do NOT attempt to charge damp/wet mobile computers or batteries. All components must be dry before connecting to an external power source. Power Supply Use only the approved power supply output rated 12 Vdc and minimum 3 A.
- Page 4 The wireless device may interfere with some hearing aids. In the event of interference you may want to consult your hearing aid supplier to discuss solutions. Other Medical Devices Please consult your physician or the manufacturer of the medical device, to determine if the operation of your wireless product may interfere with the medical device.
- Page 5 The use of 2.4GHz WLAN's, for use through the EEA, have the following restrictions: Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 -2.4835 GHz France, outside usage is restricted to 2.4 - 2.454 GHz. ...
- Page 6 Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Waste Electrical and Electronic Equipment (WEEE) English: For EU Customers: All products at the end of their life must be returned to the reseller for recycling.
- Page 7 Version Date Description November 2019 Initial release...
-
Page 8: Table Of Contents
Table of Contents Item Checklist ..........9 Standard Items ................9 Optional Items ................. 9 System View ..........11 Front View ..................11 Rear View ..................12 Specification .................. 13 Getting Started ..........15 Power On/Off the System ............... 15 Charging the Battery ..............15 Replacing the Battery .............. -
Page 9: Item Checklist
Item Checklist Standard Items a. Tablet b. 36W power adapter c. Battery Optional Items Mag Stripe Reader IDTECH VP3300 EMV/NFC/MSR... - Page 10 IDTECH Augusta EMV/MSR Ingenico RP457c EMV/NFC/MSR e. IDTECH MSR with the EMV f. Charging cradle g. Extra Battery h. Hand strap...
-
Page 11: System View
System View Front View Description 2D scanner button 2MP front camera (optional) Programmable capacitive function key Touch screen Ambient light sensor Power Button Battery status indicator Speaker... -
Page 12: Rear View
Rear View Description 2D scanner (optional) Battery cover 5MP AF camera (optional) LED flash for Camera Location of internal NFC antenna Access cover for audio jack and USB port Pogo Pin connector DC-in Dummy cover for payment devices... -
Page 13: Specification
Specification System Quest VIII Motherboard Cherry Trail X7-Z8700 series System memory 4GB LPDDR3 or 8GB LPDDR3 Storage 64GB eMMC LCD Touch Panel LCD size 8” IPS LCD Brightness 500 nits Resolution 1920 x 1200 Touch screen P-CAP Multi-touch, Gorilla Glass 3... - Page 14 System Quest VIII Motherboard Accessories Hand strap Battery & Power Battery 3.85V, 28.69W, 7454 mAh Hot swap battery 300mAh, 3C discharge for swappable Power adapter 12V/36W for tablet charging only Peripherals MSR, Augusta EMV, MinismartII+MSR, VP3000/ Payment device Ingenico RP457C...
-
Page 15: Getting Started
Getting Started Power On/Off the System Push the power button 1 second to turn on the system and hold 4 seconds to power off the tablet. Note: For best touch performance, remove the protect ive plast ic overlay from the LCD screen by peeling it away from one of the corners. -
Page 16: Replacing The Battery
Replacing the Battery Unplug the AC cable if connected directly to the DC-inport on the tablet. Place the tablet facedown on a flat surface. Next, slide the latches up as shown to unlock and release the battery cover. A plastic tab is attached to the battery module. -
Page 17: Using The Charging Cradle

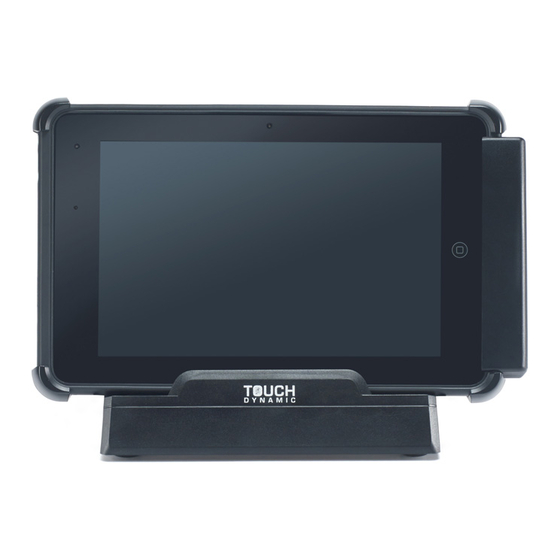

Note: The variety of peripheral kits (MSR/ Augusta combo reader/ MSR & Smart card combo reader/ Ingenico RP457C/ VP3300) all follow the same installation method. Using the Charging Cradle To charge your Quest VIII tablet, put it into the cradle. Then connect the AC adapter to the DC-in input and connect the other end to the power outlet. -
Page 18: Attaching The Hand Strap
Attaching the Hand Strap Align and attach the hand strap to the back side of the tablet and fasten the screws (x2) to secure it. The hand strap has a buckle in its center, to release the buckle, open the Velcro and simply push the two prongs on the sides and pull the buckle apart. -
Page 19: Bios Setup
BIOS Setup Entering the BIOS Setup 1. Press Win key to bring out Windows 10 Start menu. Then choose Settings. 2. Select Update & security. 3. In the column on the left, select Recovery. Then, on the right, look for the Restart now button, then tap on it. - Page 20 Vibration Control Setting Step 1: After entering the BIOS setup utility, select Advanced tab. Step 2: Select Vibration Control to go to display available options. Step 3: By default, the vibration option is disabled in the BIOS. To turn on the vibration, tap on Enabled to confirm.
- Page 21 NFC Control Setting Step 1: Select NFC Control to go to display available options. Step 2: By default, the NFC is disabled in the BIOS. Enable NFC by selecting Enabled.
