Angelo Decor AD40035 User Manual

Solar hybrid pump

Table of Contents

Download this manual

BEFORE YOU BEGIN – ASSEMBLY

 Unpack all components carefully.

 Install the 4 batteries (supplied), in proper orientation (+/-), in the

housing at rear of solar panel. Be sure the cover closes properly.

 Fully charge the unit using either direct sunlight (minimum 6 hours)

or the hybrid charging unit plugged into an indoor power receptacle.

 Install the pump in the fountain reservoir area ensuring it is

completely submersed in water.

 Connect the pump cable to the socket of the control housing on the

rear side of the solar panel.

 Connect the optional LED light cable to the socket of the control

housing. (If required)

 Choose an appropriate location for the solar panel that will

allow the best possible exposure to sunlight.

SOLAR HYBRID PUMP

USER'S MANUAL AD40035

Table of Contents

Need help?

Do you have a question about the AD40035 and is the answer not in the manual?

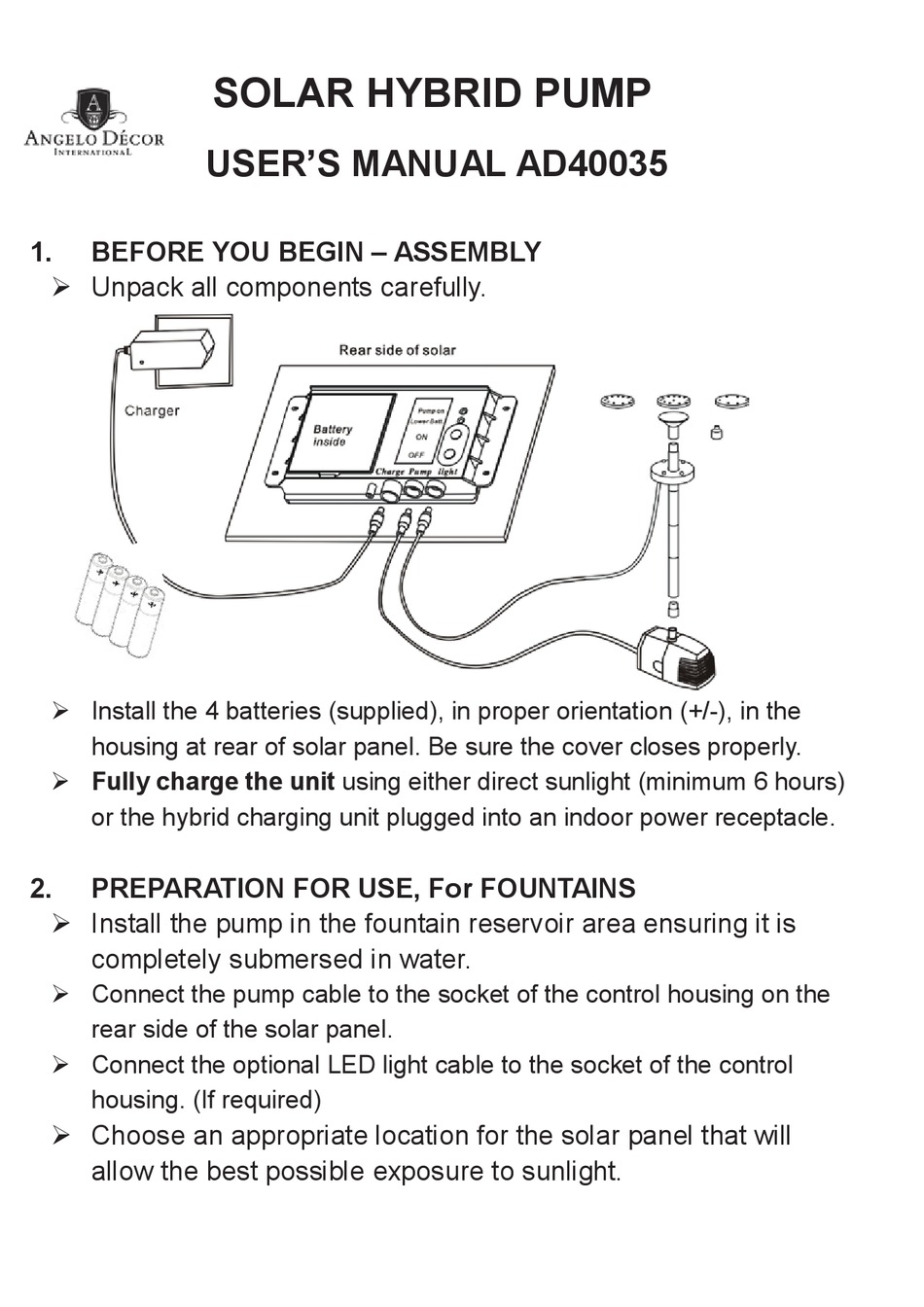

Page 1 SOLAR HYBRID PUMP USER’S MANUAL AD40035 BEFORE YOU BEGIN – ASSEMBLY  Unpack all components carefully.  Install the 4 batteries (supplied), in proper orientation (+/-), in the housing at rear of solar panel. Be sure the cover closes properly.
Page 2: Operating Instructions
PREPARATION FOR USE, For PONDS Choose the style of fountain head as needed, and number of extension tubes required for proper height. Connect fountain head and/or LED light to the extension tube. Connect the pump cable to the socket of the control housing on the rear side of the solar panel.
Page 3 CLEANING AND MAINTENANCE Solar panel: The panel should be cleaned periodically with a soft tissue. Regular cleaning of the panel is advised to maintain optimum conversion of the sun’s energy into direct current. Pump: To prevent build up of sediment, scale or dirt in the impeller or filter, remove the pump cover and the impeller cover.
Page 4 Check: Build up of sediment or scale in the tubes or the filter. Clean the tubes and the filter. (c) Operating time is shorter than preset time. Not enough electricity stored in the batteries. Charge properly. TECHNICAL DATA Item Number AD40035 Solar panel 1.4W Pump Operation Voltage DC 6V Maximum Water lift 0.5 meter...
