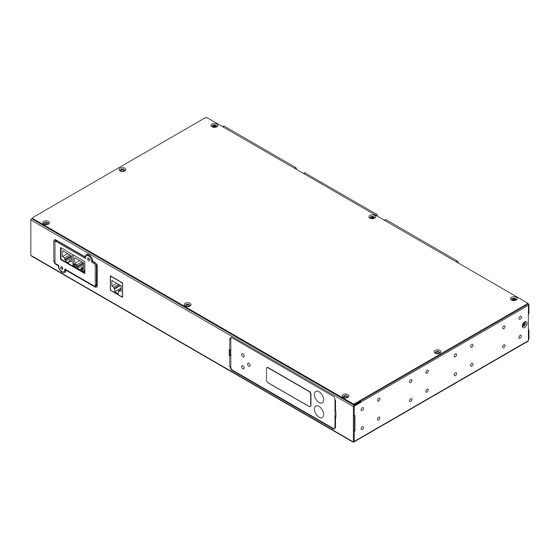

Summary of Contents for Cyber Power PDU15SW10ATNET

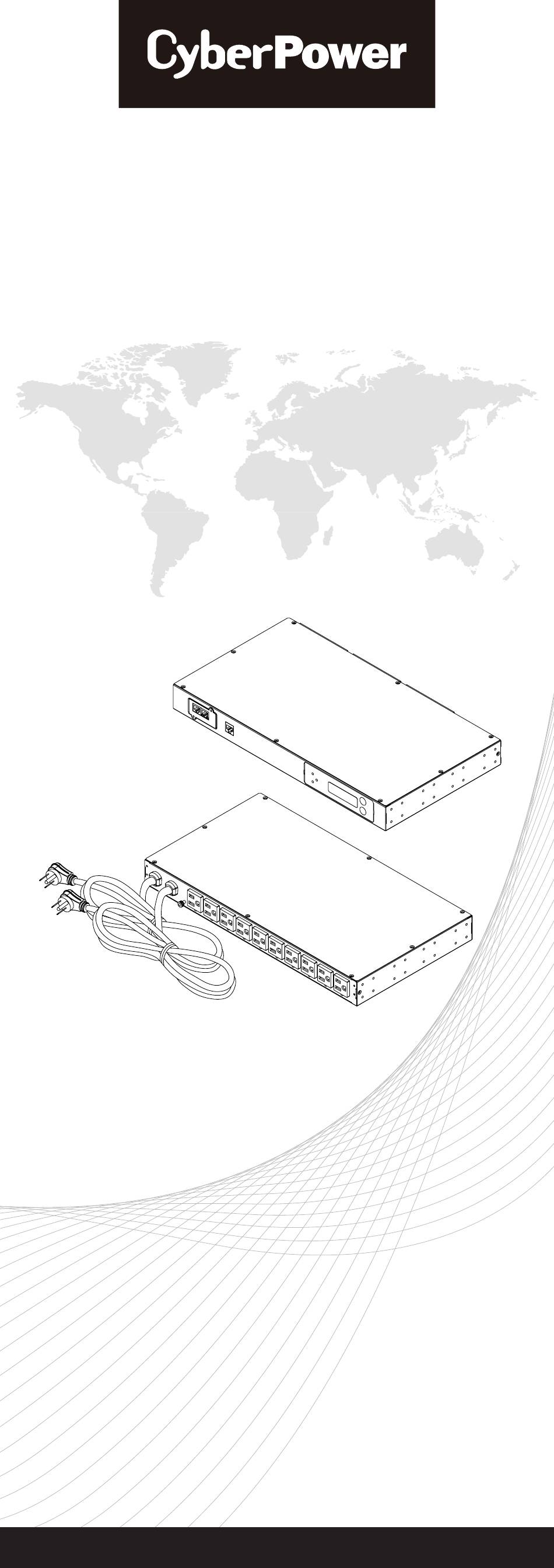

- Page 1 Automatic Transfer Switch USER'S MANUAL Copyright © 2018 Cyber Power Systems, Inc. All rights reserved.
-
Page 2: Table Of Contents
Table of Contents Overview ................. 1 Model List ................1 Product Contents ..............2 For 1U Models .....................2 For 2U Models ....................3 Product Features ..............4 Front/Rear Panel Description (1U 15A Models) ......4 Technical Specifications ................ 4 Front/Rear Panel Description (1U 20A Models) ......5 Technical Specifications .................5 Front/Rear Panel Description (2U 30A Models) ......6 Technical Specifications .................6... -
Page 3: Overview
Smart App Online and Sinewave series UPS are highly recommended for use as the power source. *Note: Only sine wave AC power sources are compatible with this ATS PDU. Simulated sine wave AC power sources are NOT compatible. Model List Switched Series Metered/Monitored Series PDU15SW10ATNET PDU15M10AT PDU20SW10ATNET PDU20M10AT PDU20SWT10ATNET PDU20MT10AT PDU20SWHVT10ATNET... -
Page 4: Product Contents
Product Contents For 1U Models ATS PDU Mounting Bracket x 2 24 (M4x8) Bracket Mounting Screws (Includes eight spares) Cord Retention Tray 4 (M3x4) Cord Retention Tray Mounting Screws 6 (M5x12) Rack Mounting Screws/ Cable Ties 6 Washers (Includes two spares for each) Qty.: 18 (NEMA Outlet) Qty.: 30 (IEC Outlet) RJ45/DB9 Serial Port... -
Page 5: For 2U Models
Product Contents For 2U Models ATS PDU Mounting Bracket x 2 24 (M4x8) Bracket Mounting Screws (Includes eight spares) Cord Retention Tray X 2 8 (M3x4) Cord Retention Tray Mounting Screws 6 (M5x12) Rack Mounting Screws/ Cable Ties 6 Washers (Includes two spares for each) Qty.: 30 (NEMA Outlet) Qty.: 50 (IEC Outlet) RJ45/DB9 Serial Port... -
Page 6: Product Features
Provides power distribution for connected equipment. K. Outlet Indicator (switched series only) When the LED is on, the outlet is providing power to connected equipment. Technical Specifications Switched Series Metered Series Model Name PDU15SW10ATNET PDU15SWHVIEC12ATNET PDU15M10AT PDU15MHVIEC12AT Input Nominal Voltage 100-120V 200-240V 100-120V... -
Page 7: Front/Rear Panel Description (1U 20A Models)
Product Features Front/Rear Panel Description (1U 20A Models) Source Output Select Expansion Port - Normal - Warning Provides SNMP Card Communication - Overload Enter Serial Port PDU20SWT10ATNET QCN-0000002-00 NEMA Type SOURCE A SOURCE B IEC Type A. SNMP/HTTP Network Slot Allows users to remotely control and monitor the ATS PDU when installed with CyberPower’s Remote Management Card. -
Page 8: Front/Rear Panel Description (2U 30A Models)
Product Features Front/Rear Panel Description (2U 30A Models) Source Output Select - Normal - Warning Expansion Port - Overload Provides SNMP Card Communication Enter PDU30SWT17ATNET QCN-0000005-00 Serial Port NEMA Type SOURCE A BANK 1 (20A) (24A) BANK 3 SOURCE B (20A) BANK 2 L5-30R... -
Page 9: Front/Rear Panel Description (2U 32A Models)
Product Features Front/Rear Panel Description (2U 32A Models) Source Output Select - Normal - Warning Expansion Port - Overload Provides SNMP Card Communication Enter PDU32SWHVCEE18ATNET QCN-0000021-00 Serial Port (20A) BANK 1 (20A) BANK 2 A. SNMP/HTTP Network Slot Allows users to remotely control and monitor the ATS PDU when installed with CyberPower’s Remote Management Card. -
Page 10: Installation Guide
Installation Guide ATS PDU Configuration WARNING: This automatic transfer switch has dual power cords (A & B) to provide redundant power sources to devices with single power supplies and can be plugged into separate compatible sources* to ensure continuous access. Users select the preferred source as the primary input. CyberPower Smart App Online and Sinewave series UPS are highly recommended for use as the power source. -
Page 11: Front Mounting
Installation Guide Please only use the provided screws for the entire installation process. Front Mounting For 1U Models Step 1. Mounting Bracket Installation Use the provided Mounting Bracket Screws (16) to attach the Mounting Brackets (2) to the ATS PDU. Step 2. -
Page 12: For 2U Models
Installation Guide Front Mounting Step 4. Cable Ties (Optional) Use the provided Cable Ties to fasten each cord to the Cord Retention Tray. For 2U Models Step 1. Mounting Bracket Installation Use the provided Mounting Bracket Screws (16) to attach the Mounting Brackets (2) to the ATS PDU. -
Page 13: Rear Mounting
Installation Guide Front Mounting Step 3. ATS PDU Mounting Use the provided Washers (4) and Screws (4) to secure the ATS PDU to your existing rack system. Note: You may also use the screw sets provided by the rack to secure the ATS PDU. - Page 14 Installation Guide Rear Mounting If you plan on attaching the Cord Retention Tray to the ATS PDU, use the provided Mounting Bracket Screws (8) to attach the Mounting Brackets (2) to the ATS PDU. Step 2. Cord Retention Tray Installation (optional) Adjust the length of the Cord Retention Tray till the screw hole on the Tray and ATS PDU are aligned.
-
Page 15: For 2U Models
Installation Guide Rear Mounting Step 4. Cable Ties (Optional) Use the provided Cable Ties to fasten each cord to the Cord Retention Tray. For 2U Models Step 1. Mounting Bracket Installation Use the provided Mounting Bracket Screws (16) to attach the Mounting Brackets (2) to the ATS PDU. - Page 16 Installation Guide Rear Mounting Step 2. Cord Retention Tray Installation (optional) Adjust the length of the Cord Retention Trays till the screw hole on the Trays and ATS PDU are aligned. Attach the Cord Retention Trays to the ATS PDU with the 8 supplied Cord Retention Tray Mounting Screws.
-
Page 17: Replacing Lcd Panel
Installation Guide Replacing the LCD Panel Step 1. Use a slotted screwdriver to gently lift out the LCD panel. Step 2. Disconnect the cable connector. Electrical Installation Step 1. Receptacle evaluation Ensure that the plug type of your ATS PDU unit matches the receptacles that you are using. -
Page 18: Power Cord Locking - For Iec Type Ats Pdu
Installation Guide Power Cord Locking - For IEC Type ATS PDU Input Power Cord Step 1. Align and insert the Cable Tie from the upper side of the Fixed Stand and fasten it as shown below. Step 2. Align and insert the Cable Tie from the bottom side of the Fixed Stand and fasten it as shown below. -
Page 19: Network Installation
Installation Guide Network Installation (Performed when a Remote Management Card is installed) Step 1. Attach the LAN Cable Using a CAT5 RJ45 cable, attach one end to the Ethernet port on the RMCARD, and the other end to a network port. Step 2. -
Page 20: Operation
Operation Remote Management The remote management function via the RMCARD205 provides for monitoring of the ATS PDU operational information, controlling outlets and utilizing SNMP functionality. Remote management can be performed via web interface. To access the web interface, please follow the instructions below: 1. -
Page 21: Led Indicators
Operation Local Management Reset All (ATS PDU, RMCARD and LCD) Reset Except TCP/IP Reset/Reboot Reset Account (User Name and Password) Reboot LED Indicators Indicator Status Description Solid Green Selected source and power condition is normal. Flashing Green Backup source and power condition is normal. Source Orange Power condition is abnormal. -
Page 22: Firmware Upgrade
Firmware Upgrade By upgrading the Firmware, you can obtain new features, updates and improvements to existing functionality. To ensure the firmware is kept up to date, please regularly visit our website to see if there is any updated firmware version available. Note: Please do not turn the ATS PDU off when processing the firmware upgrade. -
Page 23: Lcd
Firmware Upgrade 6. Select Transfer > Send File. 7. Note that the Ymodem protocol and file “C:\cpsatsmafw_xxx.bin” are selected in Hyper Terminal. 8. The download progress window will open after you click the Send button. 9. After uploading the binary file Hyper Terminal will show as below. Update the following file to upgrade the firmware. - Page 24 Firmware Upgrade 4. The ATS PDU will reboot and show main menu on Hyper Terminal. 5. Press “2” to select LCD upgrade. 6. Press “1”. 7. Select Transfer > Send File. 8. Note that the Ymodem protocol and file “C:\cpsatslafw_xxx.bin” are selected in Hyper Terminal.
-
Page 25: Rmcard
Firmware Upgrade 9 The download progress window will open after you click the Send button. 10. After uploading the binary file, Hyper Terminal will be shown as below. You can see if the firmware upgrade is successful by checking the “CyberPower System Firmware Version”... - Page 26 Firmware Upgrade (1) ftp (2) ftp > open (3) To [current IP address of RMCARD] [port] ; e.g., To 192.168.22.126 21 (4) Input USER NAME and PASSWORD (same as the administrator account in web user interface) 5. Upload the cpsrm2scfw_XXX.bin, type: ftp >...
-
Page 27: Troubleshooting
Firmware Upgrade Confirm Upgrade Firmware message window 8. If the firmware upgrade is implemented, you will see the Result in the main window, as shown in below figure. Firmware upgrade success in the main window Troubleshooting Problem Possible Cause Solution ATS PDU outlets 1. -
Page 28: Conformance Approvals
Registration is quick and easy at www.cyberpower.com/registration. CyberPower International Feel free to contact our Tech Support department with installation, troubleshooting, or general product questions. Cyber Power Systems, Inc. www.cyberpower.com For USA and Canada: 4241 12th Ave East, Suite 400 Shakopee, MN 55379... -
Page 29: Customer Service & Warranty
Product for a full refund prior to using it. Who Is Providing This Warranty? Cyber Power Systems, Inc. provides this Limited Warranty. What Does This Warranty Cover? This warranty covers defects in materials and workmanship in the Product under normal use and conditions. -
Page 30: Appendix A-Hyper Terminal
2. Subnet Mask: 255.255.255.0 3. Default Gateway: 192.168.20.254 4. DHCP: Enabled 5. Http Port: 80 6. Http Access: Enabled [System Configuration] 1. Name: PDU15SW10ATNET 2. Location: Server Room 3. Contact: Administrator [Account Setting] 1. Administrator [Configure System to Default] Sure to Configure System to Default 1. -
Page 31: Appendix B-Power Device Network Utility
Appendix B-Power Device Network Utility Overview The CyberPower Power Device Network Utility is an easy-to-use interface which is used for establishing IP addresses on CyberPower ATS PDUs. Installation Step 1. Download the Power Device Network Utility software available at www.cyberpower.com. Step 2. - Page 32 Appendix B-Power Device Network Utility Step 5. Select Finish to finalize the installation (Shown in Figure 4). Figure 4 Launch Program To launch the Power Device Network Utility and get started, select Programs from the Start menu in Windows and locate the new folder and icons for Power Device Network Utility.
- Page 33 Appendix B-Power Device Network Utility Figure 7. Windows Security Alert Step 2. Assign a valid IP Address to the ATS PDU. With the appropriate device selected from the Equipment List, open the Network Settings menu (shown in Figure 8) [Tools=>Device Setup].
- Page 34 Cyber Power Systems, Inc. www.cyberpower.com K01-0000322-03...
