REPAIR

6.1

Tools

Required tools for disassembly:
• screw driver T15
• flat-bladed screwdriver
• pliers
6.2

Before disassembly

1. Remove dust bag.
2. Remove accessory.
3. Remove exhaust- / HEPA-filter.
4. Remove motor-protection filter.
_58300000145664_ARA_EN_D.doc
118 – 20.09.13
6.3

Disassembly

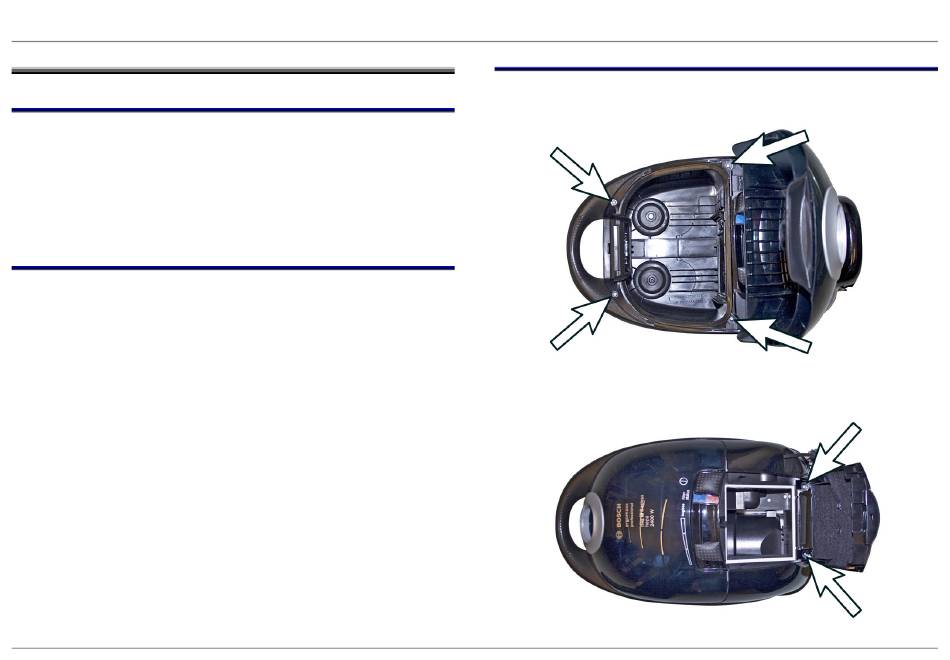

1. Open lid of the dust-bag compartment.
2. Remove 4 screws T15 (arrows).
3. Open lid of the exhaust-filter.
4. Remove 2 screws T15 (arrows).
