Pattern Control Unit

WM 480

Manual P/N 315 822 A

-- English --

NORDSON WALCOM

UDENHOUT

THE NETHERLANDS

Table of Contents

Troubleshooting

Need help?

Do you have a question about the WM 480 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nordson WM 480

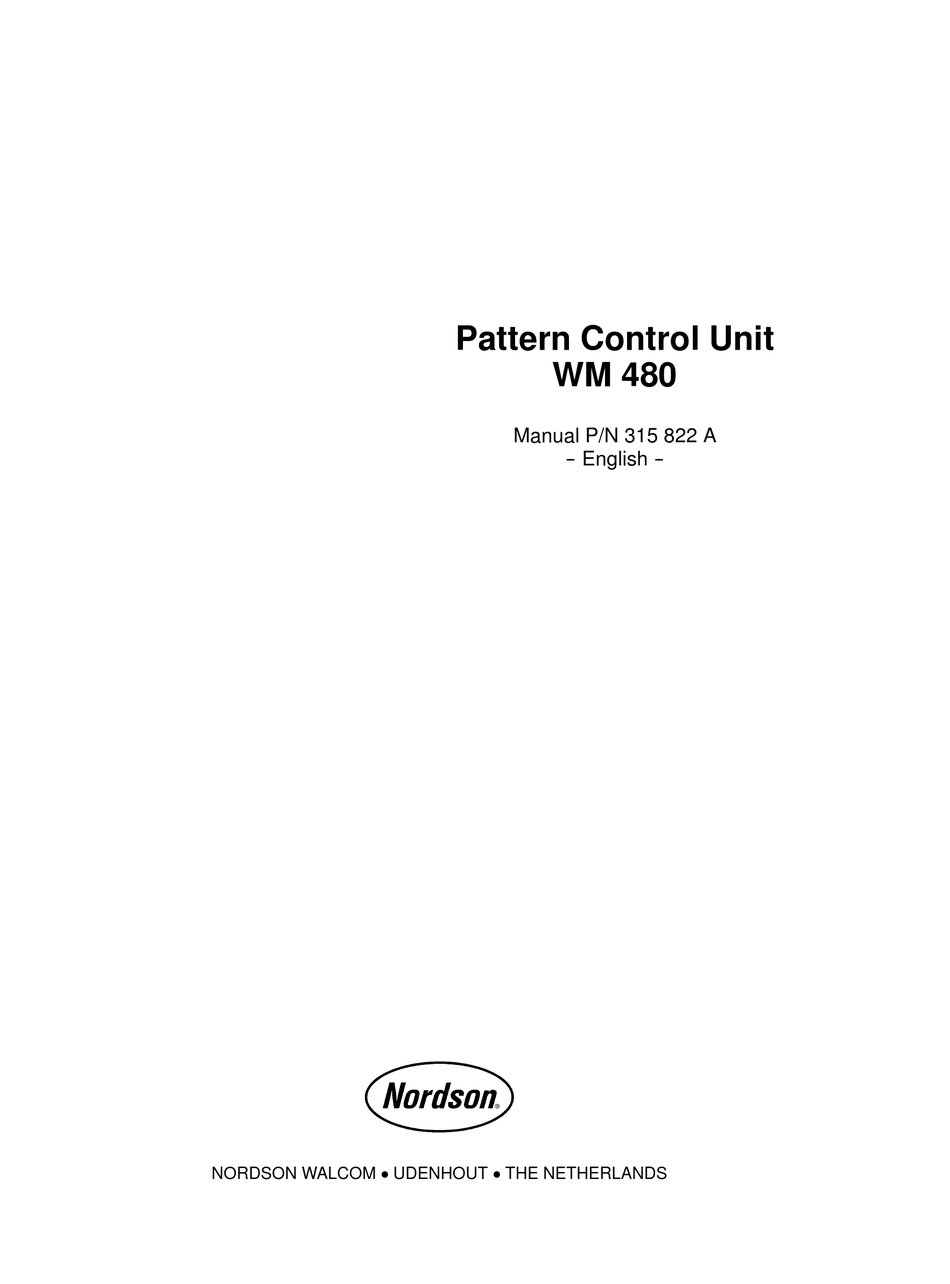

Page 1 Pattern Control Unit WM 480 Manual P/N 315 822 A -- English -- NORDSON WALCOM UDENHOUT THE NETHERLANDS...
Page 2 This is a Nordson Corporation publication which is protected by copyright. Original copyright date 1996. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Nordson Corporation. The information contained in this publication is subject to change without notice.
Page 3 Table of Contents Table of Contents Your Safety is Important to Nordson ......
Page 5: Table Of Contents
........... E 1996 Nordson Corporation...
Page 7 Data and specifications included in this manual are accurate at the time of publication. Nordson reserves the right to change the contents of this manual and/or specification without notice. Carefully read the manual first. It is your guide to safe installation, productive operation and effective maintenance.
Page 9 44-1844-21 5358 United Kingdom Kingdom Finishing 44-161-495 4200 44-161-428 6716 Spectral 44-1753-528 151 44-1753-691 351 Technology Distributors in Eastern & Contact: Nordson DED, 49-211-92050 49-211-254652 Southern Europe Germany E 2000 Nordson Corporation 56- -WM480- -MA- -02 NI_EN_I- -0100 All rights reserved...
Page 10 Introduction Outside Europe / For your nearest Nordson office outside Europe, contact the Nordson offices below for detailed information. Hors d’Europe / Fuera de Europa Pour toutes informations sur représentations de Nordson dans votre pays, veuillez contacter l’un de bureaux ci-dessous.
Page 13 Familiarize yourself with and follow all safety instructions prescribed by your company, general accident prevention regulations and government safety regulations. E 1995 Nordson Corporation Manual 56- -WM480- -MA- -02 All rights reserved...
Page 14 WARNING: Risk of explosion or fire. Fire, open flames and smoking prohibited. WARNING: System and material pressurized. Release pressure. Failure to observe may result in serious injury. CAUTION: Failure to observe may result in equipment damage. Manual 56- -WM480- -MA- -02 E 1995 Nordson Corporation All rights reserved...
Page 15 The following actions of the owner or operator of the system are some, but not all, examples of unintended use which would permit Nordson to claim it is not responsible for personal injury or property damage arising...
Page 16 In a humid environment, only equipment featuring a corresponding class of protection may be operated. Do not operate the system in an explosive environment. Manual 56- -WM480- -MA- -02 E 1995 Nordson Corporation All rights reserved...
Page 17 Turn the main switch off, or use emergency stop switch or similar safety feature as provided. After equipment has come to a standstill and before reoperating it, have it repaired by qualified personnel. E 1995 Nordson Corporation Manual 56- -WM480- -MA- -02 All rights reserved...
Page 18 5. Cover nearby live sections. If liquid adhesive application system is left idle for extended periods (e.g. overnight or long breaks) Nordson recommends applying Vaseline to the application head nozzles to prevent them from drying out and becoming blocked as a result.
Page 19 Vaseline. Warm water is usually used to flush application systems with which water based liquid adhesives are processed. If the liquid adhesive manufacturer specially recommends a flushing agent, the manufacturer’s safety and disposal details must be followed. E 1995 Nordson Corporation Manual 56- -WM480- -MA- -02 All rights reserved...
Page 20 The use of liquid adhesives in Nordson’s liquid adhesive application systems therefore requires reference to the liquid adhesive manufacturer’s documents beforehand.
Page 23 Description Section 2 Description Model WM 480 pattern control units may only be used to control electrical 1. Intended Use valves of adhesive guns and proportional valves from Nordson-WALCOM. Any other use is considered as not intended. Nordson will not be responsible for any damages resulting from unintended use.
Page 24 Description The WM 480 is a user-friendly pattern control unit. It is needed to control 3. Introduction solenoid valves which are integrated in adhesive guns. The control is intermittent and independent of the speed of the production machine. In addition, proportional valves with integrated amplifying electronics for pressure control can be triggered.
Page 25 Description The following figure shows the principle use of a WM 480 pattern 4. Functioning controller in a complete system. The principle functioning is described here. All components used conform to the program example described in Operation. A substrate (9) should be applied with adhesive. The transport belt (10) carries the substrates under the guns (7, 14).
Page 26 7. Adhesive gun 13. Adhesive pattern (belongs to 14) 2. Proportional pressure control valve 8. Adhesive pattern (belongs to 7) 14. Adhesive gun 3. WM 480 (front Side) 9. Substrate 15. Photo cell 4. WM 480 (rear Side) 10. Transport belt 16.
Page 27 10. Valve output 3 3. Photo cell input 3 7. Encoder input 11. Valve output 2 4. Ground connection 8. Pressure output 2 12. Valve output 1 E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 28 3 valves; they are printed once because of the small space available. Meaning of the keys and indicators: see Operation Fig. 2-8 Keyboard and indication LEDs for valve control Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 29 WARNING: Do not connect valves other than those described in intended use. Otherwise a danger of fire exists because they are not developed for the constant current flowing. E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved...
Page 33 Carefully unpack the unit to avoid damaging it. Check for damage caused 2. Unpacking during transport. Save packing material for possible later use. Otherwise recycle or dispose of properly according to local regulations. E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 34 Pack the unit in suitable packing materials such as styrofoam and sturdy 5. Storage cartons. Protect from humidity, dust and great fluctuations in temperature (condensation). Dispose of properly according to local regulations. 6. Disposal Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 35 10. Valve output 3 3. Photo cell input 3 7. Encoder input 11. Valve output 2 4. Ground connection 8. Pressure output 2 12. Valve output 1 E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 36 VKOMP AT m/min m/min 5. The program checks the speed and all other parameters (see Section Operation chapter Programming). Fig. 3-6 Display of speed Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 39: Daily Startup
Fig. 4-2 Display after switching on PRG 1 PRG 01_ LOAD Fig. 4-3 Display after 2-3 sec. Switch off the mains switch. 2. Daily Shutdown E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 40: Emergency Switch-Off
The LC display has two lines. The texts are mostly self-explanatory. 5. Display W A L C O M B E N E L U X Fig. 4-5 Display Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 41: Keyboard (Valve Control)
1 (yellow) Automatic mode ON/OFF 2 (red) Manual mode ON/OFF 3 (green) Photo cell activated / deactivated 4 (green) Gun applies / does not apply E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 42: Selecting Language
Operation The operation of the pattern controller WM 480 is possible in 4 7. Selecting Language languages. 1. Press key Y until the adjacent display appears (twice after initial display). PRG 01 CLEAR 2. Enter the language code. 3. Confirm with key E.
Page 43: Programming (Using Example Data)
Fig. 4-8. The adhesive application should be saved as program no. 40. Operation language should be English. The following are available: 1 pattern controller WM 480, 1 photo cell and 1 encoder 2 identical guns 1 proportional pressure control valve, 1 regulator and a pump with...
Page 44 11. Delay pattern 1 of the 2. adhesive trace (unapplied substrate) trace (applied substrate) 12. Adhesive pattern 1 of the 2. adhesive trace (applied substrate) Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 45: Necessary Programming Steps
VMAX 01 220 m/min maximum speed and minimum and maximum pressure, the data is displayed via the controller WM 480. The data is noted, entered and saved. 9. Enter the start speed and stop speed of the production machine (it is...
Page 46: Adjusting Compensation Speed
1 for every valve and to confirm with key E. After confirming valve 3, photo cell 2 is displayed (this is not an error). Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 47: Adjusting Delay And Adhesive Pattern
9. Enter 300 for the 3rd delay pattern (40+90+40+90+40=300). Enter 90 for the 3rd adhesive pattern and confirm with key E. The repetition index increases to 4. E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved...
Page 48: Adjusting Compensation Data For Misalignment
6 mm, meaning that application started 4 mm too late and finished 6 mm too late. 1. Press the keys B or Y until the adjacent display appears. Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 49 NOTE: The data for compensation should only be 50% of the smallest delay or adhesive pattern. Otherwise the adhesive application changes incorrectly. E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved...
Page 50: Adjusting Minimum And Maximum Pressure
NOTE: If necessary, repeat steps 2 and 3 to get a useful result. The speed of the production machine is displayed in the 2nd line of the VKOMP AT m/min controller display. m/min Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 51 Curve for program example (Page 4-5) PRESS MAX PRESS MIN Speed of production machine VOFF VMIN VMAX WM 480-09--A Fig. 4-10 Curve for program example E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 52: Adjusting Minimum And Maximum Speed
3. Confirm with key E. 4. Enter the stop speed below which the valves should be deactivated in the 2. line. 5. Confirm with key E. Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 53: Saving Program (Load)
NOTE: If a program no. without programmed data is selected, the adjacent message appears. 4. Press key E once more. READOUT WRONG PUSH E_ 5. Select a valid program no. (in our example: 40). E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 54: Test Run (Minimum Speed)
2. Adjust the minimum pressure (current) of the controller (on the WM 480) until adhesive flows continuously providing a useful adhesive bead (not too thick, not too thin). 3. Note all parameters and enter under ”PRESS01 MIN” and ”VMIN 01”.
Page 55: Programming Continued (2Nd Adhesive Pattern Of Example)
VMIN 01 20 m/min 220 m/min VMAX 01 If there are any problems, do not hesitate to contact Nordson (see Section Nordson International). 004,0 m/min VOFF 008,0 m/min PRG 40...
Page 56: Copying Program
NOTE: To check if a program is really erased, try to run it. The adjacent message should appear (Fig. 119). READOUT WRONG PUSH E_ Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 59: Troubleshooting
Clean gun (or module of the gun) or permanently change the module Gun does not Photo cell not connected or Connect photo cell or change it Installation apply defective E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 60: Operation Faults
Increase ”PRESS MAX” data Operation low, running a high speed Gun applies too Pressure data wrong Decrease ”PRESS MAX” data Operation much, running a high speed Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 61 Guns leaks too Stop data too low Increase stop data ”VOFF” Operation much after emergency stop Pressure data wrong Correct pressure data E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 62: Repair
NOTE: Repairs to be carried out by the customer are limited to changing 3. Repair defective fuses and panels. All other repairs may only be carried out by Nordson Customer Service. NOTE: Use only Nordson original - spare parts. Problem Possible Cause Corrective Action...
Page 65: Accessories
Proportional pressure control valve 311 454 Wheel for encoder 313 365 Extension cable for encoder 5 m (196.8 in) 313 846 Photo cell (Kit) E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 66: Spare Parts List
NOTE: Repairs to be carried out by the customer are limited to changing defective fuses and panels. All other repairs may only be carried out by Nordson Customer Service. NOTE: Use only Nordson original spare parts. Current Parts List Please observe that your WALCOM equipment may slightly differ from description or some informational details in the manual.
Page 69: General Data
NOTE: 1 bar = 14,5 psi NOTE: 25,4 mm = 1 inch NOTE: 0,45359237 kg = 1 lbs NOTE: 9 x ˚C/5 +32 = ˚F E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 70: Connection Allocation
Valve Outputs 1, 2, 3 Function +Output Not connected --Output Fig. 7-2 Valve outputs Pressure Outputs P1 and P2 Function --15V 0-20 mA Fig. 7-3 Pressure outputs Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 71: Encoder Input
Specifications Encoder Input Function --24V +24V Impuls Fig. 7-4 Encoder input Machine Contact MC Function Not connected Fig. 7-5 Machine contact input E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 72: Dimensions
3. Dimensions (9.57) (2.05) WM 480-10-A Fig. 7-6 Side view, dimensions in mm (inch) (12.91) WM 480-11-A Fig. 7-7 Front side, dimensions in mm (inch) Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
Page 75: Definitions
Parameters Variably adjustable amounts Parent machine Customer’s production machine Pattern control unit Unit for the speed-dependant, intermittent control of solenoid valves. E 1996 Nordson Corporation WM 480 Manual 56- -WM480- -MA- -02 All rights reserved Issued 03/96...
Page 76: Display Texts
VOFF m/min STOP m/min VARRET m/min LÖSCHEN CLEAR WISSEN EFFACER LESEFEHLER READOUT WRONG LEESFOUT FAUTE LECTURE TASTE E PUSH E TOETS E PALPEUR E Manual 56- -WM480- -MA- -02 WM 480 E 1996 Nordson Corporation All rights reserved Issued 03/96...
