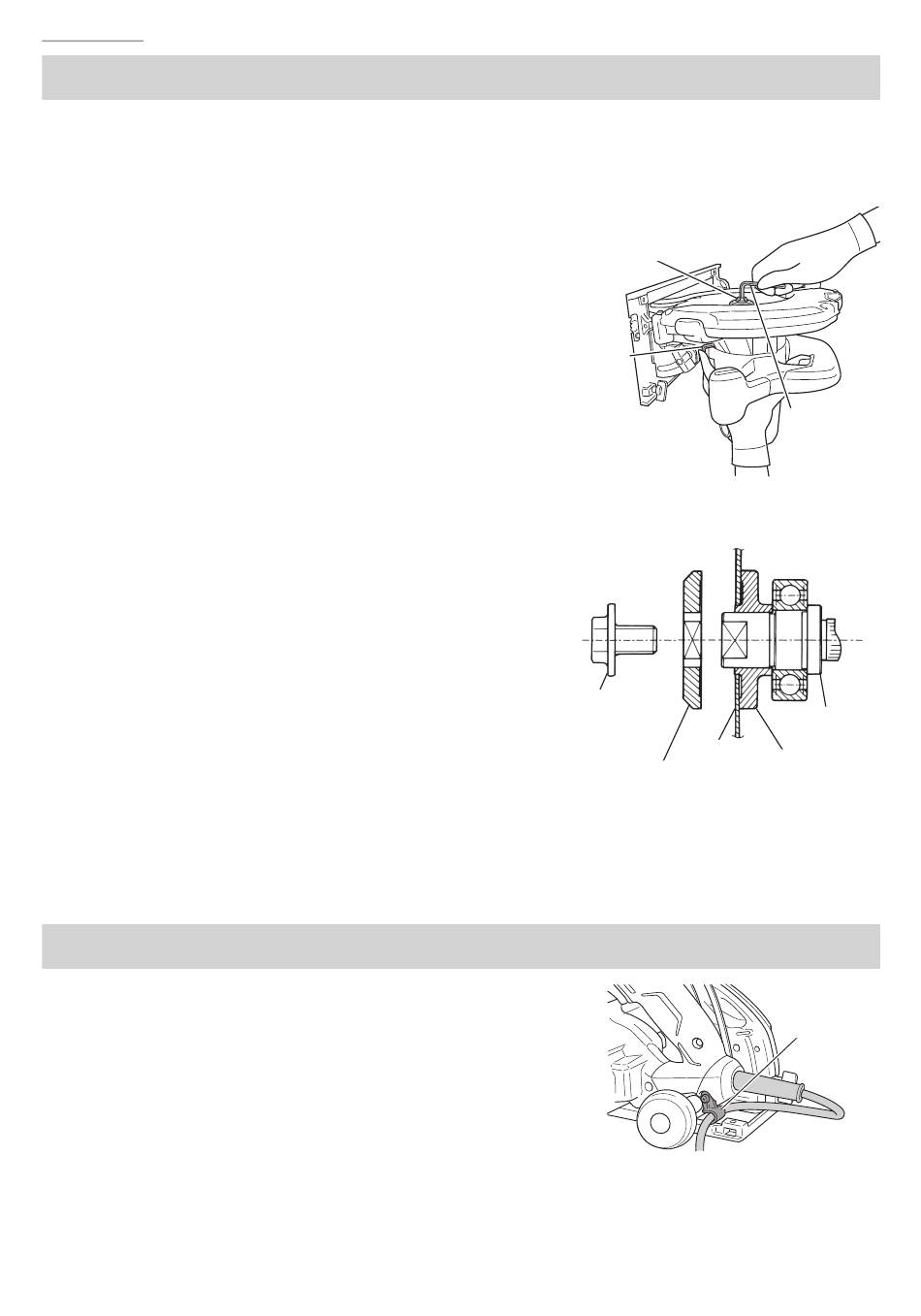

MOUNTING AND DISMOUNTING THE SAW BLADE
CAUTION
To avoid serious accident, ensure the switch is in the OFF position, and the power
source is disconnected.
1.
Dismounting the saw blade
(1)
Set the cutting volume at maximum, and place the
Circular Saw as shown in Fig. 11.
(2)
Depress the lock lever, lock the spindle, and remove
the hexagonal-socket bolt with the Hex. bar wrench.
(3)
While holding the lower guard lever to keep the lower
guard fully retracted into the saw cover, remove the
saw blade.
2.
Mounting the Saw Blade
(1)
Thoroughly remove any sawdust which has
accumulated on the spindle, bolt and washers.
(2)
As shown in Fig. 12, the side of Washer (A) with a
projected center the same diameter as the inner
diameter of the saw blade and the concave side of
Washer (B) must be fi tted to the saw blade sides.
(3)
To assure proper rotation direction of the saw
blade, the arrow direction on the saw blade must
coincide with the arrow direction on the saw cover.
(4)
Using the fi ngers, tighten the hexagonal-socket
bolt retaining the saw blade as much as possible.
Then depress the lock lever, lock the spindle, and
thoroughly tighten the bolt.
CAUTION
After having attached the saw blade, reconfi rm that the lock lever is fi rmly secured
in the prescribed position.
USING THE CORD HOLDER
Using the cord holder, the cord can be guided toward the rear
of the product, as shown in the fi gure.
If the cord is interfering during operation, hook it into the cord
holder and change its angle.
Hexagonal-
socket bolt
Lock
lever
Hexagonal-
socket bolt
Washer (B)
24
Hex. bar
wrench
Fig. 11
Spindle
Saw blade
Washer (A)
Fig. 12
Cord holder
Fig. 13
