The following steps must be performed to properly install your CD-RW/DVD-
ROM.
Set drive's jumpers
Connect audio cable
Attach IDE BUS cable
Connect power cable
Mount CD-RW/DVD-ROM
Install CyberLink PowerDVD
Install VOB InstantCD/DVD software (used for recording CDs)

SETTING JUMPERS

The mode select jumpers are six (6) straight angle pins located on the rear of the
CD-RW/DVD-ROM. By placing a jumper on the pins, you can select the following
functions:
CS: – Drive is configured using host interface signal CSEL
SL: – Configures drive as Slave
MA: – Configures drive as Master (default mode)
In most installations, jumper should remain in MA (Master) position (factory
default). It is recommended that you install your CD-RW/DVD-ROM only on the
secondary IDE BUS. If you are installing on primary IDE BUS, your hard drive
would then be the Master, and you should set your CD-RW/DVD-ROM to the
Slave position (SL).

PLACING CD-RW/DVD-ROM INSIDE YOUR COMPUTER

Now that you have set your drive's jumpers, you are ready to install your
CD-RW/DVD-ROM inside your computer.
IMPORTANT: Disconnect power from your computer system before
beginning installation.
2
software (used for viewing DVD movies)

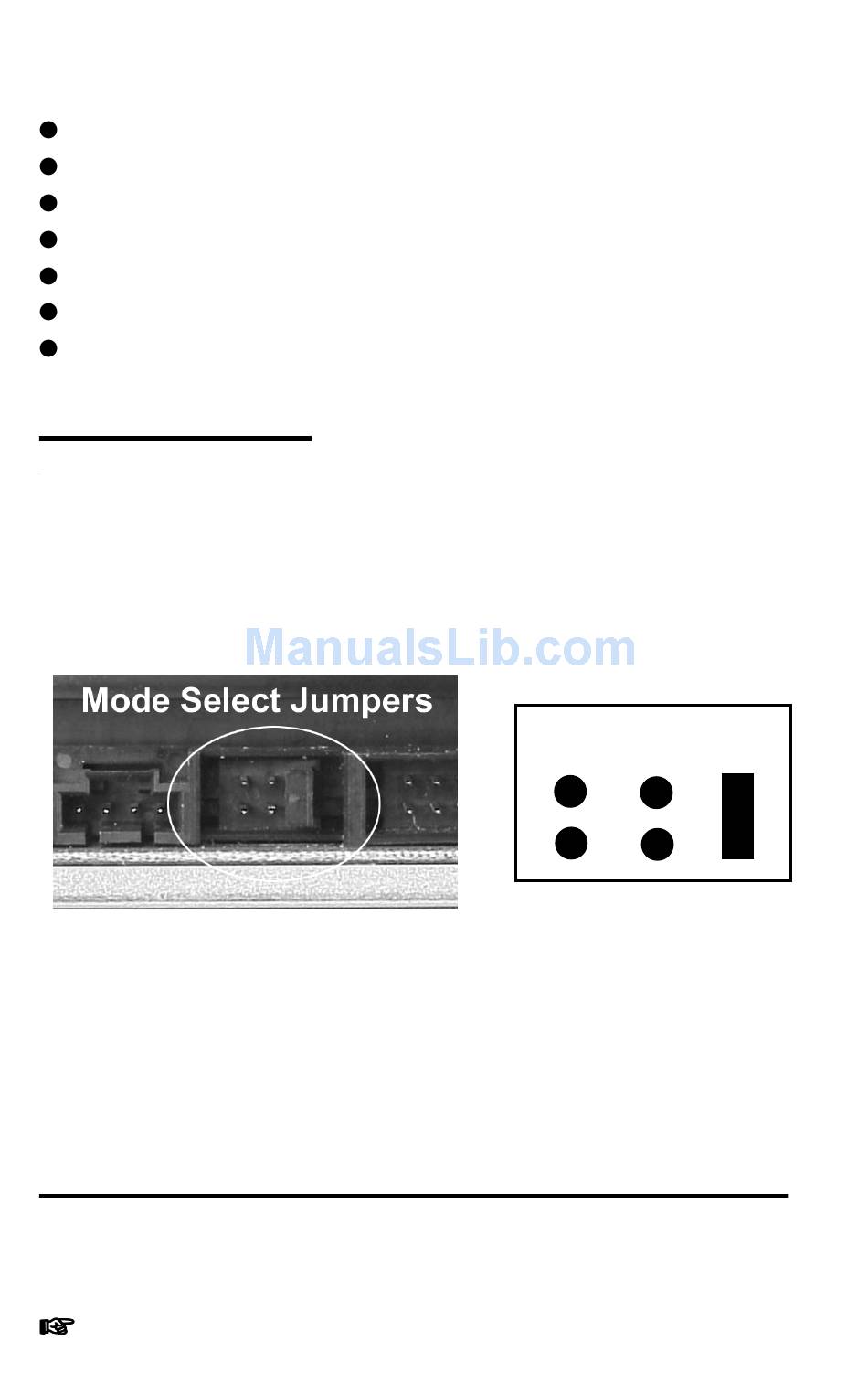

Mode Select Jumpers
C
S
S
L
M
A
