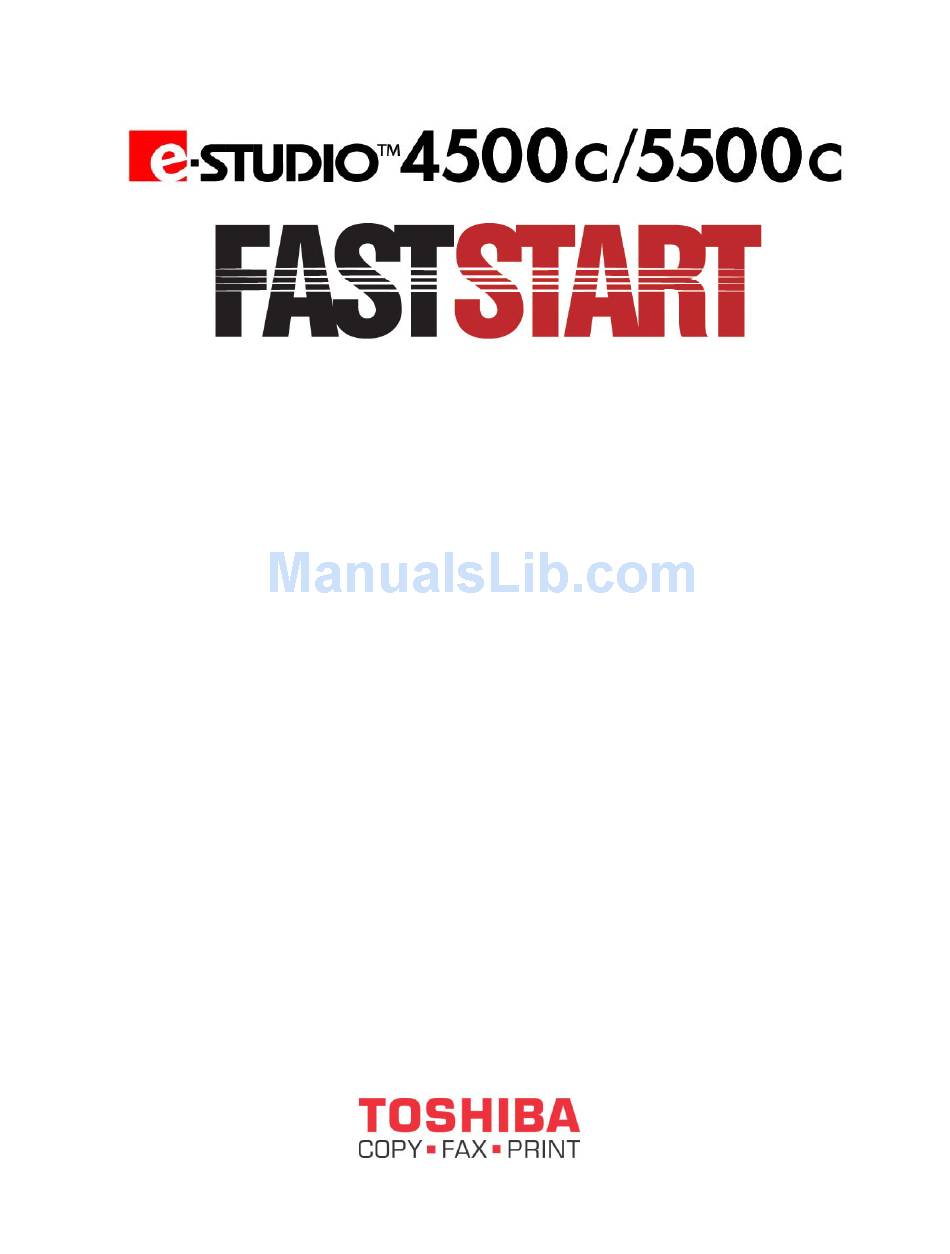

Page 1: User Guide
User Guide Basic Copying Toshiba America Business Solutions, Inc. © 2006 Training and Dealer Development... -
Page 3: Basic Copying
BASIC COPYING Placing Originals on the Exposure Glass Placing Originals in the Auto Document Feeder Basic Copying Procedure Copying From the Bypass Tray Setting Thick Paper Setting OHP Transparencies Copying Onto Special Paper Copying Onto Envelopes Preset Reduction / Enlargement Using the Zoom Function Duplex Copying Image Repeat... -
Page 4: Placing Originals On The Exposure Glass
Placing Originals on the Exposure Glass 1. Lift the ADF. IMPORTANT: Do not lift the ADF forcefully. Otherwise, the ADF cover might open or be damaged. NOTE: Be sure to lift the ADF more than 30°. Otherwise, the size of the original might not be detected correctly. -
Page 5: Placing Originals In The Auto Document Feeder
Placing Originals in the Auto Document Feeder NOTES: Do not stack originals above the limit mark on the side guide of the ADF. The last page should be on the bottom. When you copy two-sided originals, both front and back sides of each original are scanned at once. -
Page 6: Batch Mode
Placing Originals in the Auto Document Feeder (Cont’d.) Batch Mode The Batch mode enables you to copy originals of more than 100 pages as a single document, even if you place the originals into the ADF in installments. 1. Press Special Original. 2. -
Page 7: Basic Copying Procedure
Basic Copying Procedure 1. Make sure Ready is shown on the display. If any other function is displayed, press the Copy key. 2. Make sure no previous settings remain. NOTE: When there are previous settings remaining, press the Clear Modes key before entering your settings. -
Page 8: Copying From The Bypass Tray
Copying From the Bypass Tray This section gives instructions for setting paper on the bypass tray. Use the bypass tray to print onto OHP transparencies, labels, thick paper, and envelopes that cannot be loaded in the paper tray. NOTES: When loading letterhead paper, pay attention to its orientation. Paper within the following dimensions can be set in the bypass tray: Vertical: 100 - 305 mm (3.9 - 12.0 in.) Horizontal: 148 - 457.2 mm (5.5 - 18.0 in.) - Page 9 Copying From the Bypass Tray (Cont’d.) 1. Open the bypass tray. 2. Insert the paper with the side you want to copy facing up, and align the paper guide to the paper size. Make sure the bypass tray is selected (highlighted) on the control panel.
- Page 10 Copying From the Bypass Tray (Cont’d.) 3. Select the paper type and size. When Copying onto Standard Size Paper: 1. Press the (enter) key. The “Bypass Tray Paper” screen is displayed. 2. Press Select Size. 3. Select the paper size. 4.
-
Page 11: Setting Thick Paper
Setting Thick Paper NOTES: Paper settings can also be set using the printer driver. The following procedures are not necessary when setting paper sizes using the printer driver. Paper size settings set using the printer driver have priority over those set using the machine’s display panel. -
Page 12: Setting Ohp Transparencies
Setting OHP Transparencies 1. Press the User Tools/Counter key on the control panel. 2. Press System Settings. 3. Press the Tray Paper Settings tab. 4. Press Next to scroll through the list. 5. Press Paper Type: Bypass Tray. 6. Select OHP or Translucent. 7. -
Page 13: Copying Onto Special Paper
Copying Onto Special Paper 1. Put special paper in the bypass; make sure Bypass is the selected source on the control panel. Press the (enter) key. 2. Select paper type in “Special paper”. 3. Press OK. 4. Place the originals, and then press the Start key. NOTE: When the Sort function is set, press the 5. - Page 14 Preset Reduction / Enlargement 1. Press Reduce / Enlarge. NOTE: To select a preset ratio on the initial display, press the shortcut Reduce / Enlarge key, and then proceed to step 4. 2. Press Enlarge or Reduce. 3. Select a ratio, and then press OK. 4.
-
Page 15: Using The Zoom Function
Using the Zoom Function You can change the reproduction ratio in increments of 1%. NOTE: You can select a preset ratio close to the ratio using Reduce or Enlarge, and then adjust it further, using 1. Press Reduce / Enlarge. 2. -
Page 16: Duplex Copying
Duplex Copying Duplex copying and orientation selection are done with the Dup./Combine/Series key. There are two types of duplex copies: 1 Sided→2 Sided Copies 2 one-sided pages onto a two-sided page. 2 Sided→2 Sided Copies 1 two-sided page onto a two-sided page. Page 14... - Page 17 Duplex Copying (Cont’d.) Originals and Copy Orientation You can select the orientation: Top to Top Top to Bottom 1. Press Orientation, select the orientation (Original/Copy), and then press OK. Page 15...
-
Page 18: Image Repeat
Image Repeat The original image is copied repeatedly. There are two types of designation methods for Image Repeat . Whole Area Repeat — Repeatedly copies the entire image. Specified Area Repeat — Repeatedly copies a specified portion of the image. Decide the base point of the area, specify the length and the width, and then specify the location of the area. - Page 19 Image Repeat (Cont’d.) 1. Select the size of the copy paper and the reproduction ratio. 2. Press Edit / Color Creation. 3. Press Edit Image. 4. Press Image Repeat. 5. Make sure that Whole Area is selected, then press OK. 6.
-
Page 20: Color Adjustment
Color Adjustment This function lets you alter up to three single colors by mixing them with adjacent colors in the color circle. NOTES: You can adjust up to 3 colors from yellow, red, magenta, blue, cyan, or green at the same time. -
Page 21: Color Balance
Color Balance You can adjust the overall color tone when the overall copy is reddish or bluish. 1. Press the Adjust/Program Color key. 2. Make sure that Color Balance is selected. 3. Adjust by pressing Lighter or Darker. 4. Press OK. NOTES: The indicator of the Adjust/Program Color key will light up when adjusting the color balance. -
Page 22: Job Programs
Job Programs You can store frequently used copy job settings in machine memory and recall them for future use. Programs are not deleted by turning the power off or pressing the Clear Modes key. They are canceled only when you delete or overwrite them with another program. Storing a Program 1. -
Page 23: Changing A Stored Program
Job Programs (Cont’d.) 5. Enter the program name using the letter keys on the display panel. You can enter up to 40 characters. 6. Press OK. When the settings are successfully stored, the program number and program name will be displayed. After a while, the screen reverts back to the initial copy display. -
Page 24: Deleting A Program
Job Programs (Cont’d.) Deleting a Program 1. Press the Program key. 2. Press Delete. 3. Press the number of the program you want to delete. 4. Press Yes. The program is deleted, and the screen returns to the initial copy display. Recalling a Program 1. - Page 25 Notes Page 23...
