3.2 WARNINGS REGARDING THE FLUING SYSTEM
Before installation check, on the basis of the contents of the
reference standard, to ensure that the volume aspirated by the
fumes exhausting system is greater than the volume of combusted
gas produced by the appliance (see point 1.1).
If the solution of combusted gas discharge under an extractor hood
is chosen, observe the distance (shown in the fi gure) between
the top of the discharge pipe and the lowest point of the hood
fi lters. This distance is defi ned on the basis of discharge pipe
diameter "D".
In the case of discharge direction to the outside or into a central
fl ue (Fig. "1c"), the discharge ducts must NOT present an overall
length in excess of 118"(3 meters), must NOT have any reductions
in diameter, and must be subjected to periodic inspection and,
when necessary, cleaning.
Warning: Since combusted gas (see fi gure) can reach very high
temperatures, check the heat resistant properties of extension
ducts if fi tted and the fi lters in the extractor hood to ensure the
materials are compatible with the temperature conditions. In
addition, periodically check the condition of the fi lters which, if
excessively fouled with fat and dirt, will reduce the effi ciency of
the suction system and may catch fi re.

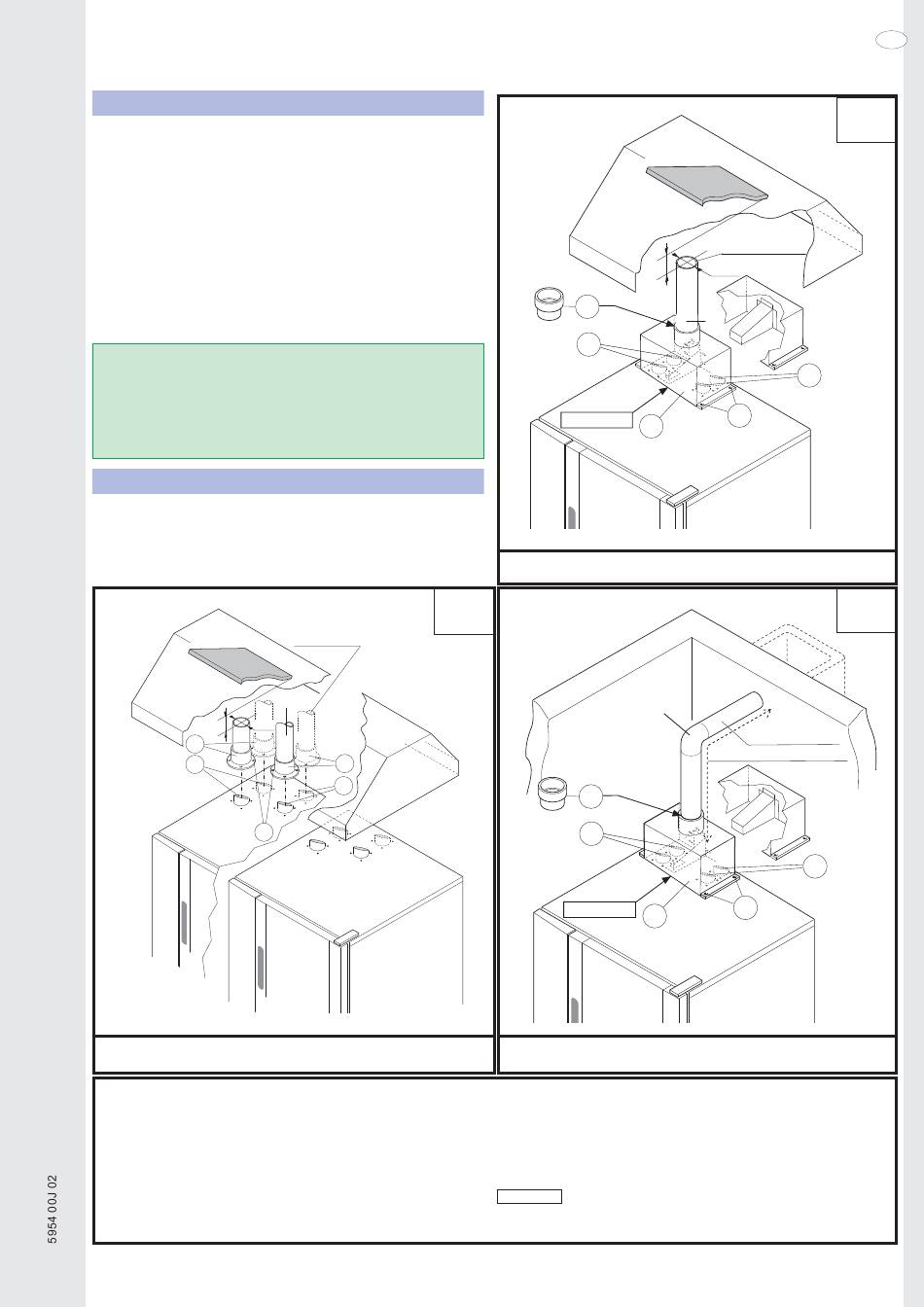

3.3 INSTALLATION OF ACCESSORIES

Accessories can be easily installed by following the fi gures below
together with the relative key.
The screw holes for attaching accessories "A" and "F" are
0.14"(3.5 mm) in diameter and they must be drilled on site cover
in correspondence with the punch marks.
INSTALLATION TYPE
A3
ø D
2D
F
B
G
A3
DIRECT UNDUCTED DISCHARGE UNDER EXTRACTOR HOOD
LEGENDA:
Cam / draught damper accessory
A:
(to be ordered from manufacturer)
Omitted
B:
Oven chamber combusted gas discharge
C:
Adapter ring for commercial ducts
E:
(to be ordered from manufacturer)
1a
Tmax=500°C
*
F
C
A3
INSTALLATION TYPE
B13
2D
E
B
SILICONE
A
DISCHARGE WITH SHROUD UNDER EXTRACTOR HOOD
INSTALLATION TYPE
B13
*
E
B
SILICONE
A
DISCHARGE TO THE OUTSIDE OR CENTRAL FLUE WITH SHROUD
Conical connections for single outlet
F:
(accessory not mandatory)
Fixing screws (supplied);
G:
Commercial extension pipes (not supplied)
*:
SILICONE :
Apply high temperature silicone sealant between contact
surfaces
15
USA
1b
Tmax=350°C
ø D
*
C
G
1c
Tmax=350°C
3 meters MAX
C
G
