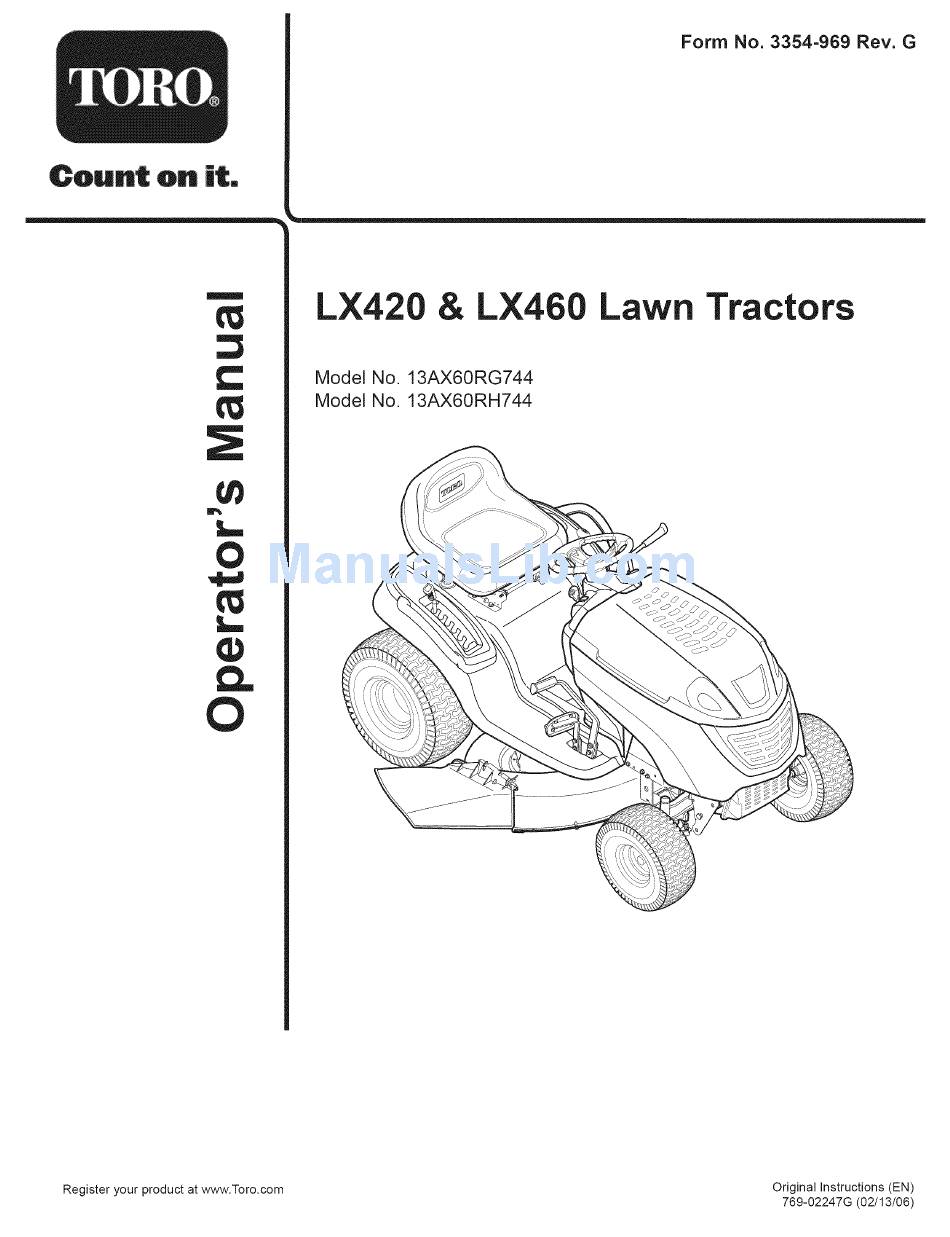

- Page 1 Register your product at www.Toro.com LX420 & LX460 Lawn Tractors Model No. 13AX60RG744 Model No. 13AX60RH744 Form No. 3354=969 Rev. G Original instructions (EN) 769-02247G (02/13/06)
-
Page 2: Customer Support
Choose from the options below: Visit www.toro.com for many useful suggestions. Click on Customer Care in the Homeowners section of the Toro Solutions Center and help is immediately available. If you have questions concerning your tractor, please call us at 1-888-384-9942 (U.S.) or 1-888-848-4073 (Canada). -
Page 3: Section 1: Important Safeoperation P Ractices
(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available authorized Toro service dealer or contact Toro at 8111 Lyndale Avenue South, Bloomington, MN 55420. GENERAL... -
Page 4: Slope Operation
21. Never l eave a running machine unattended. Always t urnoffblade(s), place transmission in neutral, setparking brake, s topengine andremove keybefore dismounting. 22. Useextra carewhenloading or unloading t he machine intoa trailer o rtruck.Thisunitshouldnot bedriven upordownramp(s), because theunit could tipover, c ausing serious personal injury. T he unitmustbepushed manually o nramp(s) to load or unload properly. -
Page 5: Safe Handling Of Gasoline
CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them. -
Page 6: General Service
If the blades do not stop within the this time frame, your unit should be serviced professionally by an authorized Toro service dealer. Check brake operation frequently as it is subjected to wear during normal operation. Adjust and service as required. - Page 7 SECTION 2: SAFETY ANDINSTRUCTIONAL LABELS Safety and instructional abels found on your lawn tractor are illustrated below (3/4 actual size). Always follow their instructions and heed their warnings. If you discover a safety label is scratched, damaged or missing, order a replacement immediately.
- Page 8 Part No. 112-1271 LX420 Pad No. 112-1270 LX460 m_'Upper Belt r_, Lower Belt Pad No. 112-1269 Pad No. 112-1274 /_ DANGEF_PO|SON HIELD EYES. OSIVE GASES CAN , SPARKS CAUSE BLINDNESS , FLAMES ORINJURY. * SMOKING PROTEGER LES. I'LOIGNERSULFURIC}UE YEUX. L ESGAZ EXPLOSIFS.
- Page 9 iiiiil_ Sight and hold this levelwith a vertical tree... I,LI I,LI I,LI or a corner of a building... 15° or a fence post a 15o...
-
Page 10: Section 4: Tractor Set-Up
SECTION 4: TRACTOR SET-UP Attaching TheSteering Wheel Tools Required (1) 1/2" socket wrench The hardware for attaching the steering wheel has been packed within the steering wheel, beneath steering wheel cap. Carefully pry off the steering wheel cap and remove the hardware. With the wheels of the tractor pointing forward, place the steering wheel over the steering shaft. -
Page 11: Tire Pressure
Tire Pressure inflation pressure shown on the sidewall of the WARNING: Never exceed the maximum tire. The tires on your unit may be over-inflated for shipping purposes. Reduce the tire pressure before operating the tractor. Recommended operating tire pressure is approximately 10 p.s.i for the rear tires and 14 p.s.i, for the front tires. -
Page 12: Settingthegauge Wheels
SettingtheGauge Wheels Tools Required (2) 9/16" wrenches Select the height position of the cutting deck by placing the deck lift lever in any of the six different cutting height notches on the right fender. Adjust the deck wheels so that they are between l_-inch and _/2-inchabove the ground as follows. -
Page 13: Section 5: Know Your Lawntractor
SECTION 5: KNOW YOUR LAWNTRACTOR A Systems Indicator Monitor/Hour Meter B PTO (Blade Engage) Lever C Parking Brake Lever D Cruise Control Lever E Shift Lever F Cup Holder NOTE: Any reference in this manual to the RIGHT or LEFT side of the tractor is observed from operator's position. NOTE: Steering Wheel not shown for clarity, Figure 7... - Page 14 Throttle/ ChokeControl The throttle/choke control is located on the right side of the tractor's dash panel. This lever controls the speed of the engine and, when pushed all the way forward, closes the choke for cold starting. When set in a given position, the throttle will maintain a uniform engine speed.
- Page 15 Refer to the MAINTENANCE s ection of this manual for the proper battery charging procedure or have the charging system checked by an authorized Toro service dealer. PTO(BladeEngage) Lever o.1' PTO / BLADE The PTO (Blade Engage) lever is located on the left side of the dash, next to the steering wheel.
-
Page 16: Section 6: Operating Y Our Lawntractor
Before each use, check the safety interlock system for proper operation. If the interlock system should ever malfunction, do not operate the tractor. Contact an authorized Toro service dealer. • The safety interlock system prevents the engine... -
Page 17: Starting The Engine
Starting the Engine interlock system malfunctioning. WARNING: Do not operate the tractor if the system was designed for your safety and protection. NOTE: Refer to the TRACTOR S ET-UPon page 10 of this manual for Gasoline and Oil fill-up instructions. Insert the tractor key into the ignition switch module. -
Page 18: Usingthe Deckliftlever
NOTE: Cruise control can not be set at the tractor's fastest ground speed. If the operator should attempt to do so, the tractor will automatically fastest optimal mowing ground speed. Disengage the cruise control using one of the following methods: •... -
Page 19: Section 7: Making Adjustments
SECTION 7: MAKING ADJUSTMENTS adjustments while the engine is running, ARNING: Never attempt to make any SeatAdjustment To adjust the position of the seat, loosen the two knobs on the bottom of the seat. See Figure 11. Slide the seat forward or rearward as desired. -
Page 20: Parking Brake Adjustment
Side te Side If the cutting deck appears to be mowing unevenly, a side to side adjustment can be performed. Adjust if necessary as follows: With the tractor parked on a firm, level surface, place the deck lift lever in the top notch (highest position) and rotate both blades so that they are perpendicular with the tractor. -
Page 21: Steering Adjustment
Steering Adjustment If the tractor turns tighter in one direction than the other, or if the ball joints are being replaced due to damage or wear, the steering drag links may need to be adjusted. Adjust the drag links so that equal lengths are threaded into the ball joint on the left side and the ball joint on the right side: Loosen the jam nut found on the drag link at the... -
Page 22: Section 8: Maintaining Your Lawntractor
°C )30 Temperature *Use of synthetic oHhaving 5W=20or 5W=30 rating is acceptaNe, up to 4°0 (40%), **Synthetic oils wHnprovide better starting in extreme condbenow Toro 23% (=10%), Adding Oil If, after checking the oil level, you find the dipstick reads L, proceed as follows. -
Page 23: Changing The Engine Oil
Examine the area around the base of the oil fill tube, the oil filter adapter, and the oil drain valve for leaks before operating the tractor. IMPORTANT:If leaks are present, have your engine serviced by an authorized Toro service dealer before operating the tractor. 0il Filter 0il Drain Hose... -
Page 24: Air Filter
AirFilter The engine is equipped with a replaceable, high density paper air cleaner element. Always examine the air cleaner before starting the engine. Check for a buildup of dirt and debris around the air cleaner system. Keep this area clean. Also check for loose or damaged components. -
Page 25: Fuel Filter
Check the gap using a feeler gauge and adjust, if necessary, by carefully bending the ground electrode. See Figure 20. Set the spark plug gap to 0.030 in (0.76 mm). FeelerGauge Spark Plug Ground Electrode Figure 20 Reinstall the spark plug into the cylinder head. Torque the spark plug to 28132 ft. -
Page 26: Cutting Blades
SECTION 9: SERVICE Tires inflation pressure shown on the sidewall of the WARNING: Never exceed the maximum tire. The recommended operating tire pressure is approximately 10 psi for the rear tires and 14 psi for the front tires. Do not overinflate. Uneven tire pressure could cause the cutting deck to mow unevenly. -
Page 27: Cutting Deckremoval
IMPORTANT:When replacing the blade, be sure to install the blade with the side of the blade marked "Bottom" (or with a part number stamped in it) facing the ground when the mower is in the operating position. IMPORTANT:Use a torque wrench to tighten the blade spindle hex flange nut to between 70 ft-lb (95 N.m) and 90 ft-lb (122 N.m). -
Page 28: Changing Thedeckbelt
Changingthe Lower DeckBelt (Model LX460 only) drive belt. See an NOTE: Several order to change the lower deck belt (Model LX460). See an authorized Toro service dealer to have this drive belt replaced. Be sure to shut the engine off, key to prevent unintended starting... - Page 29 LX420 Belt Cover Idler Pulleys LX460 Belt Cover Idler Pulleys...
-
Page 30: Section 10: Off-Season S Torage
SECTION 10: OFF-SEASON S TORAGE Clean and lubricate the tractor as instructed in Section 7: MAINTAINING YOUR LAWN TRACTOR on page 22 of this manual before storing for an extended period. Engine If the engine will be out of service for two months or more, use the following storage procedure: Clean the exterior surfaces of the engine. -
Page 31: Section 11: Maintenance C Hart
SECTION 11: MAINTENANCE C HART Before Each Use Check Safety Interlock System Clean Hood/Dash Louvers Check Engine Oil Level Replace Air Filter Element Change Engine Oil & Filter Clean Battery Terminals Lube Front Axles and Rims Clean Engine Cooling Fins Lube Pedal Pivot Points Check Spark Plug Service Air Filter Element... -
Page 32: Section 12: Troubleshooting
SECTION 12: TROUBLESHOOTING Trouble Possible Engine fails to start PTO (Blade Engage) lever engaged. Parking brake not engaged. Spark plug wire disconnected. Throttle/choke control not in correct starting position. Choke not activated Fuel tank empty, or stale fuel. Blocked fuel line. Faulty spark plug. -
Page 33: Section 13: Specifications
Ground Clearance Turning Radius Weight (approximate) * Toro reserves the right to change product specifications, design, and standard equipment without notice and without incurring obligation ** Kohler's horsepower ratings exceed Society of Automotive affected by, but not limited to, accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, operating conditions (temperature, humidity, and altitude). - Page 34 HEADLIGHTS HEADLIGHTS AFTERFtRE SOLo A TE NATOR CAJC'I:A RED/WHT ALTERNATOR CDC) MAGNETO STARTER ORS/WHT APTO [ OFF B?g#F _w SOLENO MAGNET G+M+A! B+AI 6+Al L+A2 ORG/BLK ORG!WHT PARK [ OFF SEAT REO/WHT BYPASS PARK GROUND U]CIRSRC I R GRN_ START B+S+AI ORG/BLK ORS/WHT...
- Page 35 CALiFORNiA The CaliforniaAir ResourcesBoardandMTDConsumerGroupInc are pleasedto explainthe evaporativeemissioncontrolsystemwarrantyon your 2006 lawn mower.In California,new lawnmower mustbe designed,builtand equippedto meetthe State'sstringentanti-smogstandards.MTDConsumerGroupInc must warrantthe EECSon your lawnmowerfor the periodof time listed below provided there has been no abuse, neglector impropermaintenanceof your lawnmower. YourEECSmay includeparts such asthe carburetor,fuel-injectionsystem,the ignitionsystem,catalyticconverter,fuel tanks,fuel lines,fuel caps, valves, canisters,filters,vapor hoses,clamps,connectors,and otherassociatedemission-related components.
- Page 36 The terms of this warranty provide the sole and exclusive remedy arising from the sale and/or lease of the products covered hereby. Toro shall not be liable for any incidental or consequential loss or damage including,without limitation, expenses incurredfor substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.
