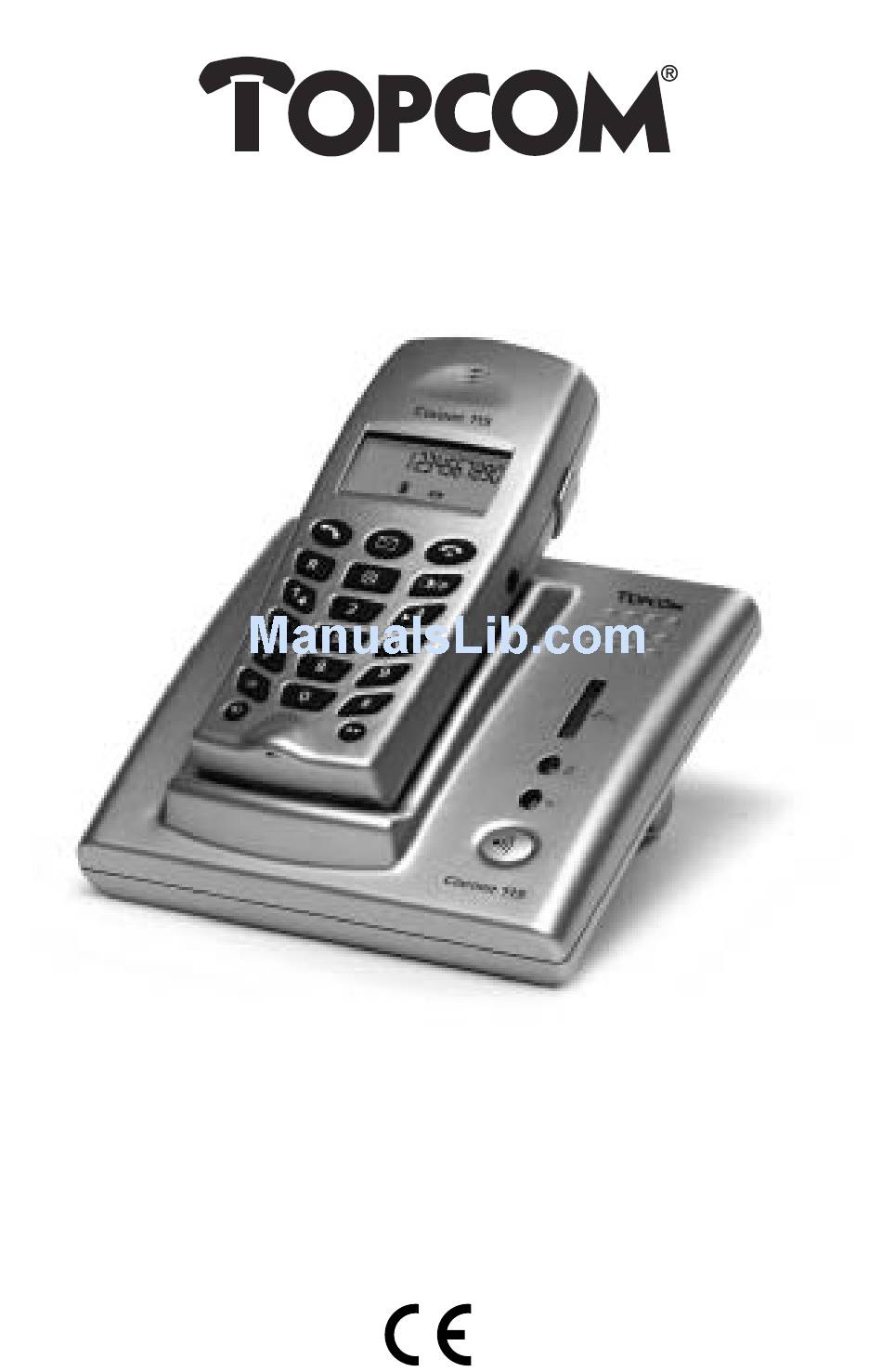

COCOON 115
USER GUIDE
HANDLEIDING
MODE D'EMPLOI
BEDIENUNGSANLEITUNG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COCOON 115 115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Topcom COCOON 115 115

  • Page 1 COCOON 115 USER GUIDE HANDLEIDING MODE D’EMPLOI BEDIENUNGSANLEITUNG...
  • Page 2 To use ‘Caller ID’ (display caller), this service has to be activated on your phone line. Normally you need a separate subscription from your telephone company to activate this function. If you don’t have the Caller ID function on your phone line, the incoming telephone numbers will NOT be shown on the display of your Om de ‘Nummerweergave’...
  • Page 3: Table Of Contents

    COCOON 115 BUTTONS DISPLAY INSTALLATION BATTERY EMPTY INDICATION OPERATION TELEPHONE OUTGOING CALLS 5.1.1 Making a phone call 5.1.2 Call setup with dial preparation INCOMING CALLS LAST NUMBER REDIAL PROGRAMMING MEMORY NUMBERS CALLING A MEMORY NUMBER MUTE FUNCTION SETTING THE VOLUME PAGING KEYPAD LOCK 5.10...
  • Page 4: Buttons

    1 BUTTONS Numerical buttons Line button Redial/Pause button Flash button R Memory button Paging button (to retrieve the handset) Mute button Set button ON-hook button 10 Line/New call indication (LED) 11 Charge indicator (LED) 12 Power indicator (LED) 13 Call list button 14 Headset connection Cocoon 115 COCOON 115...
  • Page 5: Display

    COCOON 115 2 DISPLAY Memory icon RF link indicator: When RF link between handset and base is established Handset microphone mute indicator Battery level indicator Unanswered call indicator Off-hook indication On-hook indication Base paging indication Program mode indication Keypad lock indication...
  • Page 6: Installation

    3 INSTALLATION • Plug one end of the phone cable into the phone unit and the other end into the telephone line wall socket. • Connect the small plug of the AC adaptor to the phone and the other end of the adapter cable to the electric socket.
  • Page 7: Operation Telephone

    COCOON 115 5 OPERATION TELEPHONE Outgoing calls 5.1.1 Making a phone call • Press the Line button • Enter the desired telephone number. • Press the ON-hook button 5.1.2 Call setup with dial preparation • Enter the desired telephone number. An incorrect number can be corrected by means of the Mute button .
  • Page 8: Setting The Volume

    • Press the Mute button be deactivated. The MUTE symbol • Press the Mute button 5.7 Setting the volume During a conversation you can set the volume by pressing the Line button ‘Loud Hi/Lo’ appears on the display. 5.8 Paging When you press the Paging button on the base unit, the handset emits a ringing signal for 25 seconds.
  • Page 9: Activate/Deactivate Key Tones

    COCOON 115 5.12 Activate/deactivate key tones • Press the Set button • Press numerical button ‘4’. • Press numerical button ‘1’ to activate or ‘2’ to deactivate this function. • Press the Memory button Default setting: key tones activated. 5.13 Setting the ring melody •...
  • Page 10: Erasing One Telephone Number

    5.17 15 Minutes conversation timer To avoid that you would forget to end a conversation or that you accidentally press the line button without having a conversation, you have the possibility to activate a 15 minutes conversation timer. This warns you after 15 minutes of conversation by means of beeps (last 30 seconds).
  • Page 11: Erasing Complete Call List

    • During the time of the warranty Topcom will repair free of charge any defects caused by material or manufacturing faults. Topcom will at its own discretion fulfil its warranty obligations by either repairing or exchanging the faulty equipment.
  • Page 12: Technical Data

    9 TECHNICAL DATA Range: Dialling options: Batteries: Max. stand-by time: Max. talk time: Ambient temperature: Permitted relative air humidity: Power supply base adapter: max. 300 m in open space max. 50 m in buildings DTMF (tone) 3 x 1.2V, 600 mAh AAA Type NiMh rechargeable approx.
  • Page 13 COCOON 115...
  • Page 14 TOETSEN DISPLAY INSTALLATIE LEGE BATTERIJ-INDICATIE WERKING TELEFOON UITGAANDE GESPREKKEN 5.1.1 Telefoneren 5.1.2 Blokkiezen INKOMENDE OPROEPEN NUMMERHERHALING GEHEUGENNUMMERS PROGRAMMEREN EEN GEHEUGENNUMMER OPROEPEN TIJDELIJKE UITSCHAKELING VAN DE MICROFOON VOLUME REGELEN PAGING KLAVIERVERGRENDELING 5.10 BUITEN BEREIK-WAARSCHUWING 5.11 FLASHTOETS (R) 5.11.1 Flash-tijd instellen 5.12 KLAVIERTONEN ACTIVEREN/DEACTIVEREN 5.13 BELMELODIE INSTELLEN...
  • Page 15: Cocoon 115

    COCOON 115 1 TOETSEN Cijfertoetsen Lijntoets Herkies-/Pauzetoets Flashtoets R Geheugentoets Paging-toets (om de handset te zoeken) Mute-toets Programmeertoets Inhaaktoets 10 Lijn-/Nieuwe oproep indicator (LED) 11 Laad-indicator (LED) 12 Stroom-indicator (LED) 13 Oproeplijsttoets 14 Hoofdtelefoon aansluiting Cocoon 115 Cocoon 115...
  • Page 16: Display

    COCOON 115 2 DISPLAY Geheugenicoon RF communicatie link indicator. Verschijnt wanneer er communicatie is tussen handset en basis. Microfoon uit indicator Batterij capaciteitindicator Onbeantwoorde oproep indicator Afhaak indicator Inhaak indicator Basis oproep (paging) icoon Programmeer indicator Toetsen geblokkeerd...
  • Page 17: Installatie

    COCOON 115 3 INSTALLATIE • Sluit de connector van het telefoonsnoer aan op het telefoontoestel en steek het andere uiteinde in de wandcontactdoos van het telefoonnet. • Steek de kleine stekker van de AC-adapter in het toestel en het andere uiteinde in het stopcontact.
  • Page 18: Werking Telefoon

    5 WERKING TELEFOON 5.1 Uitgaande gesprekken 5.1.1 Telefoneren • Druk op de Lijntoets • Voer het gewenste telefoonnummer in. • Druk op de Inhaaktoets 5.1.2 Blokkiezen • Geef het gewenste telefoonnummer in. Foutieve ingaven kunnen gecorrigeerd worden met behulp van de Mute-toets drukt, verdwijnt het reeds ingegeven nummer en keert de handset terug naar standby- modus.
  • Page 19: Tijdelijke Uitschakeling Van De Microfoon

    COCOON 115 5.6 Tijdelijke uitschakeling van de microfoon Het is mogelijk de microfoon tijdens een gesprek uit te schakelen. Dan kan u vrij spreken zonder dat de beller u kan horen. • Druk, tijdens een gesprek, op de Mute-toets gedeactiveerd. Op de display verschijnt het Microfoon Uit symbool •...
  • Page 20: Klaviertonen Activeren/Deactiveren

    5.12 Klaviertonen activeren/deactiveren • Druk op de Programmeertoets • Druk op cijfertoets ‘4’. • Druk op cijfertoets ‘1’ om de klaviertonen aan te zetten, of ‘2’ om ze uit te zetten • Druk op de Geheugentoets Standaard programmatie: aan 5.13 Belmelodie instellen •...
  • Page 21: Waarschuwing 15 Minuten Gespreksduur

    COCOON 115 5.17 Waarschuwing 15 minuten gespreksduur Om te vermijden dat u zou vergeten een gesprek te beëindigen of per ongeluk de lijntoets ingedrukt zou hebben zonder een gesprek te voeren, beschikt u over de mogelijkheid een gespreksduurteller te activeren. Hierbij wordt u na 15 minuten gesprek gewaarschuwd door middel van 10 bieptonen.
  • Page 22: Telefoonnummers Uit De Oproeplijst Wissen

    De garantieclaim vervalt bij ingrepen door de koper of onbevoegde derden. • Schade te wijten aan onoordeelkundige behandeling of bediening of aan het gebruik van wisselstukken en accessoires die niet origineel of door Topcom aanbevolen zijn, valt niet onder de garantie. •...
  • Page 23: Problemen Verhelpen

    COCOON 115 8 PROBLEMEN VERHELPEN Problem Geen scherm Geen kiestoon Handset belt niet Communicatie is verbroken na 15 minuten Volume van de gesprekspartner is te laag 9 TECHNISCHE GEGEVENS Reikwijdte: Kiessysteem: Batterijen Max. autonomie: Max. gespreksduur: Omgevingstemperatuur: Toegelaten relatieve luchtvochtigheid: Netspanning adapter basisstation: Possible cause Batterijen niet opgeladen...
  • Page 24 TOUCHES ÉCRAN INSTALLATION INDICATION BATTERIE EPUISÉE FONCTIONNEMENT TÉLÉPHONE APPELS SORTANTS 5.1.1 Téléphoner 5.1.2 Sélection en bloc APPELS ENTRANTS RÉPÉTITION DU DERNIER NUMÉRO COMPOSÉ PROGRAMMER DES NUMÉROS MÉMOIRES APPELER UN NUMÉRO MÉMOIRE COUPURE DU MICRO (MUTE) RÉGLER LE VOLUME PAGING VERROUILLAGE DU CLAVIER 5.10 SIGNAL D’AVERTISSEMENT HORS-PORTÉE 5.11...
  • Page 25: Cocoon 115

    COCOON 115 1 TOUCHES Touches numériques Touche de Ligne Touche Rappel (du dernier numéro composé)/Pause Touche Flash R Touche Mémoire Touche Paging (pour chercher le combiné) Touche Mute Touche de Programmation Touche Off 10 Indicateur Ligne/Nouveaux appels (DEL) 11 Indicateur de Charge (DEL) 12 Indicateur de courant (DEL) 13 Touche ’Enregistrement appel’...
  • Page 26: Écran

    2 ÉCRAN Icône mémoire Indicateur liaison RF : Lorsque la liaison RF est établie entre le combiné et la base Indicateur de coupure du microphone du combiné Indicateur du niveau de batterie Indicateur appel en absence Indication Off-hook Indication On-hook Indication d’appel de la base Indication de mode programme Indication de verrouillage du clavier...
  • Page 27: Installation

    COCOON 115 3 INSTALLATION Raccordez le connecteur du fil téléphonique au téléphone et enfoncez l'autre bout dans la boîte de contact murale du réseau téléphonique. Introduisez la petite fiche de l'adaptateur AC dans l'appareil et branchez l'autre bout sur une prise.Introduisez les 3 batteries AAA rechargeables dans le compartiment à...
  • Page 28: Fonctionnement Téléphone

    5 FONCTIONNEMENT TÉLÉPHONE 5.1 Appels sortants 5.1.1 Téléphoner • Appuyez sur la touche de Ligne • Composez le numéro de téléphone désiré. • Appuyez sur la touche OFF 5.1.2 Sélection en bloc • Composez le numéro de téléphone désiré. Vous pouvez encore corriger le numéro en vous servant de la touche Mute secondes, le numéro vous avez déjà...
  • Page 29: Coupure Du Micro (Mute)

    COCOON 115 5.6 Coupure du micro (Mute) Il est possible de désactiver le microphone pendant une communication. De cette façon vous pouvez parler librement, sans que celui qui appelle vous entende. • Quand vous êtes en communication, appuyez sur la touche Mute est désactivé.
  • Page 30: Activer/Désactiver Les Tonalités Du Clavier

    ’3’ = 270ms ’4’ = 600ms • Appuyez sur la touche Mémoire 5.12 Activer/désactiver les tonalités du clavier • Appuyez sur la touche de Programmation • Appuyez sur touche numérique ’4’. • Appuyez de nouveau sur touche numérique ’1’ pour activer ou ’2’ pour désactiver la fonction.
  • Page 31: Régler La Longueur De La Pause

    COCOON 115 5.16 Régler la longueur de la pause • Appuyez sur la touche de Programmation • Appuyez sur touche numérique ’3’. • Appuyez sur ’1’ pour 3 secondes ou sur ’2’ pour 6 secondes de pause • Appuyez sur la touche Mémoire 5.17 Avertissement 15 minutes de conversation Pour éviter d’oublier de terminer une conversation ou d’appuyer sur la touche de ligne sans faire une conversation, vous disposez de la possibilité...
  • Page 32: Appeler Un Numéro De La Liste D'appels

    • Topcom prend en charge pendant la durée de la garantie toutes les défaillances issues de défauts des matériaux ou de défauts de fabrication. Topcom décide seul s'il souhaite remplacer ou réparer l'appareil défectueux sous garantie.
  • Page 33: Résolution De Problèmes

    COCOON 115 8 RÉSOLUTION DE PROBLÈMES Problème Aucun affichage Pas de tonalité Le combiné ne sonne pas La communication est déconnectée après 15 minutes Le volume de l’interlocuteur est trop faible 9 DONNÉES TECHNIQUES Portée: Composition du numéro: Batteries: Autonomie max. en Stand-by: Durée max.
  • Page 34 TASTEN DISPLAY INSTALLATION BATTERIE LEER-ANZEIGE BETRIEB TELEFON TELEFONIEREN 5.1.1 Normaler Verbindungsaufbau 5.1.2 Telefonieren mit Wahlvorbereitung EINEN ANRUF ENTGEGENNEHMEN WAHLWIEDERHOLUNG KURZWAHLNUMMERN PROGRAMMIEREN EINE KURZWAHLNUMMER ANRUFEN STUMMSCHALTEN DES MIKROFONS (MUTE) LAUTSTÄRKE EINSTELLEN PAGING TASTENSPERRE 5.10 WARNUNG "AUßER REICHWEITE" 5.11 FLASHTASTE (R) 5.11.1 Die Flashzeit einstellen 5.12 TASTENTON EIN-/AUSSCHALTEN 5.13...
  • Page 35: Cocoon 115

    COCOON 115 1 TASTEN Wähltasten Leitungstaste Wahlwiederholungs-/Pausentaste Flashtaste R Speichertaste Paging-Taste (um das Mobilteil zu suchen) Mikrofonstummschaltungstaste Programmiertaste Aus-Taste 10 Leitungs-/New call-anzeige (LED) 11 Ladeanzeige (LED) 12 Stromanzeige (LED) 13 Anrufliste-Taste 14 Kopfhörerverbindung Cocoon 115 Cocoon 115...
  • Page 36: Display

    COCOON 115 2 DISPLAY Speichersymbol RF Verbindungsanzeige:Wenn die RF-Verbindung zwischen dem Mobilteil und der Basiseinheit hergestellt ist Mikrofon nicht aktiviert Anzeige wiederaufladbare Batterien Identifikation neue Nummern in der Anrufliste Anzeige Abheben Anzeige Auflegen Paging Anzeige Programmier-Modus Tastatur des Handgeräte verriegelt...
  • Page 37: Installation

    COCOON 115 3 INSTALLATION • Stecken Sie einen Stecker der Telefonschnur an der Basisstation ein. Den anderen Stecker stecken Sie in die Telefonanschlussdose. • Stecken Sie den kleinen Stecker des Netzadapters AC an der Basisstation ein. Das Netzteil stecken Sie in eine Steckdose. •...
  • Page 38: Betrieb Telefon

    5 BETRIEB TELEFON Telefonieren 5.1.1 Normaler Verbindungsaufbau • Betätigen Sie die Leitungstaste • Wählen Sie die gewünschte Nummer. • Betätigen Sie, nach dem Gespräch, die Aus Taste 5.1.2 Telefonieren mit Wahlvorbereitung • Wählen Sie die gewünschte Nummer. Fehlerhafte Eingaben können mit der Mikrofonstummschaltungstaste zwischen zwei Eingaben liegen, verschwindet die bereits eingegebene Nummer und wechselt das Mobilteil wieder in den Standby-Modus.
  • Page 39: Stummschalten Des Mikrofons (Mute)

    COCOON 115 Stummschalten des Mikrofons (Mute) Wenn Sie, während eines Gespräches, etwas mit einem dritten Person besprechen wollen, und Sie wollen nicht daß Ihr Gesprächspartner etwas darüber hört, betätigen Sie die Mikrofonstummschaltungstaste . • Betätigen Sie, während eines Gespräches, die Mikrofonstummschaltungstaste Das Mikrofon wird ausgeschaltet.
  • Page 40: Tastenton Ein-/Ausschalten

    ’3’ = 270ms ’4’ = 600ms • Betätigen Sie die Speichertaste 5.12 Tastenton ein-/ausschalten • Betätigen Sie die Programmiertaste • Betätigen Sie die Wähltaste ’4’. • Betätigen Sie die Wähltaste ’1’ um die Funktion einzuschalten oder ’2’ um die Funktion auszuschalten.
  • Page 41: Einstellen Der Pausenlänge

    COCOON 115 5.16 Einstellen der Pausenlänge • Betätigen Sie die Programmiertaste • Betätigen Sie die Wähltaste ’3’. • Drücken Sie ’1’ für eine 3 Sekunden lange Pause oder ’2’ für eine 6 Sekunden lange Pause • Betätigen Sie die Speichertaste 5.17 Gesprächszeitbegrenzung ein-/ausschalten Um zu vermeiden daß...
  • Page 42: Wählen Einer Rufnummer Aus Der Anrufliste

    Originalrechnung bzw.Zahlungsbestätigung, welche das Datum des Kaufes sowie die Geräte-Typ zu tragen hat, gewährt. • Während der Garantiezeit behebt Topcom unentgeltlich alle Mängel, die auf Material- oder Herstellungsfehler beruhen. Topcom leistet nach eigener Wahl Garantie durch Repartur oder durch Austausch des defekten Gerätes.
  • Page 43: Problembeseitigung

    COCOON 115 8 PROBLEMBESEITIGUNG Problem Kein Display Kein Freizeichen Handset klingelt nicht Gespräch wird nach 15 Minuten beendet Lautstärke der Gesprächspartner ist zu gering 9 TECHNISCHE DATEN Reichweite: Wählverfahren: Batterien: Max. Standby-Zeit: Max. Gesprächszeit: Umgebungstemperatur: Zulässige relative Luftfeuchtigkeit: Stromversorgung Basisstation: Mögliche Ursache Batterien nicht aufgeladen Telefonkabel schlecht...
  • Page 48 U8006031...
