Toastmaster TOV400 Use And Care Manual

Toaster oven broiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Toaster Oven
Broiler
USE AND CARE GUIDE
MODEL TOV400

Advertisement

Table of Contents
loading

Related Manuals for Toastmaster TOV400

Summary of Contents for Toastmaster TOV400

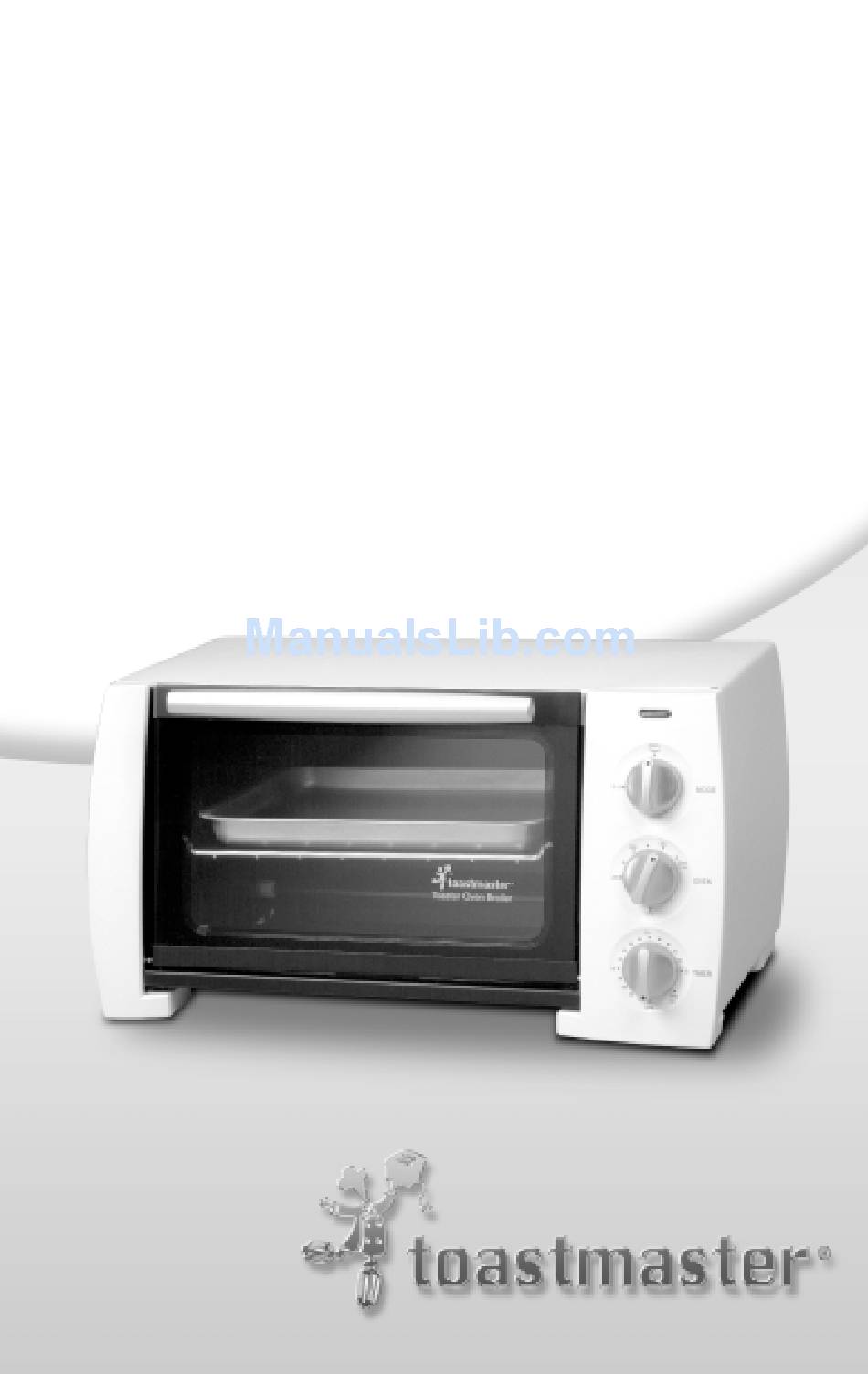

  • Page 1 Toaster Oven Broiler USE AND CARE GUIDE MODEL TOV400...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: Read all instructions. Do not touch hot surfaces. Use handles or knobs. To protect against electrical shock do not immerse cord, plugs, or appliance in water or other liquid. Close supervision is necessary when any appliance is used by or near children.

  • Page 3: Save These Instructions

    Extreme caution should be exercised when using containers constructed of other than metal or glass. Do not store any materials, other than manufacturers recommended accessories, in this oven when not in use. Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.

  • Page 4: Short Cord Instructions

    Polarized Plug This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.

  • Page 5: Wire Rack (P/N 21957)

    Getting to Know Your Toastmaster Toaster Oven-Broiler Your product may vary slightly from illustration. Figure 1 1. Control Panel 2. Power Light 3. Function Control 4. Temperature Control 5. Timer Control (with 30 minutes Timer and “Stay On” feature) 6. Lower Heating Elements...

  • Page 6: Table Of Contents

    Broil Insert (P/N 21864TM) Bake/Broil Pan (P/N 21869) Wire Rack (P/N 21957) Figure 3 Shelf Positions 1 and 3 Shelf Positions 2 and 4 Figure 4...

  • Page 7: And

    Figure 5 Operating Instructions BEFORE FIRST USE 1. Carefully unpack your Toaster Oven-Broiler and remove all packaging materials. 2. Place your Toaster Oven-Broiler on a level surface such as a countertop or table. Be sure the sides, back, and top of the Toaster Oven-Broiler are at least four inches away from any walls, cabinets, or objects on the counter or table.

  • Page 8: Cooking Containers

    Operating Instructions (Cont.) BEFORE FIRST USE 7. Do not use abrasive cleansers. 8. Do not put the Toaster Oven-Broiler, cord or plug in water. 9. When you are ready to use the Toaster Oven-Broiler, plug the cord into a 120V AC outlet. 10.
  • Page 9 Instructions For Toast 1. Plug into 120V AC 60 Hz outlet. Close the Glass Door. 2. Make sure the Crumb Tray is firmly in place in the bottom of the Toaster Oven-Broiler. 3. Open the Glass Door and place the Wire Rack in Shelf Position # 2. Center bread on the Wire Rack.
  • Page 10 Hints For Toast Remove all protective wrappings from food before placing in Toaster Oven-Broiler. Follow toaster food directions. Frozen, thick and heavy bread may require a longer time setting (e.g. bagels and English muffins). NOTE: Use extra caution when using this Toaster Oven-Broiler for toasting pastry items with runny-type frosting or fillings.
  • Page 11 Instructions For Baking (Cont.) 9. To set the Timer Control for less than 10 minutes, turn to 10 and then turn back to the appropriate amount of time. CAUTION: As soon as the Timer Control is engaged, the Toaster Oven-Broiler will turn ON. Both the top and the bottom sets of Heating Elements will come ON and then cycle off and on during cooking time to maintain proper temperature.

  • Page 12: Instructions For Broiling

    Hints For Bake Heavy-duty aluminum foil may be used to cover top of baking container to reduce over browning. Tuck ends of foil closely against edge of pan. Place food toward the back of the Toaster Oven-Broiler for better browning. Food may cook faster than recipe or package time.
  • Page 13 Instructions For Broiling (Cont.) CAUTION: As soon as the Timer Control is engaged, the Toaster Oven-Broiler will turn ON. Only the top Heating Elements will remain ON for the entire cooking time. CAUTION: As soon as the Timer Control is engaged the Heating Elements will become hot immediately.
  • Page 14 Instructions For Top Browning To Top Brown foods, follow the Toast instructions but place the food on the Bake/Broil Pan on the Wire Rack. Hints For Top Browning Watch food to avoid over-browning. Top Brown may be used to top brown bagels (cut side up), English muffins or melt cheese on sandwiches or casseroles.
  • Page 15 Instructions For Keep Warm (Cont.) 8. If the Timer Control has been set, the Toaster Oven-Broiler will shut off automatically when Keep Warm is complete. If Keep Warm is completed before the Timer Control shuts the Toaster Oven- Broiler OFF, you may shut the Toaster Oven-Broiler OFF manually by turning the Timer Control to the OFF position.
  • Page 16 Instructions For Defrost (Cont.) 8. To set the Timer Control for less than 10 minutes, turn to 10 and then turn back to the appropriate amount of time. CAUTION: As soon as the Timer Control is engaged, the Toaster Oven-Broiler will turn ON. Both the top and the bottom sets of Heating Elements will come ON and then cycle off and on during cooking time to maintain proper temperature.

  • Page 17: Special Features

    Special Features TIMER CONTROL WITH STAY ON The Timer Control Dial also acts as the Toaster Oven-Broiler’s ON/OFF switch. Turn the Timer Control clockwise to select the appropriate cooking time or to the "Stay On" position. If cooking less than 10 minutes, turn the Timer Control to 10 minutes and then turn back to desired cooking time.

  • Page 18: Interior Cleaning

    General Care and Cleaning 1. Make sure the Function and Timer Controls are in the OFF position and unplug the Toaster Oven-Broiler before cleaning. 2. Allow Toaster Oven-Broiler and accessories to cool completely before cleaning. 3. Clean the outside of the Toaster Oven-Broiler with a damp cloth and dry thoroughly.

  • Page 19: Exterior Cleaning

    Exterior Cleaning Wipe surfaces with a clean, damp cloth. Do not use abrasive cleaners, as they may scratch the surface. To Store Unplug unit, allow to cool, and clean before storing. Store in its box in a clean, dry place. Never store it while it is hot or still plugged in. Never wrap cord tightly around the appliance.
  • Page 20 9:00 am and 5:00 pm Central Standard Time and ask for CONSUMER SERVICE stating that you are a consumer with a problem. Please refer to model number TOV400 when you call. In-Warranty Service (USA): For an appliance covered under the warranty period, no charge is made for service or postage.
  • Page 21 Date code (stamped on bottom)________________________________ EVERYBODY EATS. It’s a fact of life. But sometimes preparing meals can become a chore. That’s why TOASTMASTER has been invited into millions of kitchens just like yours so we can HELP YOU MASTER your mixing, baking, grilling, toasting, brewing, heating and serving tasks WITH EASE AND STYLE.
  • Page 22 Service Consommateurs : 1-800-947-3744 Pièces Consommateurs : 1-800-947-3745 consumer_relations@toastmaster.com Horaires : De 8h00 à 17h30, heure GMT - 6 En México: Toastmaster de México, S.A. de C.V. Cerrada de Recursos Hidráulicos Número 6 La Loma Industrial Tlalnepantla de Baz, C.P. 54060 Estado de México...
  • Page 23 Toaster Oven Broiler Use and Care Guide...
  • Page 24 Questions toll free 1-800-947-3744 Call Monday – Friday, 8:00 a.m. - 5:30 p.m. CST www.toastmaster.com TOV400...
