Model JM502
I
M
NSTRUCTION
ANUAL

Advertisement

Table of Contents
loading

Related Manuals for Juiceman JM502

Summary of Contents for Juiceman JM502

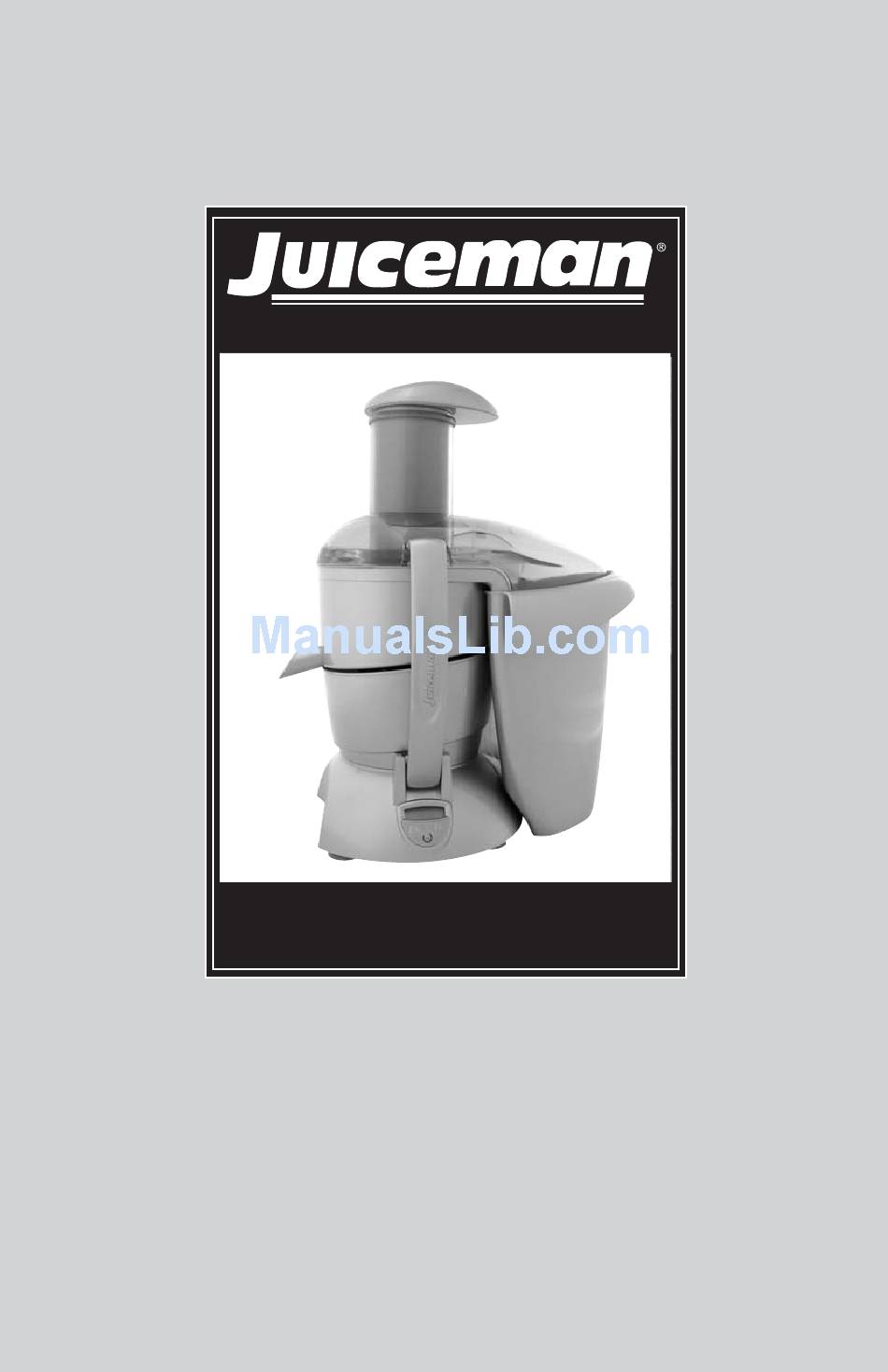

  • Page 1 Model JM502 NSTRUCTION ANUAL...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. To protect against risk of electrical shock do not put cord, plugs, or appliance in water or other liquid. 3.
  • Page 3 13. Do not put your fingers or other objects into the Juicer opening while it is in operation. If food becomes lodged in opening, use Food Pusher or another piece of fruit or vegetable to push it down. When this method is not possible turn the motor off, unplug Juicer from electrical outlet, and disassemble Juicer to remove remaining food.

  • Page 4: Additional Important Safeguards

    ADDITIONAL IMPORTANT SAFEGUARDS 1. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance. 2. The cord to this appliance should be plugged into a 120V AC electrical outlet only. 3. Do not leave this appliance unattended during use. 4.

  • Page 5: Polarized Plug

    POLARIZED PLUG This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
  • Page 6 GETTING TO KNOW YOUR JUICER PRODUCT MAY VARY SLIGHTLY FROM ILLUSTRATIONS Feed Tube Clear Lid P/N 71231 Stainless Steel Filter Basket P/N 71232 Juice Bowl P/N 71236 Juice Spout Clamps Motor Base Control Panel Food Pusher P/N 71235 Pulp Ejection Opening Cutting Blade Pulp Spout Motor Base Hub...

  • Page 7: Control Panel

    CONTROL PANEL This Juicer has a unique control panel, offering two speed options: HIGH and LOW. These two speeds ensure optimal rpm to provide maximum juicing efficiency (efficiency describes the amount of juice extracted from your produce). Speeds are selected by simply pressing the “Hi” Button (HIGH Speed) and the “Lo”...

  • Page 8: Before First Use

    BEFORE FIRST USE The Juicer comes almost completely assembled in the box. We suggest taking it apart and washing the removable parts in warm water with a biodegradable, non-abrasive liquid detergent before the first use. This will eliminate any traces of dust or residue from manufacturing or shipping. NOTE: The Juicer may be shipped with a protective cardboard insert between the Feed Tube and Cutting Blade (in the Filter Basket).
  • Page 9 PREPARATION Preparing Fruits & Vegetables for Juicing... • Clean all produce thoroughly, using a natural bristle brush. If you are not using organic produce, we recommend using a biodegradable cleaner to help remove pesticide residue. • Remove and discard the outer leaves of non-organic produce and peel any waxed fruit or vegetable.

  • Page 10: Operating Instructions

    OPERATING INSTRUCTIONS • Make sure that the Juicer is completely and properly assembled. (See ASSEMBLY INSTRUCTIONS.) • Make sure the Filter Basket is securely seated and the Pulp Basket is at the rear of the Juicer, ready to catch pulp. To reduce cleaning time, line the Pulp Basket with a plastic produce bag (the kind you put your produce in at the grocery store).

  • Page 11: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ALWAYS MAKE SURE THE JUICER IS UNPLUGGED BEFORE STARTING TO ASSEMBLE. STEP ONE: Place Juice Bowl Place Juice Bowl on top of the Motor Base so that the Juice Spout is to the front (over the intended part of the Juicer Base). Align the four grooves on the underside of Juice Bowl with the four posts on top of the Motor Base.
  • Page 12 STEP FOUR: Lock Clamps Rest the hook-end of the Clamp into position on the Clear Lid; then firmly pull down on the Clamp while pushing in on the hinge-end until it locks securely into place. Repeat for the opposite Clamp. STEP FIVE: Position Pulp Basket Place the Pulp Basket under the Clear lid beneath the Pulp Ejection Opening.

  • Page 13: Disassembly Instructions

    DISASSEMBLY INSTRUCTIONS ALWAYS MAKE SURE THE JUICER IS UNPLUGGED BEFORE STARTING TO DISASSEMBLE. STEP ONE: Remove Clamps Firmly grasp the hinge-end of the Clamp and pull out to unlock; then lift the top of the Clamp up/out to unhook from the Clear Lid.

  • Page 14: User Maintenance Instructions

    USER MAINTENANCE INSTRUCTIONS ALWAYS UNPLUG THE JUICER FROM THE OUTLET BEFORE ASSEMBLING OR REMOVING PARTS AND BEFORE CLEANING. This appliance required little maintenance. It contains no user serviceable parts. Do not try to repair it yourself. Any servicing requiring disassembly must be preformed by a qualified appliance repair technician.
  • Page 15 TO CLEAN THE FILTER BASKET: • Use a brush to make sure the tiny holes in the mesh filter are not clogged. This can be accomplished by holding the Filter Basket under a running faucet while brushing the mesh filter screen from both inside and outside the Filter Basket.
  • Page 16 STORAGE Store the Juicer in its box or in a clean, dry place. Never store the Juicer while it is still plugged in. Always use the Cord Storage Wrap located on the underside of the Juicer. Never wrap cord tightly around appliance. Do not put any stress on cord where it enters the unit, as this could cause cord to fray and break.

  • Page 17: Troubleshooting

    TROUBLESHOOTING SYMPTOM POSSIBLE CORRECTION Try juicing slower, as wet produce is more likely to build up Pulp builds up in the Lid. To release pulp, lightly tap on the side of the Lid. excessively in the Empty Pulp Basket if full. back of the Lid.
  • Page 18 TROUBLESHOOTING SYMPTOM Inside rim of Juice Bowl is worn or chipped (inside lower rim or inside upper rim). Juicer stopped while juicing. Juicer does not turn ON. POSSIBLE CORRECTION Improper fit between the Filter Basket and Hub can cause parts of the Juice Bowl to rub against the Filter Basket. If this is the case, call Consumer Service at (800) 233-9054.
  • Page 19 NOTES...

  • Page 20: Limited One-Year Warranty

    This warranty gives you specific legal rights and you may have other rights under the laws of your jurisdiction. For more information on our products, visit our website: www.maxim-toastmaster.com. ©2006 All rights reserved.
