Juiceman JM419SS Instruction Manual

Toastmaster instruction manual juicer jm419ss
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model JM419SS
I
M
NSTRUCTION
ANUAL

Advertisement

Table of Contents
loading

Related Manuals for Juiceman JM419SS

Summary of Contents for Juiceman JM419SS

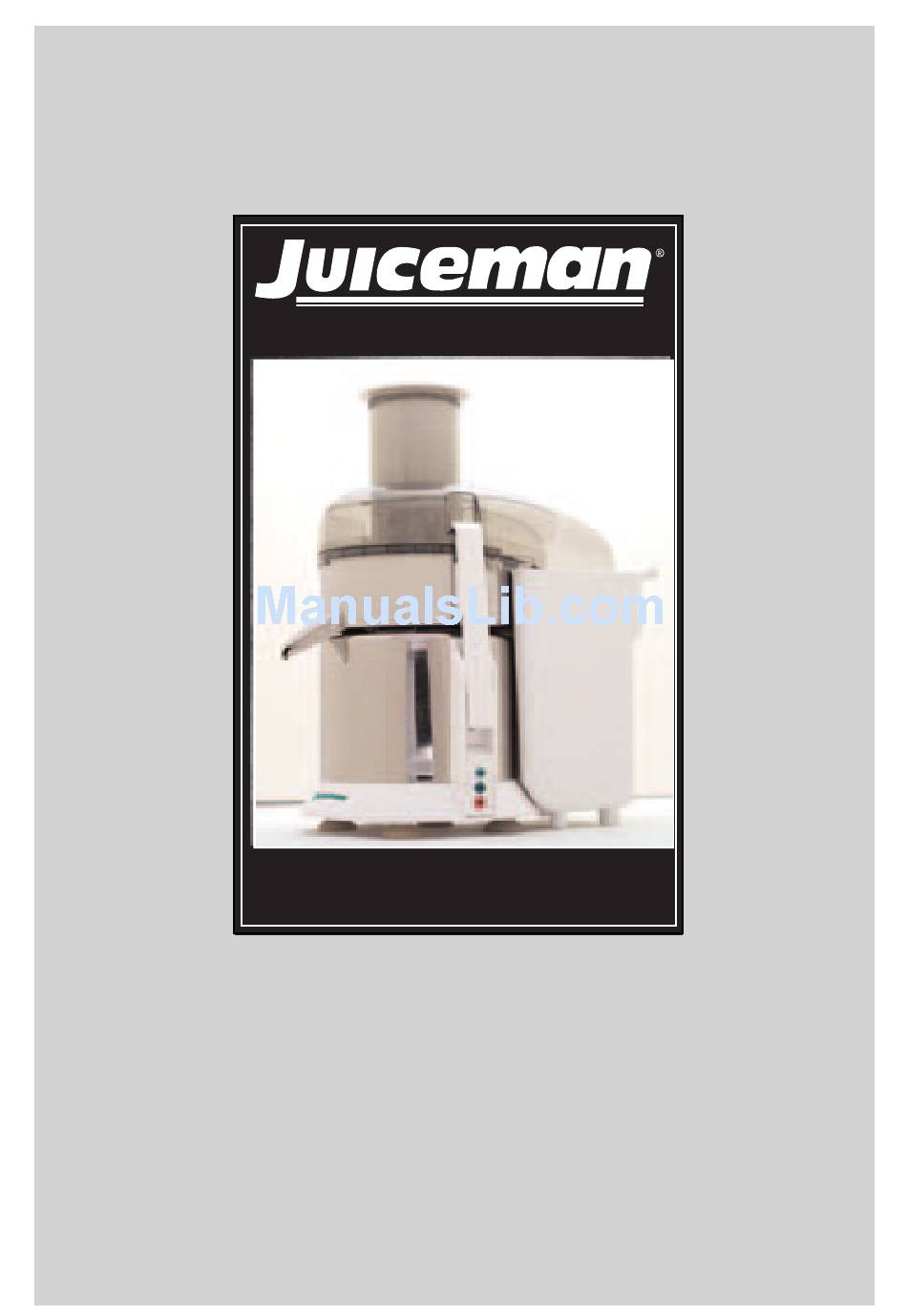

  • Page 1 Model JM419SS NSTRUCTION ANUAL...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed including the following: 1. Read all instructions. 2. To protect against risk of electrical shock do not put cord, plugs, or appliance in water or other liquid. 3.
  • Page 3 Additional Important Safeguards 1. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance. 2. The cord to this appliance should be plugged into a 120V AC electrical outlet only. 3. Do not leave this appliance unattended during use. 4.

  • Page 4: Polarized Plug

    POLARIZED PLUG This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug.
  • Page 5 Juice Bowl (P/N 70459) Juice Spout Clamps Motor Base Hub • Stainless Steel Motor Base Control Panel Replacement parts available (except Motor Base). Call (800) 233-9054 JM419SS ® Pulp Ejection Opening Cutter Blade Pulp Spout • Pulp Basket (P/N 70461)

  • Page 6: Control Panel

    CONTROL PANEL Your Juiceman® JM419SS has a unique control panel, offering two speed options: HIGH or LOW. These two speeds ensure optimal rpm to provide maximum juicing efficiency (efficiency describes the amount of juice extracted from your produce). HIGH SPEED Best for harder produce, such as carrots, beets, and pineapple (with rind).
  • Page 7 Feed Tube while juicing. The pits of fruits such as cherries, pears, and peaches should also be removed. • The Juiceman® JM419SS is designed to make juicing easier with an over- sized Feed Tube to accomodate larger produce -- feed most whole apples and oranges, tangerines, ginger, beets, pineapple or melons.
  • Page 8 USING THE JUICEMAN TO TURN YOUR JUICEMAN® JM419SS ON: • Make sure that your Juicer is completely and properly assembled. See ASSEMBLY INSTRUCTIONS. • Plug the Juicer into a 120V AC electrical outlet. • Remove the Food Pusher from the Feed Tube.

  • Page 9: Disassembly Instructions

    DISASSEMBLY INSTRUCTIONS Step One: Remove Clamps Place thumb onto center dot on Clamp and place fingers under bottom of Clamp. Pull bottom of Clamp out and push Clamp up. Allow top of Clamp to swing out. Repeat for opposite Clamp. Step Two: Remove Juice Bowl Assembly Grasp the sides of the Stainless Steel Juice Bowl.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS ALWAYS MAKE SURE JUICER IS UNPLUGGED BEFORE STARTING ASSEMBLY. NOTE: For your juicing convenience, your Juiceman® JM419SS can be assembled for right-hand or left-hand use. Right hand use allows the user to place produce into the Feed Tube with the left hand while operating the Food Pusher with the right hand.
  • Page 11 ASSEMBLY INSTRUCTIONS (Continued) Step Three: Place Blade Basket Grasp Blade Basket around top rim with both hands and center Basket over Motor Base Hub. Carefully lower Blade Basket onto Hub and rotate slightly until it drops into position and is seated properly.

  • Page 12: Cleaning Your Juicer

    CLEANING YOUR JUICER • Unplug from outlet before assembling or removing parts and before cleaning. Do not immerse the Motor Base in water or spray it with water. Clean only by wiping with a damp sponge, cloth, or paper towel. Use any liquid dishwashing detergent but do not use any products containing ammonia or scouring powders.
  • Page 13 CLEANING YOUR JUICER Any other After cleaning and reassembly is complete, your new Juicer is ready servicing to go to work! Before starting, make sure the Blade Basket is should be securely seated and the Pulp Basket is at the rear of the Juicer to performed by receive pulp.

  • Page 14: Troubleshooting

    TROUBLESHOOTING Symptom Possible Correction Pulp builds up Try juicing slower, as wet produce is more likely to build up in Lid. excessively in the To release pulp, lightly tap on the side of the Lid. Empty Pulp back of Basket if full. the Juicer Lid.
  • Page 15 TROUBLESHOOTING Symptom Possible Correction Improper fit between the Blade Basket and Hub can cause parts of Inside rim of the Juice Bowl to rub against the Blade Basket. If this is the case, Juice Bowl is call Consumer Service at (800) 233-9054. worn or chipped (inside lower rim or...

  • Page 16: Limited One-Year Warranty

    This warranty gives you specific legal rights and you may have other rights under the laws of your jurisdiction. For more information on our products, visit our website: www.maxim-toastmaster.com. ©2005 All rights reserved. Made in China...
