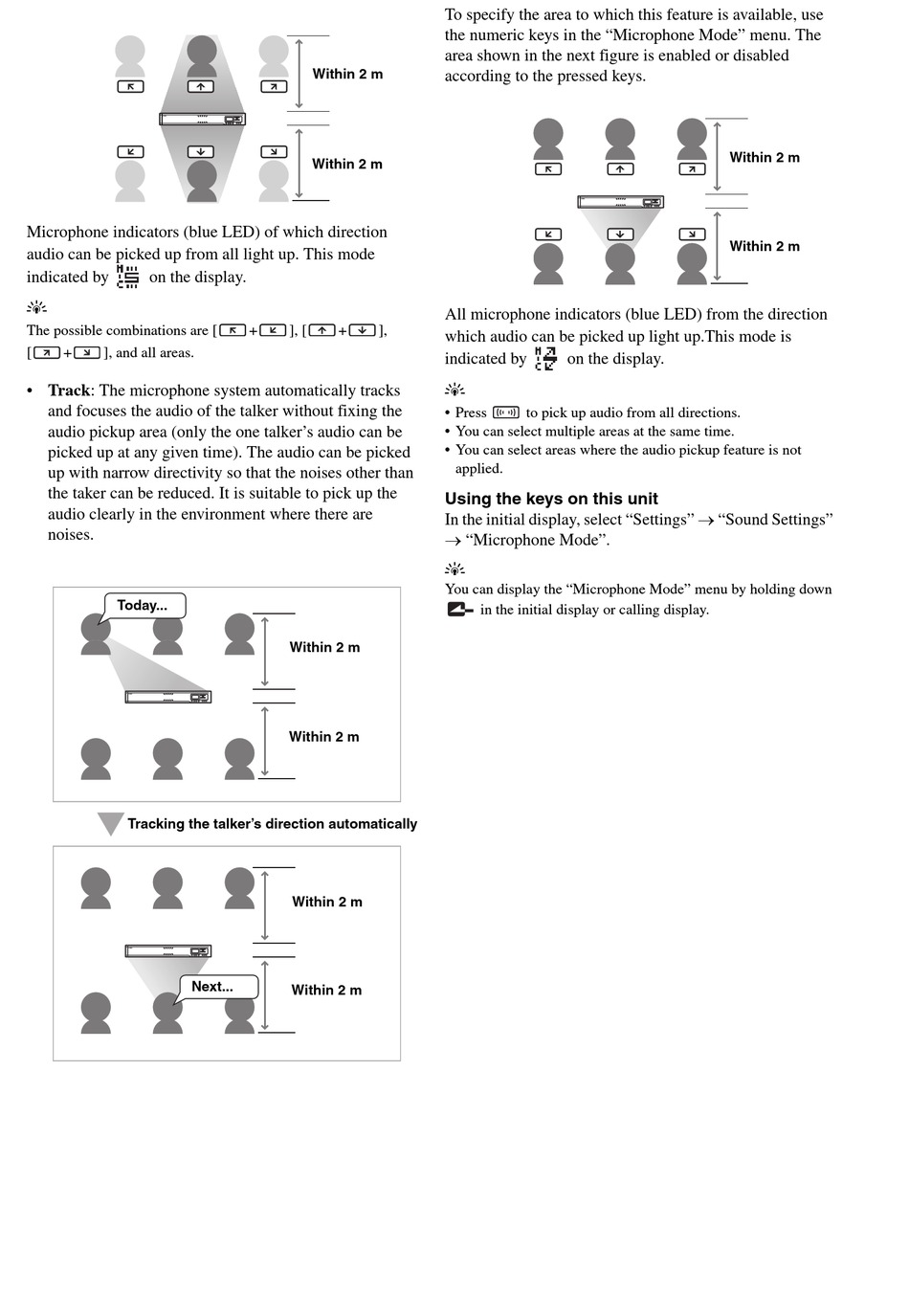

Microphone indicators (blue LED) of which direction
audio can be picked up from all light up. This mode
indicated by
on the display.
y
The possible combinations are [
[
+
], and all areas.
• Track: The microphone system automatically tracks
and focuses the audio of the talker without fixing the
audio pickup area (only the one talker's audio can be
picked up at any given time). The audio can be picked
up with narrow directivity so that the noises other than
the taker can be reduced. It is suitable to pick up the
audio clearly in the environment where there are
noises.
Today...
Tracking the talker's direction automatically
Within 2 m
Within 2 m
+
], [
+
Within 2 m
Within 2 m
Within 2 m
Next...
Within 2 m
To specify the area to which this feature is available, use
the numeric keys in the "Microphone Mode" menu. The
area shown in the next figure is enabled or disabled
according to the pressed keys.
All microphone indicators (blue LED) from the direction
],
which audio can be picked up light up.This mode is
indicated by
y
• Press
to pick up audio from all directions.
• You can select multiple areas at the same time.
• You can select areas where the audio pickup feature is not
applied.
Using the keys on this unit
In the initial display, select "Settings" → "Sound Settings"
→ "Microphone Mode".
y
You can display the "Microphone Mode" menu by holding down
in the initial display or calling display.
Within 2 m
Within 2 m
on the display.
