Toastmaster
®
A Middleby Company
OWNER'S OPERATING
& INSTALLATION
MANUAL
AM24, AM36 & AM48
ACCU-MISER GRIDDLES

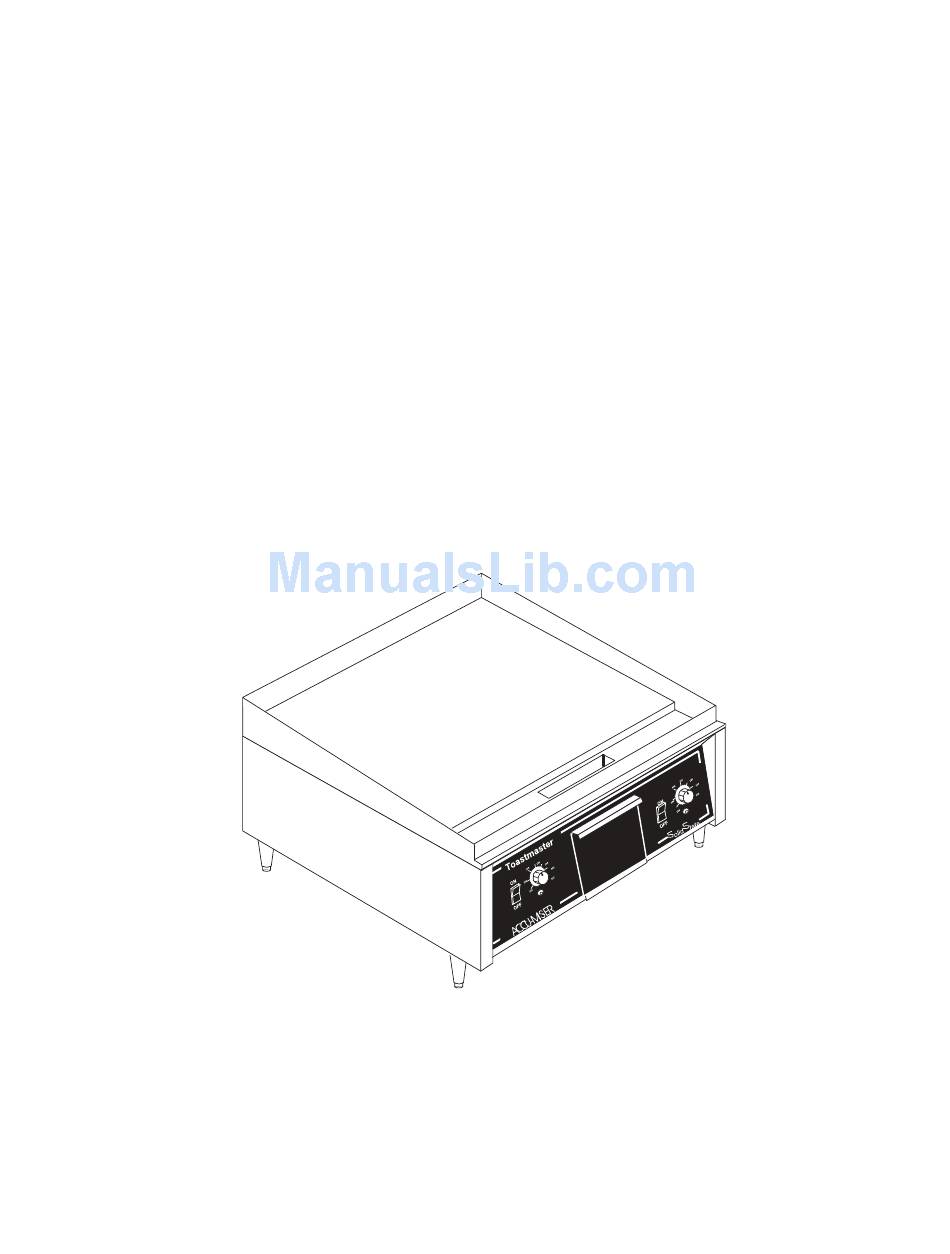

AM24
Toastmaster® •
1400 Toastmaster Drive • Elgin, IL 60120 • (708)741-3300 • FAX (708)741-4406
A Middleby Company
Middleby Corp 24 Hour Service Hotline 1-800-238-8444
Part No. 32025
Price $15.00
P 2/95
Advertisement
Table of Contents
Related Manuals for Toastmaster AM24, AM36, AM48
Summary of Contents for Toastmaster AM24, AM36, AM48
- Page 1 & INSTALLATION MANUAL AM24, AM36 & AM48 ACCU-MISER GRIDDLES AM24 Toastmaster® • 1400 Toastmaster Drive • Elgin, IL 60120 • (708)741-3300 • FAX (708)741-4406 A Middleby Company Middleby Corp 24 Hour Service Hotline 1-800-238-8444 Part No. 32025 Price $15.00 P 2/95...
- Page 2 Factory Service Department, Toastmaster®, 1400 Toastmaster Drive, Elgin, Illinois 60120, for information and other details concerning service of this warranty. © 1995 Toastmaster Toastmaster • 1400 Toastmaster Dr. • Elgin, IL 60120-9272 • (708) 741-3300 • FAX (708) 741-4406 Middleby Corp 24 Hour Service Hotline 1-800-238-8444...
-
Page 3: In Case Of Fire
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE Toastmaster (Manufacturer) reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, im-... -
Page 4: Table Of Contents
TABLE OF CONTENTS SECTION 1 DESCRIPTION ... 1 Component Location ... 2 Specification Chart ... 3 Electrical Specification Chart ... 4 Dimension Drawing ... 5 SECTION 2 INSTALLATION ... 7 A. Inspect For Shipping Damage ... 7 B. Unpacking Griddle ... 7 C. -
Page 5: Description
• The griddle is equipped with a grease trough and a large grease drawer. • The Toastmaster® AM Series Griddles are supplied with four 4" adjustable legs. IMPORTANT!: For all installations the legs or the optional stand must be used to validate the warranty. -
Page 6: Component Location
SECTION 1 - DESCRIPTION Component Location Figure 1-2... -
Page 7: Specification Chart
Toastmaster (Manufacturer) reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improve- AM Series Griddles Specification Chart Griddle Plate Dimensions - Overall Dimensions - Net Weight - Shipping Weight -... -
Page 8: Electrical Specification Chart
Voltage Total Loading kW/Phase AM24 AM36 AM48 12.5 12.5 * Provided for reference only. Consult national or local electrical codes. Griddle Electrical Specification Chart Nominal Amps/Line Wire 3 Ph 3 Ph 1 Ph 15.0 26.0 15.0 30.0 13.0 22.5 13.0 26.0 26.0 26.0... -
Page 9: Dimension Drawing
SECTION 1 - DESCRIPTION Griddle Dimension Drawing... - Page 10 SECTION 1 - DESCRIPTION NOTES...
-
Page 11: Section 2 Installation
A. Inspect for Shipping Damage All shipping containers should be examined for dam- age before and during unloading. This equipment was carefully inspected and packaged at the factory. The freight carrier has assumed responsibility for its safe transit and delivery. If equipment is received in damaged condition, either apparent or concealed, a claim must be made with the delivering carrier. -
Page 12: Installing Griddle On Accessory Stand
D. Installing Griddle on Accessory Stand. NOTE: If you are installing the griddle on a counter do not do Step D. Go directly to Step E. Accessory stands are available for all Accu-Miser Griddles. See the following Accessory Stand List. GRIDDLE ACCESSORY STAND LIST Griddle Model Number... - Page 13 SECTION 2 - INSTALLATION 3. Turn stand right side up and secure to griddle with 3/8-16 bolts and lockwashers as shown in Figure 2-2. NOTE: Be sure the casters with brakes are located at the front of the griddle. Figure 2-2...
-
Page 14: Electrical Connection
SECTION 2 - INSTALLATION E. Electrical Connection Be sure your electrician provides the proper wire gauge with a capacity for carrying the voltage required. Wire capacity is listed on the serial number data plate. Wire capacity and electrical specifications are listed in Section 1 of this manual. Also check local and state codes for proper wire size. -
Page 15: Initially Clean The Griddle
SECTION 2 - INSTALLATION F. Initially Clean the Griddle 1. Clean the rust preventive material from the griddle surface with a non-flammable grease solvent. 2. Wash the griddle with warm water and a mild detergent. 3. Rinse with a damp cloth and wipe dry. G. - Page 16 SECTION 2 - INSTALLATION NOTES:...
-
Page 17: Section 3 Operation
SECTION 3 - OPERATION SECTION 3 OPERATION Location and Function of Controls The following information provides a basic description of the griddle operator components, their location and the function they perform. Figure 3-1 Operator Components... -
Page 18: Controls
A. CONTROLS All oven operating controls are on the control panel. • Thermostat Control Knob - The thermostat control knob is used to adjust the corresponding element section above it to your temperature requirements. The maximum set point is 450°F (232°C), the minimum set point is 150°F (65°C). -
Page 19: Seasoning The Griddle
B. Seasoning the Griddle 1. Preheat the griddle to 300°F (149°C) and spread a light film of unsalted cooking oil or fat over the surface with a soft cloth. 2. Allow griddle to stand this way for two minutes to give the oil an opportunity to work into the pores of the metal and to form a smooth coating over the outside. -
Page 20: Operation Troubleshooting
1. Griddle not heating. 2. Griddle zone not heating. If unit still does not operate contact your local Toastmaster Service Representative. 1. Check that incoming power electrical disconnect switch is turned on. 2. Check that corresponding rocker switch is turned on. -
Page 21: Time And Temperature Guide
F. Time and Temperature Guide NOTE: All cooktimes are approximate. FOOD CONTROL SETTING Canadian Bacon 350°F(176°C) Hamburgers 350°F(176°C) Cheeseburgers 350°F(176°C) Corned Beef Patties 375°F(190°C) Sausage Patties 350°F(176°C) Sausage Links 350°F(176°C) Potato Patties 375°F(190°C) American Fried Potatoes 375°F(190°C) French Toast 400°F(204°C) Scrambled Eggs 300°F(149°C) Pancakes... -
Page 22: Cooking Capacities
G. Cooking Capacities NOTE: All production capacities are approximate. MODEL LOAD CAPACITY HAMBURGERS AM24 AM36 AM48 EGGS 4 "PANCAKES HAMBURGERS 1326 1768 CAPACITY PER HOUR EGGS 4" PANCAKES 1456 1950 1287... -
Page 23: Section 4 Parts List
SECTION 4 - PARTS LIST SECTION 4 PARTS LIST... -
Page 24: Overall Parts List
SECTION 4 - PARTS LIST Figure 4-1 Overall Exploded Drawing... - Page 25 AM24 AM36 Item Qty Part 30979 2000620 31183 30972 30977 30987 2700090 30976 3101908 31154 19A1S145 19A1S145 3003188 3A81D8801 3A81D8801 3004290 3003993 97415 3003992 3004289 7007918 31160 7610644 7610831 7610637 2500132 7007920 31182 2002499 7007923 7007916 2001416 7610628 2500130 4141A8803 4141A8803 31187 2001371...
- Page 26 SECTION 4 - PARTS LIST NOTES:...
-
Page 27: Electrical Schematic
SECTION 5 - SCHEMATICS SECTION 5 SCHEMATICS... -
Page 28: Am24 Wiring Diagram & Schematic
SECTION 5 - SCHEMATICS... - Page 29 SECTION 5 - SCHEMATICS...
-
Page 30: Am36 Wiring Diagram & Schematic
SECTION 5 - SCHEMATICS... - Page 31 SECTION 5 - SCHEMATICS...
-
Page 32: Am48 Wiring Diagram & Schematic
SECTION 5 - SCHEMATICS... - Page 33 SECTION 5 - SCHEMATICS...
- Page 34 Middleby Corp 24 Hour Service Hotline 1-800-238-8444 Part No. 3102549 Price $15.00 For more information on the complete line of Toastmaster® products, contact your Food Service Equipment Dealer, or write to us at the address below. Toastmaster® 1400 Toastmaster Drive...
