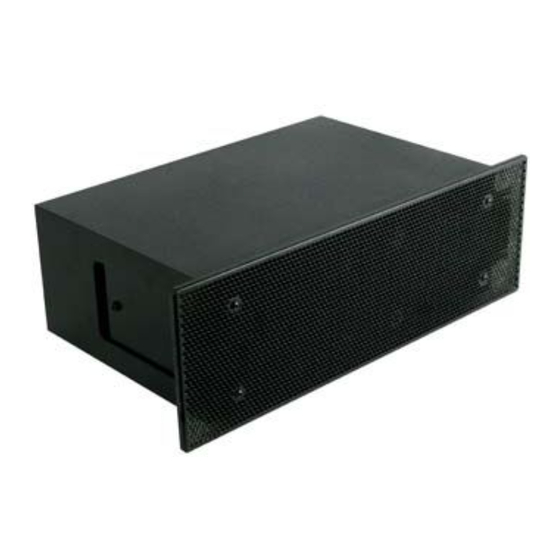

  • Page 1 In-Stair Speaker is52 In-Stair Speaker O W N E R ’ S M A N U A L...
  • Page 2 TANNOY is52 Notes...

  • Page 3: Table Of Contents

    CONT ENTS 1.0 INTRODUCTION 2.0 WARNINGS 2.1 Important Safety Instructions 3.0 PRODUCT INDENTIFICATION 4.0 UNPACKING 5.0 INSTALLATION 5.1 Installation with back can 5.2 Installation without back can 1.0 INTRODUCTION Thank you for selecting Tannoy loudspeakers. Developed by our dedicated team of design engineers, they are the choice of discriminating music and movie lovers the world over.

  • Page 4: Warnings

    2. 1 I mp o r t an t S af e t y I n st r u ct i o n s Before using your is52 instair loudspeaker, be sure to carefully read the applicable items of these operating instructions and the safety suggestions.

  • Page 5: Unpacking

    4. 0 U N PA CKI NG Carefully open the shipping carton and check for any noticeable damage. Every Tannoy is52 is tested and inspected before leaving the factory and should arrive in perfect condition. If found to be damaged, notify the shipping company immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping.

  • Page 6: Installation Without Back Can

    6.0 C O N N E C TIO NS 6.1 W ir e R u n s The is52 is fitted with two 4-pole Neutrik™ Speakon sockets (NL4MP) for connection to the amplifier. These NL4 sockets are paralleled within the enclosure. See fig 4.

  • Page 7: Trouble Shooting

    TANNOY is52 7.0 T R O U B LE S H OOTI NG Distorted or unnatural sound can indicate poor connections, defective electronics, damaged source material or speaker failure. If only one of your speakers has poor sound quality, check the speaker wire and audio connections.

  • Page 8: Technical Drawings

    TANNOY is52 9 .0 T E C H N I C A L DRAWIN GS i s 5 2 432.0 [17.01"] i s 5 2 Back Can 146.0 [5.75"] 10.6 247.5 [0.42"] [9.74"] 413.0 [16.26"] 365.0 [14.37"] 143.2 [5.64"] 57.0 [2.24"]...

  • Page 9: Ordering Information

    TANNOY is52 1 0 . 0 T E C H N I CA L S P E CIFICATION S System is52 Frequency response (-3dB) 90Hz - 25kHz Frequency range (-10dB) 67Hz - 30kHz System sensitivity (1W@1m) 88dB (1W = 2.45V for 6Ω) Dispersion (-6dB) 120˚...

  • Page 10: Declaration Of Conformity

    Details of the Apparatus: Associated Technical File: Applicable Standards: Signed: Position: Date: Tannoy Contractor Loudspeaker Model Number: is52 EMCi6 EN 50081-1 Emission EN 50082-1 Immunity Director of Engineering (Professional) 07th Feb. 07...
  • Page 11 TANNOY is52 Notes...
  • Page 12 Tannoy United Kingdom T: 00 44 (0) 1236 420199 E: enquiries@tannoy.com Tannoy North America T: 00 1 (519) 745 1158 Tannoy Deutschland T: 00 49 (0180) 1111 881 E: info@tannoy.com Tannoy France T: 00 33 (0)1 7036 7473 Tannoy adopts a policy of continuous improvement and product specification is subject to change. E: inquiries@tannoyna.com E: ventes@tannoy.com...
