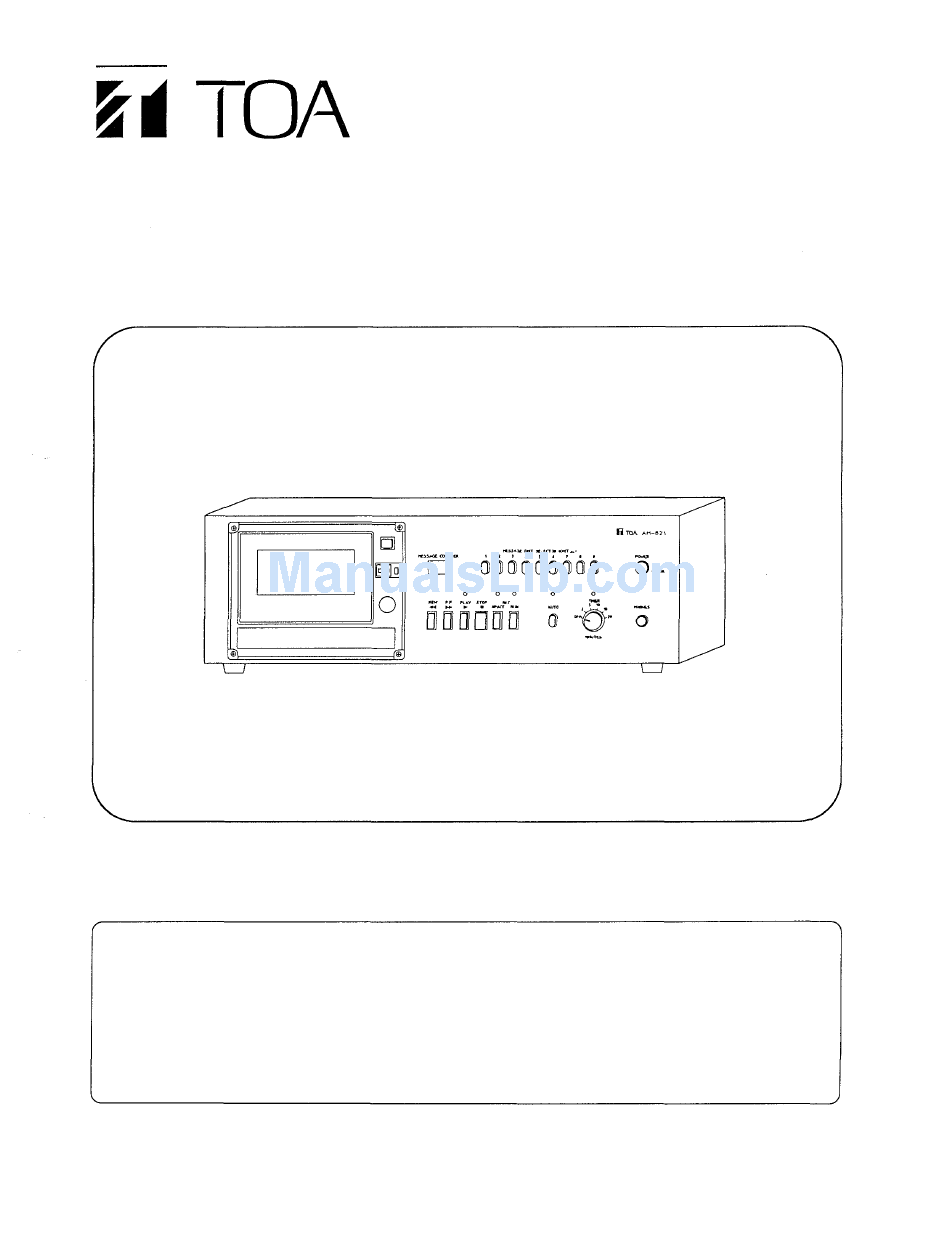

SPOT ANNOUNCING MACHINE
WARNING (120V MODEL ONLY)
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
OPERATING INSTRUCTIONS
TOA Corporation
AM-821

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AM-821 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa AM-821

Summary of Contents for Toa AM-821

  • Page 1 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. OPERATING INSTRUCTIONS TOA Corporation AM-821...

  • Page 2: Table Of Contents

    The AM-821 has a built-in timer for distributing the message at prearranged intervals. The message tape may also be played at specific time intervals by using an external timer.

  • Page 3: Precautions

    3. HANDLING CASSETTE TAPES The AM-821 can accept normal tape only. Do not use chrome or metal tapes to avoid loss of sound quality. Do not use the C-120 cassette tape. Since the it is thin and easily damaged, they may stretch during use causing unstable tape movement which may result in the tape becoming tagled in the rotating parts of this unit.

  • Page 4: Part Description

    PART DESCRIPTION POWER SWITCH Place this switch in the ON position and power is supplied. Note : When not loading the tape : The auto switch is placed in the manual mode. When loading the tape : Unrecorded tape the auto switch placed in the manual mode.

  • Page 5: Connections

    AC MAINS INLET Connects to a power cord. EARTH TERMINAL FUSE LINE OUT SOCKET Connects input external Make-contact is provided during tape playback and output signal Is fed to this socket. TIMER IN SOCKET When placing the auto switch in the automatic mode and the time switch in the OFF position, accepts make-contact of external timer and permits...

  • Page 6: Recording Procedure

    RECORDING PROCEDURE This Spot Announcing Machine stops tape motion by sensing the unrecorded sound section on the tape. Announcements may be commenced overriding the background music by detecting the recorded level. To ensure that your desired message is announced without fail, we suggest you keep records of the message numbers and their contents when recording.

  • Page 7: Confirmation Of Recording

    COMPLETED TAPE AFTER RECORDING PROCEDURE RECORDIN G OPERATIO N SPACE SPACE BUTTO N TAPE MESSAGE #1 HEA D UNRECORDED SOUND SECTION PLA Y BACK AUTOMATIC PLAYBACK AUT O STOP CONFIRMATION OF RECORDING To ensure that the recorded message can be annnounced properly, confirm if (A) the number appearing on message counter display is in agreement with the indexing number for the announced message.

  • Page 8: Automatic Playback Procedure

    1. A microphone connected to the AM-821 can be used for recording and direct paging. Placing the microphone switch in the ON position enables you to make the microphone paging when the power is being fed to the AM-821. The built-in AGC circuit releases you from work to adjust the sound volume frequency.

  • Page 9: Trouble-Shooting

    TROUBLE-SHOOTING Check the following points before you think there is a failure. Are the remote microphone and other equipment properly connected to the AM-821 ? Is a power cord not plugged in ? Are switches and volume controls placed in the right position ? SYMPTON A tape does not travel.

  • Page 10: Specifications

    SPECIFICATIONS Power Requirements AC Mains, 50/60 Hz Outputs LINE PHONE : stereo or monaural headphone Inputs REMOTE MIC Frequency Response TAPE Distortion TAPE TAPE Usable Tape Compact cassette normal tape Wow and Flutter Less than 0.3% WRMS Control Terminals Input jack for external timer-accepts signal pulse with no voltage Output for muting-make contact with no voltage Interval Timer 2, 5, 15, 20 minutes and OFF (switchable)

  • Page 11: Dimensions

    DIMENSIONS (mm) — 11 —...
