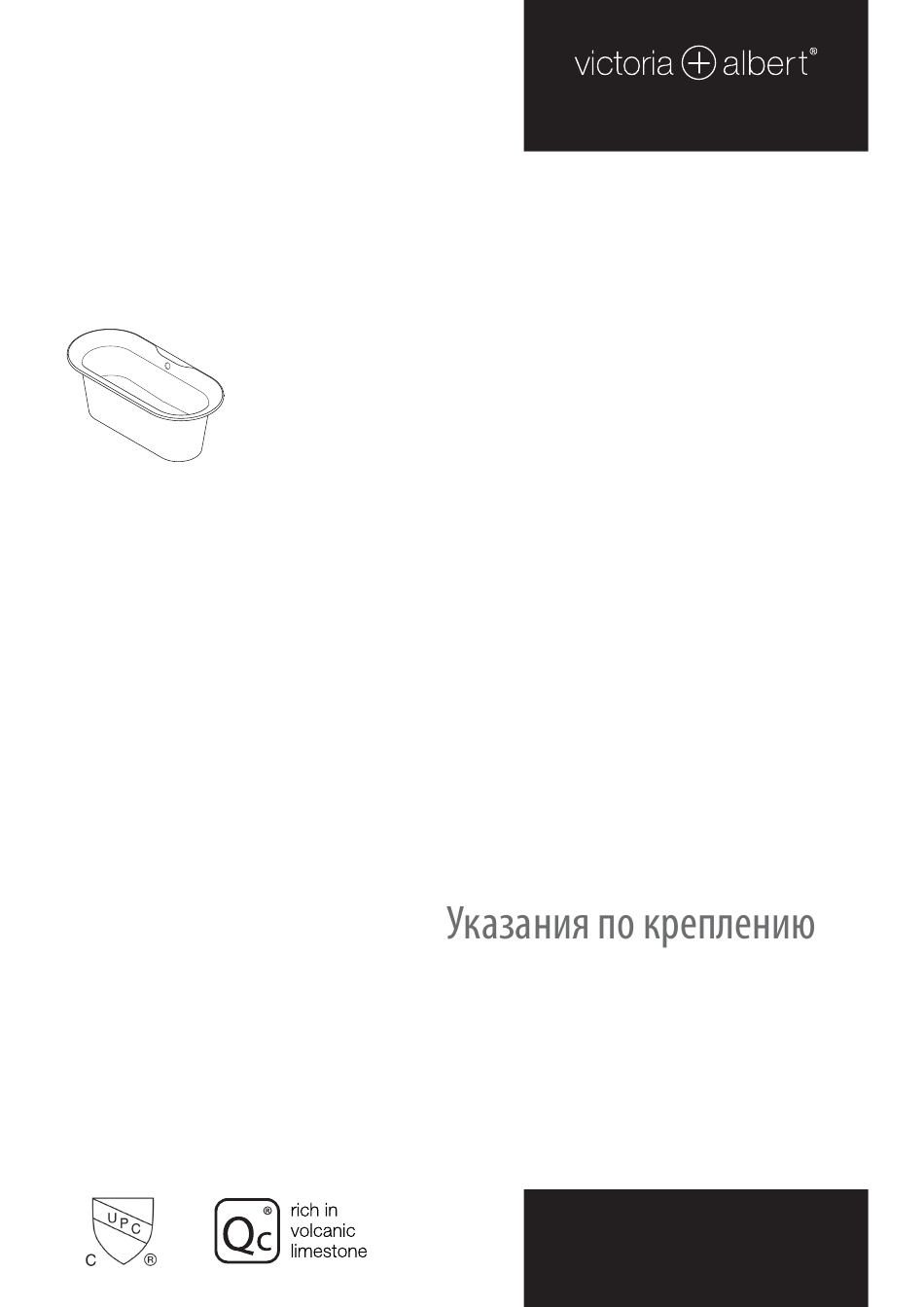

- Page 1 Monaco Fitting instructions Fitting instructions Notice d'installation Notice d'installation Instrucciones de montaje Instrucciones de montaje Montageanleitung Istruzioni di montaggio Montagehandleiding Instrukcja montażu www.vandabaths.com...
- Page 2 Monaco 800mm 31 1 /2” 290mm 11 2 /5” 107mm 4 2 /5” 9˚ 493mm 386mm 19 2 /5” 612mm 15 1 /5” 505mm 24 1 /8” 19 7 /8” Integral base Integral base 100mm 4” Floor level 565mm 22 1 /4”...
- Page 3 Drilling Overflow Holes In Australia, Victoria + Albert Baths do not come with pre-drilled over ow hole. However, it is possible to achieve the authentic look of an over ow strainer Ø50mm / 2” SLOW Drilling an over ow hole: Model-speci c location suggestions...
- Page 4 Monaco + K16 Ø40mm Ø40mm >350 mm www.vandabaths.com MON-1A-1...
- Page 5 Monaco+ K16 www.vandabaths.com MON-1B-1...
- Page 6 CAPRI MONACO YORK 66mm MARLBOROUGH 46mm Check Comprobar Veri er Überprüfen Ø1 1/2” BSP Ø40mm www.vandabaths.com K16-2A-1...
- Page 7 CAPRI MONACO YORK MARLBOROUGH Ø1 1/2” BSP 300-350mm Ø40mm www.vandabaths.com K16-2B-1...
- Page 8 Drilling Tap Holes Flat Area Ø B<X SLOW Ø Ø www.vandabaths.com TH-1-1...
