Tiger V1 Installation Instructions

Tiger Lily Products
PO Box 549
Niwot, CO, USA 80544
Best in Test
Radar, Laser & Photo
Countermeasures
V1 Install Instructions, V1 & Valentine 1 Programming, November 2007
1. Use J Hooks hardware to install Remote Kit behind grille of vehicle, on top of Ski Rack, or just under the
bumper, or in the bumper (if a fiberglass bumper is available). The higher the better the performance. Drill
holes on the outer flanges of the aluminum enclosure, left and right sides, use J Hooks to hold package to
desired surface. A bracket is provided.
2. If your vehicle is an SUV or pickup truck or larger, you can install under the bumper. If the install location is
good (typically just under the height of the bumper and approximately 18" back), the V1 will detect radar to
the front with excellent sensitivity and to the rear with reasonable sensitivity. Do not install too low due to
potential road damage to the V1 Remote, when parking or going over parking lot bumps.
3. The cable protruding from the Remote Kit is the rear of the kit facing the engine compartment.
4. If installed behind the grille, rear radar detection will be significantly reduced. Ensure no metal is in front of
the V1 Remote, and ensure V1 Remote is kept away from radiator to prevent heat damage. If installed
inside a front, foam core bumper, ensure no metal is in front of the V1 Remote.

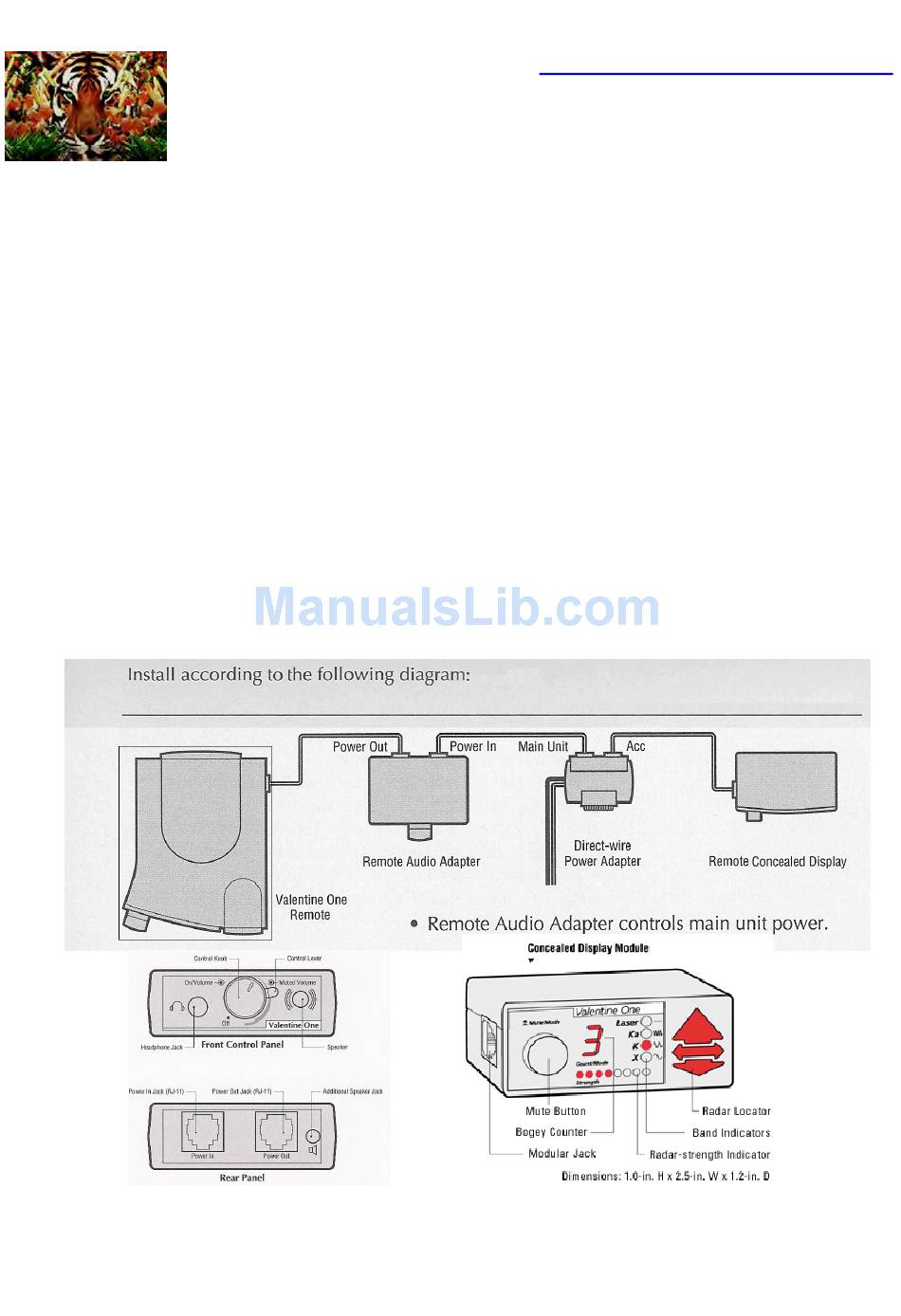

5. Run the 14 foot cable into the cockpit and hook up according to electrical layout highlighted below. If the
cabling is ran differently than shown above, there will be no display on the Remote Concealed Display.
6. Call TLP on any questions you have or to order remote electronic display, audio control and cabling. The
Valentine One inside is a die-cast Magnesium enclosure, surrounded by a very sturdy Aluminum outer
enclosure.
Rated #1, 360 Degree, High Performance, PRS1-STi-360™ Prowler Remote™ System
PROWLER Remote, PRS1-STi-360, PRS1-V-360, PRS2-V, PRS2 -STi, PRS3-V, PRS3- STi, PRS4-V, PRS4-STi, Got Performance are trademarks of Tiger Lily Products. All rights reserved. Copyright 1999 -2008.
