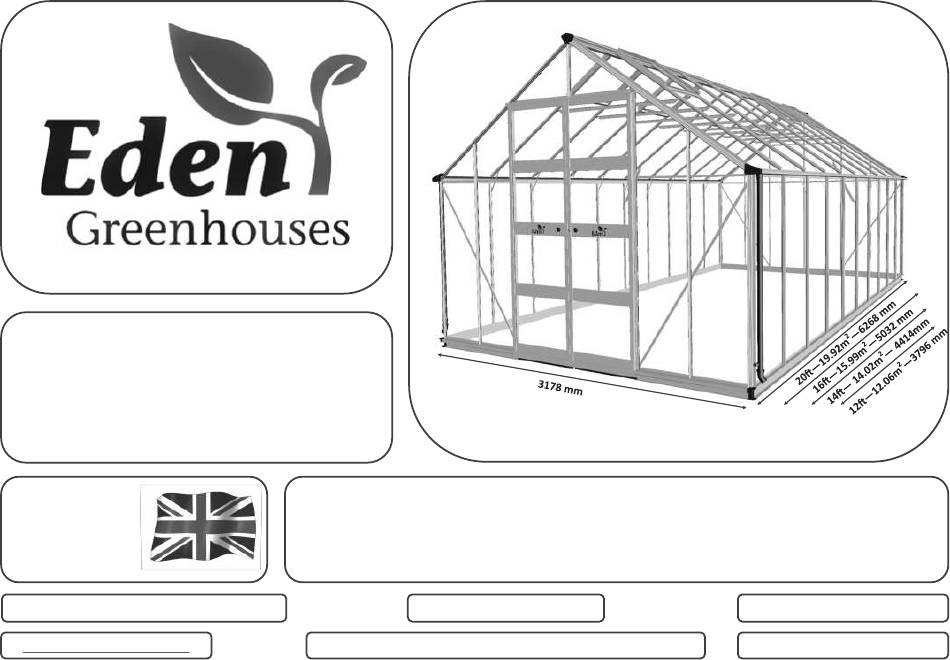

Zero -Threshold Range
Bourton
(10' 5" WIDE)
Eden Zero-threshold range hints & tips handbook is now available on our website.
Designed &
Note:
If you are siting your greenhouses on a concrete/slab base please refer to dimensions given on the front
Manufactured
cover. But allow 80mm extra space on the width for the gutters on each side at eaves level.
In the UK
.
If you are siting your greenhouse on earth please refer to the dimensions given in section 0 Foundation
Customer Helpline: +44 (0)1242 676625
Mon—Fri 9:00am—5:00pm
mail@eden-greenhouses.com
www.edengreenhouses.com
Please refer to website for most up to date instructions.
RN00300820
EM 2.02

Advertisement

loading
Need help?

Need help?

Do you have a question about the Zero-Threshold Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eden Zero-Threshold Series

Summary of Contents for Eden Zero-Threshold Series

  • Page 1 Zero -Threshold Range Bourton (10’ 5” WIDE) Eden Zero-threshold range hints & tips handbook is now available on our website. Designed & Note: If you are siting your greenhouses on a concrete/slab base please refer to dimensions given on the front Manufactured cover.
  • Page 2 GB - Introduction Tools and safety equipment Recommended Dear Customer,  Step ladder Congratulations on purchasing your new Eden greenhouse.  Drill (anchoring only) Before you start, please read this instruction booklet carefully. The components for your  Spirit level greenhouse are in numbered bundles corresponding to the sections in this booklet.
  • Page 3 The gutters will need to be regularly cleared of leaves and debris to ensure (White background) (Black background) efficient drainage.  Replace all broken panes of glass immediately, failure to do so may cause structural failure.  Remove snow loads from the roof. Page 2 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 4 DK - Introduktion Kære kunde Tillykke med købet af dit nye Eden-drivhus. Værktøj og sikkerhedsudstyr Anbefalet Før du begynder, bedes du læse denne vejledning omhyggeligt igennem.  Trappestige Komponenterne til dit drivhus er nummererede bundter, der svarer til sektionerne i ...
  • Page 5 Set indefra Set udefra effektiv bortledning. (Hvid baggrund) (Sort baggrund)  Udskift straks alle beskadigede glaspaneler, da det ellers kan svække drivhusets struktur.  Fjern sne, der har lagt sig på taget. Page 4 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 6 D - Einleitung Werkzeuge und Sicherheitsausrüstung Empfohlen Sehr geehrter Kunde,  Stehleiter  herzlichen Glückwunsch zum Erwerb Ihres neuen Eden Gewächshauses. Bohrmaschine (nur fürVerankerungsbohrungen) Bevor Sie beginnen, lesen Sie bitte diese Bedienungsanleitung sorgfältig durch. Die  Wasserwaage Komponenten für Ihr Gewächshaus sind in nummerierten Bündeln entsprechend den ...
  • Page 7 Die Regenrinnen müssen regelmäßig von Laub und Schmutz befreit werden, um (Weißer Hintergrund) (Schwarzer Hintergrund) ungehinderten Abfluss zu gewährleisten.  Kaputte Glasscheiben müssen sofort ersetzt werden, um ein strukturelles Versagen zu vermeiden.  Schneelast vom Dach beseitigen. Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 6...
  • Page 8 Verktyg och säkerhetsutrustning Rekommenderas Bästa kund,  Trappstege  Borr (endast för förankring) Tack för att du köpt ett Eden växthus.  Vattenpass Läs igenom dessa instruktioner noggrant innan du börjar. Komponenterna till ditt  Måttband växthus har delats in i numrerade buntar som motsvarar de olika avsnitten i dessa ...
  • Page 9 Takrännorna ska regelbundet rengöras från löv och annat skräp för att de ska (Vit bakgrund) (Svart bakgrund) fungerar effektiv.  Byt ut alla trasiga glasrutor genast, annars kan problem uppstå med växthusets struktur.  Snö bör röjas från taket. Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 8...
  • Page 10 F - Introduction Cher Client, Outils et équipement de sécurité recommandés  Escabeau Nous vous félicitons pour l'achat de votre nouvelle serre Eden.  Perceuse (pour ancrage Avant de commencer, lisez attentivement cette notice. Les composants de votre serre seulement) sont regroupés en lots numérotés correspondant aux diverses sections de cette notice.
  • Page 11 (Fond blanc) (Fond noir)  Remplacez immédiatement toutes les vitres brisées. Si cette précaution n'est pas respectée, cela risque d'entraîner une défaillance structurelle.  Éliminez les amas de neige sur le toit. Page 10 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 12 NL - Inleiding Werktuigen en veiligheidsuitrusting Aanbevolen Geachte klant  Keukentrap Gefeliciteerd met uw aankoop van uw nieuwe broeikas van Eden.  Boor (alleen voor verankeren)  Lees deze gebruiksaanwijzing zorgvuldig door voordat u begint. De onderdelen van uw Waterpas broeikas zijn verpakt in genummerde pakjes, die overeenkomen met de delen van dit ...
  • Page 13 (Witte achtergrond) (Zwarte achtergrond) verwijderen en te zorgen voor efficiënte drainage.  Vervang elke gebroken ruit onmiddellijk, anders kan er structurele schade worden veroorzaakt.  Verwijder lagen sneeuw van het dak. Page 12 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...

  • Page 14: Herramientas Incluidas

    Herramientas y equipos de seguridad recomendados  Escalera de mano Le felicitamos por la compra de su nuevo invernadero de Eden Greenhouses.  Taladro (sólo para anclajes) Antes de empezar, lea atentamente este manual de instrucciones. Las piezas van en ...

  • Page 15: Sección 4 Montaje

    Reemplace de inmediato todos los paneles de vidrio que se rompan, ya que si no lo hace puede ocasionar fallos estructurales.  Retire la nieve que se acumule en el tejado. Page 14 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...

  • Page 16: Attrezzi In Dotazione

    I - Introduzione Attrezzi e attrezzatura di sicurezza consigliati Spettabile Cliente,  Scala Congratulazioni per aver acquistato la nuova serra Eden.  Trapano (solo fissaggio) Prima d’iniziare, leggere attentamente questo libretto d’istruzioni. I componenti della  Livella serra sono raccolti in confezioni numerate corrispondenti alle sezioni di questo ...

  • Page 17: Elenco Dei Componenti

    Le grondaie dovranno essere svuotate periodicamente da foglie e detriti per garantire (Sfondo bianco) (Sfondo nero) un drenaggio efficiente.  Sostituire tutti i vetri rotti immediatamente, in caso contrario si potrebbe verificare un cedimento strutturale.  Togliere la neve dal tetto. Page 16 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 18 FI - Esittely Hyvä asiakas Suositellut työvälineet ja suojaimet Olet tehnyt hyvän valinnan hankkiessasi nyt uuden Eden-kasvihuoneen.  Tikkaat Ennen kuin ryhdyt mihinkään muuhun, lue tämä ohjekirja tarkkaan. Kasvihuoneen osat  Pora (vain ankkurointiin) on koottu numeroituihin nippuihin, joiden numerot viittaavat samalla numerolla ohje- ...
  • Page 19 Räystäät täytyy puhdistaa säännöllisesti lehdistä ja roskista, jotta tehokas veden (valkoinen tausta) (musta tausta) valuminen voidaan varmistaa.  Vaihda kaikki rikkoutuneet lasilevyt uusiin välittömästi, muussa tapauksessa kasvihuoneen rakenteet voivat vaurioutua.  Luo lumi pois katolta. Page 18 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 20 1 x klucz płaski 10 mm kształcie litery L) przykręcanych kołkami rozporowymi o rozmiarze 8 mm, trzeba wywiercić otwory w płytach lub betonie, wiertłem średnicy 7 mm, jak można zobaczyć w SEKCJI 10 WYKOŃCZENIE. Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 19...
  • Page 21 (czarne tło)  Wszelkie stłuczone lub pęknięte szyby wymieniać bez zbędnej zwłoki — zaniedbanie tego może spowodować uszkodzenie, lub nawet zawalenie się, konstrukcji.  Z dachu usuwać nagromadzony na nim śnieg. Page 20 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 22 7 mm murbor 1 x 10 mm fastnøkkel og fest med 8 mm plugger og skruer som vist i TRINN 10 AVSLUTTENDE. Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 21...
  • Page 23 Takrennene må renses regelmessig for løv og skitt for å sikre effektivt avløp. (Hvit bakgrunn) (Svart bakgrunn)  Glass som er knust må skiftes ut umiddelbart da dette kan gi strukturell svikt.  Taket skal holdes fritt for store snømengde. Page 22 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 24 18-RH RP137850955-RH 4972 RP137844972 1270 RP2079091270 6208 RP137846208 3736 RP2078403736 1609 RP2079111609 4354 RP2078404354 1492 RP309331492 4972 RP2078404972 3118 RP137843118 6208 RP2078406208 1812 RP228501812 1869 RP228501869 1721 RP2079111721 RP309300636 RN00310237 RP1070400606-25 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 23...
  • Page 25 RP309340620 1250 RP048011250 RP2081140610 RP228510422 2568 RP228502568 RP244090414 RP235570300 RP102640305 RP4-08010577 2111 RP209172111 32,000 RN00300412 64,000 RN00300413 1964 RP2079111964 RN00300330 RN00300301 4,400 RN00300417 RN00310450 RN00300227BK 1250 RP2079111250 50/51 N00300605 / 655 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 24...
  • Page 26 2136 RP228502136 RN00310422 RN00310413 RN00310426 RP2079100620 1400 RN00310428 RP2079120610 RN00310437 N00310020 RN00310462 00402 RN00310463 N00300423 RN00310464 N00300602 01645 N00300603 RN00310439 N00300604 00682BK PT200 PT201 PT204 RN00310443 12468 RN00310418 12470 RN00310420 N00300606 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 25...
  • Page 27 14.02m 15.99m 19.92m 3118mm 3118mm 3118mm 3118mm 3736mm 4354mm 4972mm 6208mm 955mm 955mm 955mm 955mm 1208mm 1208mm 1208 mm 1208mm 4866mm 5355mm 5869mm 6947mm NOTE: THIS IS FOR DIMENSION MEASUREMENTS ONLY Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 26...
  • Page 28 SCIANA SZCZYTOWA - BAKRE GAVL Viewed from the inside Viewed from the outside (White background) (Black background) 10x12 10x14 10x16 10x20 12.06m 14.02m 15.99m 19.92m 3118 1492 1812 1721 3104 1869 1250 2568 2136 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 27...
  • Page 29 REAR GABLE - BAGGAVL - HINTERGIEBEL - BAKGAVEL - PIGON DERIERE - ACHTERGEVEL - FRONTIS TRASERO - PANNELL OPOSTERIORE- PERAPAATY - TYLNA SCIANA SZCZYTOWA - BAKRE GAVL Extra bolt 50/ nut 51 to use later Page 28 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 30 (Black background) 10x12 10x14 10x16 10x20 12.06m 14.02m 15.99m 19.92m 4400 2136 18-LH 18-RH 1492 16 + 45 1869 1812 1721 16 + 45 1270 45 x 2 16 x 2 1250 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 29...
  • Page 31 FRONT GABLE - FORGAVL - VORDERGIEBEL - FRONTGAVEL - PIGNON DEVANTVOORGEVEL - FRONTIS FRONTAL - PANNELLO FRONTALE - OVIPÄÄTY- PRZEDNIA ŚCIANA SZCZYTOWA - FRONTGAVL Extra bolt 50/ nut 51 to use later Page 30 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 32 Extra bolt 50/ nut 51 to use later 4972 Viewed from the inside Viewed from the outside (White background) (Black background) 6208 3736 4354 4972 6208 1609 1012-12.06m 10x14-14.02m 10x16-15.99m 10x20-19.92m Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 31...
  • Page 33 ASSEMBLE - SAMLING - FENSTER - HOPMONTERING - ASSEMBLAGE - MONTEREN - MONTAJE - MONTAGGIO - KOKOAMINEN - MONTAŻ STELAŻA - MONTERING Viewed from the inside Viewed from the outside (White background) (Black background) Page 32 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 34 ROOF - TAG - DACH - TAK - TOIT - DAK - TEJADO - TETTO – KATTO – DACH - TAK Viewed from the inside Viewed from the outside (White background) (Black background) 10x12 10x14 10x16 10x20 12.06m 14.02m 15.99m 19.92m 3736 4354 4972 6208 1869 1964 1250 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 33...
  • Page 35 51 / 50 Preloading of bolt 50 / nut 51 PRE-LOAD 51 / 50 50 / 51 50 / 777mm 470 mm 50 / 51 50 / 51 50 / 51 Page 34 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 36 WINDOWS - VINDUER - FENSTER - FONSTER – FENETRES - RAMEN – VENTANAS - FINESTRE – LUUKUT – WYWIETRZNIKI - VINDUER Viewed from the inside Viewed from the outside (White background) (Black background) 10x12 10x14 10x16 10x20 12.06m 14.02m 15.99m 19.92m 64000 Page 35 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 33...
  • Page 37 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR 10x12 10x14 10x16 10x20 10x12 10x14 10x16 10x20 12.06m 14.02m 15.99m 19.92m 12.06m 14.02m 15.99m 19.92m 64000 32000 2111 2111 30RH 30LH 610 X 428 Page 34 Page 36 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 38 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR Viewed from the inside Viewed from the outside (White background) (Black background) 28/65 28/65 x 10 122 + 107 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 35 Page 37...
  • Page 39 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR 30RH 30RH 30RH 30RH 30RH Page 36 Page 38 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 40 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR Viewed from the inside Viewed from the outside (White background) (Black background) x 10 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 37 Page 39...
  • Page 41 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR (x2) 30LH 30LH 30LH SQUEEZE LEVER & SLIDE OUT TO REMOVE AS LEFT 114 A 114 B 114B Page 38 Page 40 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 42 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR Hole patterns on sliders may vary if so, follow dimensions given bellow +/- 2mm 114 A 17mm 19mm 114 A 114 B Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 39 Page 41...
  • Page 43 DOOR - DØR - TÜR - PORTE - DEUR - PUERTA - PORTA – OVI – DRZWI - DØR Hole patterns on sliders may vary if so, follow dimensions given bellow +/- 2mm 114 A 17mm 19mm 114 A 114 B Page 40 Page 42 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 44 10x20 12.06m 14.02m 15.99m 19.92m Viewed from the inside Viewed from the outside (White background) (Black background) SQUEEZE LEVER & SLIDE OUT TO REMOVE AS LEFT 114 A 114B Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 39 Page 43...
  • Page 45 102 x 3 114 B 103/ 103/ 114 A 103/ 103/ 118 x 3 114 A 103/ 118 x 3 51 x 3 50 x 114 B 102 x 114 B Page 40 Page 44 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 46 10x20 12.06m 14.02m 15.99m 19.92m Viewed from the inside Viewed from the outside (White background) (Black background) SQUEEZE LEVER & SLIDE OUT TO REMOVE AS LEFT 114 A 114B Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 39 Page 45...
  • Page 47 103/ 114 A 103/ 103/ 118 x 3 103/ 51 x 3 114 A 50 x 3 118 x 3 97 95 114 B 102 x 3 114 B Page 40 Page 46 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 48 LOCATING - PLACERING – FIXIERUNG – PLACERING – EMPLACEMENT – LOCATIE – UBICACIÓN – UBICAZIONE – SIJOITUS – PRZYTWIERDZENIE - PLASSERING = 42 64000 32000 Viewed from the inside Viewed from the outside (White background) (Black background) 50/51 77mm Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 41 Page 47...
  • Page 49 14/13 13/14 *TIP: Before fitting doors, please make sure the base and door aperture is level and square to ensure doors to run smoothly* Image for illustration purposes only Page 42 Page 48 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 50 Viewed from the inside Viewed from the outside (White background) (Black background) 114 B / 97 50 / 51 50 / 51 50 / 51 50 / 51 50 / 51 50 / 51 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 43 Page 49...
  • Page 51 LOCATING - PLACERING – FIXIERUNG – PLACERING – EMPLACEMENT – LOCATIE – ŻALUZJE LOUVRE – LUFTINTAG - UBICACIÓN – UBICAZIONE – SIJOITUS – PRZYTWIERDZENIE - PLASSERING 610m 610m 895m Page 44 Page 50 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 52 457 x 1486 GLT 3054 of glass panes with 1490 RN00311417 soapy water to ease fitting of the capping* C2/C3 1867 RN00311413 12468 12470 R (58) RN00310458 EXTRA(S) 1115 RN00310418 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 47 Page 51...
  • Page 53 610 x 2578 x 2151 RH RN00311328 457 x 1504 x 1815 LH RN00311321 457 x 1815 x 1504 RH RN00311322 1490 RN00311617 C2/C3 1867 RN00311613 RN00311503 20240 RN00311504 EXTRA(S) 1115 RN00310618 Page 48 Page 52 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 54 FINISHING – AFSLUTNING – FERTIGSTELLUNG – SLUTFÖR - POUR FINIR- AFWERKING – ACABADO – FINITURA – VIIMEISTELY – Wykończenie - AVSLUTTENDE 1,2,3,4,5 1,2,3,4,5 * TIP: For aluminium finish models due to binding, a little lubricant may be needed to ease fitting of vent / windows* Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 49 Page 53...
  • Page 55 FINISHING – AFSLUTNING – FERTIGSTELLUNG – SLUTFÖR - POUR FINIR- AFWERKING – ACABADO – FINITURA – VIIMEISTELY – Wykończenie - AVSLUTTENDE 1,2,3 1,2,3 1400 Page 50 Page 33 Page 54 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...
  • Page 56 FINISHING – AFSLUTNING – FERTIGSTELLUNG – SLUTFÖR - POUR FINIR- AFWERKING – ACABADO – FINITURA – VIIMEISTELY – Wykończenie - AVSLUTTENDE 116 /117 Eden Greenhouses Customer Helpline: +44 (0)1242 676625 Page 51 Page 54...
  • Page 57 FINISHING – AFSLUTNING – FERTIGSTELLUNG – SLUTFÖR - POUR FINIR- AFWERKING – ACABADO – FINITURA – VIIMEISTELY – Wykończenie - AVSLUTTENDE Page 52 Page 55 Eden Greenhouses Customer Helpline: +44 (0)1242 676625...

  • Page 58: Year Warranty

    12 YEAR WARRANTY Eden Halls Greenhouses Ltd. hereby agrees (subject to satisfaction of the Conditions referred to below) to make good free of charge by replacement or repair (at our election) any defects which we shall discover upon examination to be due to be faulty materials, components or workmanship which may appear in our greenhouse kits within 12 years of the date of despatch from our factory.
