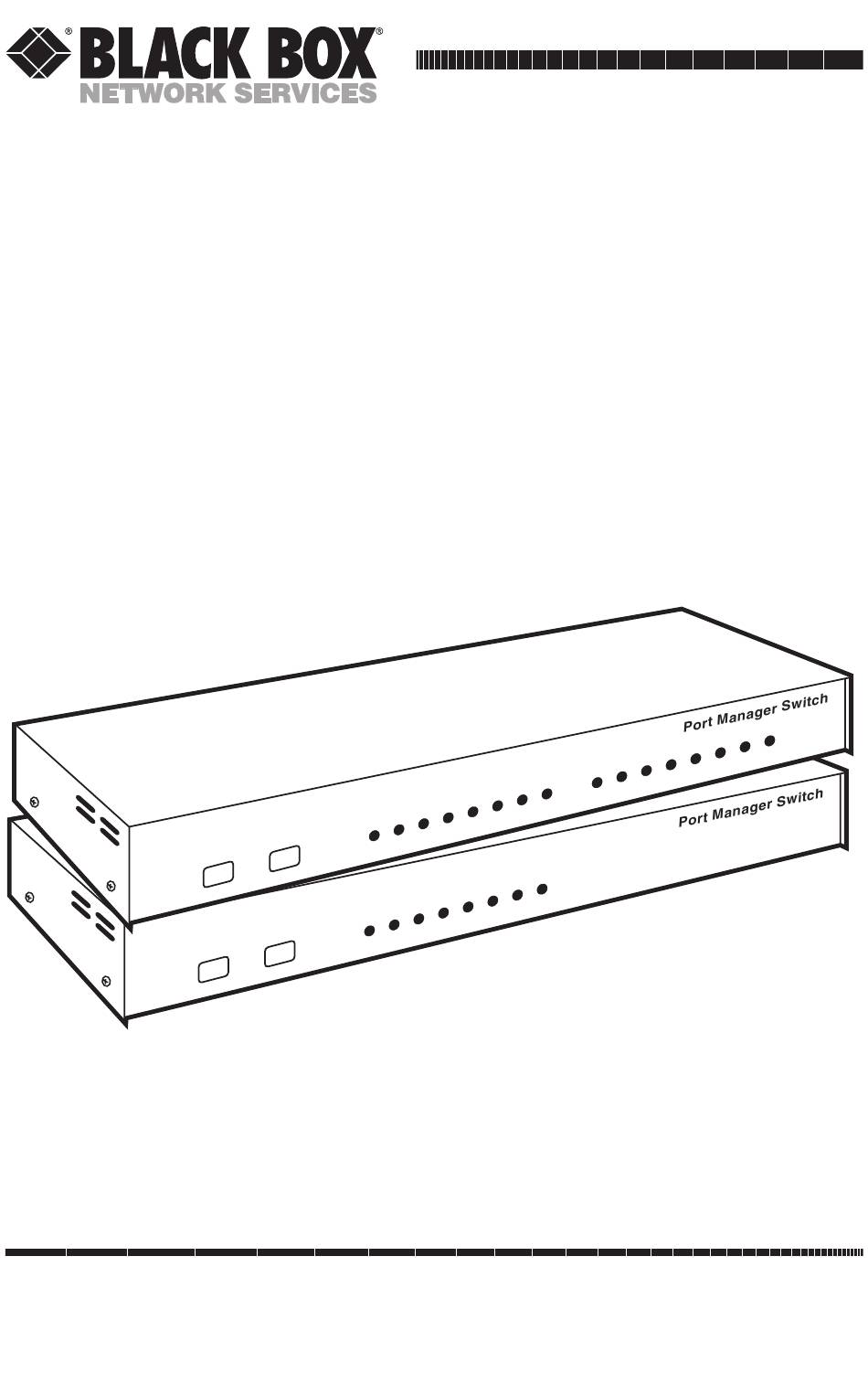

Port Manager Switches
O N
O N
CUSTOMER
Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX
FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
SUPPORT
Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
INFORMATION
Web site: www.blackbox.com • E-mail: info@blackbox.com
V I T Y
A C T I
4
3
R D Y
2
1
V I T Y
A C T I
4
3
R D Y
2
1
2
1
8
7
6
5
8
7
6
5
OCTOBER 1996
SW545A
SW546A
V I T Y
A C T I
8
7
6
5
4
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box SW546A
Summary of Contents for Black Box SW546A
- Page 1 Order toll-free in the U.S. 24 hours, 7 A.M. Monday to midnight Friday: 877-877-BBOX FREE technical support, 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mail order: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC AND IC STATEMENTS, TRADEMARKS FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
- Page 3 PORT MANAGER SWITCHES NORMAS OFICIALES MEXICANAS (NOM) ELECTRICAL SAFETY STATEMENT INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 4 NOM STATEMENT 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
-
Page 5: Table Of Contents
PORT MANAGER SWITCHES Contents Chapter Page 1. Specifications ..................... 7 2. Introduction ..................... 11 2.1 General Overview ................11 2.2 The Port Manager Switches Illustrated ........... 13 3. Getting Started ..................15 3.1 Setting Default Communication Parameters ........15 3.2 Connecting Your PC to the PM Switch ..........16 3.3 Applying Power to the PM Switch ............ -
Page 6: Chapter Page
8.1 Command Conventions ..............44 8.2 Command Response ................. 45 8.3 Command Summary ................. 46 8.4 Command Set ..................47 9. Troubleshooting ..................56 9.1 Calling Black Box ................56 9.2 Shipping and Packaging ..............56 Appendix A: Pinouts ..................57 Appendix B: SW546A-D48 ................62... -
Page 7: Specifications
PORT MANAGER SWITCHES 1. Specifications Compliance — FCC Class A, IC Class/classe A Interfaces — Proprietary modular serial, compatible with EIA RS-232 (DTE) Protocol — Asynchronous Code Set — ASCII Data Format — Either 8 data bits, no parity, or 7 data bits, even or odd parity;... - Page 8 CHAPTER 1: Specifications User Controls — Keyboard commands; (2) Front-mounted CLEAR and SET pushbuttons; (3) Rear-mounted: (1) 8-position DIP switch for comm. parameters; (1) 115-/220-VAC slide switch; (1) OFF/ON rocker switch Indicators — All front-mounted: Both models: ON and RDY (ready) LEDs; SW545 models: (8) ACTIVITY LEDs;...
- Page 9 PORT MANAGER SWITCHES Humidity Tolerance — 20 to 80% noncondensing Size — 1.8" (1U) H x 17"W x 6.5"D (4.4 x 43.2 x 16.5 cm); when rackmount brackets are added, the unit is 19" (48.3 cm) wide 6 lb. (2.7 kg) Weight —...
-
Page 10: Introduction
The PM Switch has 256 KB of nonvolatile, dynamically allocated buffer memory that prevents data from overflowing during communication sessions. If your application requires more memory, call Black Box for technical support; they might be able to provide you with a quote on units with 512-KB... - Page 11 PORT MANAGER SWITCHES Modem Communication You can control the PM Switch either from a local PC directly cabled to it or from a remote PC across a modem link. Use ProComm (or another ® communications program) to send commands to ports and to receive and display status information from them.
-
Page 12: The Port Manager Switches Illustrated
CHAPTER 2: Introduction 2.2 The Port Manager Switches Illustrated 2.2.1 T RONT ANELS The front panels of the Port Manager Switches are very similar to each other. The front panel of the 16-port unit is shown in Figure 2-1 below; it includes several controls and indicators, whose functions are described beneath the illustration. - Page 13 PORT MANAGER SWITCHES 2.2.2 T ANELS The rear panels of the Port Manager Switches are also similar. The rear panel of the 16-port unit is shown in Figure 2-2 below; it includes several controls and connectors whose functions are described beneath the illustration. The rear panel of the 8-port unit does not have RS-232 ports 9 through 16.
-
Page 14: Getting Started
CHAPTER 3: Getting Started 3. Getting Started This chapter provides a brief overview of the Port Manager Switch’s basic capabilities, and describes tests that you can perform to determine whether the unit is operating properly. 3.1 Setting Default Communication Parameters 3.1.1 U SING ACTORY... -
Page 15: Connecting Your Pc To The Pm Switch
If you want to order assembled adapters instead of building more, call Black Box for a special quote. 3.2.1 D... -
Page 16: Applying Power To The Pm Switch
RDY LED should begin to flash. NOTE If all of the PM Switch’s Port Activity LEDs flash when you power up the box, this may indicate a problem with the PM Switch unit. Please contact Black Box for technical support as described in Section 9.1. -
Page 17: Communicating With The Pm Switch Unit
PORT MANAGER SWITCHES 3.4 Communicating with the PM Switch Unit Take these steps to enter the PM Switch’s command mode, explore the unit’s basic features, and check for proper operation: 1. If you have not already done so, start your communications program (ProComm, for example). - Page 18 CHAPTER 3: Getting Started Wake-Up Port Sleep - Only Accepts Wake-Up Command Help - Displays COmmand List Status - Displays Status Screen Port # or name /W [n] Who - Displays Port Parameters Port # /C <n> [n] Connect - Local [Remote] "or"...
- Page 19 PORT MANAGER SWITCHES SYSTEM STATUS VERSION 1.4 MEMORY 256KB PORT | NAME | STATUS | BAUD | B/P | MODE | TIMEOUT | BUFF | CTS ------+----------+--------+------+-----+------+--------+---------+------+---- |*FREE | 9600 | 8N | DTR | ---- | | FREE | 9600 | 8N | DTR | ---- | | FREE...
- Page 20 CHAPTER 3: Getting Started 5. The PM Switch can perform two different types of port connections: Resident Connections and Third-Party Connections. a) Resident Connection: This type of connection occurs when your resident port (the port that the device you’re using is attached to) issues a /C command to connect to a second port: i.
-
Page 21: Installation
PORT MANAGER SWITCHES 4. Installation 6. Define the Site I.D. message. The Site I.D. allows the user to denote the location or name of the PM Switch unit. The Site I.D. cannot include nonprintable ASCII codes such as [NUL] (the null character) and [LF] (the line-feed character). - Page 22 CHAPTER 4: Installation NOTE Communication parameters (data rate, parity, etc.) can also be individually selected for each PM Switch port by accessing the Command Mode and invoking the /P command as described in Section 5.3.4. However, when the PM Switch is initialized, these parameters will return to the settings specified by the current SETUP switch configuration.
- Page 23 PORT MANAGER SWITCHES 4.1.2 D EFAULT LOW CONTROL OSITION The default flow-control format should be set to match the flow control used by the device attached to Port 1 of the PM Switch. You can use Position 4 of the SETUP switch to select either DTR (hardware) or X-ON/ X-OFF (software) flow control: Set Position 4 down for DTR or up for X-ON/X-OFF.
-
Page 24: Connecting A Modem To The Pm Switch
If you want to order assembled adapters instead of building more, call Black Box for a quote. After you attach the adapter, run a six-wire, straight-through-pinned twisted- pair or flat-satin cable with RJ-11 connectors—either one of the cables... -
Page 25: Initializing The Unit To Default Settings
PORT MANAGER SWITCHES 4.3 Initializing the Unit to Default Settings If the SETUP Switch configuration has been changed while the PM Switch is powered ON, the unit must be initialized in order for the new switch configuration to take effect. To do this, simultaneously press the SET button and CLEAR button, located on the front-panel of the PM Switch unit. - Page 26 If you want to order assembled adapters instead of building more, call Black Box for a special quote. a) Modem: Ports 1 and 2 can be configured for the Modem Mode,...
-
Page 27: Configuration
PORT MANAGER SWITCHES 5. Configuration This chapter describes how to configure the Port Manager Switch to fit your application. 5.1 Accessing the PM Switch’s Command Mode When the Command Mode is active, you can invoke commands to configure the unit, display its status, and connect or disconnect ports. The Command Mode can be accessed from either a local PC that communicates with the PM Switch across a single cable, or from a remote PC that communicates across a modem link. -
Page 28: Defining And Reading The Site I.d
CHAPTER 5: Configuration ii. If you have defined a password for modem access, key in your password and press [Enter]. If the password has not been defined, just press [Enter]. The “PM_>>” prompt should appear. iii. Type “/^E” and press [Enter] to make certain that the Command Mode is active, and that the unit is ready to receive commands. -
Page 29: Port Configuration
PORT MANAGER SWITCHES 5.3 Port Configuration 5.3.1 C ONFIGURATION ONVENTIONS When responding to prompts, invoking commands, and selecting items from the port-configuration menu, note the following: • To select an item from the Port Configuration menu, key in the number for the item and press [Enter]. - Page 30 CHAPTER 5: Configuration The Modem Mode The Modem Mode allows the port to be connected to an external modem. A port configured for Modem Mode can also perform all of the functions normally available in the Any-to-Any Mode. Only Ports 1 and 2 can be configured for the Modem Mode.
- Page 31 PORT MANAGER SWITCHES 5.3.3 C OMMAND VAILABILITY The “Commands” field in the Port Configuration menu allows you to specify which PM Switch commands will be available to each port. You can select either “All” commands or only “Basic” commands. The “All” option is normally selected for administrator ports, and allows access to all PM Switch commands.
- Page 32 CHAPTER 5: Configuration PORT PARAMETERS #02 1. PORT NAME: 2. BAUD RATE: 9600 3. BITS/PARITY: 8-None 4. STOP BITS: 5. HANDSHAKE: 6. MODE: Any-to-Any 7. COMMANDS: 8. LOGOFF CHAR: 9. DISCONNECT SEQ: TIMEOUT: 10. TIMEOUT: 5 Sec 11. MESSAGE TYPE: Verbose 12.
- Page 33 PORT MANAGER SWITCHES 6. Mode: Define the operation mode for this port. For Ports 1 and 2, you can select either Any-to-Any Mode or Modem Mode. For Ports 3 and above, you can only select the Any-to-Any Mode. When you select the Modem Mode for Ports 1 or 2, the PM Switch will display an additional menu that is used to select the following parameters: 1.
- Page 34 CHAPTER 5: Configuration • The Logoff Character should only be redefined when the default Logoff Sequence is not compatible with your application. • The disconnect sequence is not used when performing a Third-Party Disconnection. The /D command is used to initiate a Third-Party Disconnection.
-
Page 35: Operation
PORT MANAGER SWITCHES 6. Operation 6.1 Connecting and Disconecting Ports This section describes how to use ASCII commands to make and break connections between Port Manager Switch ports. Because the PM Switch converts data rates and other communications parameters, you can connect devices to the unit that use dissimilar data rates, parity, flow control, etc. - Page 36 CHAPTER 6: Operation To connect PM Switch ports, take these steps: 1. Access the PM Switch Command Mode. 2. Invoke the /C command to connect the desired ports. a) Resident Connection: To connect your resident port to another port, type “/C nn” (where nn is the number or name of the port you want to connect to), then press [Enter].
- Page 37 PORT MANAGER SWITCHES 6.1.2 D ISCONNECTING ORTS There are three different methods for disconnecting ports: the Resident Disconnection, the Third-Party Disconnection, and the No-Activity Timeout. Providing the timeout feature has been enabled, a No-Activity Timeout can be used to disconnect resident ports or Third-Party ports. NOTE When you use DTR flow control for a given port, the DTR signal will drop for approximately 250 ms after that port is disconnected from another.
-
Page 38: Defining Hunt Groups
CHAPTER 6: Operation c) The /D command line can specify port names instead of port numbers. However, port names are case-sensitive, so make sure you use the right case for each letter of the port name. 3. No-Activity Timeout: Providing that the Timeout Disconnection feature has been enabled for either connected port, the No-Activity Timeout can be used to automatically disconnect any two connected ports. - Page 39 PORT MANAGER SWITCHES 4. Repeat steps 2 and 3 above to assign similar or identical names to the other ports you wish to include in the hunt group. For example, a series of ports in a hunt group could be named “sequentially”—“PRINTER1”, “PRINTER2”, “PRINTER3”, etc.—or all ports in the group could be assigned the same name, such as “PRINTER”.
-
Page 40: Port Buffers
(that is, type “/E * [Enter]”). If your application requires more than 256 KB of buffer memory, call Black Box for technical support; they might be able to provide you with a special quote on PM Switches with 512-KB buffers. -
Page 41: Saving Configuration Parameters
PORT MANAGER SWITCHES 7. Saving Configuration Parameters After you have configured the Port Manager Switch to fit the requirements of your application, configuration parameters can be downloaded to your PC and saved as an ASCII text file. Later, if the configuration is accidentally altered or deleted, the file with the saved parameters can be uploaded to automatically reconfigure the PM Switch without the need to manually redefine each parameter. -
Page 42: Restoring Saved Parameters
CHAPTER 7: Saving Configuration Parameters 6. At the ProComm screen, type “/U” and press [Enter]. The PM Switch will send a series of command lines to the file specified in Step 5 above. Each line describes parameters for an individual port. a) The /U command must be invoked before ProComm’s download timeout is reached. -
Page 43: Command Reference Guide
PORT MANAGER SWITCHES 8. Command Reference Guide This chapter describes the Port Manager Switch’s command set and explains options available to each command. 8.1 Command Conventions The commands described in this chapter use the following conventions: Slash Character: Almost all commands begin with the slash character [/]. The only exception is the Logoff Sequence (default = “[Enter]+++[Enter]”). -
Page 44: Command Response
CHAPTER 8: Command Reference Guide 8.2 Command Response When commands are sent to the PM Switch, the unit can respond with either verbose (English-text) or terse (numeric/abbreviated) messages. The default message type for all PM Switch ports can be set to either terse or verbose by moving Position 5 of the PM Switch’s SETUP switch. -
Page 45: Command Summary
PORT MANAGER SWITCHES 8.3 Command Summary Table 8-1 below summarizes all available PM Switch Commands. Table 8-1. The PM Switch’s Commands Command Availability Function Command Syntax All (Admin.) Basic (User) Wake Up /^E [Enter] Sleep /X [Enter] Help /H [Enter] Status /S [Enter] Who (View Port... -
Page 46: Command Set
CHAPTER 8: Command Reference Guide 8.4 Command Set Wake Up (Access Command Mode) (/^E) Waking a port will provide access to the PM Switch’s Command Mode, allowing you to enter commands to connect ports, display status, etc. When the Command Mode is inactive, the PM Switch will not respond to any commands except the /^E command. - Page 47 PORT MANAGER SWITCHES Help (/H) Displays a Help Screen, which lists all PM Switch commands along with a brief description of each command. Command Availability: All (Administrator) / Basic (User) Command Format: /H [Enter] PM Switch Response: Displays Help Screen. Status (/S) Displays the Status Screen, shown below, which lists current conditions and parameters for all PM Switch ports.
- Page 48 CHAPTER 8: Command Reference Guide SYSTEM STATUS VERSION 1.4 MEMORY 256KB PORT | NAME | STATUS | BAUD | B/P | MODE | TIMEOUT | BUFF | CTS ------+----------+--------+------+-----+------+--------+---------+------+---- | SYSOP |*FREE | 9600 | 8N | DTR | ---- | | MODEM | C-05 | 19.2 | 8N...
- Page 49 PORT MANAGER SWITCHES The Status Screen lists the following parameters: • PORT: The Port Number. • NAME: The user-defined Port Name. • STATUS: The current status of each port: The port has accessed the PM Switch Command Mode. FREE The port is not in use. C-nn The port is connected to port number nn.
- Page 50 CHAPTER 8: Command Reference Guide • CTS: The status of the port’s DTR (Data Terminal Ready) output hardware signal: H is high (active) and L is low (inactive). The port’s DTR signal is wired through the modular adapters to PCs’ CTS (Clear to Send), DSR (Data Set Ready), and RLSD (Received Line Signal Detector)—also known as DCD (Data Carrier Detect)—input hardware leads.
- Page 51 PORT MANAGER SWITCHES Connect (/C) Establishes a bidirectional connection between two ports. There are two different types of PM Switch port connections: • Resident Connection: If the /C command specifies one port name or number, the PM Switch will connect your resident port with the specified port.
- Page 52 CHAPTER 8: Command Reference Guide Third-Party Disconnection (/D) When two ports are connected, the /D command can be invoked at a third port with “All” command capability in order to disconnect them. Note that the /D command cannot be used to disconnect your resident port. To disconnect your resident port, issue the Logoff Sequence (default = “[Enter]+++[Enter]”) or wait for the Timeout Period to elapse (if Timeout Disconnection is enabled).
- Page 53 PORT MANAGER SWITCHES Erase Buffer (/E) Erases data from the buffer for a specified port. Note that you cannot specify a port name; you must specify a port number or (to clear all port buffers) an asterisk. CAUTION! Buffered data which has been cleared by the /E command cannot be recovered.
- Page 54 CHAPTER 8: Command Reference Guide Initialize (/I) Tests the PM Switch’s internal memory and initializes the system with the default parameters specified by the SETUP switch configuration. CAUTION! When the /I command is invoked, the PM Switch will revert to the parameters specified by the SETUP switch configuration.
-
Page 55: Troubleshooting
PORT MANAGER SWITCHES 9. Troubleshooting Set Port Parameters (/P) Displays a menu which allows the user to select options and parameters for an individual port. Please refer to Section 5.3 for a detailed description of the procedure for defining port parameters. CAUTION! When the unit is initialized (using the /I command or the SET and CLEAR buttons), parameters selected with the /P command will revert to the... -
Page 56: Calling Black Box
If you need to transport or ship your Port Manager Switch: • Package it carefully. We recommend that you use the original container. • Before you ship a unit for repair or return, contact Black Box to get a Return Materials Authorization (RMA) number, and make sure you... - Page 57 PORT MANAGER SWITCHES Figure A-1 below shows the pin numbering for the Port Manager Switch’s RS-232 ports (RJ-11 connectors). Figure A-2 below shows the pinout (interface schematic) for ports 1 and 2; Figure A-3 below shows the pinout for ports numbered 3 and higher. Figure A-4 on the next page shows possible connections using modular adapters built from kits (our product codes are shown).
- Page 58 APPENDIX A: Pinouts RS-232 Port (RJ-11 female) Straight-Through-Pinned Six-Wire RJ-11 Modular Flat-Satin (EL06MS) or Twisted-Pair (EYN725MS) Cable (150 ft. [45.7 m] maximum length) DB25 male↔ To Modem Port RJ-11 female (DCE) or Manager (FA024) Printer (DTE) Switch DB9 female↔ To IBM AT RJ-45 female compatible PC (FA065)*...
- Page 59 PORT MANAGER SWITCHES Modular Adapter with Modular Adapter with DB25 Male Connector for DB25 Female Connector for Modem (DCE) PC/XT or Terminal (DTE) Modular Adapter with DB9 Female Connector for AT (DTE) Figure A-6. The pinouts of the device sides of the modular adapters included with the Switch.
- Page 60 APPENDIX A: Pinouts Table A-1. End-to-End Pinning, PM Switch RS-232 Port to Modem PM Switch Modem (RJ-11 female) (DB25 female) Signal Pin No. Pin No. Signal Abbrev. Abbrev. CTS* SGND SGND RLSD (DCD) RLSD (DCD) Table A-2. End-to-End Pinning, PM Switch RS-232 Port to Serial Port of AT Compatible Computer PM Switch Computer...
- Page 61 PORT MANAGER SWITCHES Table A-3. End-to-End Pinning, PM Switch RS-232 Port to Serial Port of Terminal or PC/XT Compatible Computer PM Switch Terminal or Computer (RJ-11 female) (DB25 male) Signal Pin No. Pin No. Signal Abbrev. Abbrev. CTS* SGND SGND RLSD (DCD) Table A-4.
-
Page 62: Appendix B: Sw546A-D48
Appendix B: SW546A-D48 If you ordered product-code number SW546A-D48, this appendix is relevant to your Port Manager Switches’s power option. The 48 Volt DC Power Option (shown below) replaces the standard 117 VAC components on the lower left side of the back panel. - Page 63 PORT MANAGER SWITCHES NOTES...
- Page 64 © Copyright 2002. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
