Summary of Contents for Thomas & Betts EZL-100
-

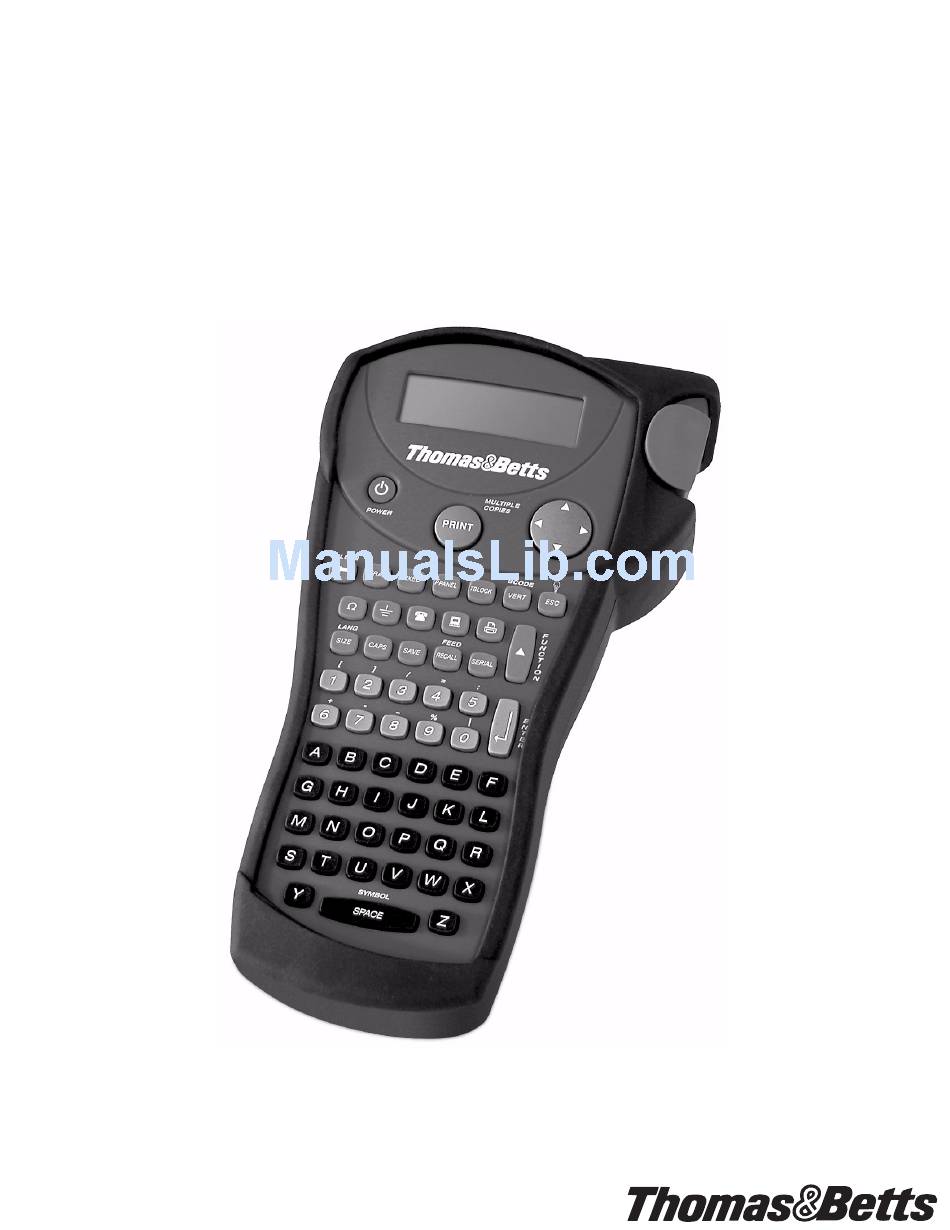

Page 1: User Guide

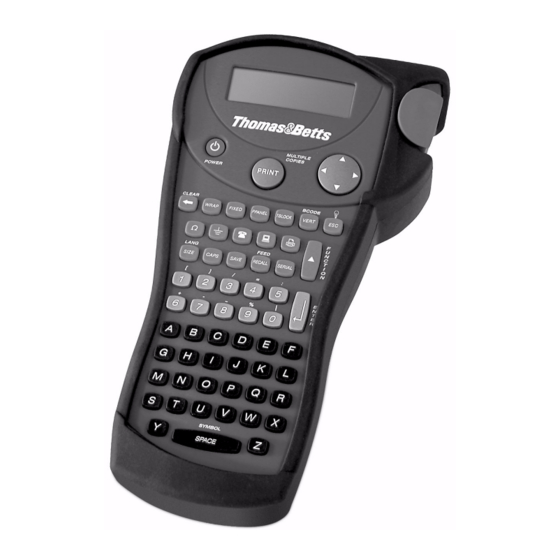

EZL-100 Thermal Label Printer User Guide French and Spanish versions of the User Guide are available at www.tnb.com. www.tnb.com... - Page 2 Power Button Print Button Hot Keys Backspace/Clear All Symbol Keys Function Keys Numeric Keys Alpha Keys Figure 1 Thomas & Betts EZL-100 Thermal Label Printer Tape Exit LCD Display Cutter Lever Navigation Key Thumb Latch for Tape Compartment Escape/Backlight Function/Shift...
-
Page 3: Getting Started
About Your New Printer With your new Thomas & Betts EZL-100 thermal label printer, you can create a wide variety of high- quality, self-adhesive labels. You can choose to print your labels in many different sizes and styles. The printer uses Thomas & Betts label cassettes in widths of 1/4”... -
Page 4: Selecting A Language
To insert the tape cassette 1. Press the thumb catch on the right side of the printer to open the tape cassette door. The first time you use the printer, remove the protective cardboard insert from between the print head and pinch roller. See Figure 4. Remove cardboard insert... -
Page 5: Getting To Know Your Printer
3. Cut the label using your thumb to lift the cutting lever and pull it towards the back of the printer. See Figure 6. Figure 6 4. Remove the label. Congratulations! You have printed your first label. Continue reading to learn more about the options available for creating labels. -
Page 6: Adding Symbols
Navigation Key You can review and edit your label using the arrows on the Navigation key. You can also view menu choices using and then press to make a selection. Designing Your Label You can choose from a number of formatting options to enhance the appearance of your labels. -
Page 7: Using The Hot Keys
For example, if you repeatedly press the letter a, you will see a à á â ã ä å and so on through all the variations available. The order in which the character variations appear depends on the language you have selected to use. Saving your Label You can save up to eight labels in memory. - Page 8 To print horizontal wire wraps 1. Enter the text for the label. 2. Press WRAP 3. Use the arrow keys to move to the desired wire gauge or cable size, and press 4. Press Print Printing Fixed Length Labels Normally, the length of the label is determined by the length of the text entered.
-
Page 9: Printing Options
Printing Vertical Labels Single-line labels can be printed with the text running vertically. To print vertically 1. Enter the text for your label. 2. Press and then VERT Print Printing Barcode Labels The printer can generate two types of barcodes: CODE-39 and CODE-128. -
Page 10: Cleaning Your Printer
Clean the print head using the cleaning tool ➤ located inside the tape compartment lid. Thomas & Betts Label Cassettes The following label cassettes are available for the EZL-100 thermal label printer. 3/8” 1/2” Material Type (9 mm) (12 mm) Flexible Nylon —... -
Page 11: Troubleshooting
Troubleshooting Review the following possible solutions if you encounter a problem while using your printer. Problem/Error Message No display Poor Print Quality Poor Cutter Performance !!!!!!!!!!!!! printer is jammed. Batteries are discharged. Text Limit Exceeded maximum number of characters in buffer. Too many lines Exceeded maximum number of lines allowed. - Page 12 No part of this document may be reproduced or transmitted in any form or by any means or translated into another language without the prior written consent of Thomas & Betts. EZL-100 is a trademark of Thomas & Betts Corporation. All other trademarks are the property of their respective holders. TA02649 A...
