Summary of Contents for Thiel Audio Products PowerPlane

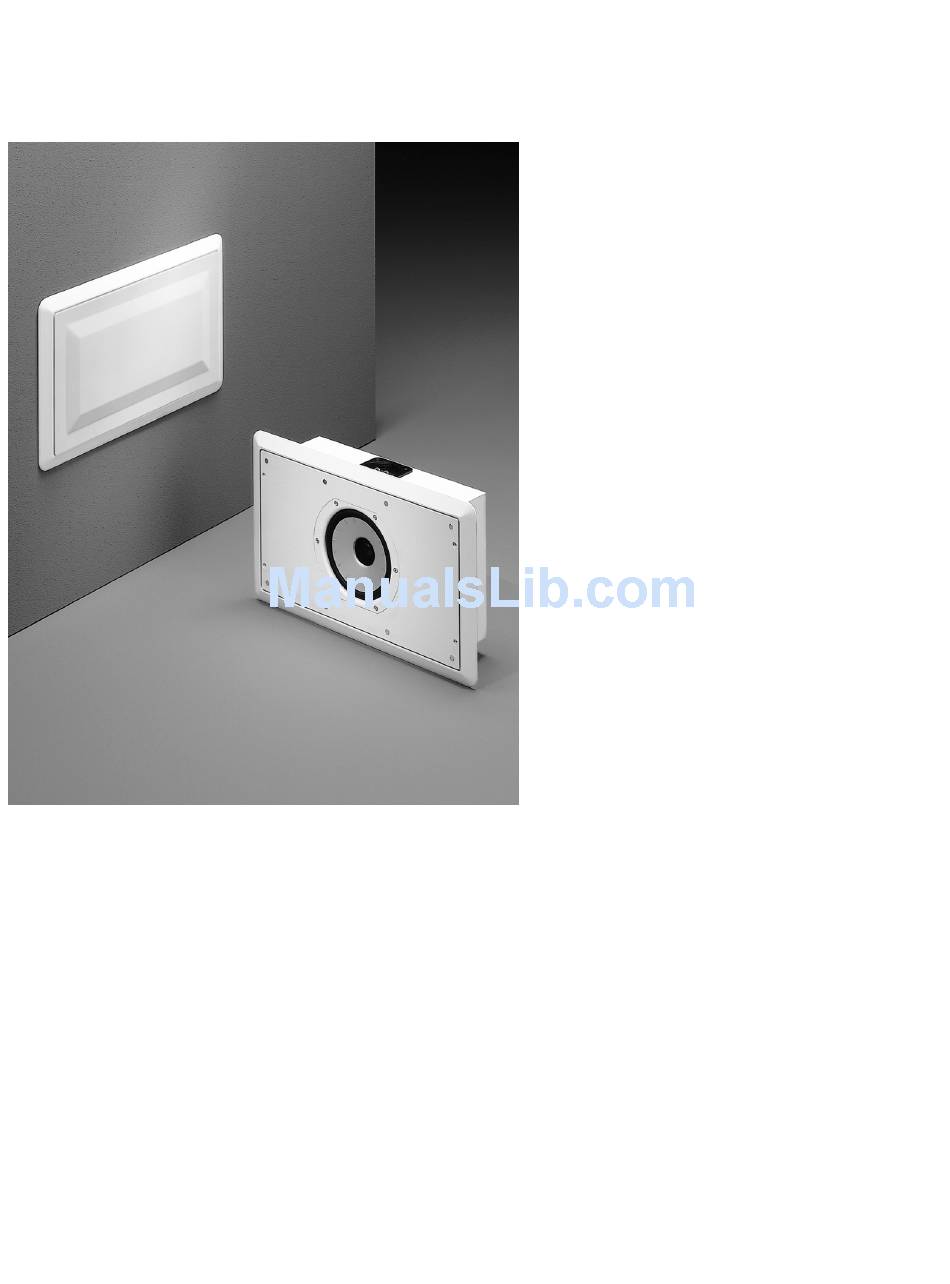

- Page 1 THIEL Model ™ PowerPlane Coherent Source ® in-wall loudspeaker system OWNER INFORMATION...
-
Page 2: Speaker Placement
SPEAKER PLACEMENT The PowerPlane is designed to perform well in a variety of locations throughout the room. It can be mounted in walls, ceilings, or in an enclosed cabinet. Because of the coaxial/coplanar driver mounting, the PowerPlane can be oriented both horizontally or vertically. -
Page 3: Vertical Mounting
ASSOCIATED EQUIPMENT The PowerPlane is a very high quality sound reproducer and will benefit from use with high quality associated equipment. Since it is extremely accurate, it will reveal sources of distortion generated elsewhere in the system. For example, distortion resulting from poor recordings or inferior electronics will be reproduced accurately. -
Page 4: Power Requirements
2) A speaker with a low efficiency of 84 dB/W-m will require twice the power of an average 87 dB/W-m speaker and one with a high rating of 90 dB/W-m will require only half the power of an average speaker. The PowerPlane is of above average efficiency (89 dB) and therefore requires less than an average amount of power for average volume levels. - Page 5 REPLACING THE COAXIAL TWEETER MODULE In the unlikely event that your PowerPlane loudspeaker requires service, the entire coaxial driver can be removed from the front of the cabinet, or the tweeter module can be replaced separately without removing the woofer.
- Page 6 Weight THIEL warrants every THIEL PowerPlane system against defects in materials and workmanship to the original owner for a period of ten years from the date of purchase. THIEL will, at no charge, replace any defective part and make any repairs necessary to ensure its proper performance when the defective unit is returned to us postpaid.
