THIS GRILL IS FOR OUTDOOR USE ONLY .
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance
and immediately call your gas supplier or your
fire department.
Failure to follow these instructions could result in
fire or explosion which could cause property
damage, personal injury or death.
WARNING
1. Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
If you have questions or need assistance during assembly, please call
To insure your satisfaction and for follow-up service r e g i , ster your grill online at www.grillregistration.com
®
Owner's Manual
Assembly, Operation, Use and Care

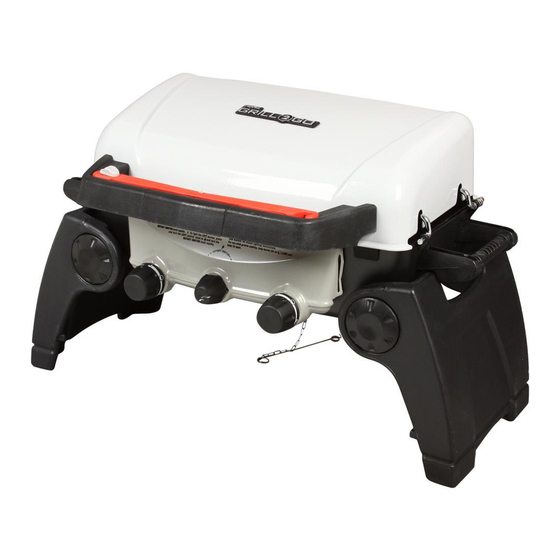

MODEL 06401314
INSTALLER/ASSEMBLER: Leave these instructions with
consumer.
CONSUMER: Keep this manual for future reference.
WARNING
This manual contains important information necessary
for the proper assembly and safe use of the appliance.
Read and follow all warnings and instructions before
assembling and using the appliance.
Follow all warnings and instructions when using the
appliance.
Keep this manual for future reference
Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, or other
reproductive harm.
CAUTION
Some parts may contain sharp edges — especially as
noted in the manual! Wear protective gloves if
necessary.
1-800-232-3398
.
06401314 • 80008895 • 08-08-07
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Thermos EXPRESS 06401314
Summary of Contents for Thermos EXPRESS 06401314
- Page 1 ® THIS GRILL IS FOR OUTDOOR USE ONLY . DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. Open lid. 4. If odor continues, keep away from the appliance and immediately call your gas supplier or your fire department.
-
Page 2: For Your Safety
Safety Symbols The symbols and boxes shown below explain what each heading means. Read and follow all of the messages found throughout the manual. DANGER DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. -
Page 3: Table Of Contents
Table of Contents For Your Safety ........2 Grill Service Center. -
Page 4: Use And Care
WARNING For Safe Use of Your Grill and to Avoid Serious Injury: • Do not let children operate or play near grill. • Keep grill area clear and free from materials that burn (i.e. gasoline, propane, or any other flammable liquid or gas). •... -
Page 5: Match Lighting
DANGER • NEVER store a spare cylinder under or near the appliance or in an enclosed area. • Never fill a cylinder beyond 80% full. • An overfilled or improperly stored cyclinder is a hazard due to possible gas release from the safety relief valve. This could cause an intense fire with risk of property damage, serious injury or death. - Page 6 CAUTION • Putting out grease fires by closing the lid is not possible. Grills are well ventilated for safety reasons. • Do not use water on a grease fire. Personal injury may result. If a grease fire develops, turn knobs and LP cylinder off.
- Page 7 Storing Your Grill • Clean cooking surface and grease container. • When LP cylinder is connected to grill, store outdoors in well- ventilated space and out of reach of children. • Cover grill if stored outdoors. • Store grill indoors ONLY if LP cylinder is turned off and disconnected, removed from grill and stored outdoors in well- ventilated space and out of reach of children.
-
Page 8: Parts List
Chef®, Faststart®, Flare Fighter®, FlavorMaster®, Gas Grill Silouette and Design®, H2O Smoker®, Lava Flame®, MasterFlame®, MasterFlame Precision C o o k i n g System®, PowerSpark®, Quantum®, PrecisionFlame and Design®, Sierra® and TruFlame® are registered Trademarks of the W.C. Bradley Company. Thermos® is a regis t e r e d t r a d emark of the Thermos Company and its affiliates. -
Page 9: Parts Diagram
PARTS DIAGRAM Note: Some grill parts shown in assembly steps may differ slightly in appearance from those on your particular grill model, However the method of assembly remains the same. 06401314 • 9... -
Page 10: Assembly
ASSEMBLY 1) Lay bottom casting assembly upright on level ground. Best to place on top of protective mat or cardboard to reduce scratching. 2) Insert each leg assembly onto bottom casting assembly. Assure cutouts on leg pivot engages over threaded tabs on bottom casting assembly. 3) Attach each leg assembly using (2) #10-24x3”... - Page 11 1) Attach handle to grill lid using (4) #10-24 x 3/8” screws. Use ONLY hand driven screwdriver. Do not over tighten #10-24 x 3/8” Screw Qty: 4 Grill Lid 1) Attach grill lid to grill bottom using (2) hitch pins and (2) cotter pins. Hitch Pin Qty: 2 Cotter Pin...
- Page 12 1) Remove (2) battery covers from handle light by loosening (2) screws. 2) Insert (4) AA batteries (NOT INCLUDED), 2 per battery compartment as indicated on handle light. 3) Replace covers and secure screws that were loosened earlier. Handle Light 1) Insert hook end on handle light into right side of handle, push down on other side to lock handle light in place.
- Page 13 1) Attach (2) control knobs and (1) rotary ignition knob by aligning holes with control panel as shown. 2) Remove (4) clear protectors from shelf supports. Control Knob Qty: 2 Rotary Ignitor Knob Qty: 1 1) Open grill lid, unfold side shelves. 2) Remove (2) cooking grates from grill.
- Page 14 1) Close grill lid. 2) Insert hose regulator support wires into holes provided in end of left side-shelf. 3) Remove yellow cap from gas inlet located bottom rear side of grill. 4) Bring hose connector to the rear of grill. 5) Pull back outer ring of hose connector and push connector onto back of gas inlet.
-
Page 15: Storing And Transporting
STORING & TRANSPORTING NOTE: Allow grill to cool down to room temperature before handling. 1) Remove regulator hose assembly. 2) Fold side shelves into bottom casting, and close lid. 3) Fold both legs inward towards center underneath bottom casting. 4) Using match holder located at rear of grill, secure legs together by inserting loop ends of match holder over leg notch located on each leg. -
Page 16: Troubleshooting
EMERGENCIES: Emergencies Possible Cause Gas leaking from • Damaged hose. cracked/cut/burned hose. Gas leaking from LP • Mechanical failure due to rusting or cylinder. mishandling. Gas leaking from LP • Failure of cylinder valve from cylinder valve. mishandling or mechanical failure. Gas leaking between •... -
Page 17: Troubleshooting
Troubleshooting ( continued Problem Possible Cause ROTARY IGNITION: Burner(s) will not light • Rotary knob rotates without clicking. using ignitor. • Sparking between ignitor and electrode. “GAS ISSUES:” • See Burner(s) will not • Match will not reach. match light. •... -
Page 18: Warranty
Limited Warranty Manufacturer warrants to the original consumer-purchaser only that this product shall be free from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase. The manufacturer reserves the right to require that defective parts be returned, postage and or freight pre-paid, by the consumer, for review and examination. -
Page 19: Registration Card
Please register your grill online at: WWW.GRILLREGISTRATION.COM (If you register online, you do not need to send in this registration card.) 06401314 • 19... - Page 20 STOP Should you encounter a problem with our product CALL US FIRST Do not return this product to the store. WE CAN HELP GRILL SERVICE CENTER 1-800-232-3398 HOURS 8AM-6PM EST Mon-Fri Please ensure your warranty registration is complete. Grilling Safety Checklist Read and understand owners manual.Check tubes for spider webs.
