9190A
Getting Started

-P Option Panel (Input Panel)

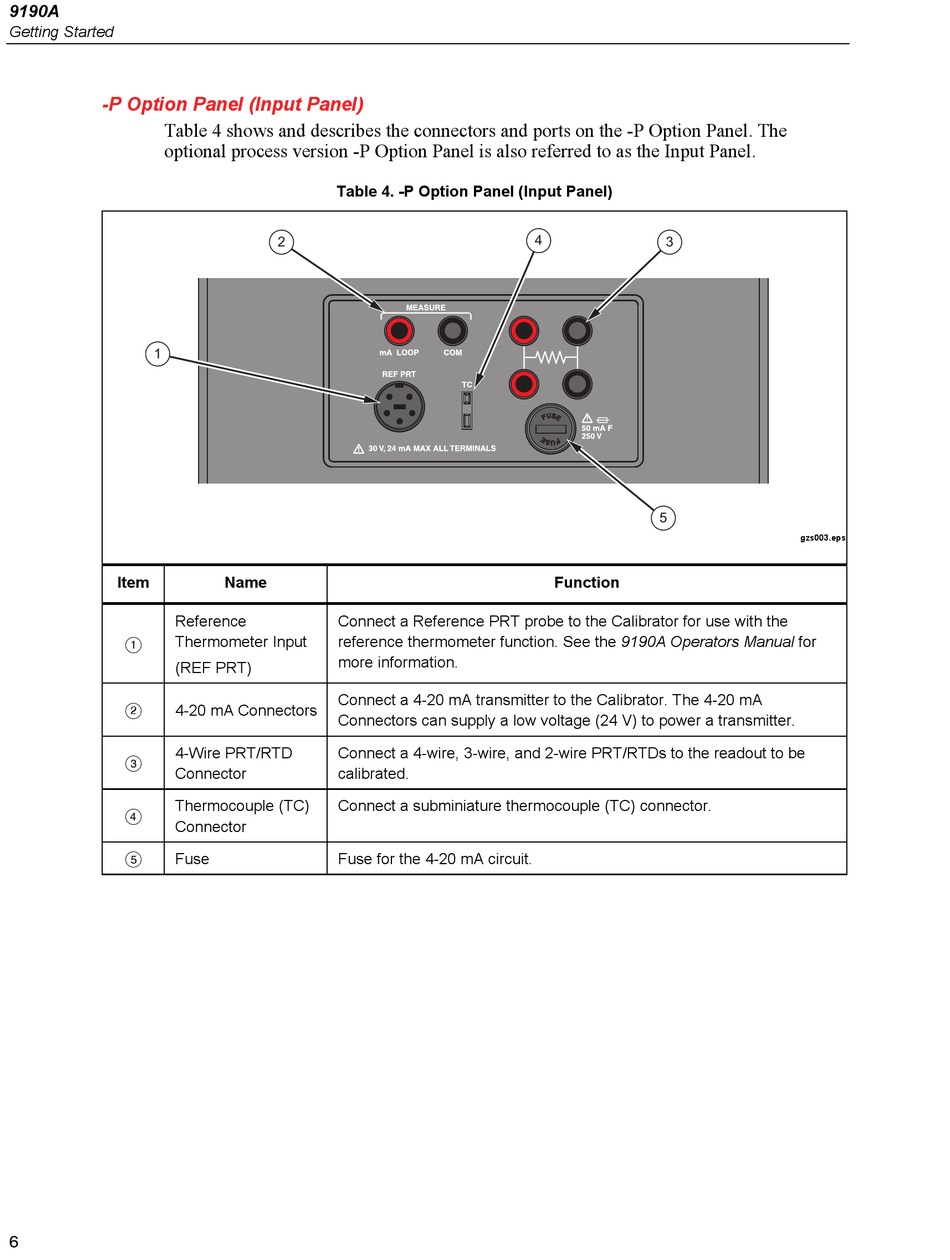

Table 4 shows and describes the connectors and ports on the -P Option Panel. The
optional process version -P Option Panel is also referred to as the Input Panel.
1
Item
Reference
Thermometer Input

(REF PRT)
4-20 mA Connectors

4-Wire PRT/RTD

Connector
Thermocouple (TC)

Connector
Fuse

6
Table 4. -P Option Panel (Input Panel)
2
Name
Connect a Reference PRT probe to the Calibrator for use with the
reference thermometer function. See the 9190A Operators Manual for
more information.
Connect a 4-20 mA transmitter to the Calibrator. The 4-20 mA
Connectors can supply a low voltage (24 V) to power a transmitter.
Connect a 4-wire, 3-wire, and 2-wire PRT/RTDs to the readout to be
calibrated.
Connect a subminiature thermocouple (TC) connector.
Fuse for the 4-20 mA circuit.
4
3
5
Function
gzs003.eps
