Xaser VI and Armor+ Bottom Chassis fan installation
1)Parts Needed.

2) This is the fan hole layout for the chassis.

Advertisement

Table of Contents
loading

  Related Manuals for Thermaltake Bottom Chassis fan Armor+

No related manuals

  Summary of Contents for Thermaltake Bottom Chassis fan Armor+

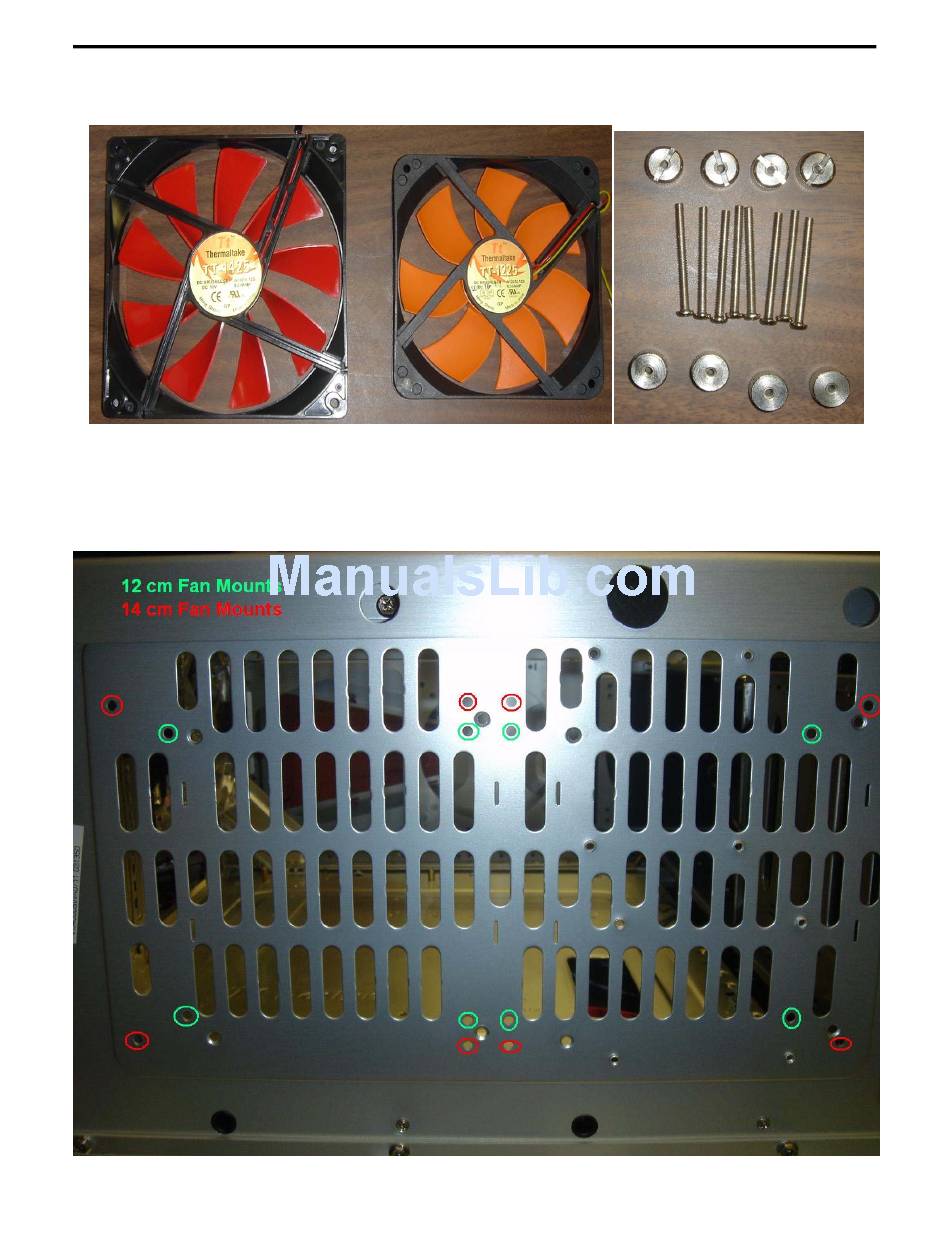

  • Page 1 Xaser VI and Armor+ Bottom Chassis fan installation 1)Parts Needed.   2) This is the fan hole layout for the chassis.
  • Page 2 3) Push the screw thru one hole and secure on top with the nut provided.     4) 12cm fan installed.
  • Page 3 5)14cm and 12 cm fan side by side Top View 6) 14 cm and 12 cm fan bottom view...
