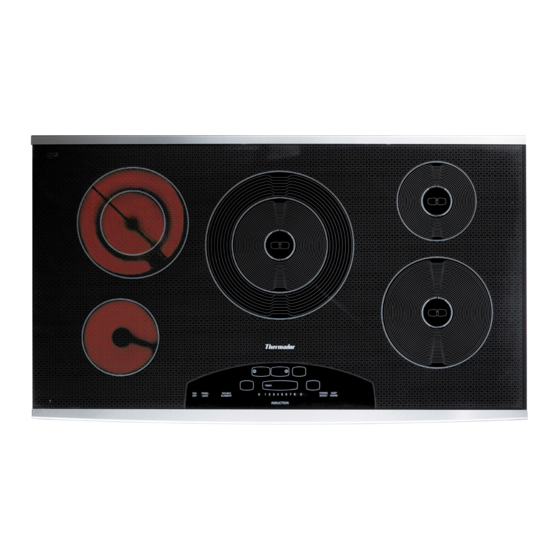

Thermador CIT362DS Installation Instructions Manual
Thermador induction cooktop installation instructions
Hide thumbs
Also See for CIT362DS:
- Installation instructions manual (23 pages) ,
- Use and care instructions manual (68 pages) ,
- Installation manual (23 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
Installation Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Thermador CIT362DS
Summary of Contents for Thermador CIT362DS

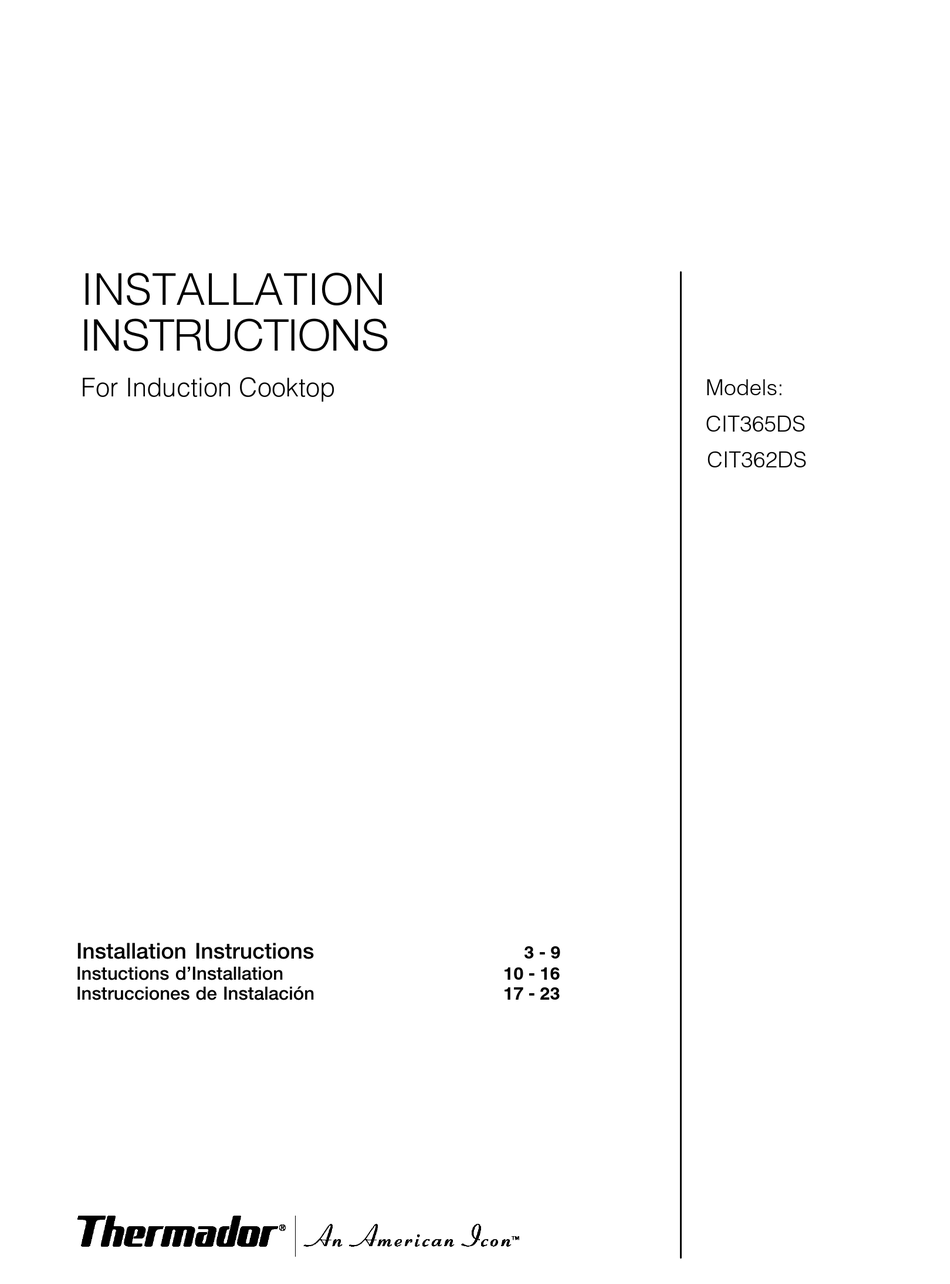

- Page 1 INSTALLATION INSTRUCTIONS For Induction Cooktop Installation Instructions Instuctions d'Installation Instrucciones de Instalación Models: CIT365DS CIT362DS 3 - 9 10 - 16 17 - 23...
-
Page 2: Table Of Contents
Table of contents IMPORTANT SAFETY INSTRUCTIONS Important safety instruction ..........Before you begin . -
Page 5: Power Supply
Cabinet requirements Electrical requiements 12" Approximate J" Box (Conduit approx. 3 feet) Power Supply... -
Page 6: Installation Procedure
Installation procedure CAUTION Installing the heat shield Transport Installer For safety reasons, the heat shield must be properly installed. This prevents some components from overheating, avoiding the recirculation of hot air from the cooktop. The heat shield is the same width as the cooktop. For shipping, it is screwed to the burner box. -
Page 7: Secure Cooktop To Countertop
Secure cooktop to countertop Electrical connection NOTE: The cooktop should be secured to the countertop using the hold down brackets provided. Prior to inserting cooktop into cutout, turn cooktop upside down and attach brackets to the burner box using the washers and screws. Place cooktop into cutout. -
Page 8: Test The Installation
800-735-4328 www.thermador.com 5551 McFadden Ave. Huntington Beach, CA 92649... - Page 9 Table de matières INSTRUCTIONS DE SÉCURITÉ IMPORTANTES Instructions de sécurité importantes Avant de commencer ..........Outils et pièces nécessaires .
- Page 12 Exigences pour les aux placards Exigences électriques 12" Approximate J" Box (Conduit approx. 3 feet) Alimentation...
-
Page 13: Procédure D'installation
Procédure d'installation ATTENTION Installation de l'écran de ventilation Transport Installateur L'écran de ventilation doit être installé correctement. La surface de cuisson est dotée d'un écran de ventilation frontal et deux écrans de ventilation lateraux. Ces écrans empêchent la recirculation de l'air chaud en provenance de la surface de cuisson. - Page 15 800-735-4328 www.thermador.com 5551 McFadden Ave. Huntington Beach, CA 92649...
- Page 16 Contenido INSTRUCCIONES DE SEGURIDAD IMPORTANTES Instrucción de seguridad importante Antes de empezar ..........Herramientas y piezas necesarias .
-
Page 19: Fuente De Alimentación
Requisitos de gabinetes Requisitos eléctricos 12" Aprox. J" Box (Conexión aprox. 3 pies) Fuente de Alimentación... -
Page 20: Procedimiento De Instalación
Procedimiento de instalación ATENCIÓN Instale el deflector metálico Transporte Instalador Por razones de seguridad, el deflector metálico debe instalarse correctamente. De esta forma, se impide la recirculación de aire caliente procedente de la placa de cocción, y se evita el sobrecalentamiento de sus componentes. El deflector metálico tiene la misma anchura que la placa de cocción. - Page 22 800-735-4328 www.thermador.com 5551 McFadden Ave. Huntington Beach, CA 92649...
- Page 23 5551 McFadden Avenue, Huntington Beach, CA 92649 S 1 800 735 4328 Swww.thermador.com E BSH Home Appliances Corporation 2005 9000146329 (1W03V5) 02-8609...
