Therma-Tru Light Commercial Doors and Frames Installation Manual

• Material shown on these drawings will be
fabricated only after formal approval by the
architect, receipt of approval hardware schedule,
and all necessary hardware templates.
• All frames shall be shipped "knocked-down"
unless otherwise specified.
• All frames and doors shall be chemically washed,
rinsed, and dried prior to receiving one coat of
paint.
• Doors and frames will be reinforced for surface
mounted hardware as required. Drilling and
tapping for surface mounted hardware shall be
applied by others.
• It will be the responsibility of the General
Contractor to coordinate hardware locations.
• All frames will be supplied with the required wall
and floor anchors as illustrated on the frame detail
sheet.
• All frames and doors wll be tagged with shop
marks. This schedule can be used to cross
reference shop marks with architects marks.
• These drawings are not intended for use by other
trades.
• Field welding, grinding, finishing, and attachment
of field splices by others.
Therma-Tru Light Commercial/Multi-Family - Doors and Frames
®

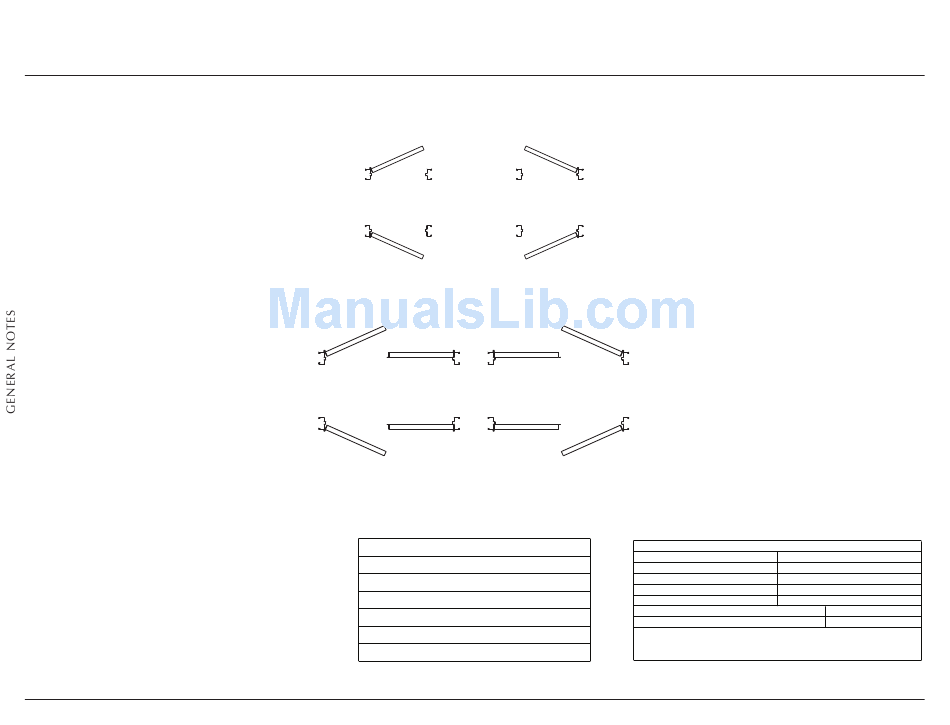

DOOR HANDING CHART
OUTSIDE
LEFT HAND INSWING
OUTSIDE
LEFT HAND REVERSE/
LEFT HAND REVERSE
RIGHT HAND OUTSWING
OUTSIDE OUTSIDE
LEFT HAND ACTIVE LEFT HAND ACTIVE
OUTSIDE OUTSIDE
LEFT HAND REVERSE ACTIVE/
LEFT HAND REVERSE ACTIVE LEFT HAND REVERSE ACTIVE
RIGHT HAND OUTSWING ACTIVE
JOB NUMBER:
PROJECT:
LOCATION:
ARCHITECT:
CONTRACTOR:
FINISHED HARDWARE BY:
SHEET NUMBER:
SINGLE DOORS
SINGLE DOORS
OUTSIDE
RIGHT HAND INSWING
OUTSIDE
RIGHT HAND REVERSE/
RIGHT HAND REVERSE
LEFT HAND OUTSWING
PAIRS OF DOORS
PAIRS OF DOORS PAIRS OF DOORS
OUTSIDE OUTSIDE
RIGHT HAND ACTIVE RIGHT HAND ACTIVE
OUTSIDE OUTSIDE
RIGHT HAND REVERSE ACTIVE/
RIGHT HAND REVERSE ACTIVE RIGHT HAND REVERSE ACTIVE
LEFT HAND OUTSWING ACTIVE
OF
• All standard type hardware will be located at this
manufacturer's standard locations as shown on
the door and frame elevations. Hardware items
such as panic exit devices, deadbolts, etc. will also
be located at manufacturer's standard locations
unless specifically advised.
• Installations of all glass and glazing to be
performed by others.
• Doors, frames, and finished hardware to be
installed by others.
• Anchor bolts and expansion shields for any type
fastener to be furnished by others.
• All frames must be set absolutely plumb, square,
and level.
• All frames will be supplied with rubber door
silencers: three for single swing openings and two
per header for double swing openings.
RECORD OF SUBMITTALS
SUBMITTED
1st
2nd
3rd
4th
RECORDED APPROVED DRAWINGS
RECORDED APPROVED HARDWARE
DRAWN BY:
RETURNED
