SMG-138 COMPACT DISC + GRAPHICS KARAOKE SYSTEM OWNER’S MANUAL Please read before using this unit. The Singing Machine is a registered trademark of The Singing Machine Co., Inc.
WARNINGS WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
IMPORTANT SAFETY INSTRUCTIONS Read Instructions - All the safety and operating instructions should be read before the product is operated. Retain Instructions - The safety and operating instructions should be retained for future reference. Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
Page 4
IMPORTANT SAFETY INSTRUCTIONS 12. Grounding or Polarization - This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
Page 5
IMPORTANT SAFETY INSTRUCTIONS 16. Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
THE SINGING MACHINE KARAOKE GLOSSARY OF TERMS In addition to all of the terminology associated with consumer electronics products, a few additional terms are used almost exclusively in karaoke. These terms are meant to familiarize you with the world of Karaoke. The features listed below may not necessarily pertain to the particular model Singing Machine that you have.
Page 7

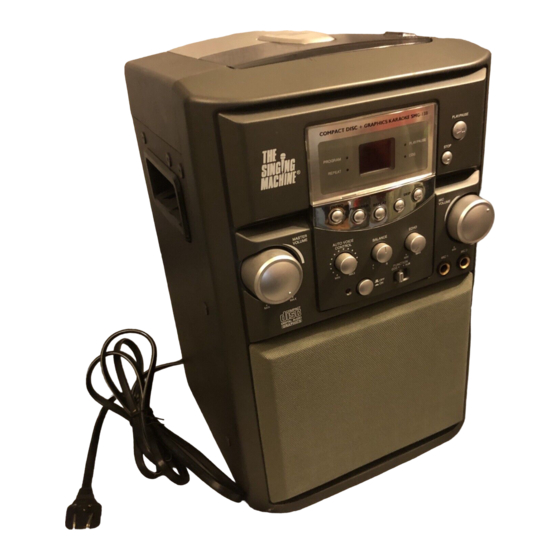

INTRODUCTION Your SMG-138 Compact Disc + Graphics Karaoke System will provide you with many years of fun and entertainment. It can let you be the “star” as you sing along with your favorite recordings and hear your voice with the music through the system’s speakers.
11. SKIP Button 12. SKIP Button 13. MIC Volume Control 14. MIC 1 Jack COMPACT DISC + GRAPHICS KARAOKE SMG-138 15. MIC 2 Jack 16. ECHO Volume Control 17. MIC Holder 18. REPEAT Button 19. INTRO Button 20. PROGRAM Button 21.
Page 9
COMPLIES WITH THE LIMITS FOR A CLASS B DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. MANUFACTURED IN CHINA FOR THE SINGING MACHINE COMPANY, INC. 6601 Lyons Road, Bldg. A-7 Coconut Creek, FL33073 PHONE: (954) 596-1000 FAX: (954)596-2000 32.
White and Red are for left and right audio connections and the yellow is for connecting the video. Make sure that you have a CDG disc in the Singing Machine and playing when you are making this connection. You will know you have the proper settings on your TV or VCR as soon as you...
Page 11
An RF Modulator can be purchased at almost any consumer electronics retailer. If you are connecting the video from the Singing Machine to either a television or a VCR video input jack, you must specify the source the TV or VCR is to display. Your TV or VCR user guide can tell you how to display the video signal from the ‘Video In’...
Page 12
Plug the white end of the patch cord into the white input jack on the SMG-138. Plug the red end of the patch cord into the red input jack on the SMG-138. Now connect the other end of the cable’s white (left channel) and red (right channel) plugs to your TV or home stereo system’s ‘Audio In’...
PLAYING CD OR CD+G DISC Reminders: Adjust MASTER VOLUME control on your SMG-138, TV or audio system to a comfortable level. Adjust MIC/ECHO/BALANCE controls as needed to achieve the desired mix of music and vocals through your TV or sound system.
Page 14
CD OR CD+G OPERATION PLAY/PAUSE MODE To start playing, press the PLAY/PAUSE button, the first track [ ] and the PLAY/PAUSE LED Indicator will be displayed. To temporarily stop playing, press the PLAY/PAUSE button, the PLAY/PAUSE LED Indicator will flash. To resume play, press this button again.
CARE AND MAINTENANCE POWER SWITCH After using the SMG-138, turn off the power by pressing the POWER button. CLEANING THE UNIT To clean the exterior of the unit, simply wipe with a soft clean cloth moistened with plain lukewarm water.
TROUBLE SHOOTING GUIDE If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE column to locate and remedy the problem. PROBLEM POSSIBLE CAUSE No power when No power plug connection at POWER is on.
Page 17
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE No sound - If audio is Source Selection on TV or going through TV or VCR is not correct. VCR. Video cable is not connected properly to the TV. Source selector on TV is not set to VIDEO.
SPECIFICATIONS AUDIO SECTION: OUTPUT POWER (MAXIMUM) OUTPUT IMPEDANCE CD PLAYER SECTION: FREQUENCY RESPONSE SIGNAL - TO - NOISE RATIO WOW AND FLUTTER D - A CONVERSION NUMBER OF PROGRAMS SAMPLING SYSTEM MICROPHONE POWER SECTION: (where applicable) DIMENSIONS (H x W x D) WEIGHT ACCESSORIES Specifications are typical, individual units might vary.
Page 20
LIMITED WARRANTY and SERVICE THE SINGING MACHINE COMPANY , INC. warrants this product to be free from defects in material and workmanship for a period of Ninety (90) days from date of sale to the original consumer purchaser. Product will be replaced or repaired free of charge if it has proven to be defective within the Ninety (90) day period when said product is returned at customer expense within the warranty period.
