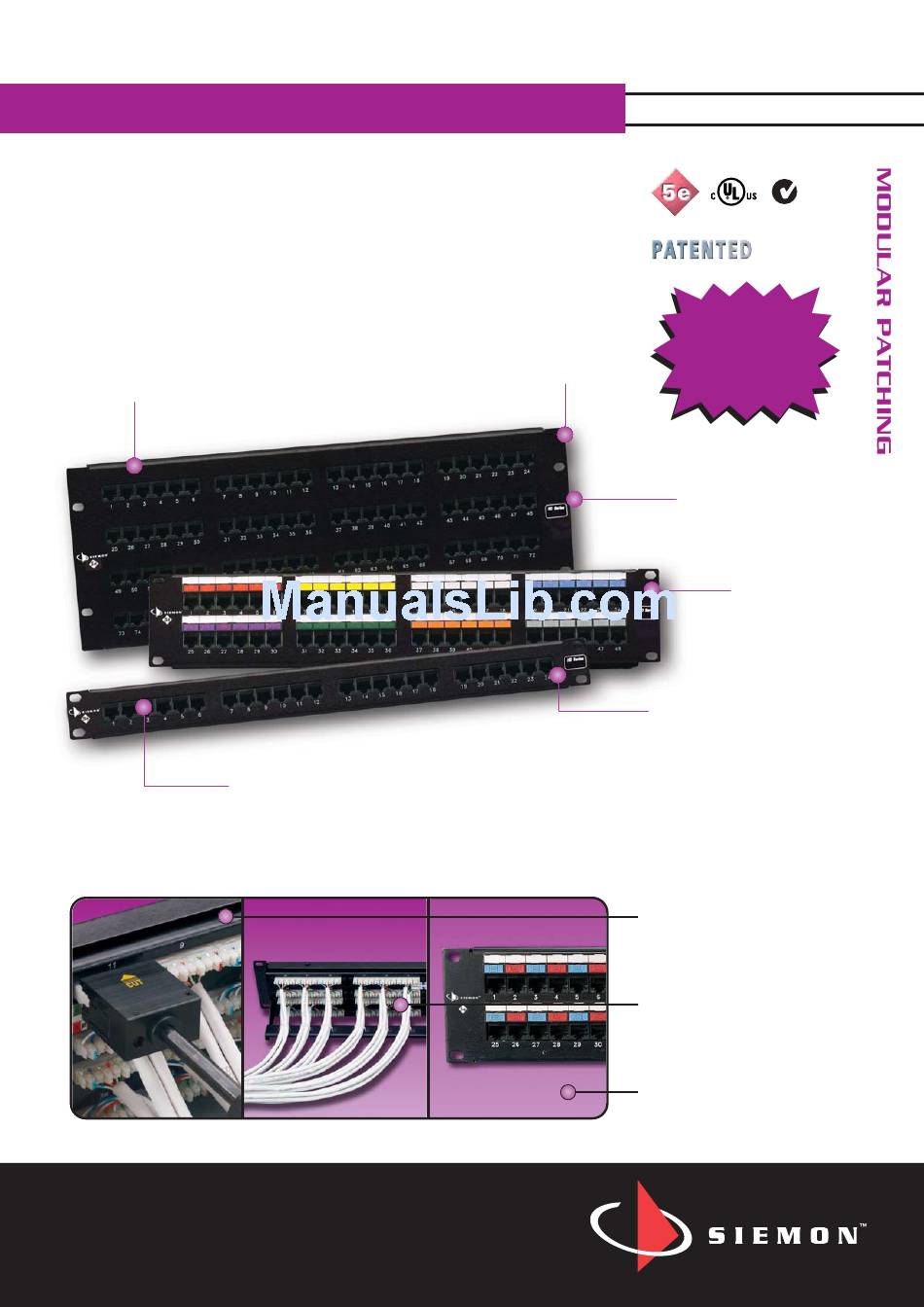

HD5 ® PATCH PANEL
The HD5 series patch panels offer the most robust patching solution in the
industry. HD5 panels with universal T568A/B wiring significantly exceed
category 5e requirements with component and channel performance to 160
MHz (Performance from 100 - 160 MHz based upon extrapolated TIA/TIA
limits). The front surface of these panels is uninterrupted by screw heads or
other hardware for a clean aesthetic appearance that allows sufficient space
for circuit designation.
Panels available in 16-, 24-,
48-, and 96-port
configurations
.
W W W S I E M O N
Black anodized panels can be mounted
directly to an EIA standard 19 inch rack
or cabinet
Modular outlets are FCC CFR 47 part 68 subpart F and
IEC 60603-7 compliant and have 1,27 microns gold
plated contacts
.
C O M
160 MHz
Featuring universal
T568A/B wiring with
component and
channel performance
to 160 MHz.
The most economical way to
order HD5 panels is in bulk
project pack with universal
T568A/B wiring option
Write-on area for
panel designation
Port identification numbers on
front and rear of panel
Siemon compliant pin technology allows the use
of Siemon's multi-pair impact tool to significantly
reduce termination time. S110 ® termination
opening on the rear are compatible with S110
patch plugs
Integrated rear cable manager properly guides
cables to and from the rear of the panel
Icon and label holder kits are included
with every panel
