Installation instructions
Oven
Construction type 60-381
The appliance should be installed by qualified personnel only. Each step must be carried out and checked in full in the order
specified.

Validity

These installation instructions apply to the model: 28A, 30A

General notes

If fitting in flammable material, the guidelines and standards for low voltage installations and for the fire protection must be
strictly observed.
To ensure good ventilation, the niche in which the appliance stands must have a supply air opening of at least 25 cm
This appliance is considered to be suitable for use in countries having a warm damp equable climate (WDaE). It may also be
used in other countries. If used in warm damp equable climated countries, the appliance is to be supplied through a residual
current device (RCD) having a rated residual operating current not exceeding 30 mA.

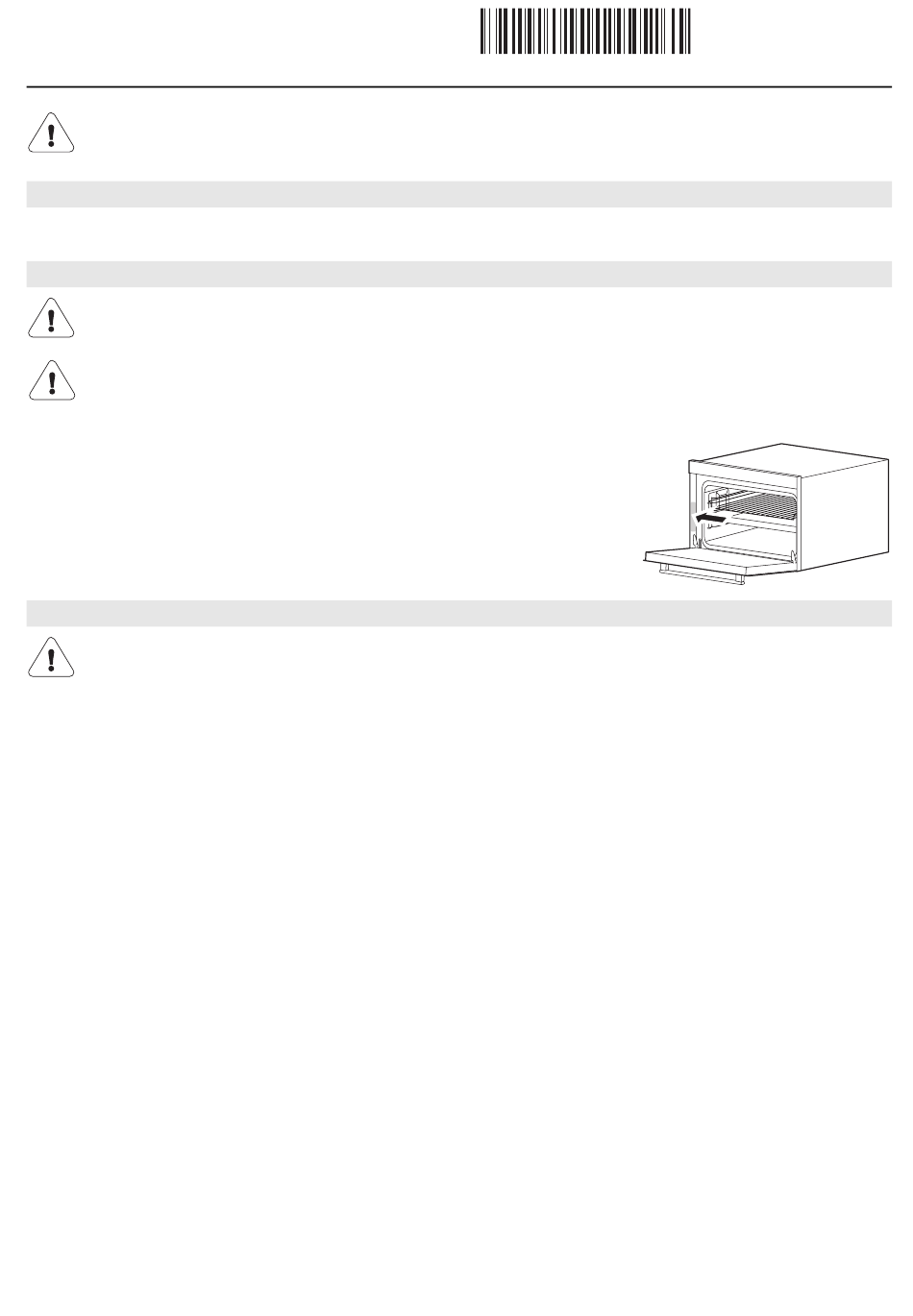

Identification plate
Open the appliance door. The identification plate is located on the left trim panel
➤
(see illustration).

Electrical connections

Electrical connections must made by trained electricians in accordance with the guidelines and standards for low voltage
installations and the specifications of the local electricity supply companies.
A plug-in appliance may only be connected to a socket outlet with earthing contact, installed according to specifications. An
all-pole mains isolating device with 3 mm contact opening should be provided in the house wiring system. Switches, plug and
socket devices, circuit breakers and fusible cut-outs which are accessible after installation and which have all-poles switching
are permissible as isolating devices. Effective earthing and separately installed neutral and earth conductors ensure safe and
fault-free operation. After installation, live parts and cables with basic insulation must not be accessible. Old installations should
always be checked.
Refer to the identification plate for specifications for the required mains voltage, current type and fuses.
➤
Application height of the appliance: up to max. 2000 m above sea level
➤
